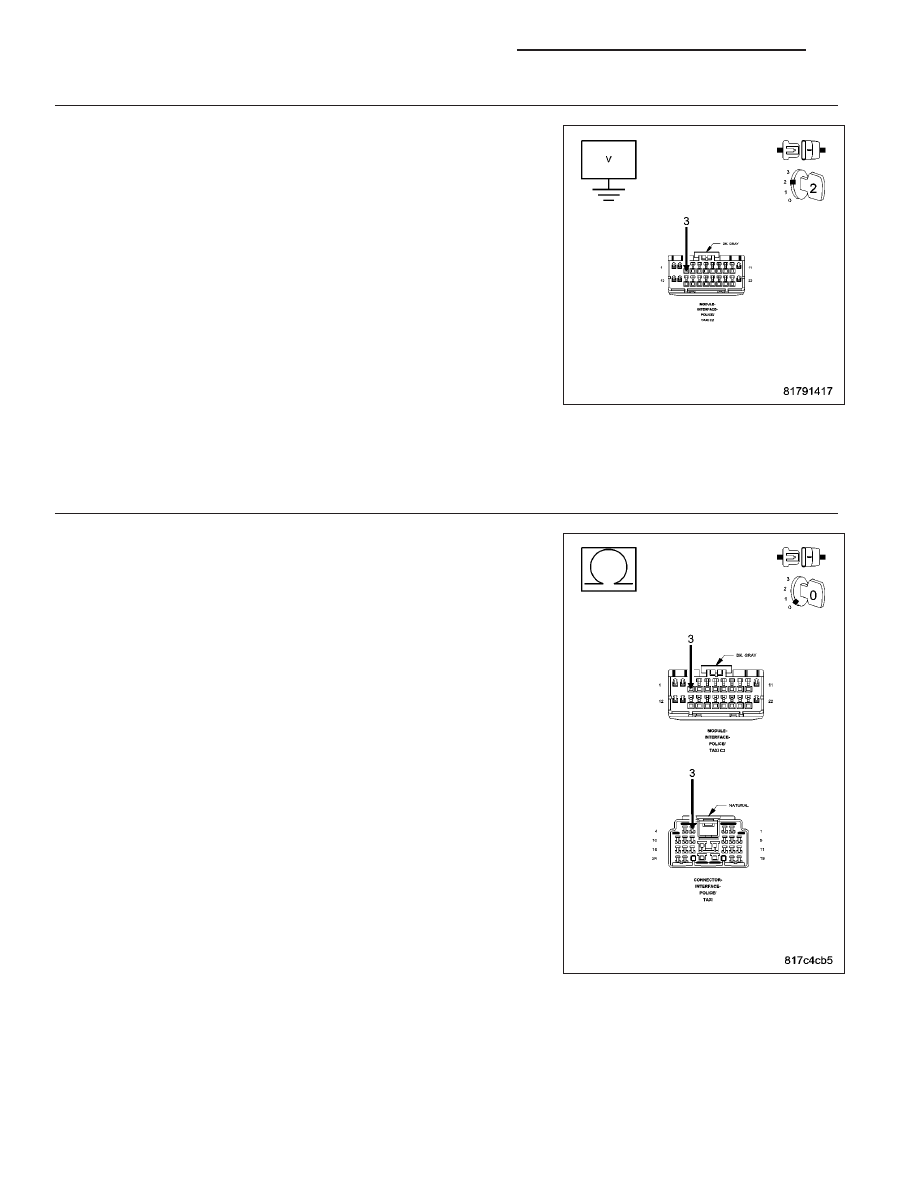

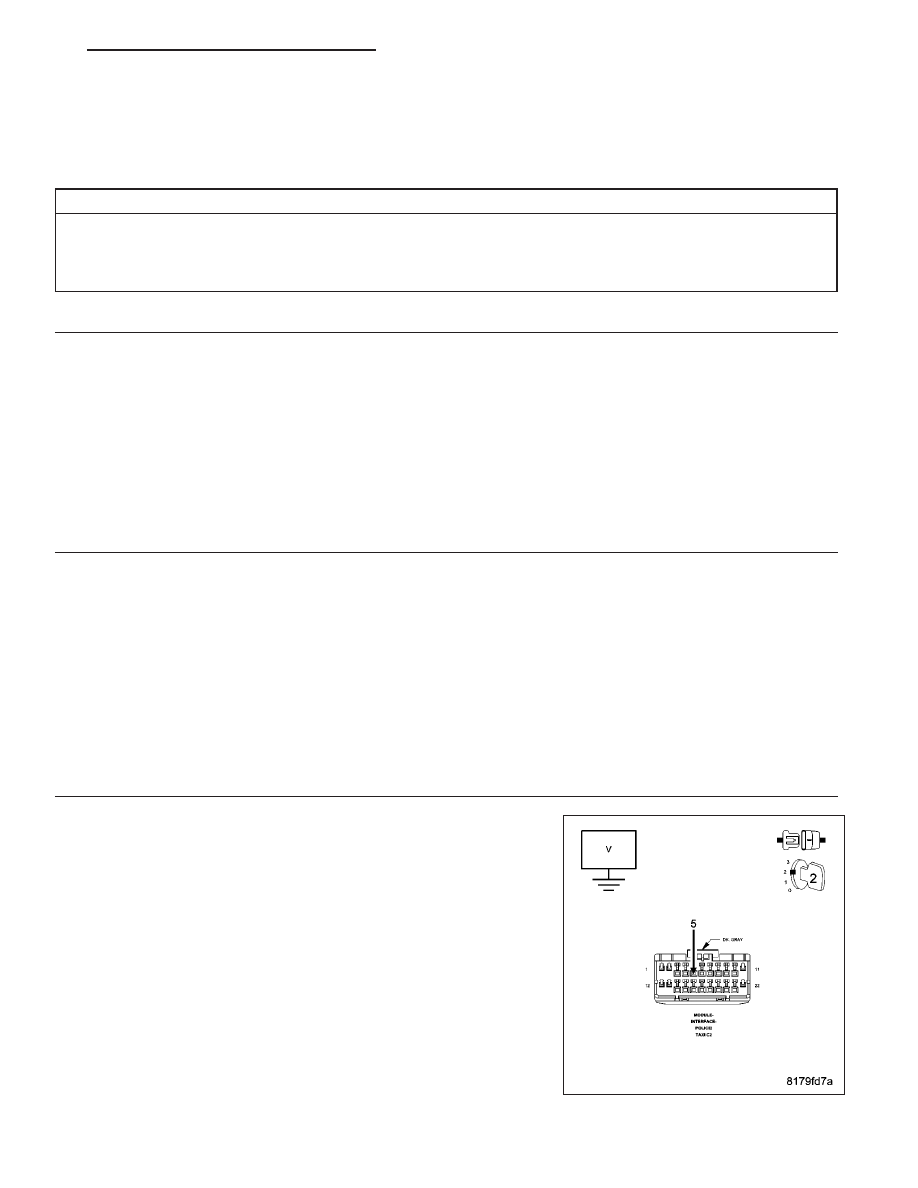

4. ISOLATE THE SHORT TO VOLTAGE IN THE (W511) POLICE RADIO INPUT SIGNAL CIRCUIT Turn the ignition off. Disconnect the Multi-Purpose Module (Police And Taxi Interface Mod- Turn the ignition on. Measure the voltage of the (W511) Police Radio Input Signal circuit Is there any voltage present? Yes >> Repair the (W511) Police Radio Input Signal circuit for a short to power. Perform BODY VERIFICATION TEST – VER 1. (Refer to No >> Refer to electrical diagnostics for the aftermarket light/siren controller, and repair or replace the aftermarket light siren Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1). 5. CHECK THE (W511) POLICE RADIO INPUT SIGNAL CIRCUIT FOR AN OPEN Turn the ignition off. Disconnect the Multi-Purpose Module (Police And Taxi Interface Mod- Measure the resistance of the (W511) Police Radio Input Signal circuit Is the resistance below 5.0 ohms? Yes >> Go To 6. No >> Repair the (W511) Police Radio Input Signal circuit for an open or high resistance. 8M - 102 MESSAGE CENTER - ELECTRICAL DIAGNOSTICS LX |
