When Monitored:
With the Instrument Cluster awake.

Set Condition:
Ignition Switch Sense circuit voltage greater than 4.7 volts.

Possible Causes

(G20) IGNITION SWITCH SENSE CIRCUIT OPEN

(G900) IGNITION SWITCH SENSE RETURN CIRCUIT OPEN

IGNITION SWITCH

INSTRUMENT CLUSTER

Diagnostic Test

1.

CHECK FOR AN ACTIVE DTC

Turn the ignition on.

With the scan tool, record and erase DTCs

Wait 30 seconds.

With the scan tool, read DTCs.

Is the DTC active?

Yes

>> Go To 2

No

>> The condition that caused this code to set is not present at this time. Check for an intermittent condition

by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also
inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated termi-
nals.

Perform BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST - VER 1).

2.

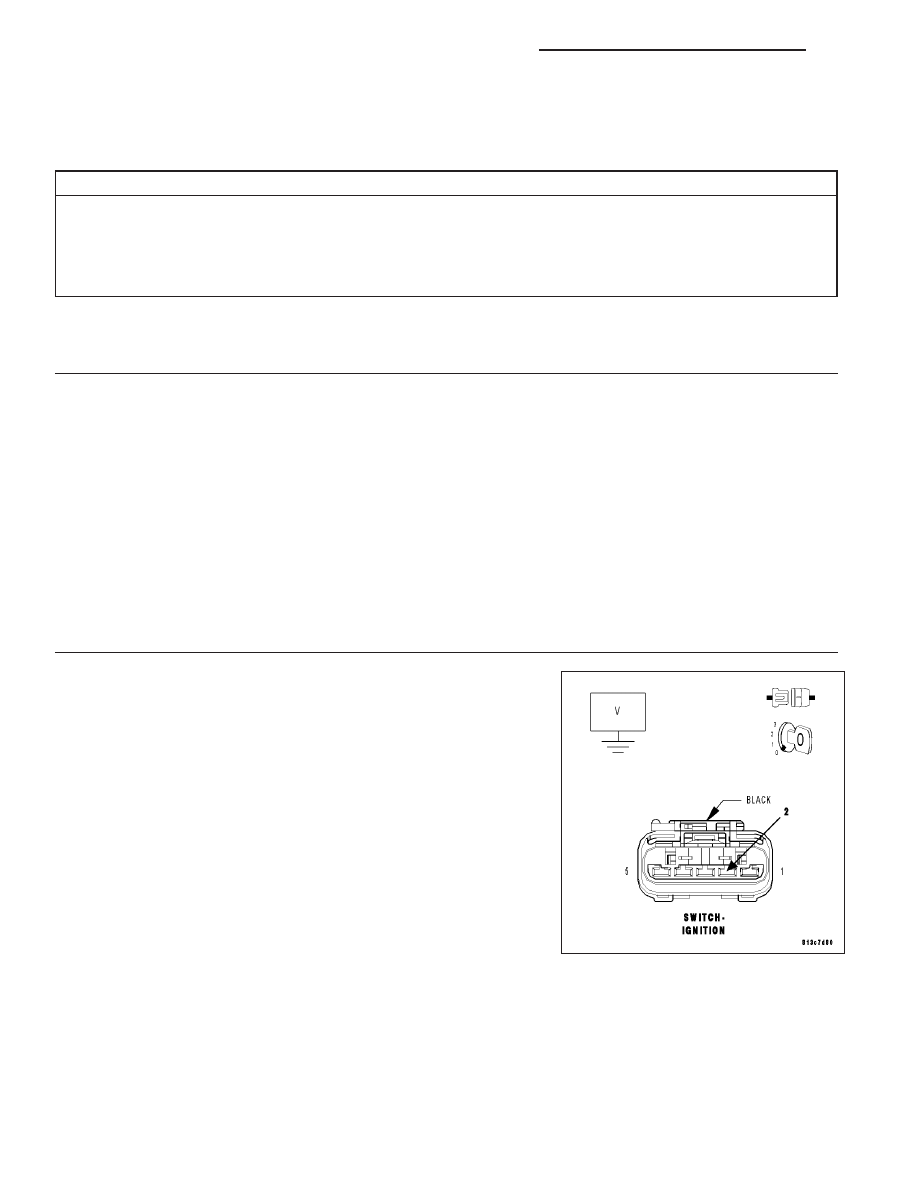

CHECK THE (G20) IGNITION SWITCH SENSE CIRCUIT FOR A SHORT TO VOLTAGE

Turn the ignition off.

Disconnect the Ignition Switch harness connector.

Connect a jumper wire between Ignition Switch harness connector cav-
ities 3 and 5.

NOTE: This will provide power to the vehicle systems with the
ignition switch disconnected.
Measure the voltage on the (G20) Ignition Switch Sense circuit.

Is the voltage above 5.4 volts?

Yes

>> Go To 3

No

>> Go To 4

8J - 36

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

LX

3.

CHECK THE (G20) IGNITION SWITCH SENSE CIRCUIT FOR A SHORT TO VOLTAGE

Remove the jumper wire between Ignition Switch harness connector
cavities 3 and 5.

Disconnect the Instrument Cluster C2 harness connector.

Measure the voltage of the (G20) Ignition Switch Sense Circuit.

Is the voltage above 5.4 volts?

Yes

>> Repair the (G20) Ignition Switch Sense circuit for a short to

voltage.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

No

>> Replace the Instrument Cluster in accordance with the ser-

vice information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

4.

CHECK OPERATION OF IGNITION SWITCH

Turn the ignition off.

Disconnect the Ignition Switch harness connector.

Connect a jumper wire between Ignition Switch harness connector cav-
ities 3 and 5.

NOTE: This will provide power to the vehicle systems with the
ignition switch disconnected.
Connect a jumper wire between Ignition Switch harness connector cav-
ities 1 and 2.

With the scan tool, erase Instrument Cluster DTCs.

Wait 30 seconds.

With the scan tool, read Instrument Cluster DTCs.

Does the scan tool display-B2108-IGNITION SWITCH SENSE
INPUT CIRCUIT LOW?

Yes

>> Replace the Ignition Switch in accordance with the service

information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST - VER 1).

No

>> Go To 5

LX

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

8J - 37

5.

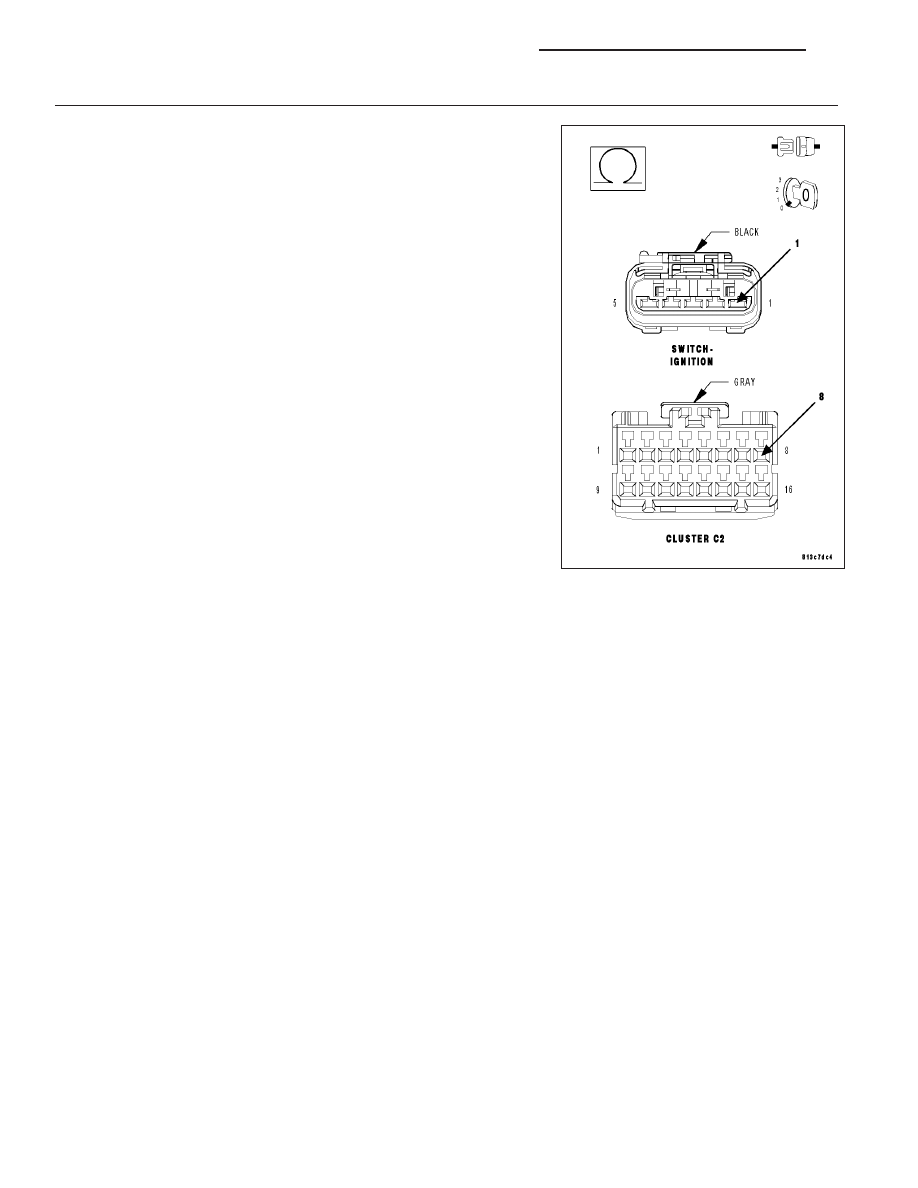

CHECK THE (G900) IGNITION SWITCH SENSE RETURN CIRCUIT FOR AN OPEN.

Remove the jumper wire between Ignition Switch harness connector
cavities 3 and 5.

Disconnect the Instrument Cluster C2 harness connector.

Measure the resistance of the (G900) Ignition Switch Sense Return cir-
cuit between the Instrument Cluster C2 harness connector and the Igni-
tion Switch Harness connector.

Is the resistance greater than 5 ohms?

Yes

>> Repair the (G900) Ignition Switch Sense Return circuit for

an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

No

>> Replace the Instrument Cluster in accordance with the ser-

vice information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

8J - 38

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

LX

B2213–CCN INTERNAL

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the Instrument Cluster awake.

Set Condition:
The Instrument Cluster detects an internal failure.

Possible Causes

INSTRUMENT CLUSTER

Diagnostic Test

1.

VERIFY INSTRUMENT CLUSTER OPERATION

With the scan tool, read Cluster DTCs.

Is DTC: B2213–CABIN COMPARTMENT NODE/CLUSTER INTERNAL active?

YES

>> Replace the Instrument Cluster in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST - VER 1).

NO

>> Test complete.

LX

INSTRUMENT CLUSTER - ELECTRICAL DIAGNOSTICS

8J - 39
