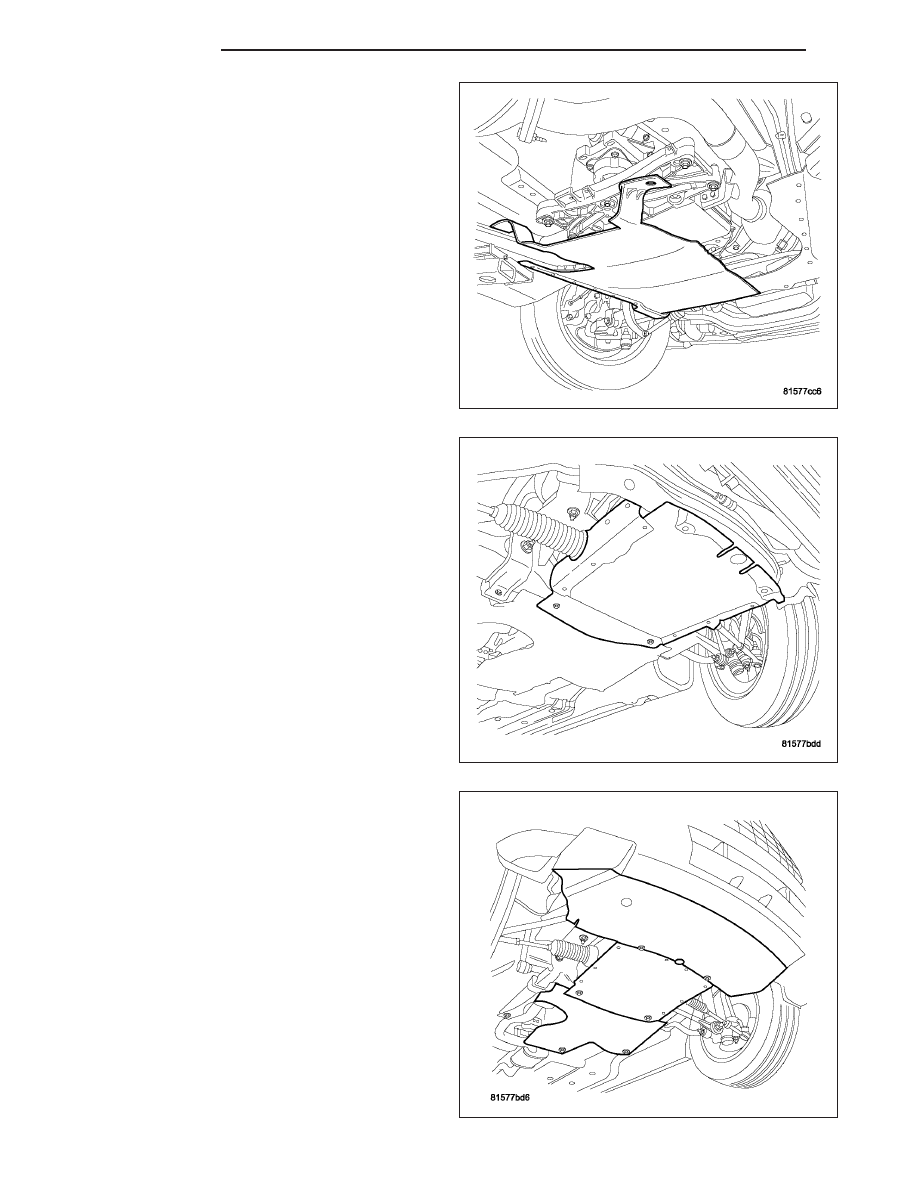

22. Install rear belly pan.

23. Install middle belly pan.

24. Install front belly pan.

8F - 66

CHARGING

LX

25. Install belly pan side shield.

26. Lower vehicle.

27. Connect negative battery cable.

28. Check coolant level and refill if necessary.

3.5L

1. Install generator.

2. Install lower mounting bolts (3). Loosen install the

upper mounting bolt (4).

3. Tighten lower mounting bolts to 65 N·m (48 ft. lbs.).

4. Connect generator field circuit plug.

5. Install B+ terminal nut and wire. Tighten nut to 13

N·m (115 in. lbs.).

6. Install middle splash pan.

7. Lower vehicle.

LX

CHARGING

8F - 67

8. Remove loose installed upper bolt (4).

9. Install bracket (2) and bracket bolt (1).

10. Install upper mounting bolt (4) and bracket (2).

11. Tighten upper mounting bolt to 65 N·m (48 ft.

lbs.).

12. Tighten Bracket bolt to 54 N·m (40 ft. lbs.).

13. Install generator drive belt. Refer to the Cooling

System section.

14. Connect negative battery cable.

6.1L

Rear Wheel Drive (RWD)

1. Position generator (2) to engine and install 2

mounting bolts (1). Do not tighten bolts (1) at this
time.

2. Raise and support vehicle.

8F - 68

CHARGING

LX

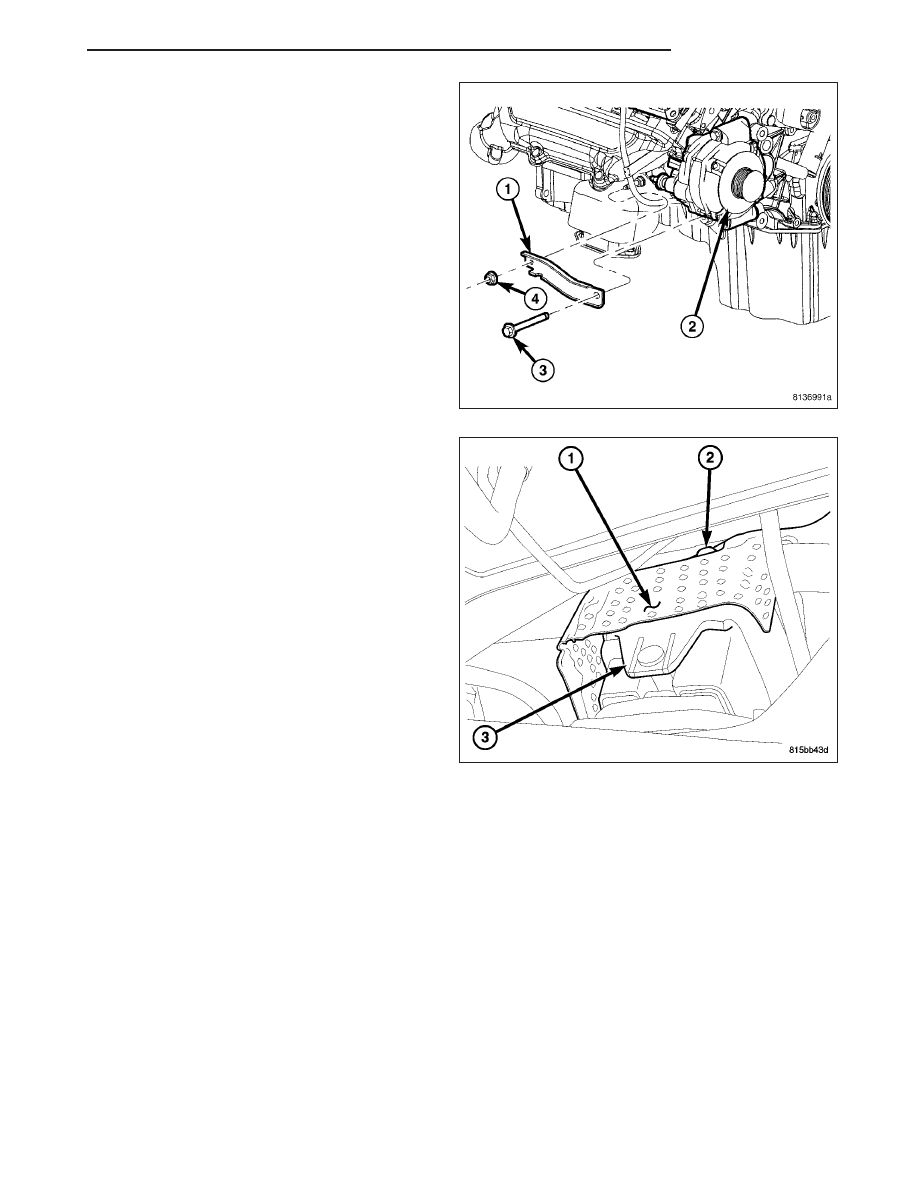

3. Position support bracket (1) to generator and install

bolt (3). Tighten all bolts / nut. Refer to Torque
Specifications.

4. Install heat shield (1) and two heat shield mounting

bolts (2).

5. Snap field wire connector into rear of generator.

6. Install B+ terminal eyelet to generator output stud.

Tighten mounting nut. Refer to Torque Specifica-
tions.

7. Lower vehicle.

CAUTION: Never force a belt over a pulley rim
using a screwdriver. The synthetic fiber of the belt
can be damaged.

CAUTION: When installing a serpentine accessory
drive belt, the belt MUST be routed correctly. The
water pump may be rotating in the wrong direction
if the belt is installed incorrectly, causing the
engine to overheat. Refer to belt routing label in
engine compartment, or refer to Belt Schematics
in 7, Cooling System.

8. Install generator drive belt. Refer to 7, Cooling System for procedure.

9. Install upper radiator hose and fill cooling system with coolant.

10. Install negative battery cable to battery.

LX

CHARGING

8F - 69
