B2112-5 VOLT SUPPLY CIRCUIT LOW

For a complete wiring diagram Refer to Section 8W.

8E - 6

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

LX

When Monitored:
With the ignition on.

Set Condition:
The Front Control Module detects the (F891) 5 volt supply circuit voltage below 4 volts.

Possible Causes

(F891) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

A/C PRESSURE TRANSDUCER

FRONT CONTROL MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

With the scan tool, read the active DTC’s.

Cycle the ignition switch from off to on, leaving the ignition on for a minimum of 90 seconds.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 2

No

>> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness con-

nectors. Look for broken, bent, pushed out, or corroded terminals.

2.

A/C PRESSURE TRANSDUCER

Turn the ignition off.

Disconnect the A/C Pressure Transducer harness connector.

Cycle the ignition switch from off to on, leaving the ignition on for a minimum of 90 seconds.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 3

No

>> Replace the A/C Pressure Transducer in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

3.

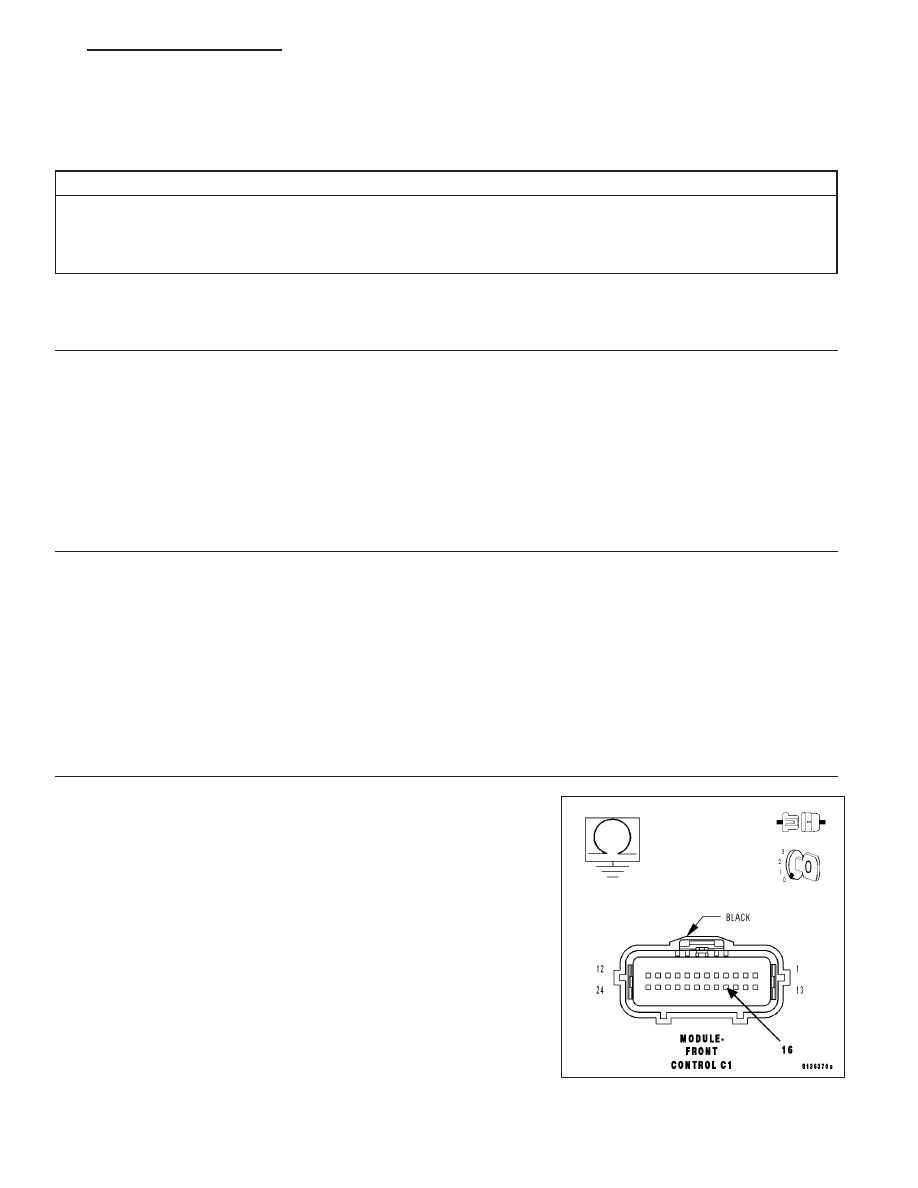

(F891) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the FCM C1 harness connector.

Measure the resistance between ground and the (F891) 5 Volt Supply
circuit.

Is the resistance below 1000.0 ohms?

Yes

>> Repair the (F891) 5 Volt Supply circuit for a short to

ground.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Inspect the wiring and connectors for damage or shorted

circuits. If ok, replace and program the Front Control Mod-
ule in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

LX

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 7

B2113-5 VOLT SUPPLY CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W.

8E - 8

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

LX

When Monitored:
With the ignition on.

Set Condition:
The Front Control Module detects the (F891) 5 volt supply circuit voltage above 5.0 volts.

Possible Causes

(F891) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

A/C PRESSURE TRANSDUCER

FRONT CONTROL MODULE

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

With the scan tool, read the active DTC’s.

Cycle the ignition switch from off to on, leaving the ignition on for a minimum of 90 seconds.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 2

No

>> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness con-

nectors. Look for broken, bent, pushed out, or corroded terminals.

2.

A/C PRESSURE TRANSDUCER

Turn the ignition off.

Disconnect the A/C Pressure Transducer harness connector.

Cycle the ignition switch from off to on, leaving the ignition on for a minimum of 90 seconds.

With the scan tool, read the active DTC’s.

Does the scan tool display this DTC as active?

Yes

>> Go To 3

No

>> Replace the A/C Pressure Transducer in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

3.

(F891) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the FCM C1 harness connector.

Turn the ignition on.

Measure the voltage of the (F891) 5 Volt Supply circuit.

Is the voltage above 5.5 volts?

Yes

>> Repair the (F891) 5 Volt Supply circuit for a short to volt-

age.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Inspect the wiring and connectors for damage or shorted

circuits. If ok, replace and program the Front Control Mod-
ule in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

LX

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 9
