4.

CHECK THE (X292) AMPLIFIED RIGHT FRONT DOOR SPEAKER (-) CIRCUIT FOR AN OPEN

Turn the ignition off.

Disconnect the Amplifier C1 harness connector.

Measure the resistance of the (X292) Amplified Right Front Door Speaker (-) circuit between the Amplifier C1 har-
ness connector and the Amplified Right Front Door Speaker harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the Amplifier in accordance with the service information.

Perform BODY VERIFICATION TEST VER-1.

No

>> Repair the (X292) Amplified Right Front Door Speaker (-) circuit for an open.

Perform BODY VERIFICATION TEST VER-1.

8A - 54

AUDIO - ELECTRICAL DIAGNOSTICS

LX

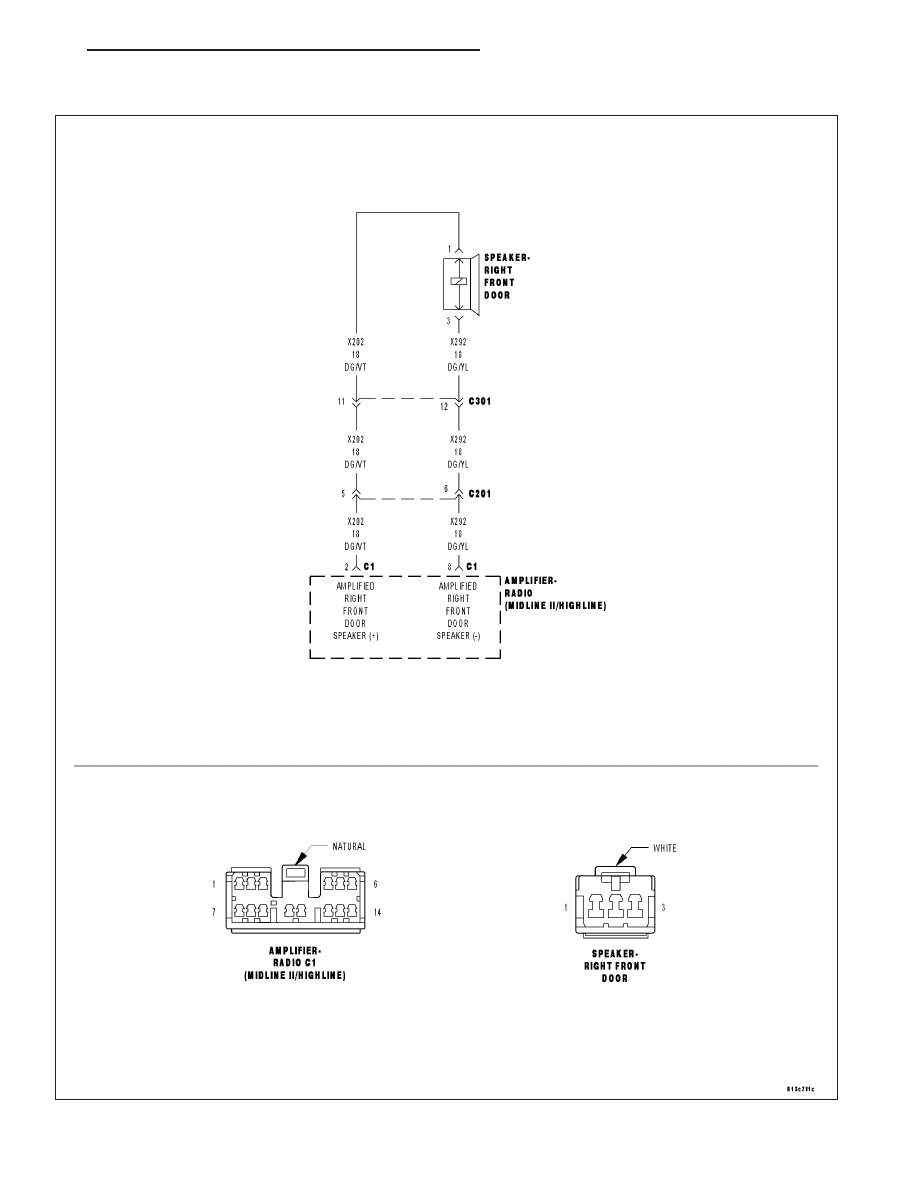

B1473-CHANNEL 4 AUDIO SPEAKER OUTPUT CIRCUIT SHORTED TOGETHER

For a complete wiring diagram Refer to Section 8W.

LX

AUDIO - ELECTRICAL DIAGNOSTICS

8A - 55

When Monitored:

With the ignition on. Radio volume at 25 or higher.

Set Condition:

The amplifier detects that the output circuits are shorted together.

Possible Causes

(X202) AMPLIFIED RIGHT FRONT DOOR SPEAKER (+) CIRCUIT SHORTED TO THE (X292) AMPLIFIED
RIGHT FRONT DOOR SPEAKER (-) CIRCUIT

AMPLIFIED RIGHT FRONT DOOR SPEAKER

AMPLIFIER

Diagnostic Test

1.

CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on, then off, and then on again.

With the scan tool, erase Amplifier DTCs.

Turn the radio on.

Turn the volume level to 25.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1473-CHANNEL 4 AUDIO SPEAKER OUTPUT CIRCUIT SHORTED
TOGETHER?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST VER-1.

2.

CHECK THE OPERATION OF THE AMPLIFIED RIGHT FRONT DOOR SPEAKER

Disconnect the Amplified Right Front Door Speaker.

Measure the resistance of the speaker between the two terminals.

Is the resistance of the speaker less than 1 ohm?

Yes

>> Replace the Amplified Right Front Door Speaker in accordance with the service information.

Perform BODY VERIFICATION TEST VER-1.

No

>> Go To 3

3.

CHECK THE (X202) AMPLIFIED RIGHT FRONT DOOR SPEAKER (+) CIRCUIT, AND THE (X292)
AMPLIFIED RIGHT FRONT DOOR SPEAKER (-) CIRCUITS FOR A SHORT TOGETHER

Turn the ignition off.

Disconnect the Amplifier C1 harness connector.

Measure the resistance between the (X202) Amplified Right Front Door Speaker (+) circuit, and the (X292) Amplified
Right Front Door Speaker (-) circuit.

Is the resistance below 10K ohms?

Yes

>> Repair the (X202) Amplified Right Front Door Speaker (+) circuit, and the (X292) Amplified Right Front

Door Speaker (-) circuit for a short together.

Perform BODY VERIFICATION TEST VER-1.

No

>> Replace the Amplifier in accordance with the service information.

Perform BODY VERIFICATION TEST VER-1.

8A - 56

AUDIO - ELECTRICAL DIAGNOSTICS

LX

B1474-CHANNEL 5 AUDIO SPEAKER OUTPUT CIRCUIT PERFORMANCE

For a complete wiring diagram Refer to Section 8W.

When Monitored:

With the ignition on.

Set Condition:

This DTC will set if a DC offset occurs on the output channel, the amplifier shall set a DTC after a maturity
rate of 5 ±1 sec.

Possible Causes

AMPLIFIER

Diagnostic Test

1.

CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on, then off, and then on again.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1474-CHANNEL 5 AUDIO SPEAKER OUTPUT CIRCUIT PERFOR-
MANCE?

Yes

>> Replace the Amplifier in accordance with the service information.

Perform BODY VERIFICATION TEST VER-1.

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST VER-1.

LX

AUDIO - ELECTRICAL DIAGNOSTICS

8A - 57
