Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 2369





EXHAUST GAS RECIRCULATION

SPECIFICATIONS

TORQUE

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Tube to Exhaust Manifold

Bolts

31

23

275

Tube to EGR valve Bolts

11

-

95

EGR Valve to Cyl. Head

Bolts

31

23

275

25 - 34

EXHAUST GAS RECIRCULATION

LX

TUBE-EXHAUST GAS RECIRCULATION

REMOVAL

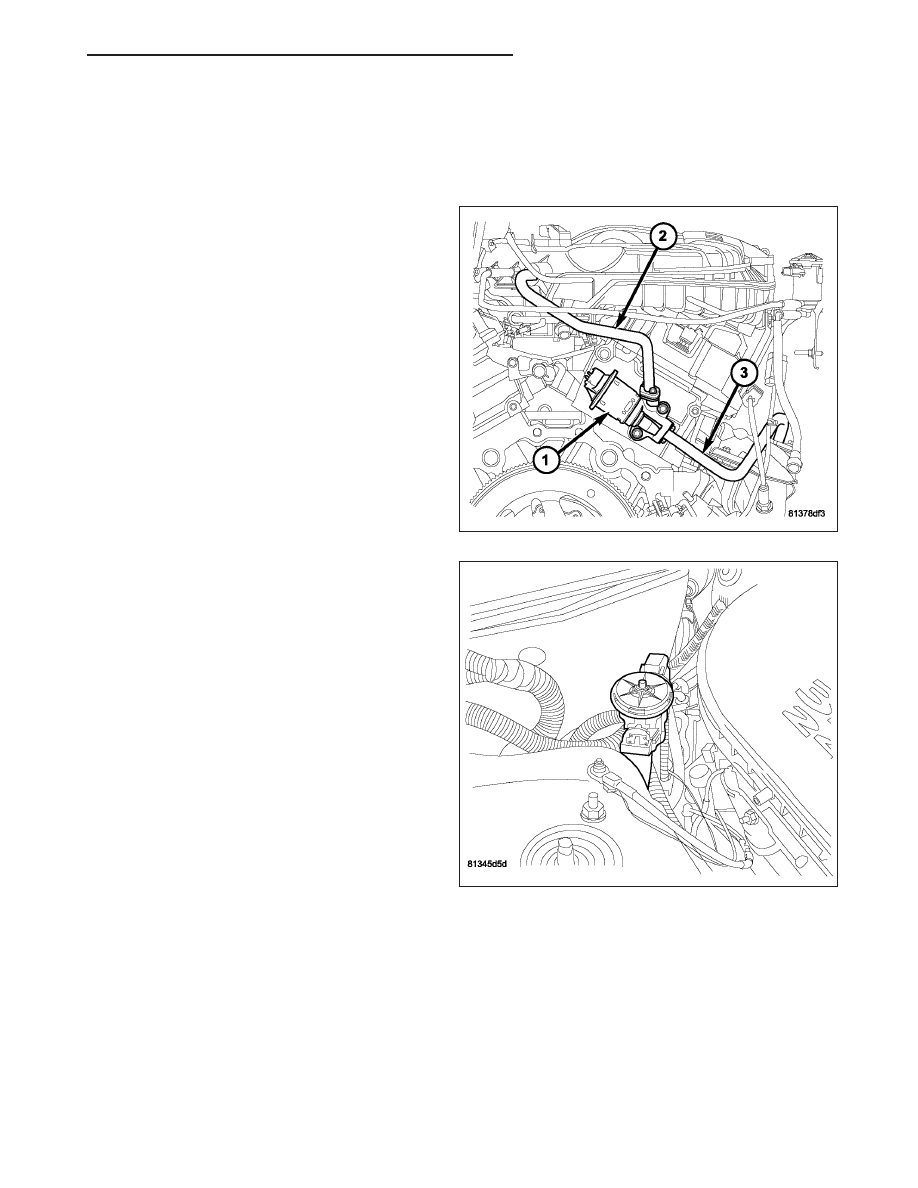

2.7L - LOWER TUBE

1. Disconnect negative battery cable.

2. Remove purge solenoid from bracket.

LX

EXHAUST GAS RECIRCULATION

25 - 35

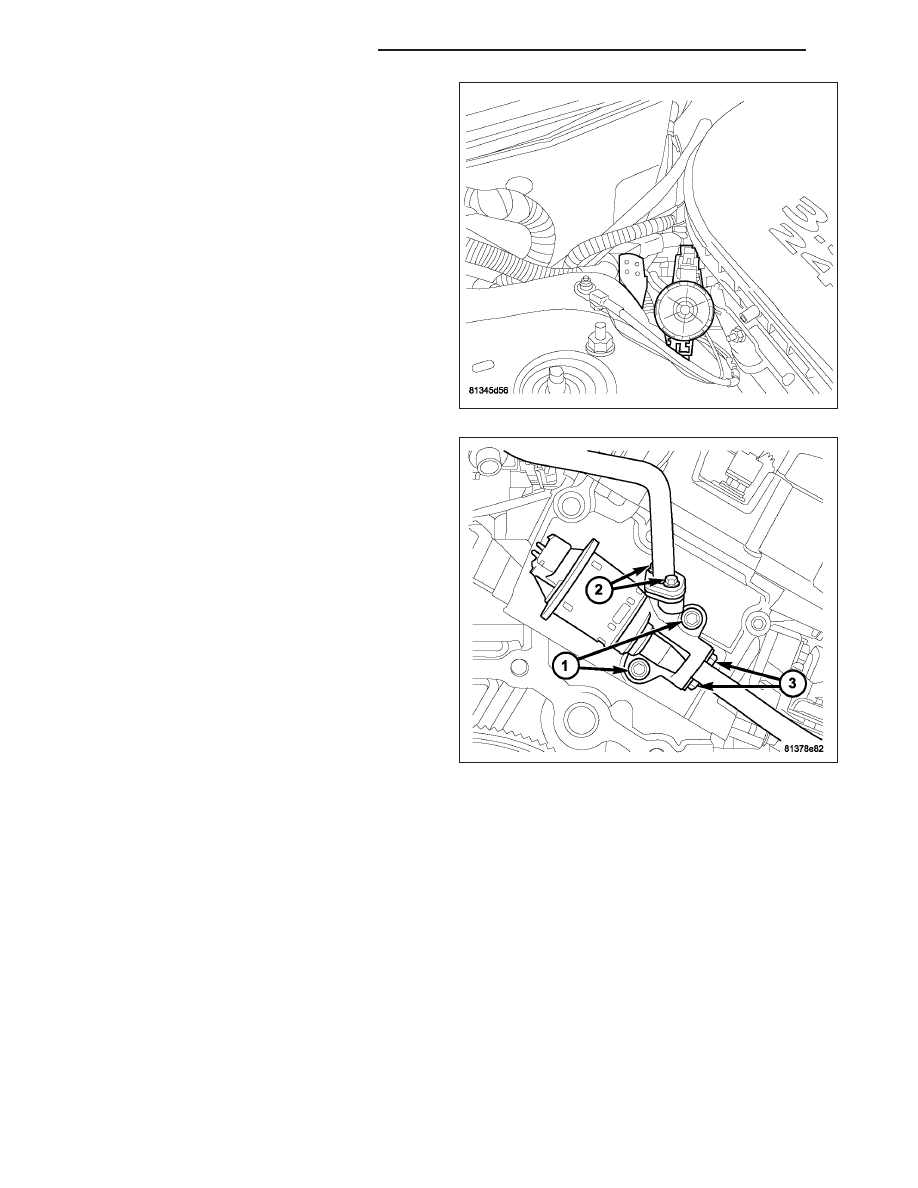

3. Relocate the purge solenoid.

4. Unlock and disconnect the electrical connector

from EGR valve.

5. Remove the bolts from the lower tube to exhaust

manifold.

6. Remove the lower tube bolts to EGR valve.

7. Remove lower tube from vehicle.

8. When removing EGR upper tube assembly being

careful not to drop the silicone rubber seals in the
intake manifold. Clean gasket surfaces on the EGR
valve. Note that any loose dirt can lodge between
the pintle and the seat and cause valve leakage
that will give a rough idle and depressed manifold
vacuum.

9. Clean mounting surface.

25 - 36

EXHAUST GAS RECIRCULATION

LX

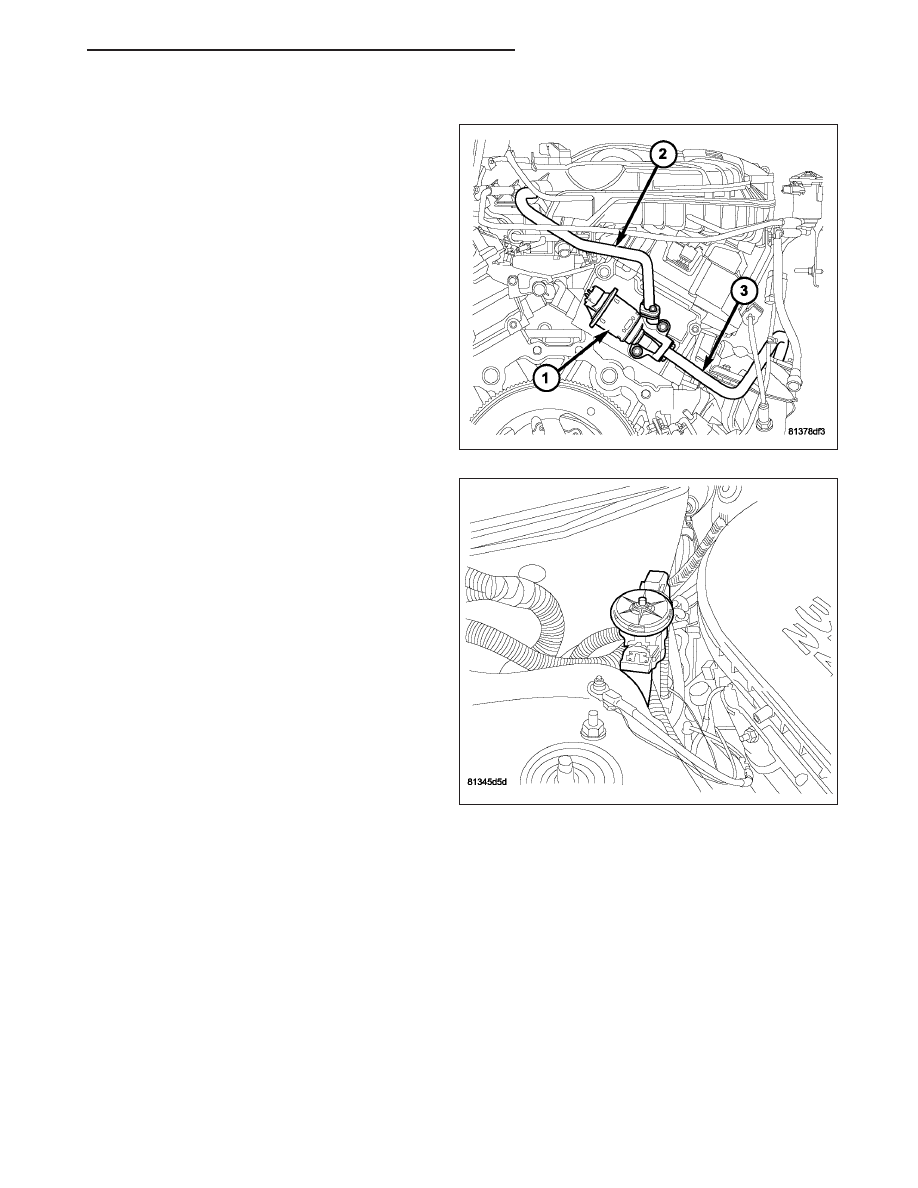

2.7L - UPPER TUBE

1. EGR system components and location. Upper tube

(2), EGR valve (1), and Lower tube (3).

2. Disconnect negative battery cable.

3. Remove purge solenoid from bracket.

LX

EXHAUST GAS RECIRCULATION

25 - 37
