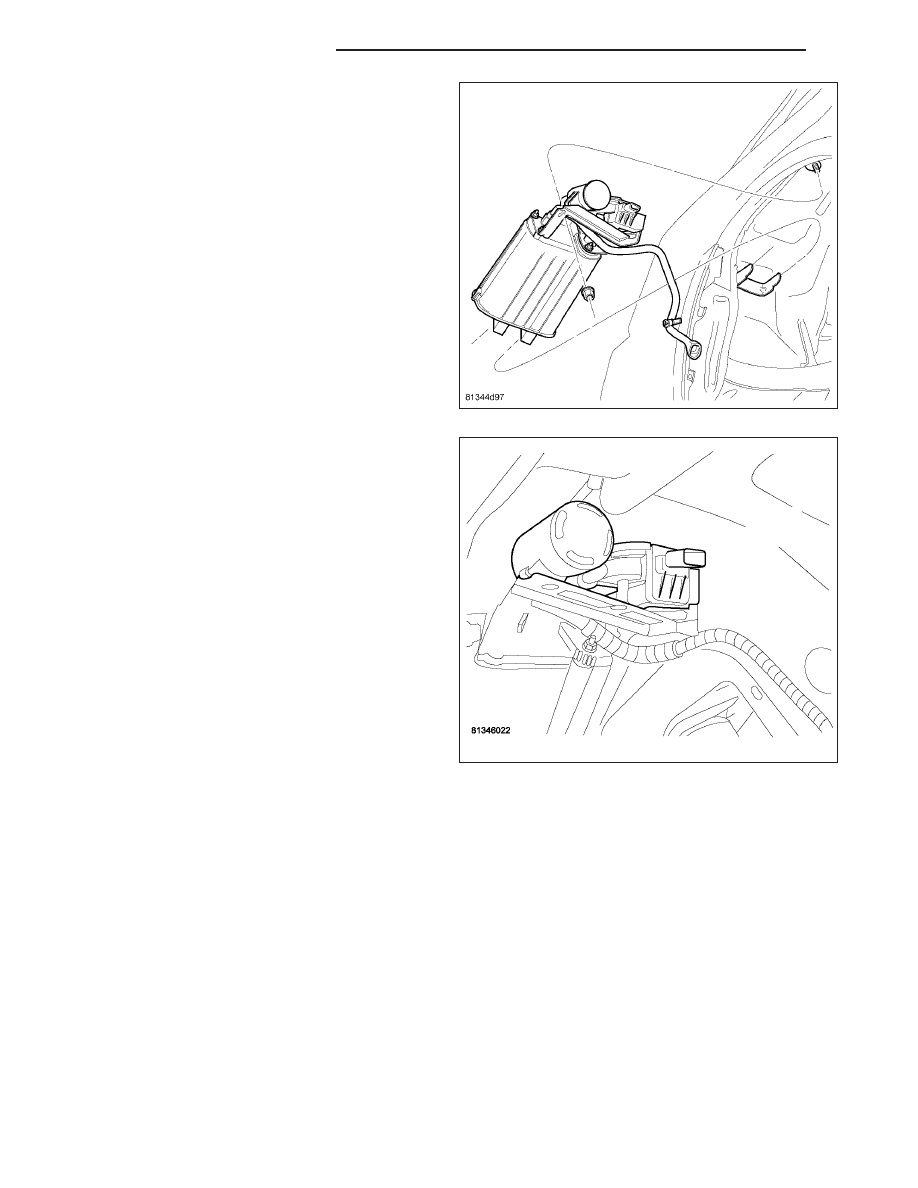

3. Install vapor canister and pump assembly to

vehicle.

4. Install inner splash shield.

5. Install right rear tire.

6. Lower vehicle.

7. Connect negative battery cable.

25 - 22

EVAPORATIVE EMISSIONS

LX

PCV VALVE

REMOVAL

5.7L

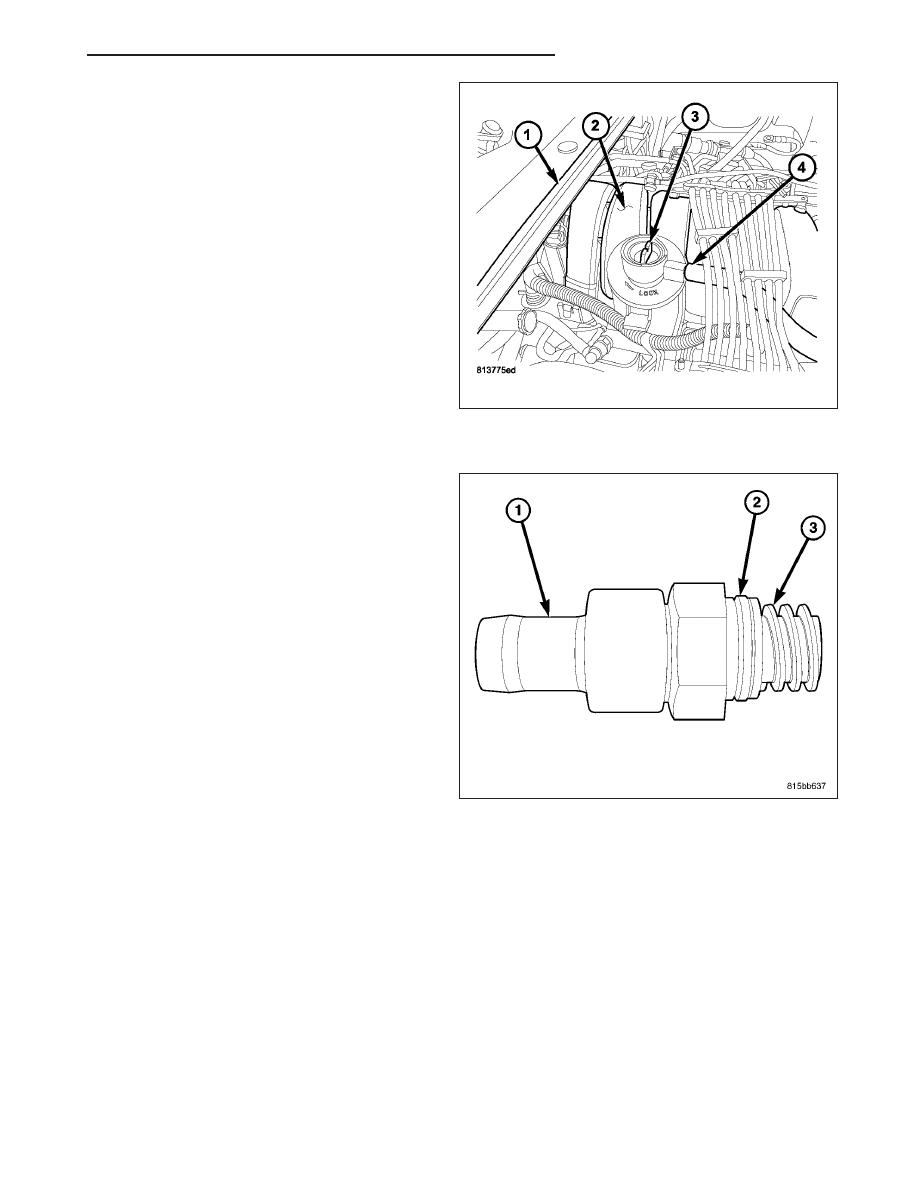

The PCV valve (3) is mounted into the top/right side of
the intake manifold (2).

1. The PCV valve (1) is sealed to the intake manifold

with two O-rings (2).

2. Remove PCV valve by rotating counter-clockwise

90 degrees until locating tabs (3) have been freed.
After tabs have cleared, pull valve straight up from
intake manifold.

3. After valve is removed, check condition of two

valve O-rings (2).

LX

EVAPORATIVE EMISSIONS

25 - 23

6.1L

The PCV valve (1) is threaded into the right-front cor-
ner of the intake manifold.

1. Remove rubber hose (2) from PCV valve.

2. Unscrew PCV valve (1) from intake manifold.

INSTALLATION

5.7L

1. Clean out intake manifold opening.

2. Check condition of two O-rings (2) on PCV valve

(1).

3. Apply engine oil to two O-rings.

25 - 24

EVAPORATIVE EMISSIONS

LX

4. Place PCV valve (3) into intake manifold and rotate

90 degrees clockwise for installation.

6.1L

1. Check condition of PCV valve o-ring (2).

2. Check condition of PCV valve threads (3). Clean if

necessary.

LX

EVAPORATIVE EMISSIONS

25 - 25
