The PCM can detect and compensate for variances in the engine and its components. To learn these variations, the
PCM uses the input of the actual crankshaft rotation pattern and ideal crankshaft rotation pattern that has been
calibrated into the PCM. The PCM then compares the two patterns. The variation between the two values is the
Adaptive Numerator. If the Adaptive Numerator is not learned by the PCM, the misfire monitor will not run and the
Multi-Cylinder Displacement System (MDS) will not operate. Without MDS operation, the customer will experience
decreased fuel economy. If the customer experiences decrease fuel economy, use the scan tool to ensure that the
Adaptive Numerator is learned.

FUEL SYSTEM MONITOR

To comply with clean air regulations, vehicles are equipped with catalytic converters. These converters reduce the
emission of hydrocarbons, oxides of nitrogen and carbon monoxide. The catalyst works best when the air fuel (A/F)
ratio is at or near the optimum of 14.7 to 1.

The PCM is programmed to maintain the optimum air/fuel ratio. This is done by making short term corrections in the
fuel injector pulse width based on the O2S output. The programmed memory acts as a self calibration tool that the
engine controller uses to compensate for variations in engine specifications, sensor tolerances and engine fatigue
over the life span of the engine. By monitoring the actual air-fuel ratio with the O2S (short term) and multiplying that
with the program long-term (adaptive) memory and comparing that to the limit, it can be determined whether it will
pass an emissions test. If a malfunction occurs such that the PCM cannot maintain the optimum A/F ratio, then the
MIL will be illuminated.

CATALYST MONITOR

To comply with clean air regulations, vehicles are equipped with catalytic converters. These converters reduce the
emission of hydrocarbons, oxides of nitrogen and carbon monoxide.

Normal vehicle miles or engine misfire can cause a catalyst to decay. A meltdown of the ceramic core can cause a
reduction of the exhaust passage. This can increase vehicle emissions and deteriorate engine performance, drive-
ability and fuel economy.

The catalyst monitor uses dual oxygen sensors (O2S’s) to monitor the efficiency of the converter. The dual O2S’s
strategy is based on the fact that as a catalyst deteriorates, its oxygen storage capacity and its efficiency are both
reduced. By monitoring the oxygen storage capacity of a catalyst, its efficiency can be indirectly calculated. The
upstream O2S is used to detect the amount of oxygen in the exhaust gas before the gas enters the catalytic con-
verter. The PCM calculates the A/F mixture from the output of the O2S. A low voltage indicates high oxygen content
(lean mixture). A high voltage indicates a low content of oxygen (rich mixture).

When the upstream O2S detects a lean condition, there is an abundance of oxygen in the exhaust gas. A function-
ing converter would store this oxygen so it can use it for the oxidation of HC and CO. As the converter absorbs the
oxygen, there will be a lack of oxygen downstream of the converter. The output of the downstream O2S will indicate
limited activity in this condition.

As the converter loses the ability to store oxygen, the condition can be detected from the behavior of the down-
stream O2S. When the efficiency drops, no chemical reaction takes place. This means the concentration of oxygen
will be the same downstream as upstream. The output voltage of the downstream O2S copies the voltage of the
upstream sensor. The only difference is a time lag (seen by the PCM) between the switching of the O2S’s.

To monitor the system, the number of lean-to-rich switches of upstream and downstream O2S’s is counted. The
ratio of downstream switches to upstream switches is used to determine whether the catalyst is operating properly.
An effective catalyst will have fewer downstream switches than it has upstream switches i.e., a ratio closer to zero.
For a totally ineffective catalyst, this ratio will be one-to-one, indicating that no oxidation occurs in the device.

The system must be monitored so that when catalyst efficiency deteriorates and exhaust emissions increase to over
the legal limit, the MIL (Check Engine lamp) will be illuminated.

NATURAL VACUUM LEAK DETECTION (NVLD)

The Natural Vacuum Leak Detection (NVLD) system is the next generation evaporative leak detection system that
will first be used on vehicles equipped with the Next Generation Controller (NGC). This new system replaces the
leak detection pump as the method of evaporative system leak detection. This is to detect a leak equivalent to a
0.020

9

(0.5 mm) hole. This system has the capability to detect holes of this size very dependably.

The basic leak detection theory employed with NVLD is the

9

Gas Law

9

. This is to say that the pressure in a sealed

vessel will change if the temperature of the gas in the vessel changes. The vessel will only see this effect if it is
indeed sealed. Even small leaks will allow the pressure in the vessel to come to equilibrium with the ambient pres-

25 - 10

EMISSIONS CONTROL

LX

sure. In addition to the detection of very small leaks, this system has the capability of detecting medium as well as
large evaporative system leaks.

The NVLD seals the canister vent during engine off conditions. If the EVAP system has a leak of less than the
failure threshold, the evaporative system will be pulled into a vacuum, either due to the cool down from operating
temperature or diurnal ambient temperature cycling. The diurnal effect is considered one of the primary contributors
to the leak determination by this diagnostic. When the vacuum in the system exceeds about 1

9

H2O (0.25 KPA), a

vacuum switch closes. The switch closure sends a signal to the NGC. The NGC, via appropriate logic strategies
(described below), utilizes the switch signal, or lack thereof, to make a determination of whether a leak is present.

The NVLD device is designed with a normally open vacuum switch, a normally closed solenoid, and a seal, which
is actuated by both the solenoid and a diaphragm. The NVLD is located on the atmospheric vent side of the can-
ister. The NVLD assembly may be mounted on top of the canister outlet, or in-line between the canister and atmo-
spheric vent filter. The normally open vacuum switch will close with about 1

9

H2O (0.25 KPA) vacuum in the

evaporative system. The diaphragm actuates the switch. This is above the opening point of the fuel inlet check valve
in the fill tube so cap off leaks can be detected. Submerged fill systems must have recirculation lines that do not
have the in-line normally closed check valve that protects the system from failed nozzle liquid ingestion, in order to
detect cap off conditions.

The normally closed valve in the NVLD is intended to maintain the seal on the evaporative system during the engine
off condition. If vacuum in the evaporative system exceeds 3

9

to 6

9

H2O (0.75 to 1.5 KPA), the valve will be pulled

off the seat, opening the seal. This will protect the system from excessive vacuum as well as allowing sufficient
purge flow in the event that the solenoid was to become inoperative.

The solenoid actuates the valve to unseal the canister vent while the engine is running. It also will be used to close
the vent during the medium and large leak tests and during the purge flow check. This solenoid requires initial 1.5
amps of current to pull the valve open but after 100 ms. will be duty cycled down to an average of about 150 mA
for the remainder of the drive cycle.

Another feature in the device is a diaphragm that will open the seal in the NVLD with pressure in the evaporative
system. The device will

9

blow off

9

at about 0.5

9

H2O (0.12 KPA) pressure to permit the venting of vapors during

refueling. An added benefit to this is that it will also allow the tank to

9

breathe

9

during increasing temperatures, thus

limiting the pressure in the tank to this low level. This is beneficial because the induced vacuum during a subse-
quent declining temperature will achieve the switch closed (pass threshold) sooner than if the tank had to decay
from a built up pressure.

The device itself has 3 wires: Switch sense, solenoid driver and ground. The NGC utilizes a high-side driver to
energize and duty-cycle the solenoid.

HIGH AND LOW LIMITS

The PCM compares input signal voltages from each input device with established high and low limits for the device.
If the input voltage is not within limits and other criteria are met, the PCM stores a diagnostic trouble code in mem-
ory. Other diagnostic trouble code criteria might include engine RPM limits or input voltages from other sensors or
switches that must be present before verifying a diagnostic trouble code condition.

OPERATION

SYSTEM

The Powertrain Control Module (PCM) monitors many different circuits in the fuel injection, ignition, emission and
engine systems. If the PCM senses a problem with a monitored circuit often enough to indicate an actual problem,
it stores a Diagnostic Trouble Code (DTC) in the PCM’s memory. If the code applies to a non-emissions related
component or system, and the problem is repaired or ceases to exist, the PCM cancels the code after 40 warmup
cycles. Diagnostic trouble codes that affect vehicle emissions illuminate the Malfunction Indicator Lamp (MIL). Refer
to Malfunction Indicator Lamp in this section.

Certain criteria must be met before the PCM stores a DTC in memory. The criteria may be a specific range of
engine RPM, engine temperature, and/or input voltage to the PCM.

The PCM might not store a DTC for a monitored circuit even though a malfunction has occurred. This may happen
because one of the DTC criteria for the circuit has not been met. For example, assume the diagnostic trouble code
criteria requires the PCM to monitor the circuit only when the engine operates between 750 and 2000 RPM. Sup-
pose the sensor’s output circuit shorts to ground when engine operates above 2400 RPM (resulting in 0 volt input

LX

EMISSIONS CONTROL

25 - 11

to the PCM). Because the condition happens at an engine speed above the maximum threshold (2000 rpm), the
PCM will not store a DTC.

There are several operating conditions for which the PCM monitors and sets DTC’s. Refer to Monitored Systems,
Components, and Non-Monitored Circuits in this section.

NOTE: Various diagnostic procedures may actually cause a diagnostic monitor to set a DTC. For instance,
pulling a spark plug wire to perform a spark test may set the misfire code. When a repair is completed and
verified, use the scan tool to erase all DTC’s and extinguish the MIL.

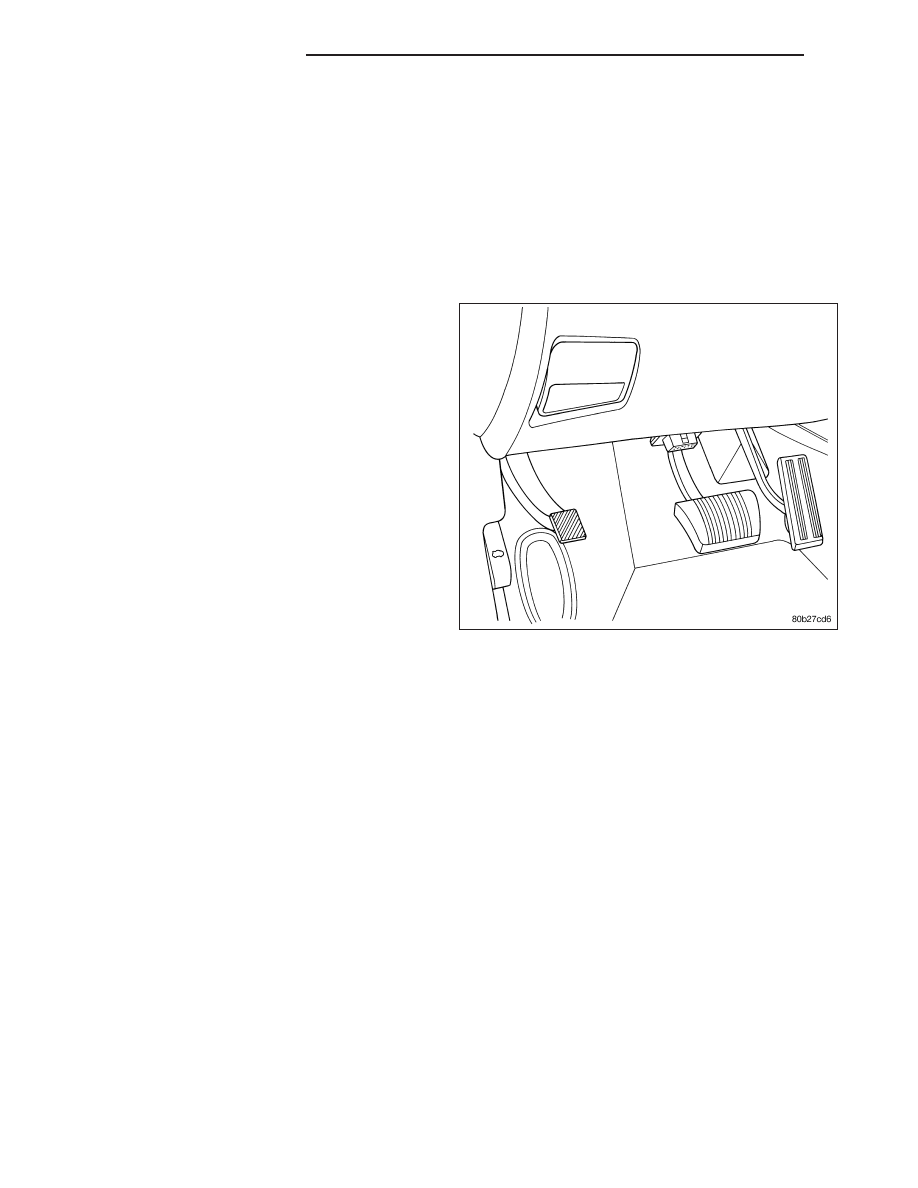

Technicians can display stored DTC’s. For obtaining the DTC information, use the Data Link Connector with the
scan tool.

STATE DISPLAY TEST MODE

OPERATION

The switch inputs to the Powertrain Control Module
(PCM) have two recognized states; HIGH and LOW.
For this reason, the PCM cannot recognize the differ-
ence between a selected switch position versus an
open circuit, a short circuit, or a defective switch. If the
State Display screen shows the change from HIGH to
LOW or LOW to HIGH, assume the entire switch cir-
cuit to the PCM functions properly. From the state dis-
play screen, access either State Display Inputs and
Outputs or State Display Sensors.

25 - 12

EMISSIONS CONTROL

LX

EVAPORATIVE EMISSIONS

TABLE OF CONTENTS

page

page

EVAPORATIVE EMISSIONS

DIAGNOSIS AND TESTING

OBD II MONITOR INFORMATION . . . . . . . . . . . . . 14
OBD II MONITOR RUN PROCESS . . . . . . . . . . . . 15

SOLENOID-PROPORTIONAL PURGE

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

ASSEMBLY-NATURAL VAC LEAK DETECTION

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

PCV VALVE

REMOVAL

5.7L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.1L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

INSTALLATION

5.7L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.1L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

CANISTER-VAPOR

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

LX

EVAPORATIVE EMISSIONS

25 - 13
