11. Use a wrench inserted through the access slot on

the outer latch face of the rear door shell to
loosen the hex socket latch release adjusting
screw (2) on the latch (1).

12. Cycle the door outside latch release handle

through its full travel two or three times.

13. Tighten the adjusting screw.

23 - 76

DOOR - REAR

LX

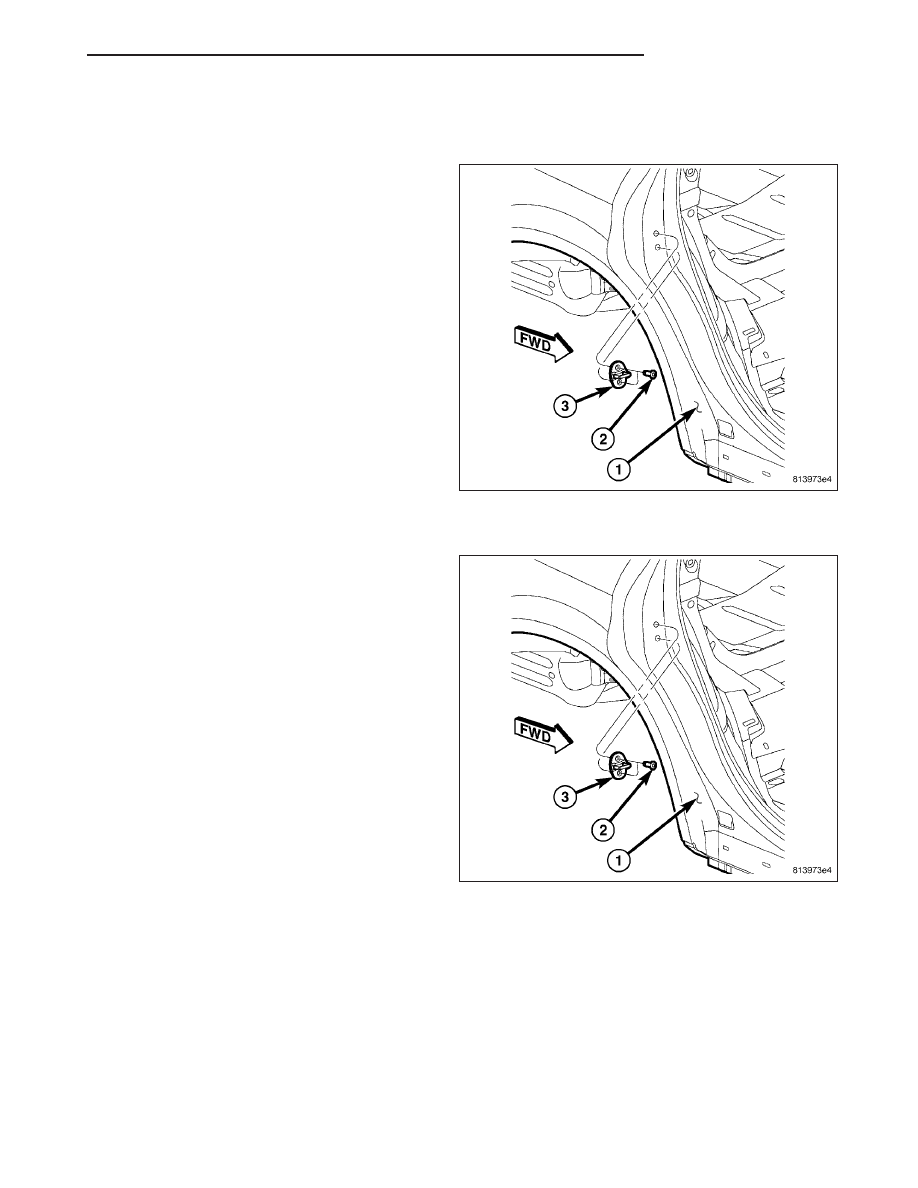

STRIKER

REMOVAL

1. Open the rear door.

2. Mark the rear door latch striker (3) location on the

face of the outer C-pillar (1) to aid reinstallation.

3. Remove the two screws (2) that secure the striker

to the C-pillar.

4. Remove the striker from the C-pillar.

INSTALLATION

1. Position the rear door latch striker (3) on the face

of the outer C-pillar (1).

2. Install and tighten the two screws (2) that secure

the striker to the C-pillar. Tighten the screws to 33
N·m (24 ft. lbs.).

3. Adjust the latch striker position as necessary to

achieve proper door spacing and latch operation.

LX

DOOR - REAR

23 - 77

TRIM PANEL

REMOVAL

1. Disconnect and isolate the battery negative cable.

(Refer to 8 - ELECTRICAL/BATTERY SYSTEM -
STANDARD PROCEDURE).

2. Unsnap and fold back the screw cap below the trim

panel pull cup to access and remove the screw (5)
that secures the panel (2) to the pull cup bracket.

3. Unsnap and fold back the screw cap within the

interior remote handle recess of the trim panel to
access and remove the screw (4) that secures the
panel to the inside of the door (1).

4. Remove the four screws (6) that secure the bottom

and front lower corner of the trim panel to the
inside of the door.

5. Remove the three push-pin retainers (1) that

secure the trim panel to the inside of the door.
(Refer to 23 - BODY/DOOR - FRONT - DESCRIP-
TION - FASTENERS).

23 - 78

DOOR - REAR

LX

6. Pull the trim panel (2) away from the inside of the

door far enough to disengage the locator pins near
the top of the panel from the door and the steel clip
fastener. Then lift the rear of the panel upward far
enough to disengage the interior door latch lock
link and knob (1) from the clearance hole at the
upper rear corner of the panel.

7. Reach between the top of the trim panel (3) and

the inside of the door shell to unsnap the plastic
clip that secures the end of the interior door handle
latch release link (1) to the handle lever (2) and
disengage the link from the handle.

8. Pull the trim panel away from the inside of the door

shell far enough to access and disconnect the door
wire harness connector (5) from the power window
switch (4).

9. Remove the trim panel from the inside of the door.

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer
to 8 - ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE).

LX

DOOR - REAR

23 - 79
