9. Lower vehicle

10. Tighten the shift cable adjustment screw (5) to 7

N·m (65 in.lbs.).

11. Verify correct operation.

12. Install any floor console components removed for

access. (Refer to 23 - BODY/INTERIOR/FLOOR
CONSOLE - INSTALLATION)

21 - 766

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

LX

CLUTCHES-HOLDING

DESCRIPTION

Two hydraulically applied multi-disc clutches are used
to hold planetary geartrain components stationary
while the input clutches drive others. The 2/4 (2) and
Low/Reverse (3) clutches are considered holding
clutches and are contained at the rear of the transmis-
sion case.

OPERATION

NOTE: (Refer to 21 - TRANSMISSION/AUTOMATIC - 42RLE - DIAGNOSIS AND TESTING) for a collective view
of which clutch elements are applied at each position of the selector lever.

2/4 CLUTCH

The 2/4 clutch is hydraulically applied in second and fourth gears by pressurized fluid against the 2/4 clutch piston.
When the 2/4 clutch is applied, the front sun gear assembly is held or grounded to the transmission case.

LOW/REVERSE CLUTCH

The Low/Reverse clutch is hydraulically applied in park, reverse, neutral, and first gears by pressurized fluid against
the Low/Reverse clutch piston. When the Low/Reverse clutch is applied, the front planet carrier/rear annulus assem-
bly is held or grounded to the transmission case.

LX

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

21 - 767

ASSEMBLY-INPUT CLUTCH

DISASSEMBLY

NOTE: If the input clutch assembly is being reconditioned (clutch/seal replacement) or replaced, it is nec-
essary to perform the Quick Learn Procedure using the scan tool (Refer to 8 - ELECTRICAL/ELECTRONIC
CONTROL MODULES/TRANSMISSION CONTROL MODULE - STANDARD PROCEDURE).

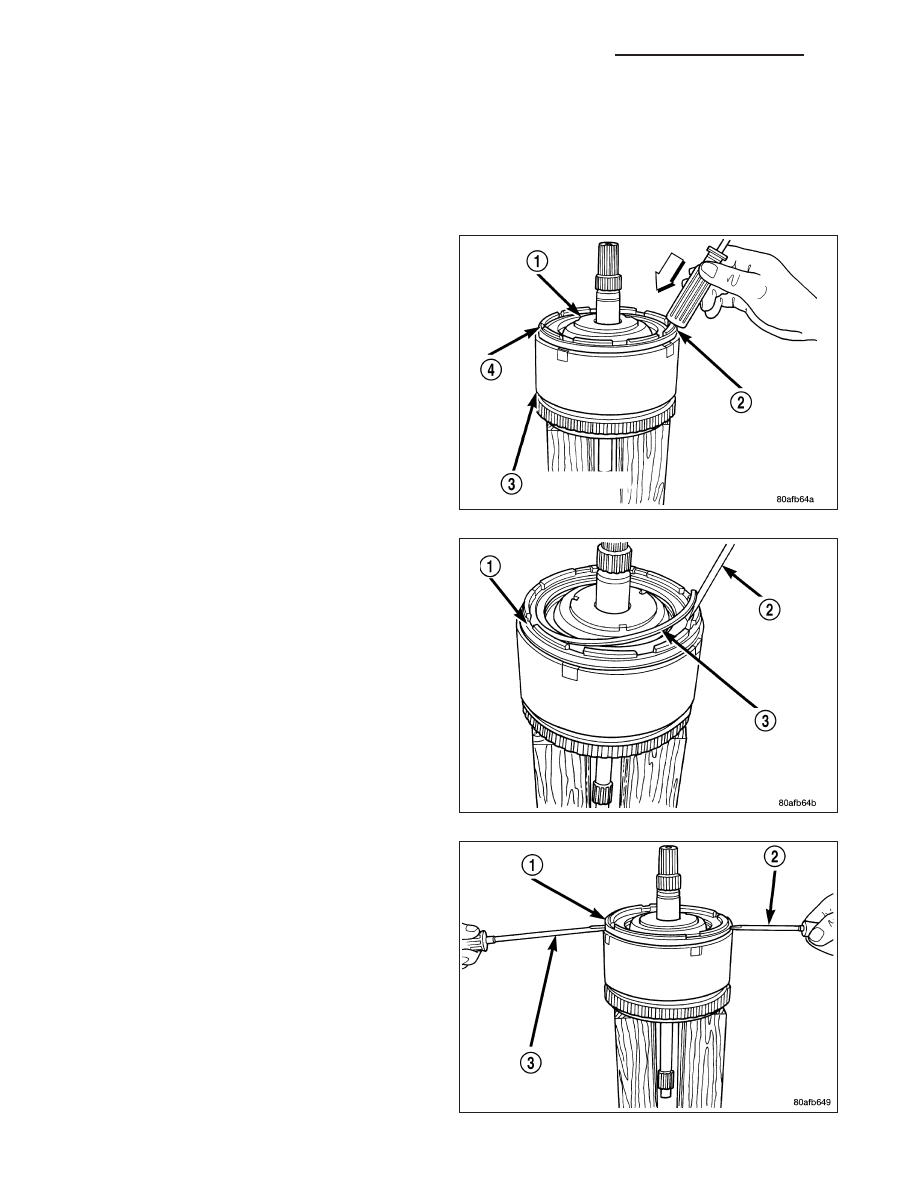

1. Mount input clutch assembly to Input Clutch Pres-

sure Fixture (Tool 8391).

2. Tap down (2) reverse clutch reaction plate (4) to

release pressure from snap ring.

3. Remove reverse clutch snap ring (3).

4. Pry up reverse clutch reaction plate (1).

21 - 768

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

LX

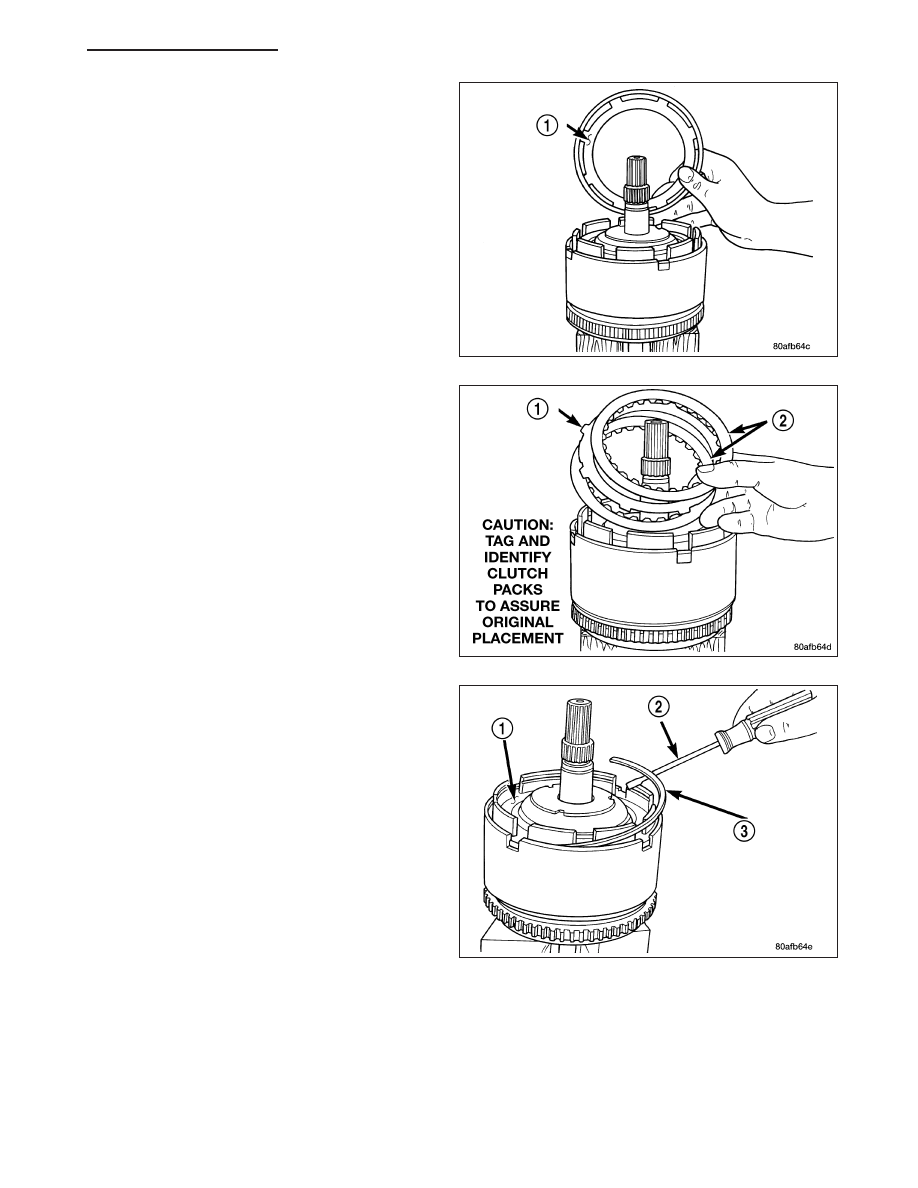

5. Remove reverse clutch reaction plate (1).

NOTE: Tag reverse clutch pack for reassembly
identification.

6. Remove the reverse clutch pack (two fibers/one

steel) (1, 2).

7. Remove the OD/Reverse reaction plate (1) snap

ring (3).

LX

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

21 - 769
