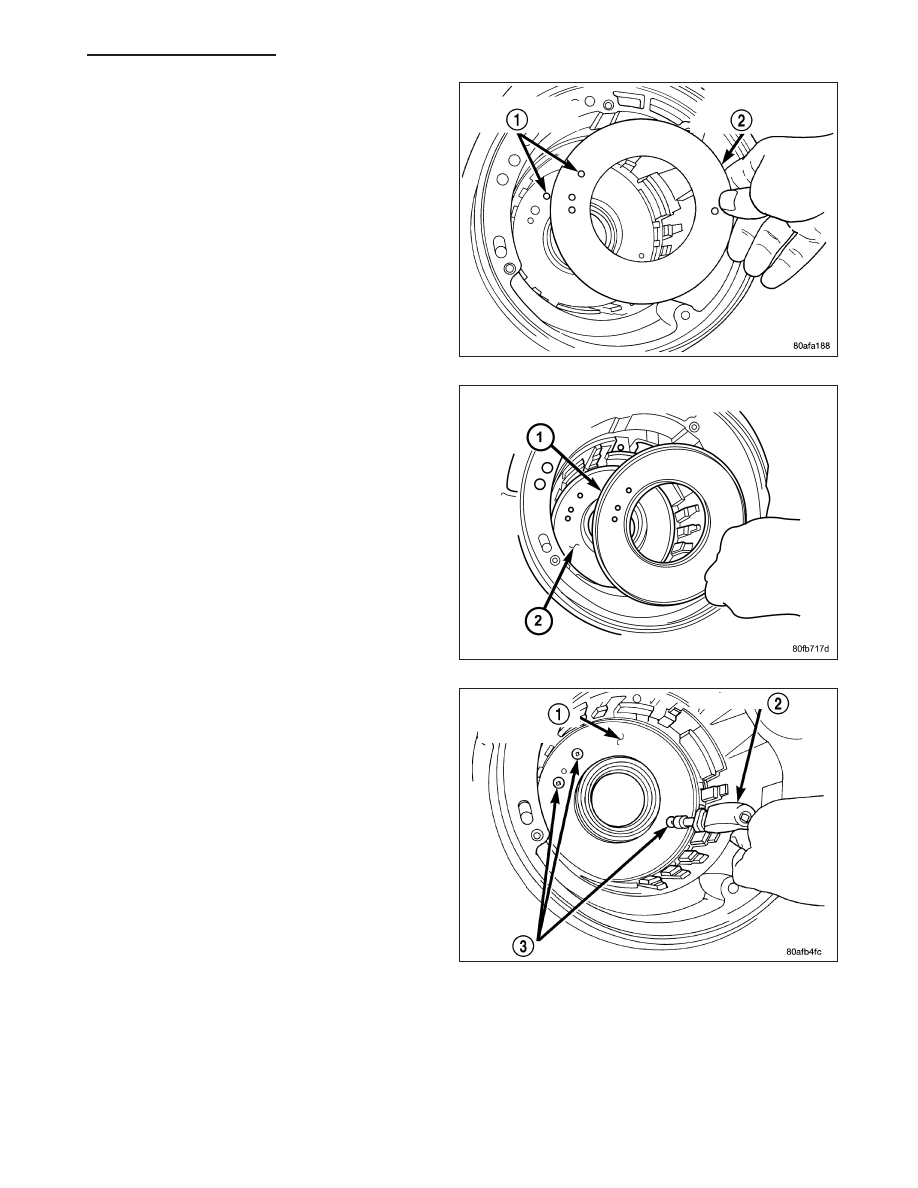

67. Remove low/reverse piston retainer (1).

68. Remove the low/reverse piston retainer gasket

(2).

ASSEMBLY

NOTE: If the transmission assembly is being reconditioned (clutch/seal replacement) or replaced, it is nec-
essary to perform the Quick Learn Procedure using the scan tool (Refer to 8 - ELECTRICAL/ELECTRONIC
CONTROL MODULES/TRANSMISSION CONTROL MODULE - STANDARD PROCEDURE).

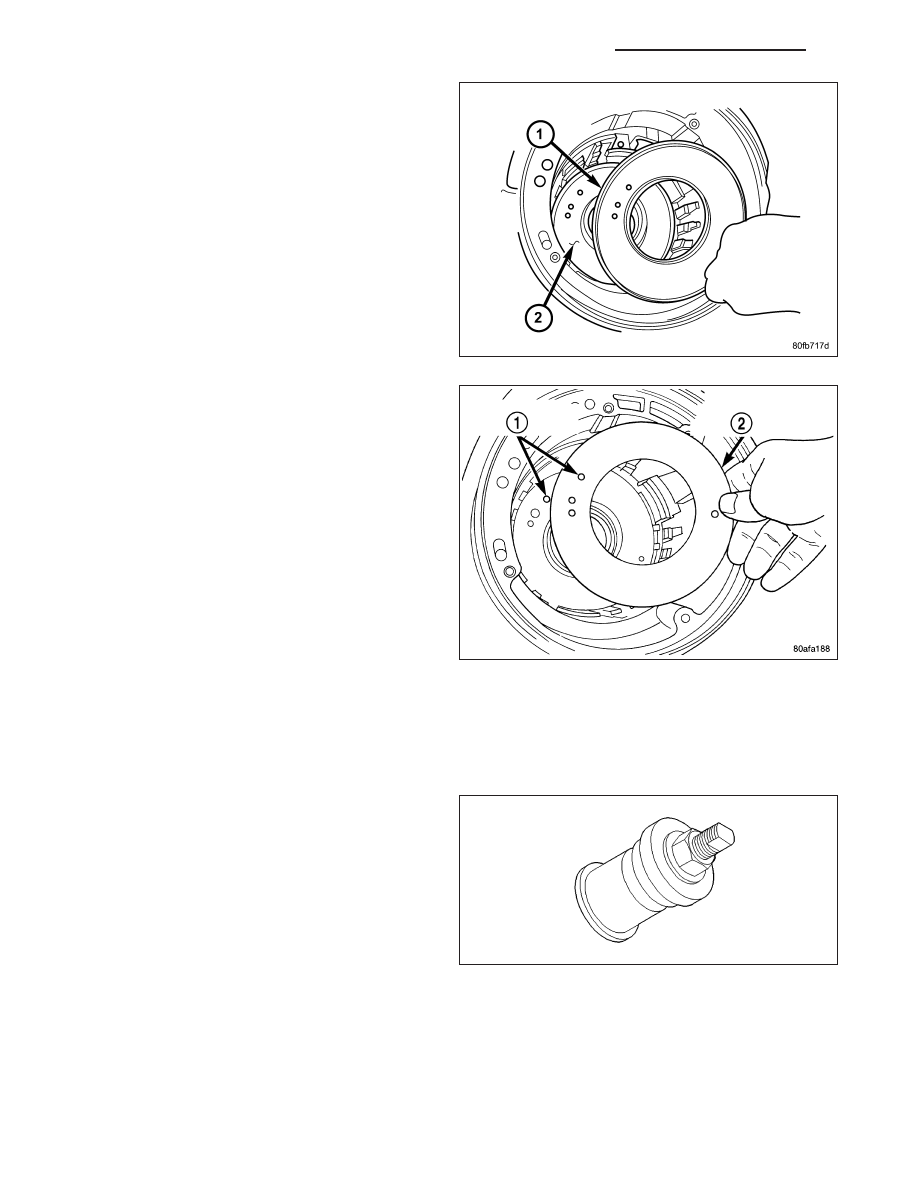

1. Install the output bearing cups using Special Tool -

5050A.

21 - 694

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

LX

2. Install low/reverse piston retainer gasket (2).

3. Install low/reverse piston retainer (1).

4. Install low/reverse piston retainer-to-case screws

(3) and torque to 5 N·m (45 in. lbs.).

LX

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

21 - 695

NOTE: The Low/Reverse Clutch Piston has bonded
seals which are not individually serviceable. Seal
replacement requires replacement of the piston
assembly.

5. Install low/reverse clutch piston (1).

6. Assemble guide bracket (1) assembly as shown, if

necessary.

CAUTION: When installing, be sure guide bracket
and split sleeve touch the rear of the transmission
case.

7. Install guide bracket pivot pin (1).

8. Install park sprag pivot retaining screw and torque

to 4.5 N·m (40 in. lbs.).

21 - 696

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

LX

9. Install low/reverse piston belleville spring (1) into

position.

10. Install and load low/reverse spring compressor

tool (3, 4, 5) as shown to facilitate snap ring (2)
installation.

11. Install snap ring (1) and remove compressor tool.

LX

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

21 - 697
