NOTE: Verify that Tool 5058A (1) is centered prop-
erly over the 2/4 clutch retainer (4) before com-
pressing. If necessary, fasten the 5058A bar to the
bellhousing flange with any combination of lock-
ing pliers and bolts to center the tool properly.

43. Install and load Tool 5058A to remove the 2/4

clutch retainer snap ring (3).

NOTE: The 2/4 Clutch Piston has bonded seals
which

are

not

individually

serviceable.

Seal

replacement requires replacement of the piston
assembly.

44. Remove the 2/4 clutch retainer (1).

45. Remove the 2/4 clutch return spring (1).

21 - 686

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

LX

46. Remove the 2/4 clutch pack (1, 2).

47. Remove the tapered snap ring (4).

48. Remove the low/reverse reaction plate (1).

LX

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

21 - 687

49. Remove one (1) low/reverse clutch disc to facili-

tate snap ring removal.

50. Remove the low/reverse reaction plate snap ring

(2).

51. Remove the low/reverse clutch pack (1, 2).

21 - 688

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

LX

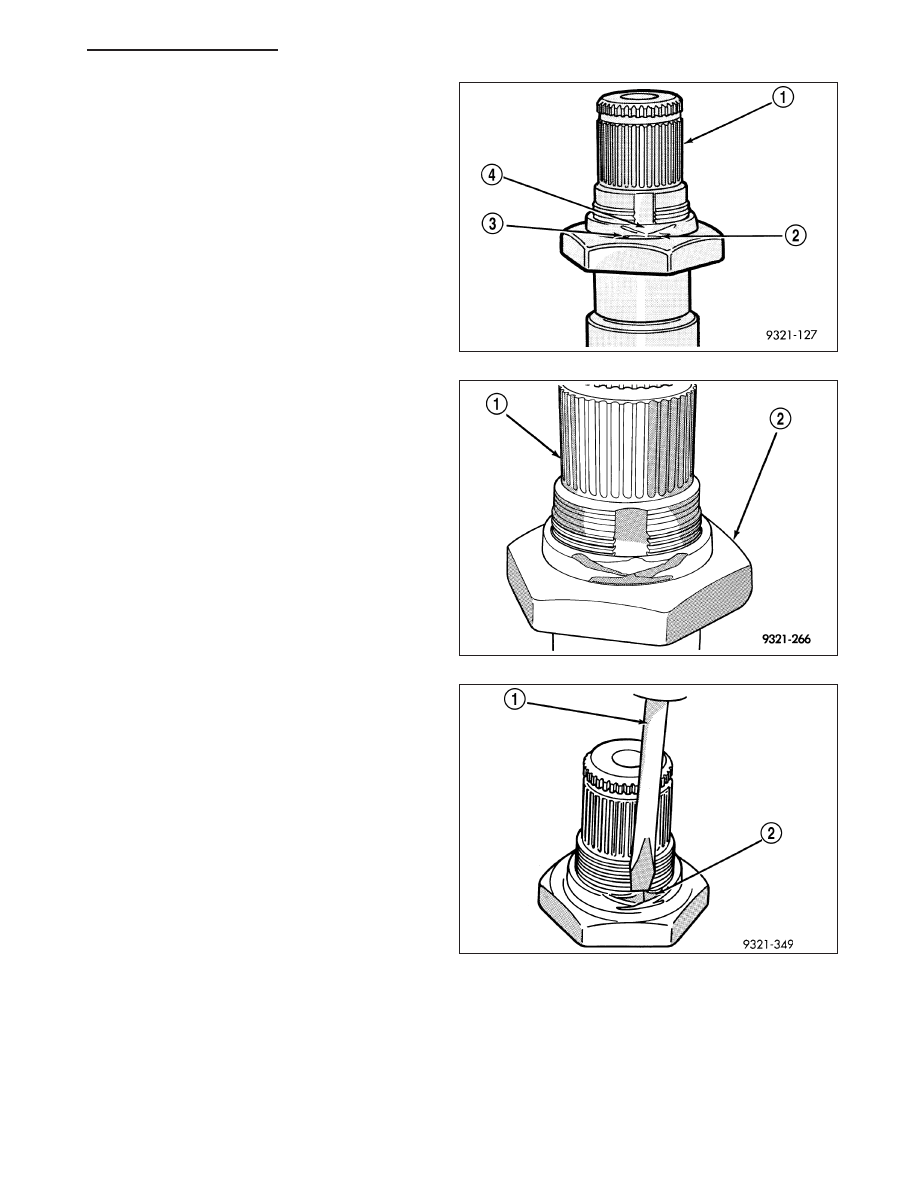

CAUTION: Failure to grind and open stakes (4) of
the output shaft nut will result in thread damage to
the shaft during nut removal.

WARNING:

WEAR

SAFETY

GOGGLES

WHILE

GRINDING STAKE NUTS.

52. Using a die grinder or equivalent, grind the stakes

in the shoulder of the shaft nut (2) as shown. Do
not grind all the way through the nut and into the
shaft. There are two stakes on each nut.

53. Using a small chisel (1), carefully open the stakes

on nut (2).

LX

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

21 - 689
