Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 2034





12. Disconnect the gearshift cable (1) from the trans-

mission manual valve lever (3).

13. Loosen the bolts holding the shift cable retaining

strap (2) to the transmission.

14. Remove the shift cable (1) from the transmission.

15. Disconnect wires from the input (1) and output (2)

speed sensors.

16. Disconnect wires from the transmission range

sensor (3).

17. Disconnect

wires

from

the

solenoid/pressure

switch assembly (1).

21 - 670

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

LX

18. Remove the crankshaft position sensor. (Refer to

14 - FUEL SYSTEM/FUEL INJECTION/CRANK-
SHAFT POSITION SENSOR - REMOVAL)

19. Remove the bolt (3) holding the transmission fill

tube (2) to the transmission (1).

20. Remove the transmission fill tube (2).

21. Disconnect transmission fluid cooler lines (1) at

transmission fittings (2) and clips (3).

22. Disconnect the transmission vent hose from the

transmission.

LX

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

21 - 671

23. Support rear of engine with safety stand or jack.

24. Raise transmission slightly with service jack to

relieve load on crossmember and supports.

25. Remove bolts (2) securing rear support and cush-

ion (3) to transmission crossmember (1).

26. Remove bolts attaching crossmember (1) to frame

and remove crossmember.

27. Remove the bolts (1) holding the engine oil pan

(2) to the transmission (3).

28. Remove all remaining bolts (2) holding the engine

(1) to the transmission (3).

29. Carefully work transmission and torque converter

assembly rearward off engine block dowels.

30. Hold torque converter in place during transmission

removal.

31. Lower transmission and remove assembly from

under the vehicle.

32. To remove torque converter, carefully slide torque

converter out of the transmission.

21 - 672

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

LX

DISASSEMBLY

NOTE: If the transmission is being reconditioned (clutch/seal replacement) or replaced, it is necessary to
perform the Quick Learn Procedure using the scan tool (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES/TRANSMISSION CONTROL MODULE - STANDARD PROCEDURE).

NOTE: Tag all clutch pack assemblies, as they are removed, for reassembly identification.

CAUTION: Do not intermix clutch discs or plates as the unit might then fail.

Before disassembling transmission, move the shift lever clockwise as far as it will go and then remove the shift
lever.

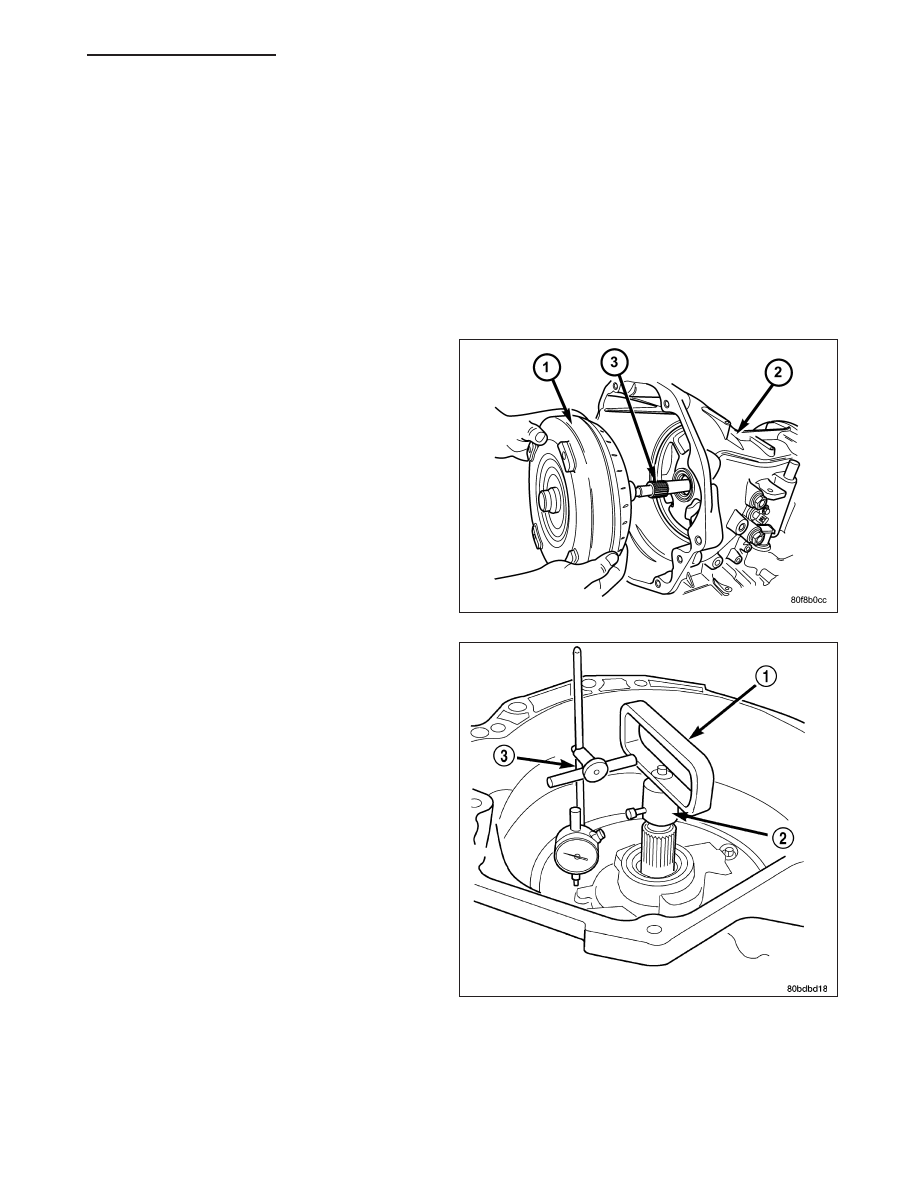

1. Remove the torque converter (1) from the transmis-

sion input shaft (3).

2. Measure input shaft end play using Tool 8266 (1,

2). Set up Tool 8266 and a dial indicator as shown.

3. Move input shaft in and out to obtain end play

reading. End play specifications are 0.13 to 0.64
mm (0.005 to 0.025 inch). Record indicator reading
for reference when reassembling the transmission.
If endplay exceeds the specified range, the #4
thrust plate needs to be inspected and changed if
necessary.

LX

AUTOMATIC TRANSMISSION 42RLE - SERVICE INFORMATION

21 - 673
