Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 2015





2.

CHECK THE (INTERNAL) FUSED B+ CIRCUIT

Turn the ignition off to the lock position.

Remove the Transmission Control Relay.

NOTE: Check connectors - Clean/repair as necessary.

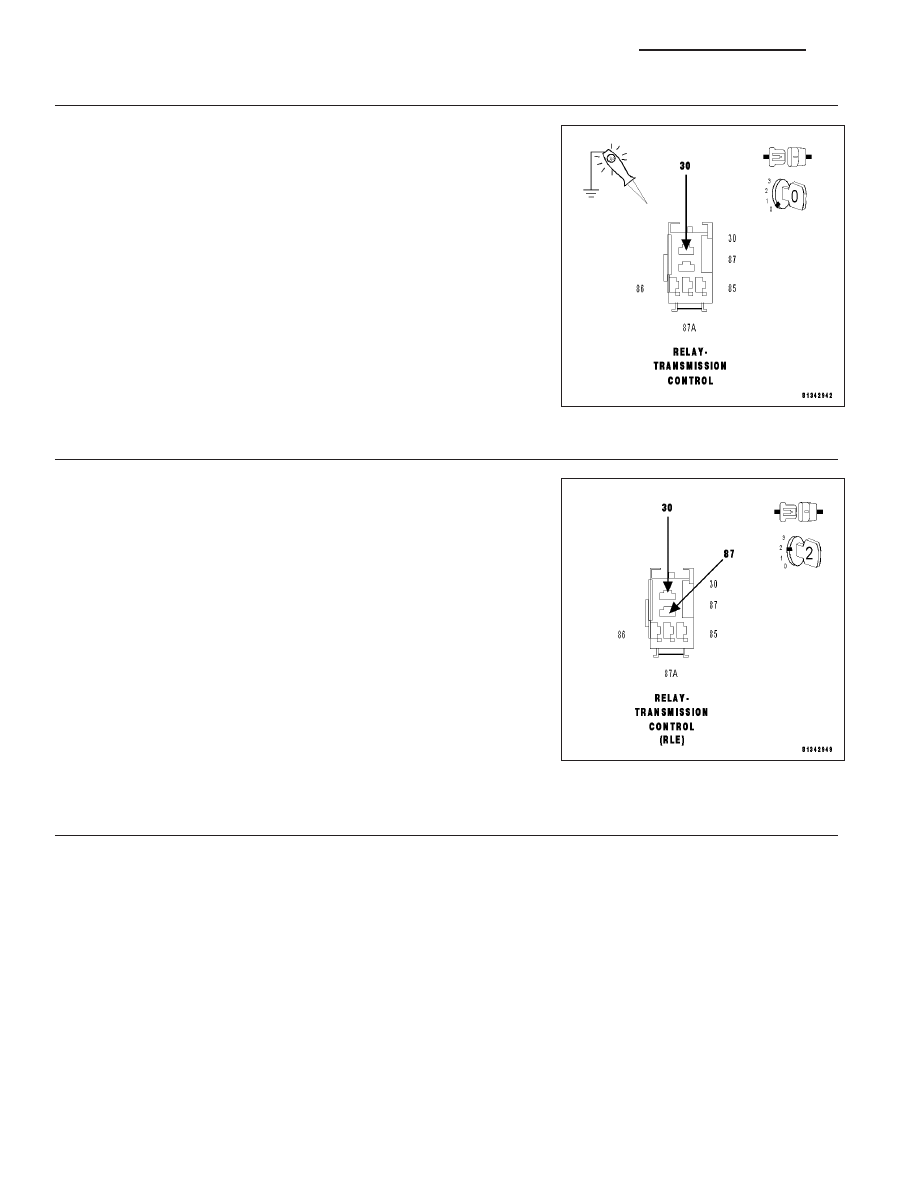

Using a 12-volt test light connected to ground, check the (Internal)
Fused B+ circuit in the Transmission Control Relay connector.

NOTE: The test light must illuminate brightly. Compare the bright-
ness to that of a direct connection to the battery.

Does the test light illuminate brightly?

Yes

>> Go To 3

No

>> Go To 8

3.

(T16) TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT OPEN

Turn the ignition off to the lock position.

Remove the Transmission Control Relay.

NOTE: Check connectors - Clean/repair as necessary.
Connect a jumper wire between the (Internal) Fused B+ circuit and the
(T16) Transmission Control Relay Output circuits.

Ignition on, engine not running.

With the scan tool in Transmission Sensors, read the Switched Battery
voltage.

Does the Switched Battery voltage read battery voltage?

Yes

>> Go To 4

No

>> Repair the (T16) Transmission Control Relay Output circuits

for an open or high resistance. Note: There are multiple
Transmission Control Relay Output circuits.

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 42RLE - STANDARD PROCEDURE)

4.

TRANSMISSION CONTROL RELAY

Turn the ignition off to the lock position.

Install a substitute Relay in place of the Transmission Control Relay.

Ignition on, engine not running.

With the scan tool in Transmission Sensors, read the Switched Battery voltage.

Does the Switched Battery voltage read battery voltage?

Yes

>> Replace the Transmission Control Relay.

Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 42RLE - STANDARD PROCEDURE)

No

>> Go To 5

21 - 594

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS

LX

5.

(Z901) TRANSMISSION CONTROL RELAY GROUND CIRCUIT OPEN

Turn the ignition off to the lock position.

Remove the Transmission Control Relay.

NOTE: Check connectors - Clean/repair as necessary.
Using a 12-volt test light connected to 12-volts, check the (Z901) Trans-
mission Control Relay Ground circuit.

NOTE: The test light must illuminate brightly. Compare the bright-
ness to that of a direct connection to the battery.

Does the test light illuminate brightly?

Yes

>> Go To 6

No

>> Repair the (Z901) Transmission Control Relay Ground cir-

cuit for an open.

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 42RLE - STANDARD PROCEDURE)

6.

(T15) TRANSMISSION CONTROL RELAY CONTROL CIRCUIT OPEN

Turn the ignition off to the lock position.

Remove the Transmission Control Relay.

Disconnect the PCM C4 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

CAUTION: Do not probe the PCM harness connectors. Probing the
PCM harness connectors will damage the PCM terminals resulting
in poor terminal to pin connection. Install Miller Special Tool #8815
to perform diagnosis.

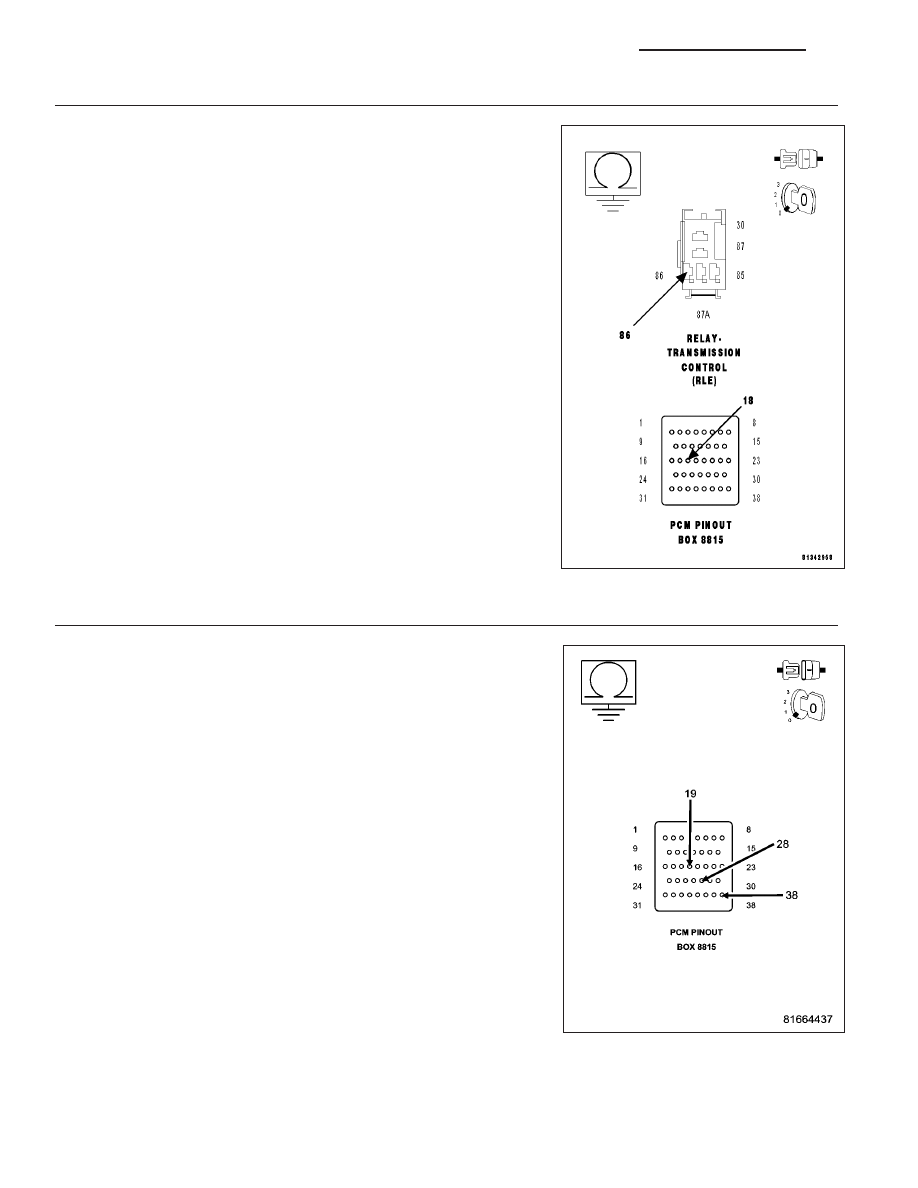

Measure the resistance of the (T15) Transmission Control Relay Con-
trol circuit between the Transmission Control Relay connector and the
appropriate terminal of special tool #8815.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (T15) Transmission Control Relay Control circuit

for an open.

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 42RLE - STANDARD PROCEDURE)

No

>> Go To 7

LX

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS

21 - 595

7.

(T15) TRANSMISSION CONTROL RELAY CONTROL CIRCUIT SHORT TO GROUND

Turn the ignition off to the lock position.

Disconnect the PCM C4 harness connector.

Remove the Transmission Control Relay.

NOTE: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the (T15) Transmission
Control Relay Control circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (T15) Transmission Control Relay Control circuit

for a short to ground.

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 42RLE - STANDARD PROCEDURE)

No

>> Using the schematics as a guide, check the Powertrain

Control Module (PCM) terminals for corrosion, damage, or
terminal push out. Pay particular attention to all power and
ground circuits. If no problems are found, replace the PCM
per the Service Information. With the scan tool PERFORM
QUICK LEARN, then program Pinion Factor in the Front
Control Module. (Refer to 8 - ELECTRICAL/ELECTRONIC
CONTROL MODULES/POWERTRAIN CONTROL MOD-
ULE - REMOVAL)

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 42RLE - STANDARD PROCEDURE)

8.

CHECK THE FUSED B+ CIRCUIT FOR SHORT TO GROUND

Turn the ignition off to the lock position.

Remove the Transmission Control Relay.

Disconnect the PCM C4 harness connectors.

NOTE: Check connectors - Clean/repair as necessary.

CAUTION: Do not probe the PCM harness connectors. Probing the
PCM harness connectors will damage the PCM terminals resulting
in poor terminal to pin connection. Install Miller Special Tool #8815
to perform diagnosis.
Measure the resistance between ground and the (T16) Transmission
Control Relay Output circuit.

Is the resistance below 5.0 ohms?

Yes

>> Go To 9

No

>> Repair the Fused B+ circuit for an open.

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 42RLE - STANDARD PROCEDURE)

21 - 596

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS

LX

9.

(T16) TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT SHORT TO GROUND

Turn the ignition off to the lock position.

Disconnect the PCM C4 harness connector.

Disconnect the Transmission Solenoid/Pressure Switch harness connec-
tor.

Remove the Transmission Control Relay.

NOTE: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the (T16) Transmission
Control Relay Output circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (T16) Transmission Control Relay Output circuit

for a short to ground.

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 42RLE - STANDARD PROCEDURE)

No

>> Go To 10

10.

TRANSMISSION SOLENOID/PRESSURE SWITCH ASSEMBLY

Using the schematics as a guide, inspect the wiring and connectors. Repair as necessary. Pay particular attention
to all power and ground circuits.

View repair.

Repair

Replace the Transmission Solenoid/Pressure Switch Assembly per the Service Information.

Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 42RLE - STANDARD PROCEDURE)

11.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set the DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wiring and connectors while checking for shorted and open circuits.

With the scan tool, check the EATX EVENT DATA to help identify the conditions in which the DTC was set.

Were there any problems found?

Yes

>> Repair as necessary.

Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - 42RLE - STANDARD PROCEDURE)

No

>> Test Complete.
