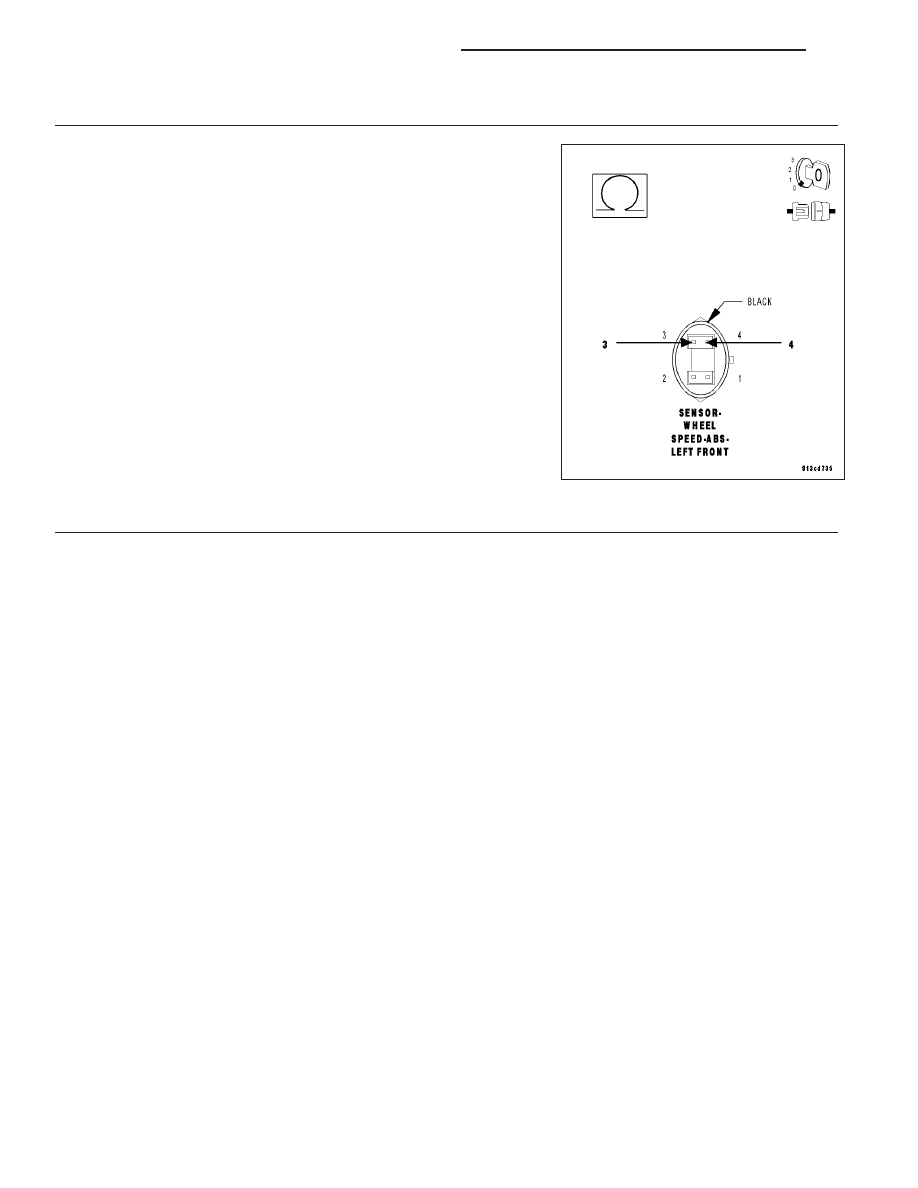

9. CHECK (B8) LEFT FRONT WSS SIGNAL CIRCUIT AND (B9) LEFT FRONT WSS SUPPLY CIRCUIT SHORT Turn the ignition off. Measure the resistance between the (B8) Left Front WSS Signal circuit Is the resistance above 5.0 ohms? Yes >> Go To 10 No >> Repair the (B8) Left Front WSS Signal circuit and the (B9) Left Front WSS Supply circuit for a short together. Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - 10. LEFT FRONT WHEEL SPEED SENSOR Replace the Left Front Wheel Speed Sensor in accordance with the Service Information. Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE). CAUTION: Ensure brake capability is available before road testing. NOTE: Vehicle must be driven above 40 km/h (25 m.p.h.) for set conditions to be meet. NOTE: The Anti-Lock Brake Module must sense ALL 4 wheels at 12 km/h (7.5 mph) before it will extinguish Did DTC C100A–LEFT FRONT WHEEL SPEED SENSOR CIRCUIT reset? Yes >> Replace the Anti-Lock Brakes Module in accordance with the Service Information. Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE). No >> Test Complete. 5 - 214 BRAKES - ABS ELECTRICAL DIAGNOSTICS LX |
