3.

ADJUSTABLE PEDALS ASSEMBLY

Turn the ignition off.

Inspect the Adjustable Pedals Assembly for a condition that would cause the motor to stick or stall.

Were any problems found?

Yes

>> Replace the Adjustable Pedals Assembly in accordance with the Service Information.

Perform APS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Go To 4

4.

(P205) ADJUSTABLE PEDALS MOTOR FORWARD CIRCUIT OPEN OR HIGH RESISTANCE

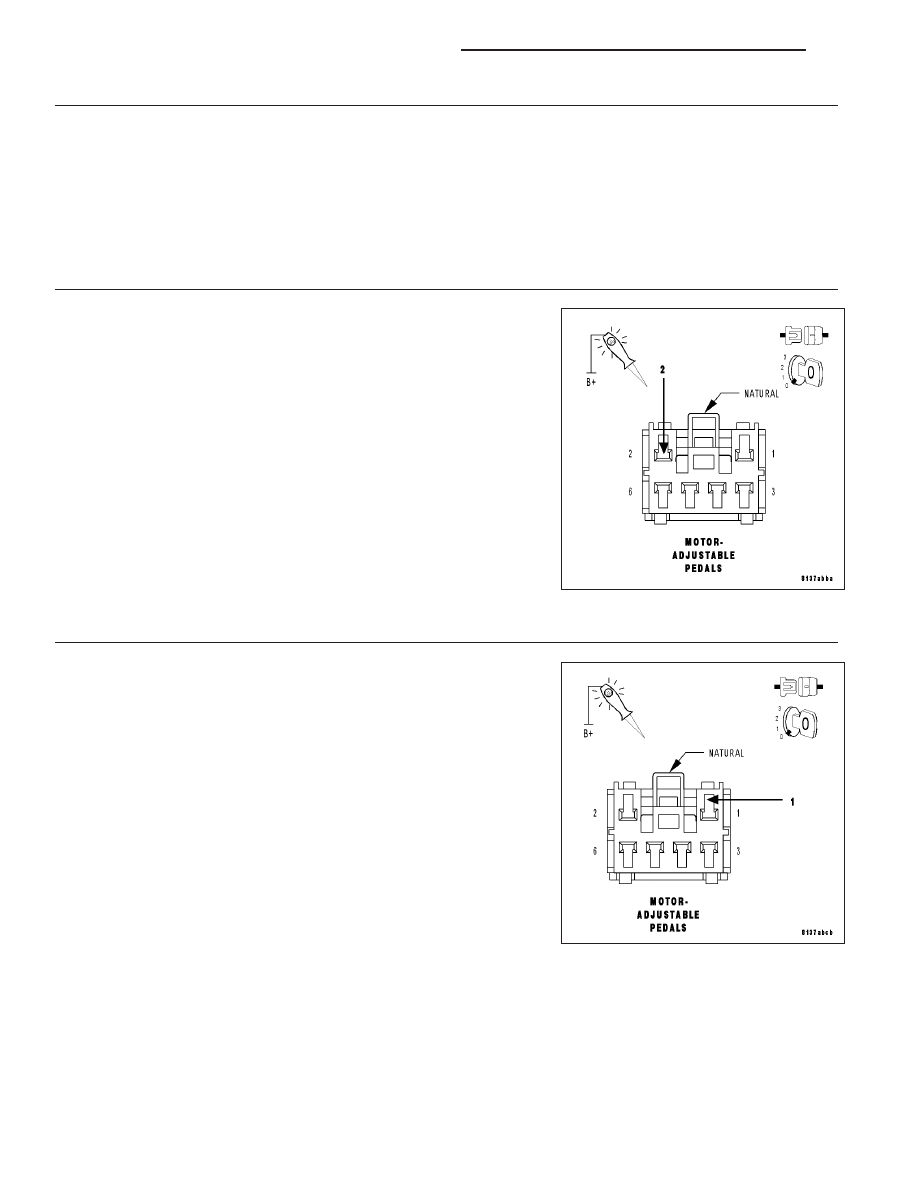

Connect a jumper wire between the (P205) Adjustable Pedals Motor
Forward circuit and ground at the Adjustable Pedals Motor harness
connector.

Using a 12-volt test light connected to 12-volts, check the (P205)
Adjustable Pedals Motor Forward circuit at the Memory Seat Module
harness connector.

NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.

Is the test light illuminated and bright?

Yes

>> Go To 5

No

>> Repair the (P205) Adjustable Pedals Motor Forward circuit

for an open circuit or high resistance.

Perform APS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

5.

(P206) ADJUSTABLE PEDALS MOTOR REARWARD CIRCUIT OPEN CIRCUIT OR HIGH RESISTANCE

Connect the jumper wire between the (P206) Adjustable Pedals Motor
Rearward circuit and ground at the Adjustable Pedals Motor harness
connector.

Using a 12-volt test light connected to 12-volts, check the (P206)
Adjustable Pedals Motor Rearward circuit at the Memory Seat Module
harness connector.

NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.

Is the test light illuminated and bright?

Yes

>> Go To 6

No

>> Repair the (P206) Adjustable Pedals Motor Rearward circuit

for an open.

Perform APS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

5 - 206

BRAKES - ABS ELECTRICAL DIAGNOSTICS

LX

6.

(G914) SENSOR RETURN CIRCUIT OPEN OR HIGH RESISTANCE

Connect the jumper wire between the (G914) Sensor Return circuit and
ground at the Adjustable Pedals Motor harness connector.

Using a 12-volt test light connected to 12-volts, check the (G914) Sen-
sor Return circuit at the Memory Seat Module harness connector.

NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.

NOTE: Remove the jumper wire before proceeding to the next test.

Is the test light illuminated and bright?

Yes

>> Go To 7

No

>> Repair the (G914) Sensor Return circuit for an open.

Perform APS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

7.

ADJUSTABLE PEDALS MOTOR

Turn the ignition off.

Disconnect the Adjustable Pedals Motor harness connector.

Measure the resistance between the (P205) Adjustable Pedals Motor
Forward circuit and the (P206) Adjustable Pedals Motor Rearward cir-
cuit at the terminals of the Adjustable Pedals Motor.

Is the resistance below 100.0 ohms?

Yes

>> Replace and reprogram the Memory Seat Module in accor-

dance with the Service Information.

Perform APS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

No

>> Replace the Adjustable Pedals Motor in accordance with

the Service Information.

Perform APS VERIFICATION TEST - VER 1. (Refer to 5 -
BRAKES - STANDARD PROCEDURE).

LX

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 207

ABS INTERMITTENT CONDITION

For a complete wiring diagram Refer to Section 8W.

Diagnostic Test

1.

PERFORM ABS INTERMITTENT CONDITION TEST

NOTE: The conditions that set the DTC are not present at this time. The following list may help in identi-
fying the intermittent condition.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
Refer to any Technical Service Bulletins (TSBs) that may apply.

Review the scan tool Environmental Data (EV Data). If possible, try to duplicate the conditions under which the DTC
set.

Turn the ignition off.

Visually inspect the related wire harness. Disconnect all the related harness connectors. Look for any chafed,
pierced, pinched, partially broken wires and broken, bent, pushed out, or corroded terminals.

Wiggle the wires while checking for shorts and open circuits.

Perform a voltage drop test on the related circuits between the suspected faulty component and the Anti-Lock Brake
Module.

Inspect and clean all PCM, ABS, engine, and chassis grounds that are related to the most current DTC.

If numerous trouble codes were set, use a wire schematic and look for any common ground or supply circuits

For any Relay DTCs, actuate the Relay with the scan tool and wiggle the related wire harness to try to interrupt the
actuation.

Use the scan tool to perform a System Test if one applies to failing component.

A co-pilot, data recorder, and/or lab scope should be used to help diagnose intermittent conditions.

Were any problems found during the above inspections?

Yes

>> Perform the necessary repairs.

Perform ABS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).

No

>> Test Complete.

5 - 208

BRAKES - ABS ELECTRICAL DIAGNOSTICS

LX

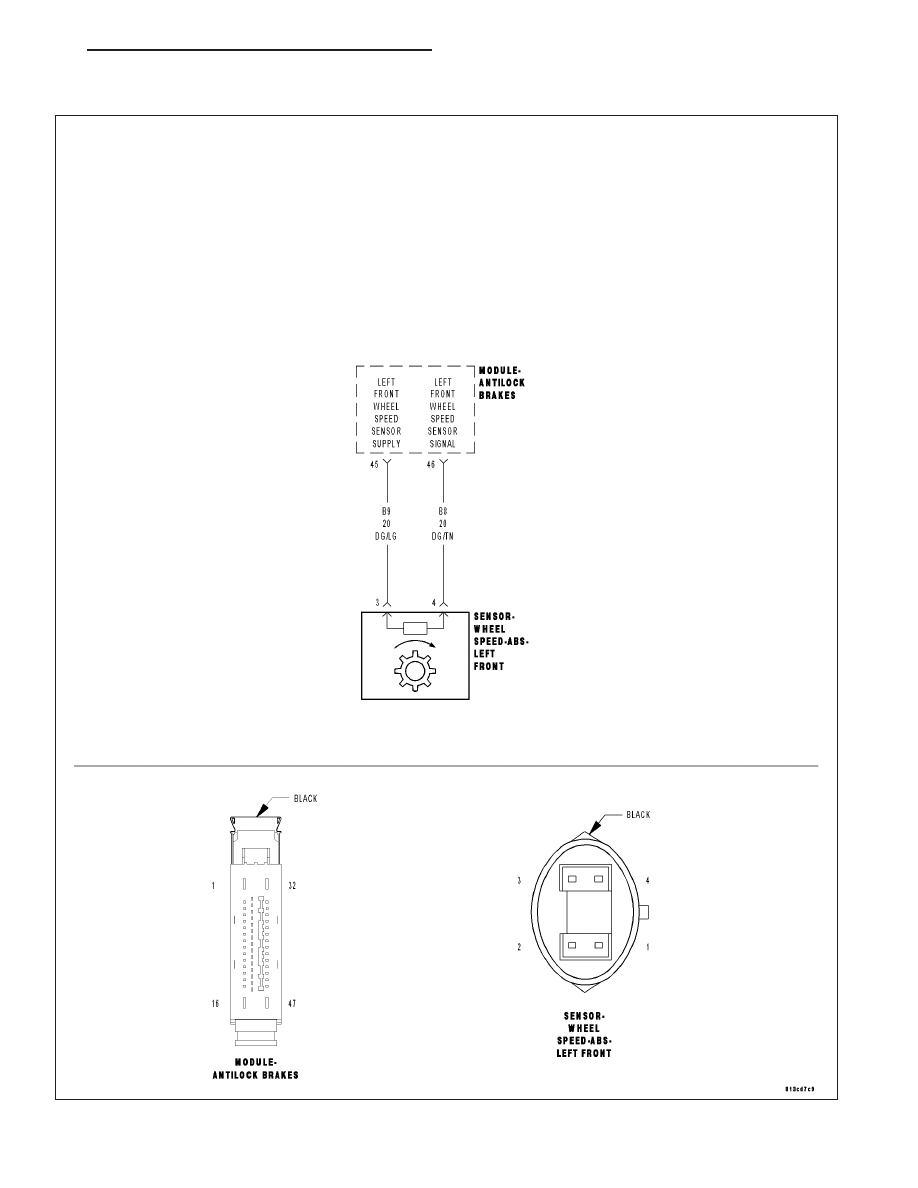

C100A–LEFT FRONT WHEEL SPEED SENSOR CIRCUIT

For a complete wiring diagram Refer to Section 8W.
