Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1872





P0642-SENSOR REFERENCE VOLTAGE 1 CIRCUIT LOW

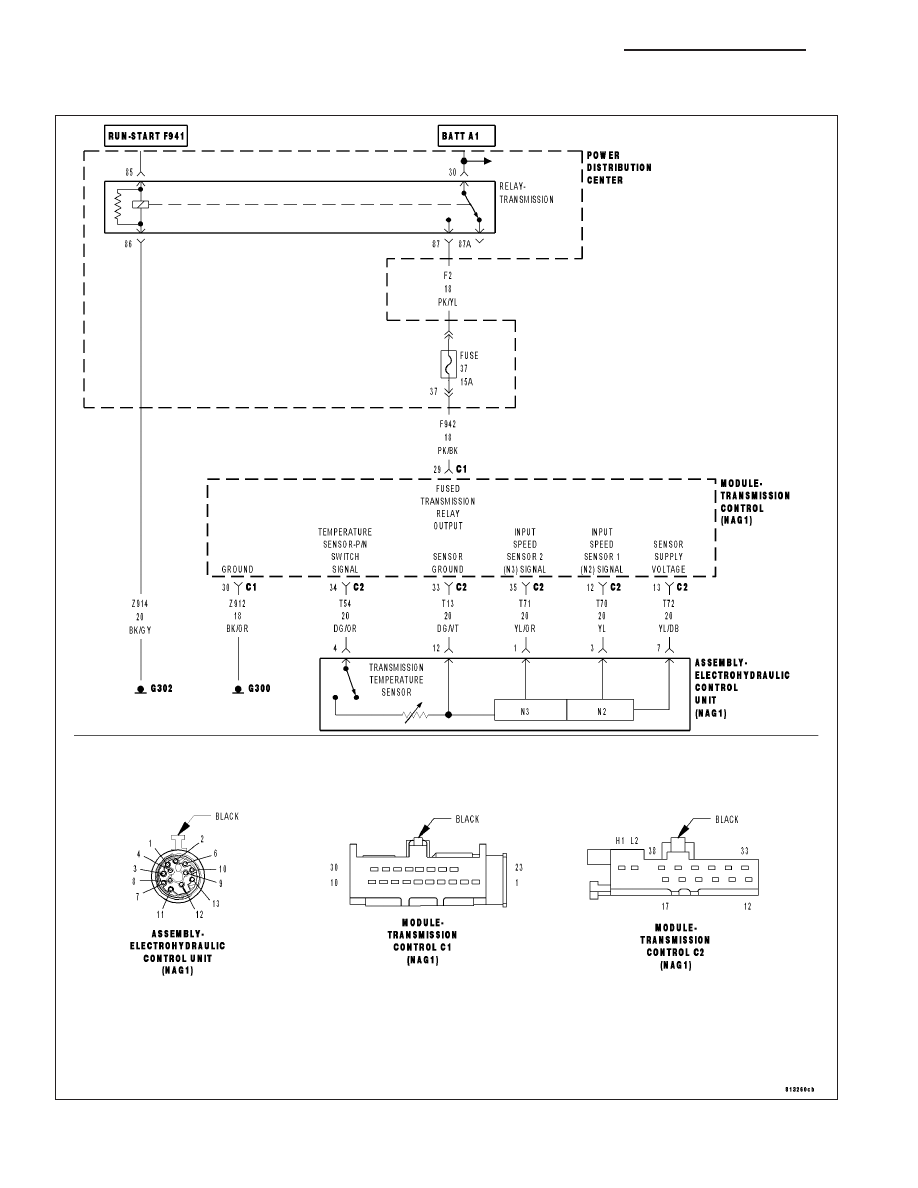

For a complete wiring diagram Refer to Section 8W

21 - 22

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

LX

Theory of Operation

The Sensor Supply Voltage circuit supplies a 6-volt power supply to the two input speed sensors. The Sensor Sup-
ply Voltage circuit is constantly monitored for correct voltage between 4.8 to 7.2 volts. If the voltage does not stay
within the 4.8 to 7.2 volt range, the appropriate DTC will set.

When Monitored:
Continuously with the ignition on and no undervoltage condition exist.

Set Condition:
When the monitored sensor voltage is not within specified limits drops below 4.8 volts.

Possible Causes

SPEED SENSOR DTCS PRESENT

(T72) SENSOR SUPPLY VOLTAGE SHORT TO GROUND

INTERNAL SHORT IN THE ELECTROHYDRAULIC CONTROL UNIT ASSEMBLY

TRANSMISSION CONTROL MODULE

Always perform the NAG1 Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 -
TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - STANDARD PROCEDURE)

Diagnostic Test

1.

CHECK FOR SPEED SENSOR DTCS

With the scan tool, check for other transmission DTCs.

Are there any speed sensor DTCs present?

Yes

>> Refer to the Transmission category and perform the appropriate symptom(s). (Refer to 21 - TRANS-

MISSION/TRANSAXLE/AUTOMATIC - NAG1 - DIAGNOSIS AND TESTING)

No

>> Go To 2

2.

CHECK FOR (T72) SENSOR SUPPLY VOLTAGE SHORT TO GROUND

Turn the ignition off to the lock position.

Disconnect the Electrohydraulic Control Unit Assembly harness connec-
tor.

Disconnect the TCM C2 harness connectors.

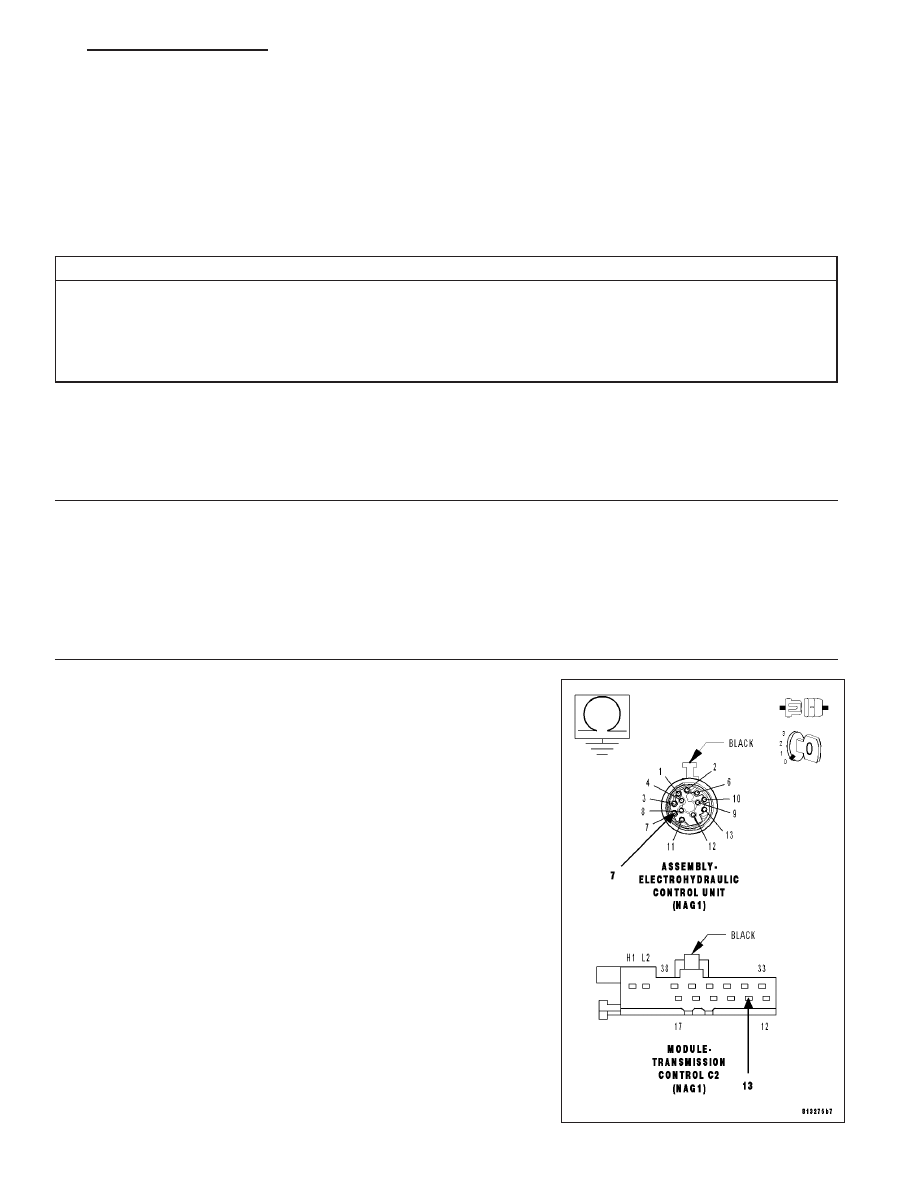

Measure the resistance between ground and the (T72) Sensor Supply
Voltage circuit in the TCM harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (T72) Sensor Supply Voltage circuit for a short

to ground

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - NAG1 - STANDARD PROCEDURE)

No

>> Go To 3

LX

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

21 - 23

3.

CHECK FOR A SHORT IN THE ELECTOHYDRAULIC CONTROL UNIT

Reconnect the Electrohydraulic Control Unit Assembly harness connec-
tor.

Measure the resistance between ground and the (T72) Sensor Supply
Voltage circuit in the TCM harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Repair the Electrohydraulic Control Unit Assembly for a

short to ground. Refer to 21- AUTOMATIC TRANSMIS-
SION-AUTOMATIC

TRANSMISSION

NAG1/SERVICE

INFORMATION for proper service procedures.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1. (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - NAG1 - STANDARD PROCEDURE)

No

>> Using the schematics as a guide, check the Transmission

Control Module (TCM) terminals for corrosion, damage, or
terminal push out. Pay particular attention to all power and
ground circuits. If no problems are found, replace the TCM
per the Service Information. (Refer to 8 - ELECTRICAL/
ELECTRONIC

CONTROL

MODULES/TRANSMISSION

CONTROL MODULE - DESCRIPTION)

Perform NAG1 TRANSMISSION VERIFICATION TEST - VER 1. (Refer to 21 - TRANSMISSION/
TRANSAXLE/AUTOMATIC - NAG1 - STANDARD PROCEDURE)

21 - 24

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

LX

P0643-SENSOR REFERENCE VOLTAGE 1 CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W

LX

AUTOMATIC TRANSMISSION NAG1 - ELECTRICAL DIAGNOSTICS

21 - 25
