Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1840

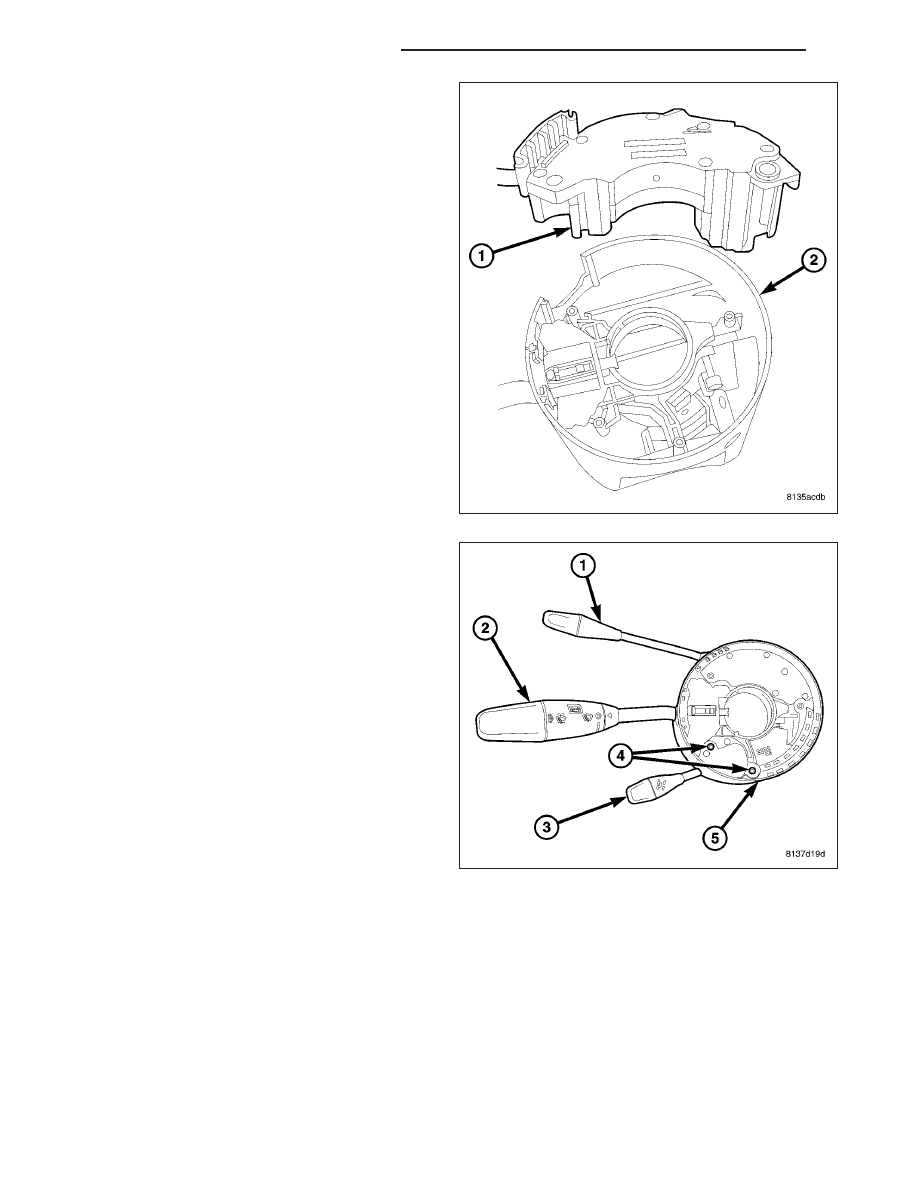

6. Remove the speed control switch (1).

7. Remove the steering column tilt/telescoping lever

(3) screw (4) located at the six o’clock position.

19 - 178

COLUMN SERVICE INFORMATION

LX

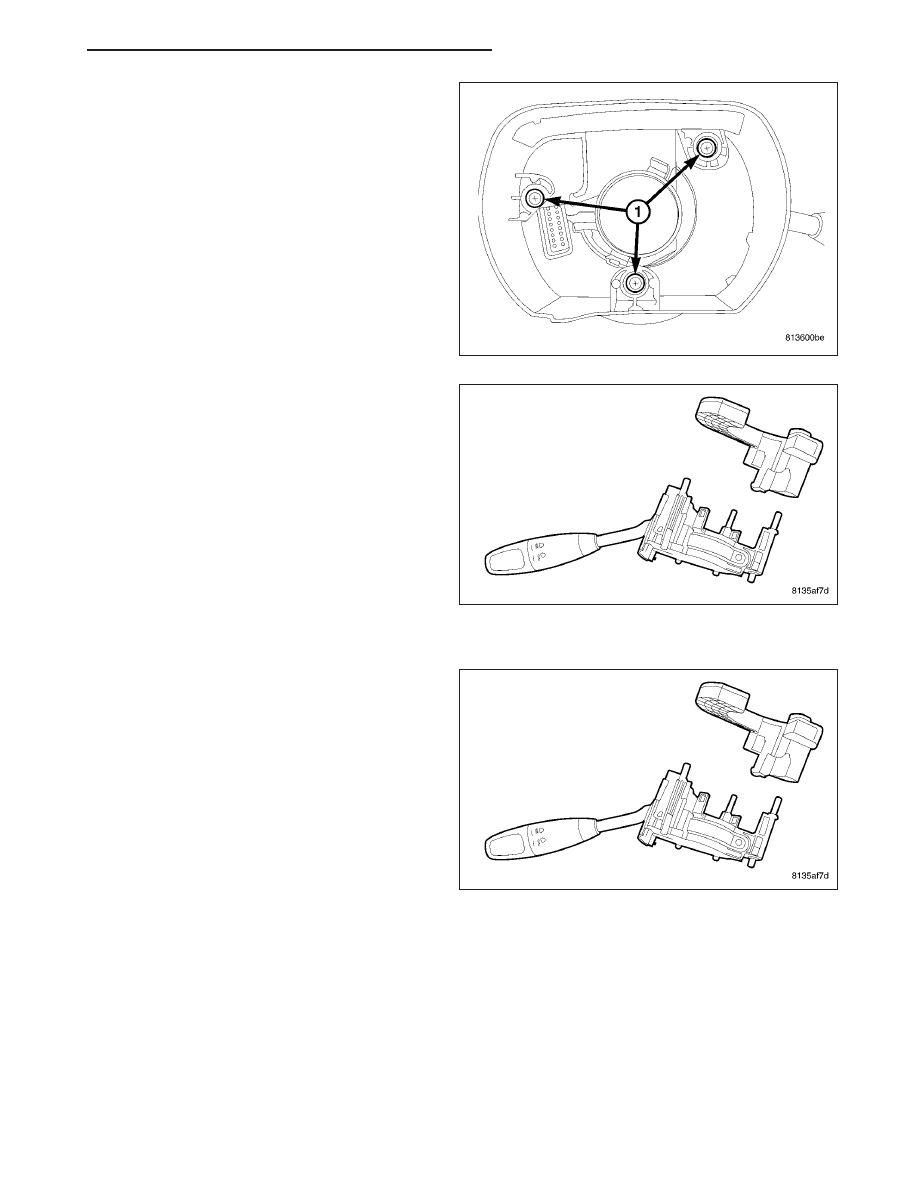

8. Remove the three screws (1) at the bottom of the

SCCM Shroud for the multi-function switch and
Steering Control Module (SCM).

9. Separate the multi-function switch from the SCM.

ASSEMBLY

1. Position the Steering Control Module (SCM) onto

the multi-function switch.

LX

COLUMN SERVICE INFORMATION

19 - 179

2. Install the multi-function switch and SCM in the

SCCM Shroud and tighten the three screws (1)
from the bottom.

3. Install the steering column telescoping lever (3).

19 - 180

COLUMN SERVICE INFORMATION

LX

4. Install the speed control switch (1).

5. If equipped with manual telescoping column,

install the strut (1).

LX

COLUMN SERVICE INFORMATION

19 - 181
