6.1L

CAUTION: Do not use spray (carb) cleaners on
any part of the throttle body. Do not apply silicone
lubricants to any part of the throttle body.

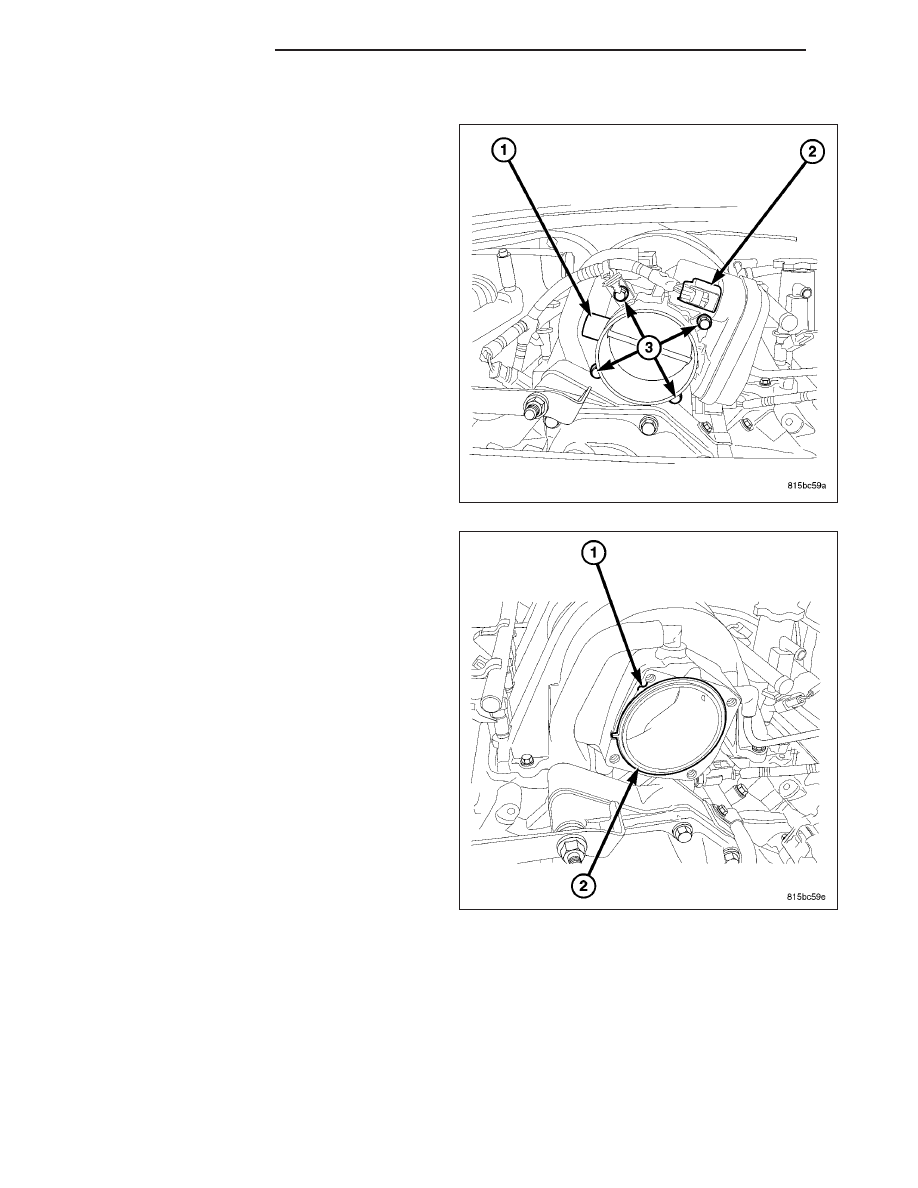

1. Remove rubber air duct at front of throttle body.

2. Disconnect electrical connector (2) at throttle body

(1).

3. Remove four throttle body mounting bolts (3).

4. Remove throttle body from intake manifold.

5. Check condition of throttle body o-ring (2) at front

of intake manifold (1).

INSTALLATION

2.7L

CAUTION: Do not use spray (carb) cleaners on any part of the throttle body. Do not apply silicone lubri-
cants to any part of the throttle body.

14 - 222

FUEL INJECTION

LX

1. Install throttle body gasket.

2. Install throttle body and bolts.

3. Tighten bolts to 11.9 N·m (105 in. lbs.) torque.

4. Connect electrical connectors.

5. Connect vacuum hoses.

6. Install inlet hose and tighten clamp.

7. Connect negative cable to battery.

8. A Scan Tool may be used to learn electrical param-

eters. Go to the Miscellaneous menu, and then
select ETC Relearn. If the relearn is not preformed,
a Diagnostic Trouble Code (DTC) will be set. If
necessary, use a scan tool to erase any Diagnostic
Trouble Codes (DTC’s) from PCM.

LX

FUEL INJECTION

14 - 223

3.5L

CAUTION: Do not use spray (carb) cleaners on any part of the throttle body. Do not apply silicone lubri-
cants to any part of the throttle body.

1. Install throttle gasket.

2. Install throttle body and bolts.

3. Tighten bolts to 11.9 N·m (105 in. lbs.) torque.

4. Install the throttle body support bracket to the bot-

tom of the throttle body. Tighten the bolts to 27.1
N·m (20 ft. lbs.) torque.

14 - 224

FUEL INJECTION

LX

5. Install inlet hose and tighten clamp.

6. Connect negative cable to battery.

7. A Scan Tool may be used to learn electrical param-

eters. Go to the Miscellaneous menu, and then
select ETC Relearn. If the relearn is not preformed,
a Diagnostic Trouble Code (DTC) will be set. If
necessary, use a scan tool to erase any Diagnostic
Trouble Codes (DTC’s) from PCM.

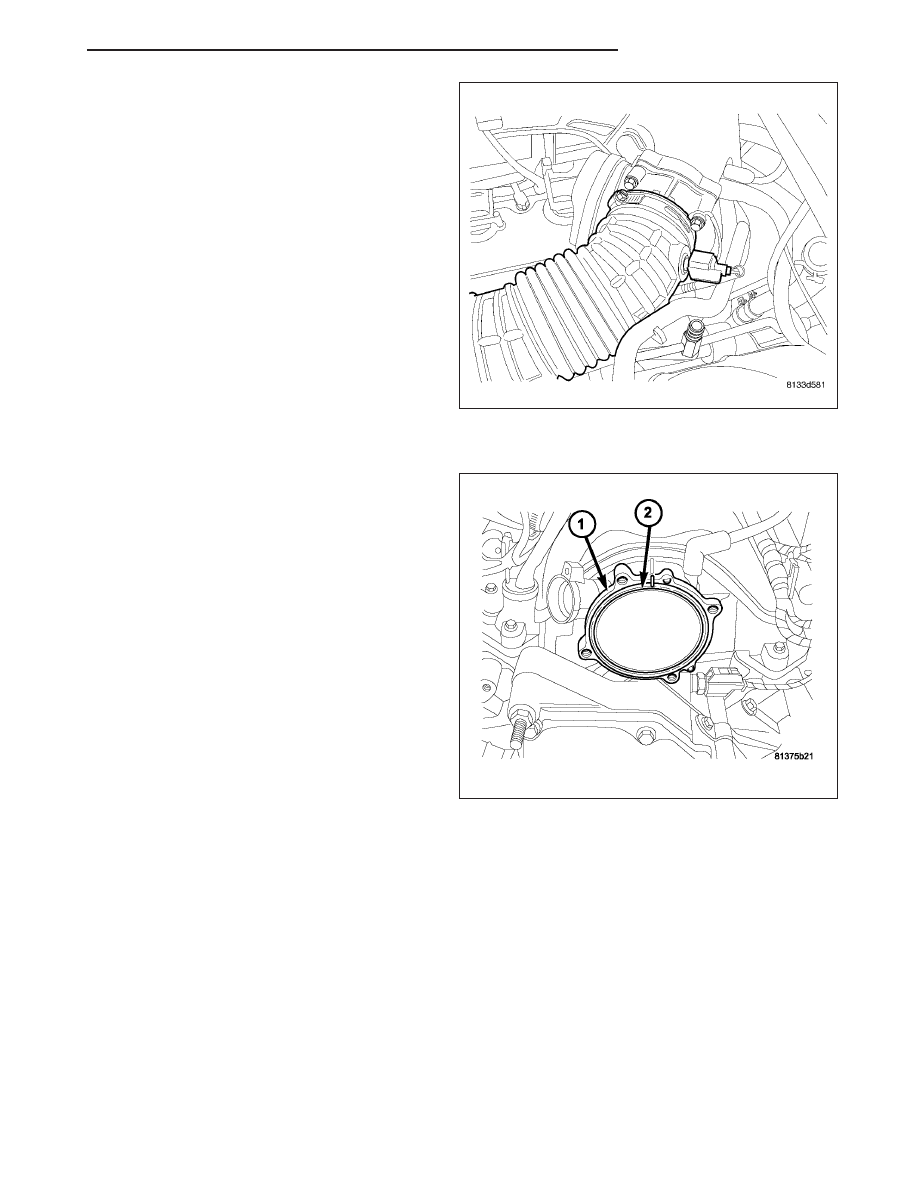

5.7L

1. Clean and check condition of throttle body-to-intake

manifold o-ring (2).

2. Clean mating surfaces of throttle body and intake

manifold (1).

LX

FUEL INJECTION

14 - 225
