CAUTION: Always install the new timing chain with
the oil holes pointing up. Failure to do so will
result in severe engine damage.

NOTE: Always keep new timing chain meshed with
camshaft sprocket.

CAUTION: DO NOT CRANK ENGINE and DO NOT
ROTATE ENGINE BACKWARD. Engine rotation is
clockwise, as you are looking at the engine.
Rotate engine at crankshaft only.

NOTE: Draw out the end of old timing chain evenly
as it becomes free, to the same extent that new
timing chain is drawn in.

2. Draw in new timing chain with the oil holes facing

up, by rotating the crankshaft slowly in direction of
rotation of engine.

.

3.

Rotate the engine until the ends of the new timing

chain meet and can be connected.

9 - 2784

ENGINE - 3.0L TD SERVICE INFORMATION

LX

NOTE: Assembly link is only an assembly aid and
NOT designed for engine running.

4. Remove assembly locking element, assembly outer

plate and assembly link.

CAUTION: Cover timing case recesses to prevent
foreign material from entering engine.

5. Insert new riveted link with the oil hole up, and new

middle plate into ends of timing chain using the
guide link to hold the middle plate in position.

NOTE:

When

assembling

riveting

tool,

piece

#9312–7 is secured by a screw and #9312–10 can
move loosely on thrust spindle

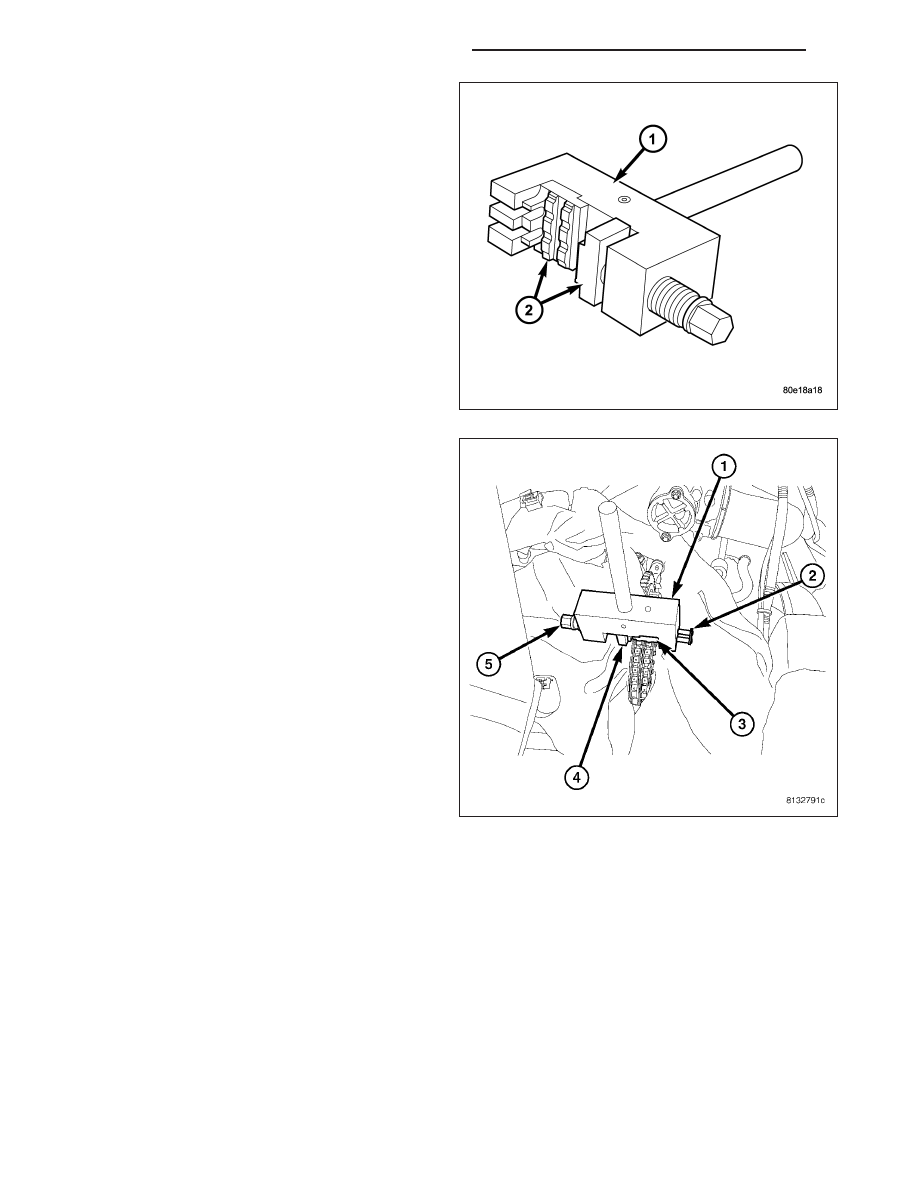

6. Assemble riveting tool by inserting pieces #9312–7

and #9312–10.

LX

ENGINE - 3.0L TD SERVICE INFORMATION

9 - 2785

NOTE: Ensure that the riveted link and riveting
tool are aligned.

7. Press in new riveted link as far as the stop.

8. Remove guide link and riveting tool to change

inserts.

9. Install insert #9312–6 on riveting tool and secure

with screw.

10. Install insert 9312–8 on riveting tool.

NOTE: The outer plate is held magnetically by riv-
eting tool.

11. Insert new outer plate into the moving assembly

insert.

12. Position riveting tool so that spacer webs of the

guide are side by side.

13. Ensure that riveted link and outer plate are

aligned.

NOTE: When turning spindle of riveting tool, be
sure that pins of riveted link are inserted into
holes of outer plate

14. Screw in spindle of riveting tool until firm resis-

tance is felt.

9 - 2786

ENGINE - 3.0L TD SERVICE INFORMATION

LX

15. Remove riveting tool.

16. Install

moving

assembly

insert

#9312–11

to

#9312–1.

17. Position riveting tool exactly over middle of pin.

18. Tighten riveting tool spindle to end of travel.

19. Repeat procedure for both riveting pins.

20. Inspect riveting, re-rivet if required.

LX

ENGINE - 3.0L TD SERVICE INFORMATION

9 - 2787
