12. Install the high pressure fuel lines from the fuel

rail to injectors. Tighten the line connections to 27
N·m (20 ft. lbs.).

13. Install the fuel line from the high pressure pump

to the left fuel rail. Tighten the retaining bolt to 30
N·m (22 ft. lbs.).

14. Install the fuel supply line to the fuel filter and

high pressure pump.

15. Connect both fuel lines at the high pressure

pump.

16. Install the air filter housing and tube.

17. Connect the negative battery cable.

18. Start the engine, run until warm, turn engine off and inspect for leaks (Refer to 14 - FUEL SYSTEM - WARN-

ING).

RIGHT

1. Clean and inspect all sealing surfaces.

NOTE: Care must be taken not to get any engine sealant on the camshaft journals of the cylinder head
cover.

2. Install a 1/8 in bead of Mopar Engine RTV Gen II sealant to the underside of the cylinder head cover (Refer to

9 - ENGINE - STANDARD PROCEDURE).

CAUTION: The cylinder head cover bolts are different lengths. Make sure to install the bolts into their orig-
inal position.

9 - 2708

ENGINE - 3.0L TD SERVICE INFORMATION

LX

3. Carefully position the cylinder head cover and install the bolts into their original position.

4. Tighten cylinder head cover bolts in sequence, first to 4 N·m (35 in. lbs.), and then repeat the sequence to 8.4

N·m (75 in. lbs).

CAUTION: Make sure to replace the lower copper washer seal on the injector. DO NOT re-use the old seal,
DO NOT double the seals.

5. Install the fuel injectors. Tighten the retaining claw bolts to 7 N·m (5 ft. lbs.) and then an additional 180°.

6. Install the CCV housing. Tighten the fasteners to 9 N·m (80 in. lbs.).

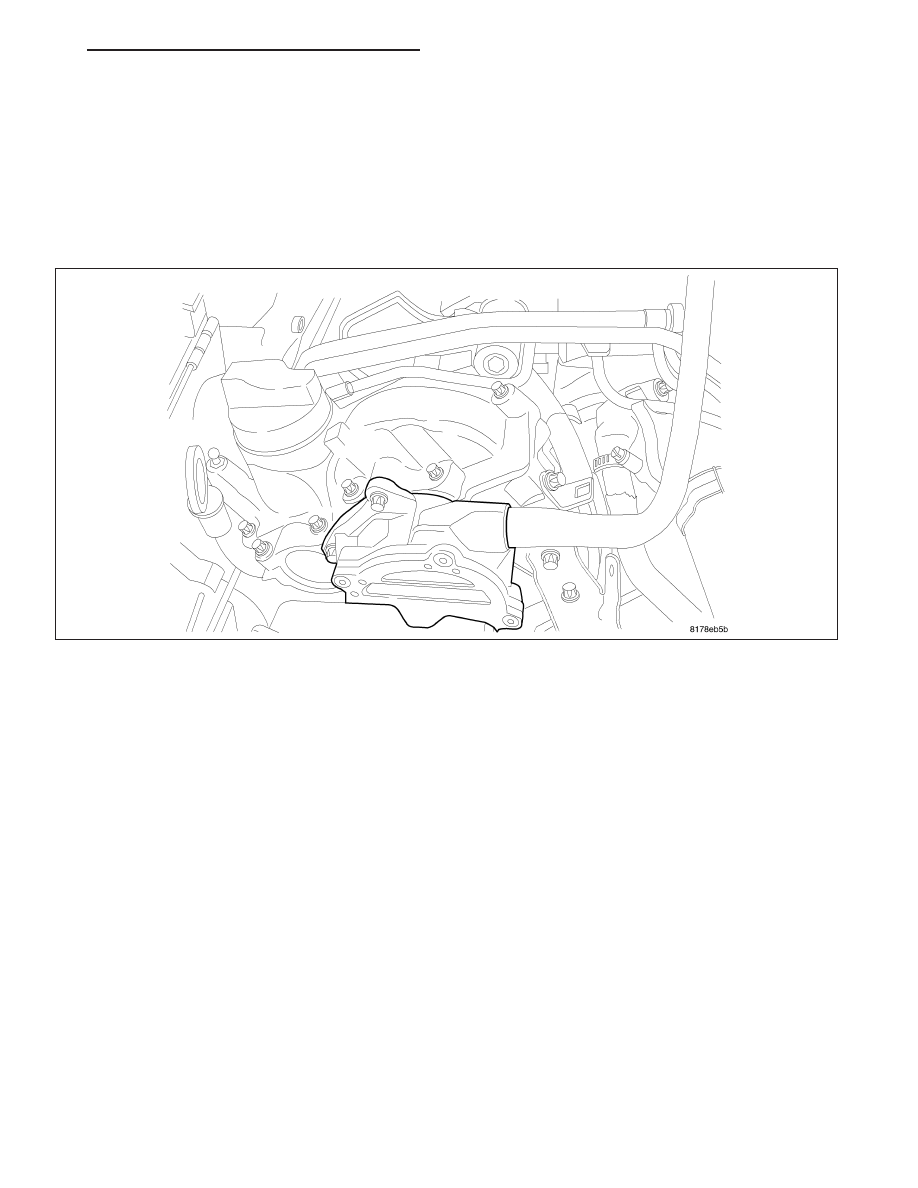

7. Install the vacuum pump. Tighten the fasteners to 9 N·m (80 in. lbs.).

8. Install the EGR air control valve resonator. Tighten the fasteners to 9 N·m (80 in. lbs.).

9. Install the oil level indicator tube fastener. Tighten the bolt to 11 N·m (97 in. lbs.).

10. Install the AC / heater hose bracket. Tighten the bolts to 9 N·m (80 in. lbs.).

11. Install the fuel rail. Tighten bolts to 9 N·m (80 ft. lbs.).

NOTE: Inspect all fuel lines for damage or wear. Replace as necessary. DO NOT over tighten the fuel line
nuts.

12. Install the fuel injector high pressure lines. Tighten line nuts to 33 N·m (24 ft. lbs.).

13. Position the engine wiring harness and connect the CMP, fuel rail pressure sensor and fuel injectors.

14. Connect the fuel return hoses to fuel injectors, pushing down on the hose retainers.

15. Install the air cleaner cover and inlet tube.

16. Install the rear engine cover bracket.

17. Connect the CCV hose to air inlet tube and connect the CCV heater wiring harness connector.

18. Install the engine cover.

19. Install the strut tower support.

20. Install the coolant reservoir.

21. Connect the negative battery cable.

22. Start engine, allow to warm, turn engine off and inspect for leaks (Refer to 14 - FUEL SYSTEM - WARNING).

LX

ENGINE - 3.0L TD SERVICE INFORMATION

9 - 2709

ROCKER ARMS

DESCRIPTION

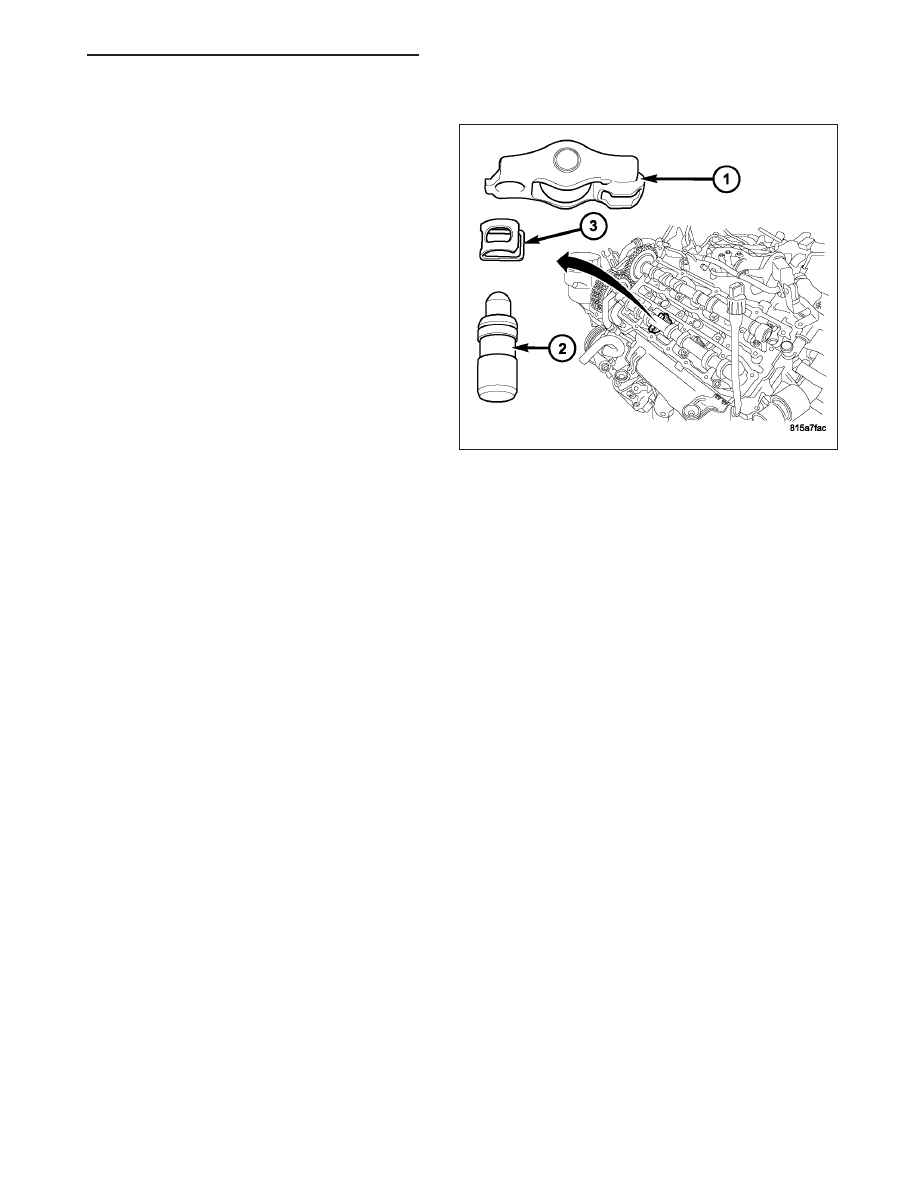

The rocker arms (1) are located on the top of the
hydraulic lifters (2) and the valves. The rocker arms
are not held rigidly into position; instead they are held
in position by resting on top of the valve and the
hydraulic lifter pivoting ball. A holding clip (3) secures
the rocker arm to the hydraulic lifter.

OPERATION

The rocker arms are used as a link between the camshaft and valves. As the camshaft rotates, the lobes of the
camshafts apply downward pressure on the rocker arms. This pressure is then transmitted to the valves which
causes the valves to open.

REMOVAL

1. Remove the appropriate camshafts. (Refer to 9 -

ENGINE/CYLINDER HEAD/CAMSHAFT(S) - LEFT
- REMOVAL) or (Refer to 9 - ENGINE/CYLINDER
HEAD/CAMSHAFT(S) - RIGHT - REMOVAL).

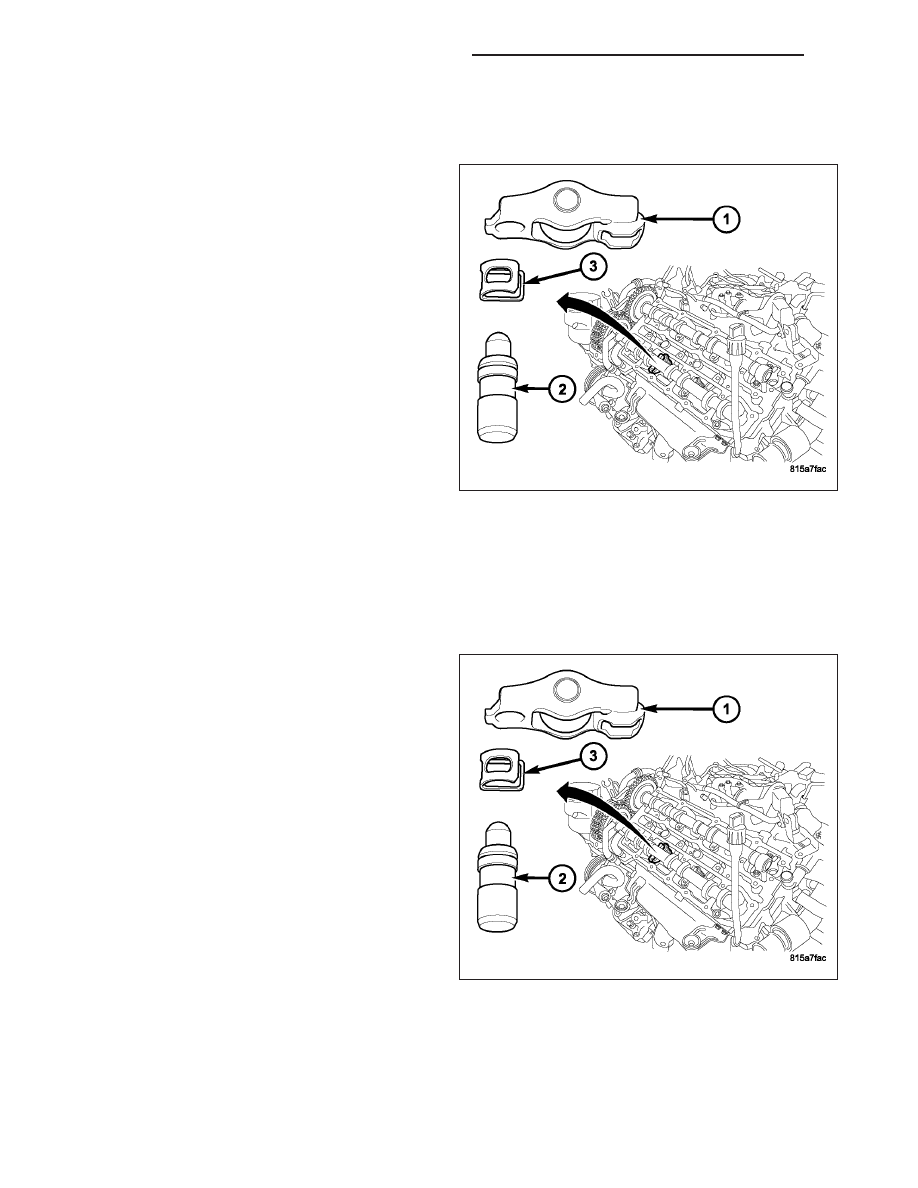

2. Remove the rocker arm (1) and lifter (2) assembly.

NOTE: When the hydraulic lifters are removed
from the engine, they must be stored upright and
in clean conditions.

3. Separate the rocker arm from the lifter.

9 - 2710

ENGINE - 3.0L TD SERVICE INFORMATION

LX

INSTALLATION

1. Assemble the rocker arm (1) to the hydraulic lifter

(2) with the retaining clip (3).

2. Install the rocker arm and lifter assembly onto the

cylinder head.

3. Install the camshaft(s). (Refer to 9 - ENGINE/CYL-

INDER HEAD/CAMSHAFT(S) - LEFT - INSTALLA-
TION) or (Refer to 9 - ENGINE/CYLINDER HEAD/
CAMSHAFT(S) - RIGHT - INSTALLATION).

LX

ENGINE - 3.0L TD SERVICE INFORMATION

9 - 2711
