INSTALLATION

1. Clean all surfaces of cylinder block and cylinder heads.

2. Clean cylinder block front and rear gasket surfaces using a suitable solvent.

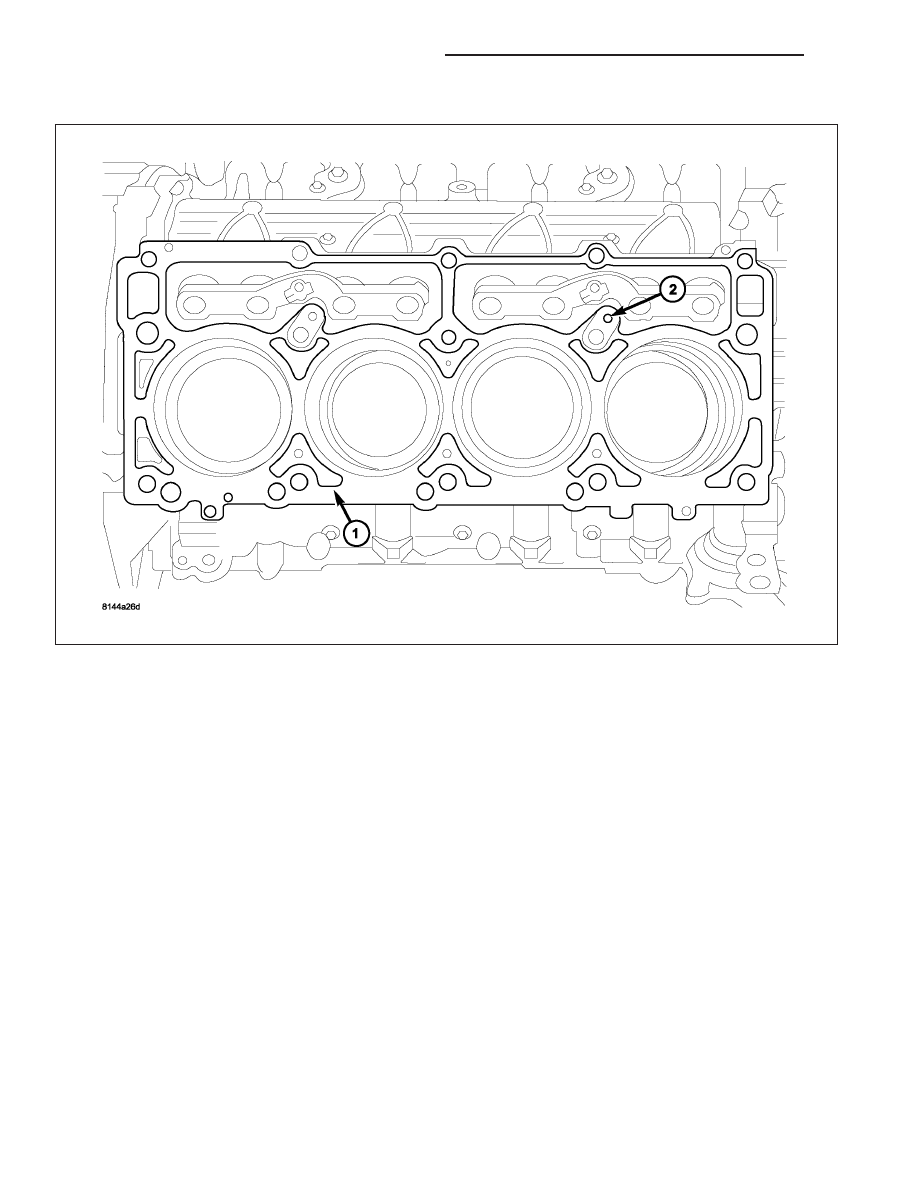

CAUTION: The head gaskets (1) are interchangeable between left and right sides. They are marked “UP” to
indicate direction to face up.

9 - 2492

ENGINE - 6.1L SERVICE INFORMATION

LX

NOTE: Rotate crankshaft @ 45°, so that all pistons
are

1

2

the way down the cylinder bore to avoid

piston to valve contact.

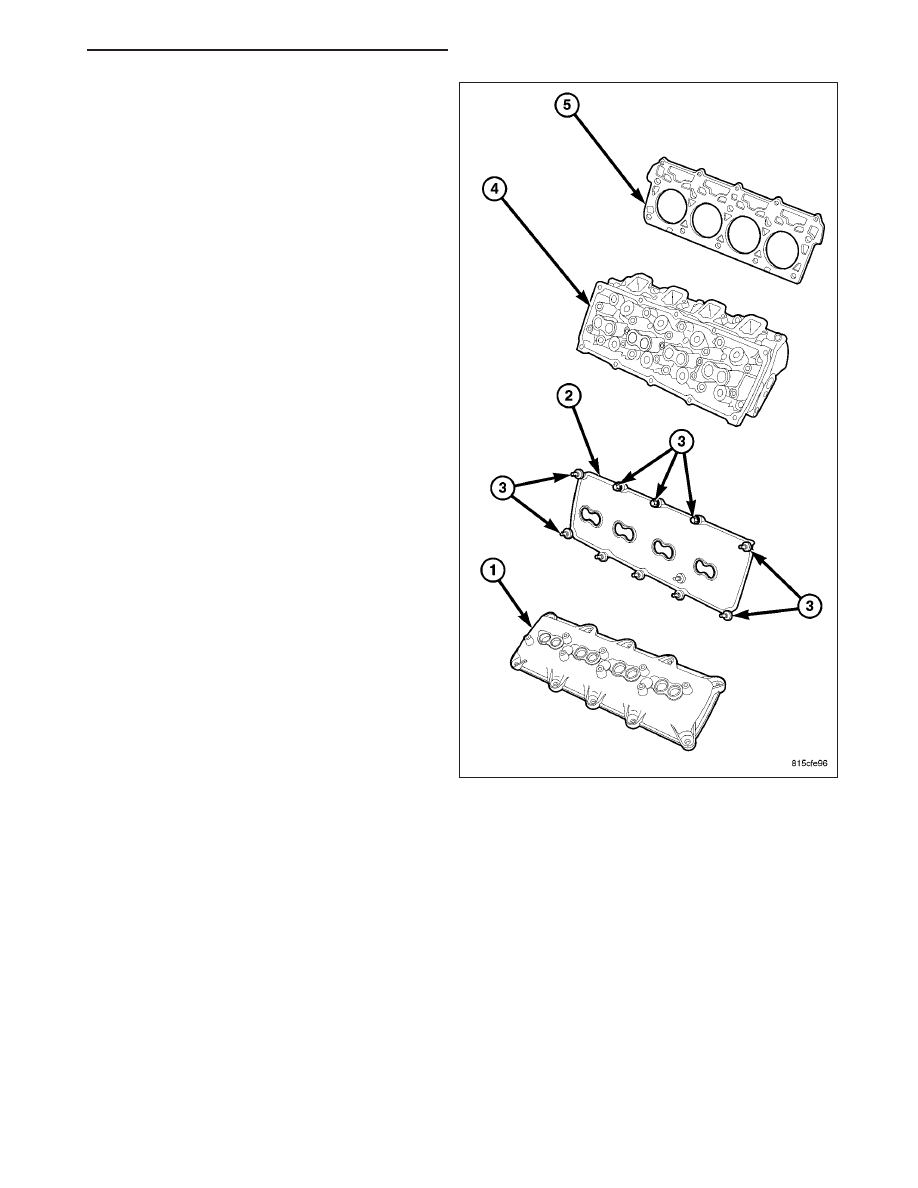

3. Position new cylinder head gaskets (5) onto the

cylinder block.

4. Position cylinder heads (4) onto head gaskets (5)

and cylinder block.

LX

ENGINE - 6.1L SERVICE INFORMATION

9 - 2493

5. Tighten the cylinder head bolts in three steps using

the sequence provided :

Step 1— Snug tighten M12 cylinder head bolts,
in sequence, to 34 N·m (25 ft. lbs.) and M8 bolts
to 20 N·m (15 ft. lbs.) torque.

Step 2— Tighten M12 cylinder head bolts, in
sequence, to 54 N·m (40 ft. lbs.) and verify M8
bolts to 20 N·m (15 ft. lbs.) torque..

Step 3— Turn M12 cylinder head bolts, in
sequence, 90 degrees and tighten M8 bolts to 34
N·m (25 ft. lbs.) torque.

6. Install push rods and rocker arm assemblies in

their original position, using pushrod retaining plate
(1) special tool# 9070. (Refer to 9 - ENGINE/CYL-
INDER HEAD/ROCKER ARM / ADJUSTER ASSY -
INSTALLATION).

7. Install the intake manifold and throttle body assem-

bly (Refer to 9 - ENGINE/MANIFOLDS/INTAKE
MANIFOLD - INSTALLATION).

8. If required, adjust spark plugs to specifications.

Install the plugs.

9. Connect the heater hoses.

10. Install the fuel supply line.

11. Install the power steering pump.

12. Install the drive belt (Refer to 7 - COOLING/AC-

CESSORY

DRIVE/DRIVE

BELTS

-

INSTALLATION).

9 - 2494

ENGINE - 6.1L SERVICE INFORMATION

LX

13. Install cylinder head covers (1) (Refer to 9 -

ENGINE/CYLINDER

HEAD/CYLINDER

HEAD

COVER(S) - INSTALLATION).

14. Install the ignition coils (1) (Refer to 8 - ELECTRI-

CAL/IGNITION

CONTROL/IGNITION

COIL

-

INSTALLATION).

LX

ENGINE - 6.1L SERVICE INFORMATION

9 - 2495
