CAUTION: The rocker shaft assemblies are not
interchangeable between intake and exhaust. The
intake rocker arms are marked with the letter “I”.

3. Install rocker shaft assemblies in the same order

as removed.

4. Tighten the rocker shaft bolts to 22 N·m (195 in.

lbs.) torque,using the sequence provided.

CAUTION: DO NOT rotate or crank the engine dur-
ing or immediately after rocker arm installation.
Allow the hydraulic roller tappets adequate time to
bleed down (about 5 minutes).

5. Remove pushrod retaining plate (1) special tool

9070.

9 - 2340

ENGINE - 5.7L SERVICE INFORMATION

LX

6. Install cylinder head cover (Refer to 9 - ENGINE/

CYLINDER HEAD/CYLINDER HEAD COVER(S) -
INSTALLATION).

LX

ENGINE - 5.7L SERVICE INFORMATION

9 - 2341

SEALS-VALVE GUIDE

DESCRIPTION

The valve guide seals are made of rubber and incorporate an integral steel valve spring seat. The integral garter
spring maintains consistent lubrication control to the valve stems.

9 - 2342

ENGINE - 5.7L SERVICE INFORMATION

LX

SPRINGS-VALVE

REMOVAL

1. Disconnect negative battery cable.

2. Remove air cleaner assembly.

3. Remove air intake resonator.

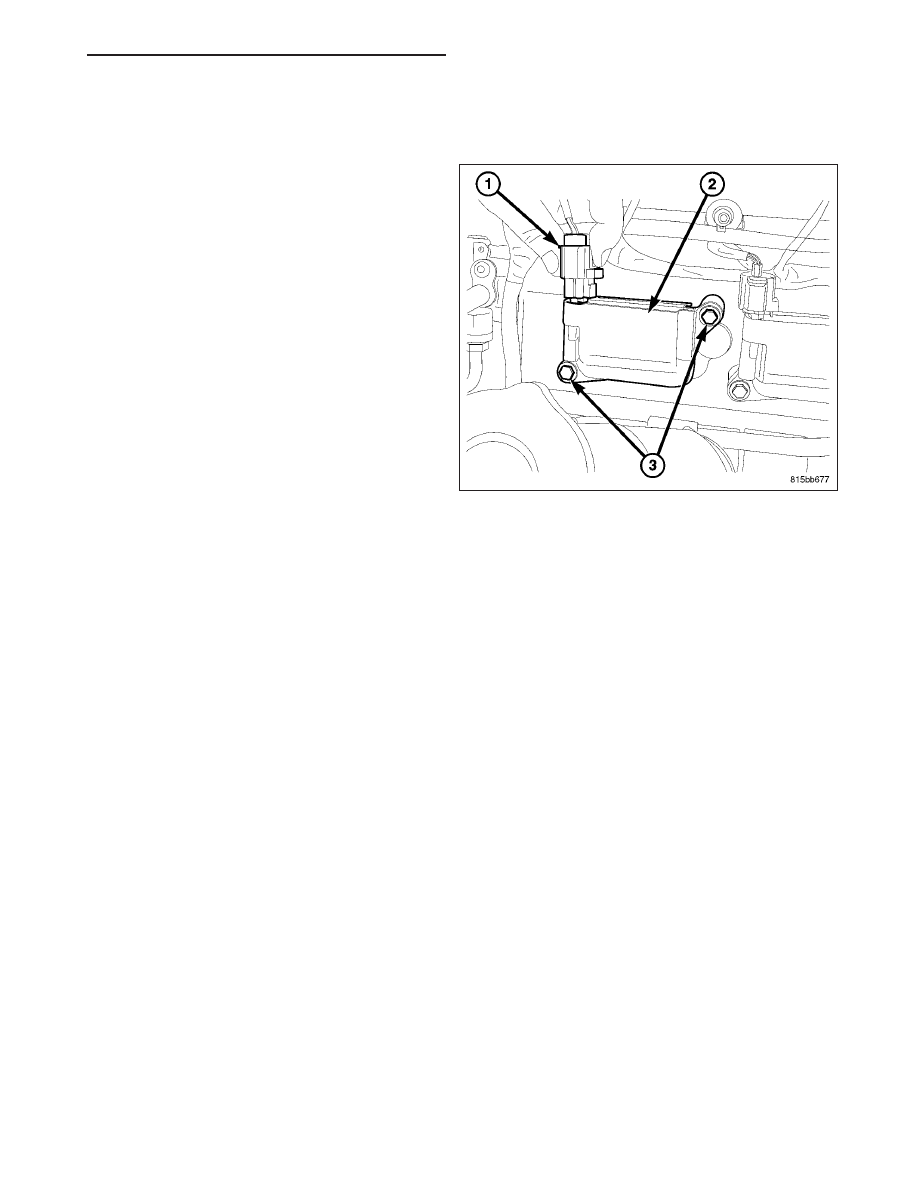

4. Remove ignition coil connector (1).

5. Remove ignition coils (2).

6. Remove one spark plug.

LX

ENGINE - 5.7L SERVICE INFORMATION

9 - 2343
