32. Remove transmission bell housing to engine block

bolts (2).

33. Lower the vehicle.

34. Install engine lift fixture (2), special tool # 8984

and 8984–UPD (4).

35. Separate

engine

from

transmission,

remove

engine from vehicle, and install engine assembly
on a repair stand.

9 - 2300

ENGINE - 5.7L SERVICE INFORMATION

LX

INSTALLATION - ENGINE

1. Install engine lift fixture (2) Special tool # 8984 and

8984–UPD (4).

2. Position the engine in the engine compartment.

3. Lower engine into compartment and align engine

with transmission.

4. Mate engine and transmission and install two trans-

mission to engine block mounting bolts finger tight.

5. Lower engine assembly until engine mount studs

rest in frame perches.

6. Install remaining transmission to engine block

mounting bolts (1, 2)and tighten.

7. Install and tighten engine mount to frame nuts.

LX

ENGINE - 5.7L SERVICE INFORMATION

9 - 2301

8. Install drive plate to torque converter bolts (1).

9. Install the torque convertor access cover (1).

9 - 2302

ENGINE - 5.7L SERVICE INFORMATION

LX

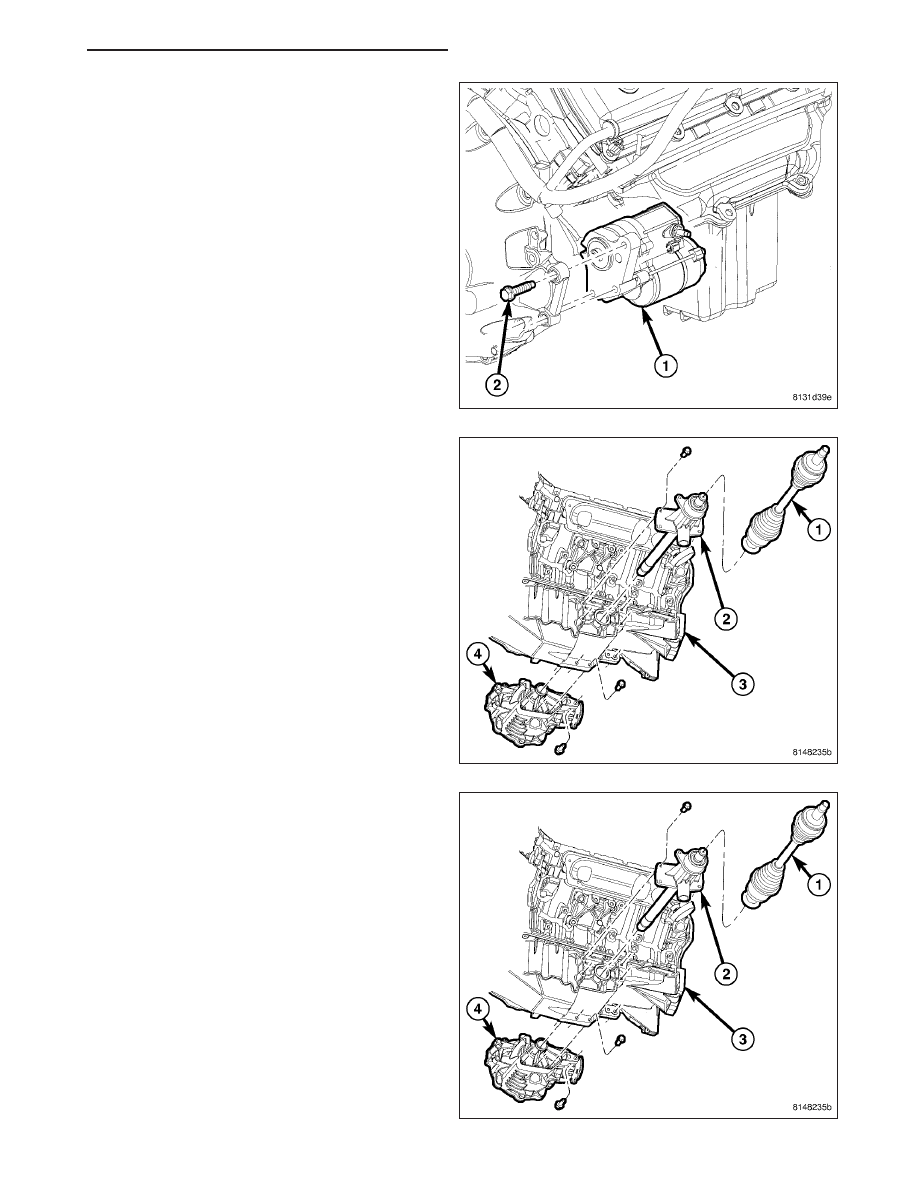

10. Install the starter (1) and connect the starter wires

(Refer to 8 - ELECTRICAL/STARTING/STARTER
MOTOR - INSTALLATION).

11. FOR AWD ONLY Install the intermediate shaft (2)

to the oil pan (3). Torque fasteners to 28N·m (21ft.
lbs).

12. FOR AWD ONLY Install the front differential

through the opening at the rear of the cradle, and
attach to the oil pan.

13. FOR AWD ONLY Fasten the differential (4) to the

oil pan (3) Torque to 65 N·m (48 ft. lbs).

LX

ENGINE - 5.7L SERVICE INFORMATION

9 - 2303
