Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1531





15. Install the right exhaust manifold (Refer to 9 -

ENGINE/MANIFOLDS/EXHAUST

MANIFOLD

-

INSTALLATION).

16. Raise and support the vehicle.

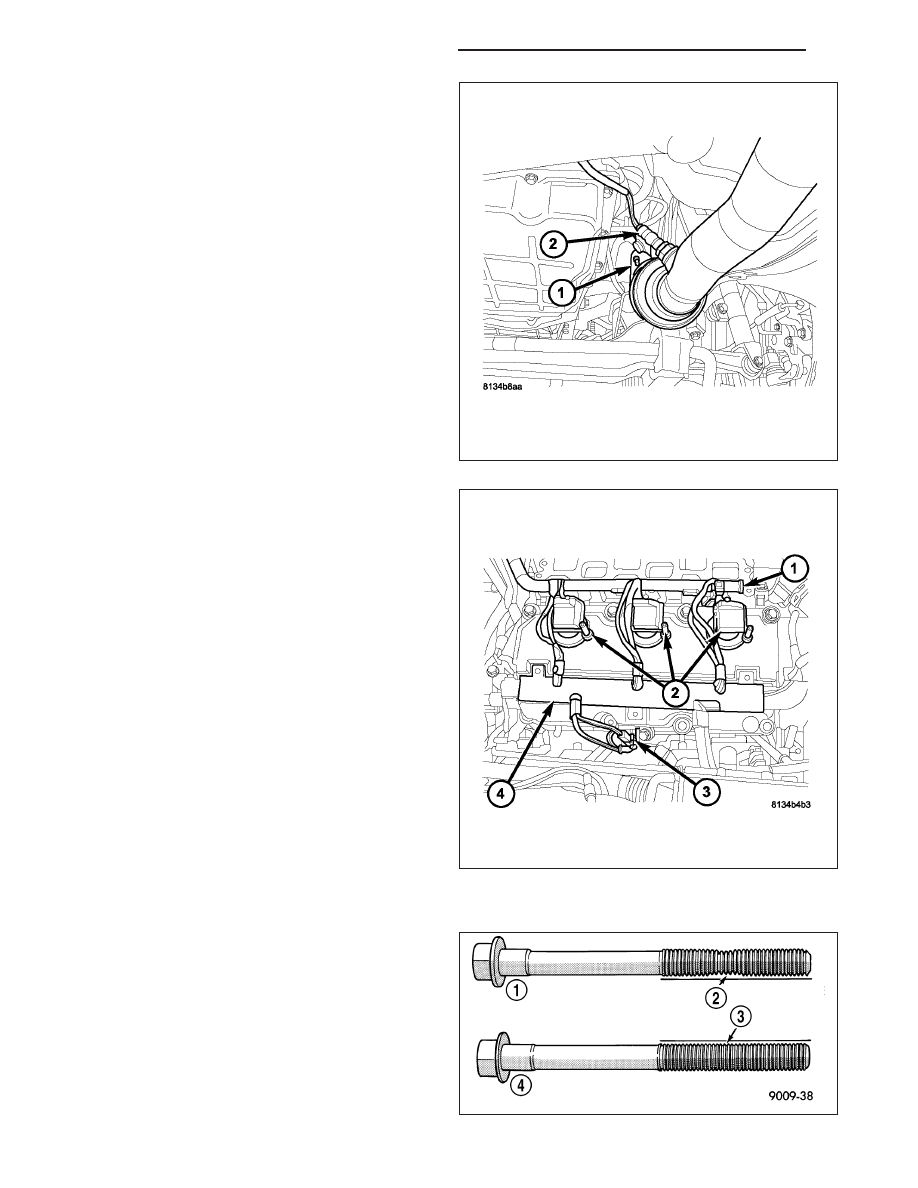

17. Install the front exhaust pipe (1) and connect the

oxygen sensors (2).

18. Lower the vehicle.

19. Install the right rocker arm assembly.

20. Install the right cylinder head cover, ground strap

(3) and insulator.

21. Install

lower

intake

manifold

(Refer

to

9

-

ENGINE/MANIFOLDS/INTAKE

MANIFOLD

-

INSTALLATION).

22. Install the fuel rail.

23. Install the upper intake manifold (Refer to 9 -

ENGINE/MANIFOLDS/INTAKE

MANIFOLD

-

INSTALLATION).

24. Connect the air cleaner element housing (Refer to

9 - ENGINE/AIR INTAKE SYSTEM/AIR CLEANER
HOUSING - INSTALLATION).

25. Fill the coolant system.

26. Connect the negative battery cable.

LEFT CYLINDER HEAD

CAUTION: THE CYLINDER HEAD GASKETS ARE
NOT INTERCHANGEABLE BETWEEN CYLINDER
HEADS AND ARE CLEARLY MARKED RIGHT OR
LEFT.

The cylinder head bolts are tightened using a
torque plus angle procedure. The bolts must be
examined

BEFORE

reuse.

If

the

threads

are

necked down the bolts must be replaced.

9 - 2148

ENGINE - 3.5L - SERVICE INFORMATION

LX

Necking can be checked by holding a scale or straight edge against the threads. If all the threads do not contact the
scale the bolt must be replaced.

CAUTION: When cleaning cylinder head and cylin-
der block surfaces, DO NOT use a metal scraper
because the surfaces could be cut or ground. Use
ONLY a wooden or plastic scraper (Refer to 9 -
ENGINE - STANDARD PROCEDURE - ENGINE
GASKET SURFACE PREPARATION).

1. Clean sealing surfaces of cylinder head and block.

CAUTION: Ensure that the correct head gaskets
are used and are oriented correctly on cylinder
block.

2. Install head gasket over locating dowels. Ensure the gasket is installed on the correct side of engine.

NOTE: Before installing the cylinder head bolts, lubricate the threads with engine oil.

3. Install the cylinder head over locating dowels, insert and finger tighten the head bolts.

4. Tighten the cylinder head bolts in the sequence shown in. Using the 4 step torque-turn method, tighten according

to the following torque values:

Step 1: All to 61 N·m (45 ft. lbs.)

Step 2: All to 88 N·m (65 ft. lbs.)

Step 3: All (again) to 88 N·m (65 ft. lbs.)

Step 4: + 90° Turn Do not use a torque wrench for this step.

5. Bolt torque after 90° turn should be over 122 N·m (90 ft. lbs.) in the tightening direction. If not, replace the bolt.

6. Install the inner timing cover to cylinder head bolts. Tighten bolts to 54 N·m (40 lbs.ft.).

7. Install camshaft sprocket. Counterhold the cam-

shaft sprocket gear and tighten the camshaft
sprocket bolt to 102 N·m plus a 1/4 turn (75 lbs. ft.
plus a 1/4 turn)

LX

ENGINE - 3.5L - SERVICE INFORMATION

9 - 2149

8. Install the rear camshaft thrust plate (1) and seal

(3).

9. Rotate the camshaft gear (7) to it’s alignment mark (8) and check the right camshaft gear (1) and crankshaft

gear timing (9) alignment marks.

10. Install the timing belt (4) and tensioner (11) (Refer to 9 - ENGINE/VALVE TIMING/TIMING BELT/CHAIN AND

SPROCKETS - INSTALLATION).

TIMING GEAR ALIGNMENT

1 - RIGHT CAMSHAFT GEAR ALIGNMENT MARK

7 - LEFT CAMSHAFT GEAR

2 - RIGHT CAMSHAFT GEAR

8 - LEFT CAMSHAFT GEAR ALIGNMENT MARK

3 - CYLINDER HEAD TO INNER TIMING BELT COVER BOLTS -
RIGHT

9 - CRANKSHAFT GEAR ALIGNMENT MARK

4 - TIMING BELT

10 - CRANKSHAFT GEAR

5 - WATER PUMP PULLEY

11 - TIMING BELT TENSIONER PULLEY

6 - CYLINDER HEAD TO INNER TIMING BELT COVER BOLTS -
LEFT

12 - TIMING BELT TENSIONER

9 - 2150

ENGINE - 3.5L - SERVICE INFORMATION

LX

11. Install the timing belt front cover (1) (Refer to 9 -

ENGINE/VALVE TIMING/TIMING BELT / CHAIN
COVER(S) - INSTALLATION).

12. Install the accessory drive belt tensioner (1).

13. Install the accessory drive belt idler pulley.

14. Install the vibration damper (3) (Refer to 9 -

ENGINE/ENGINE BLOCK/VIBRATION DAMPER -
INSTALLATION).

LX

ENGINE - 3.5L - SERVICE INFORMATION

9 - 2151
