21. Disconnect the right #2 oxygen senor (2) electrical

connector and separate the exhaust manifold from
the right exhaust pipe (1).

22. Remove the flex plate inspection cover and torque

converter bolts (3).

9 - 2112

ENGINE - 3.5L - SERVICE INFORMATION

LX

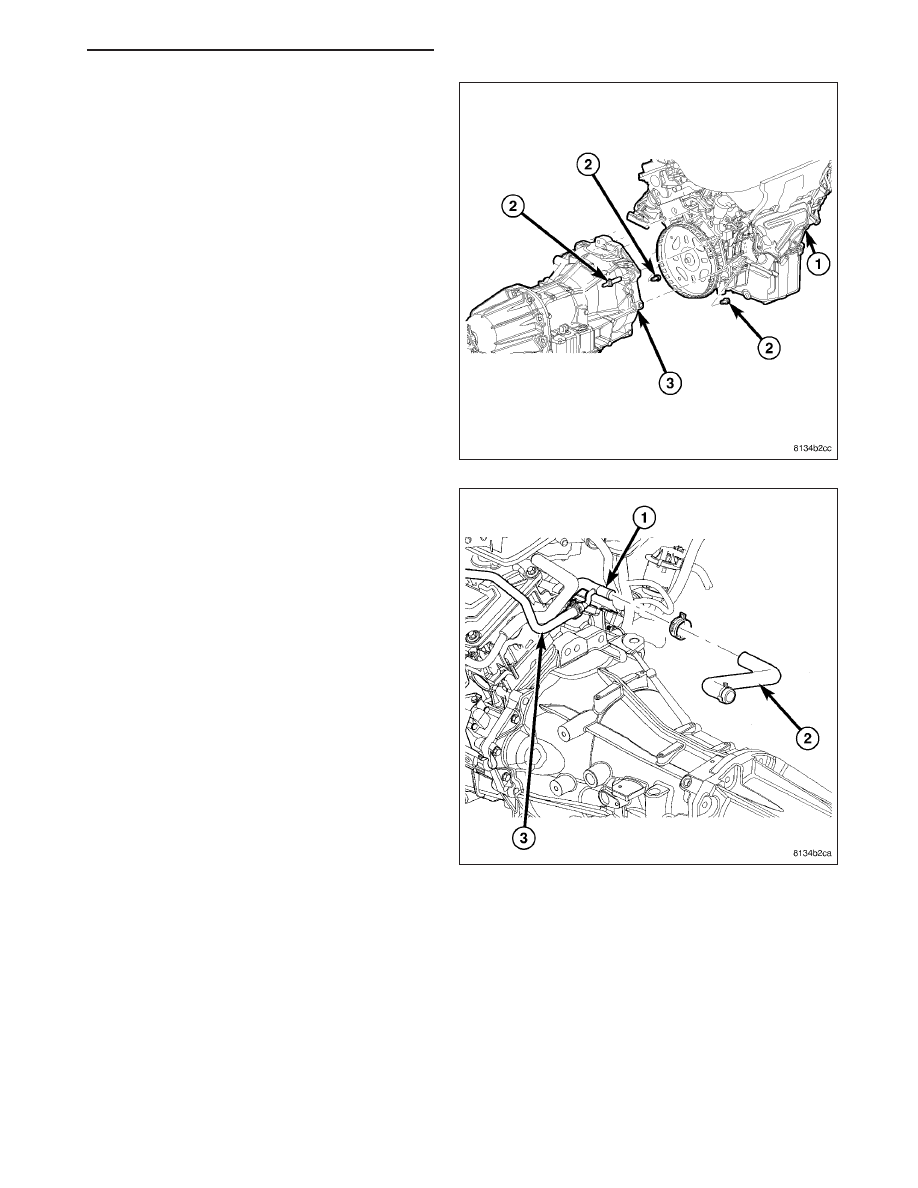

23. Remove the transmission housing to engine

mounting bolts (2) accessible.

24. Remove the engine mounting to cradle fasteners.

25. Lower the vehicle.

26. Remove the upper intake manifold (Refer to 9 -

ENGINE/MANIFOLDS/INTAKE

MANIFOLD

-

REMOVAL).

27. Disconnect the heater hose (2) and coolant reser-

voir hose (3) from the rear coolant pipe (1).

LX

ENGINE - 3.5L - SERVICE INFORMATION

9 - 2113

28. Disconnect the oxygen sensor connector and the

ground wire on the left cylinder head cover.

29. Disconnect the coolant temperature, cam position,

oil pressure sensor electrical connectors.

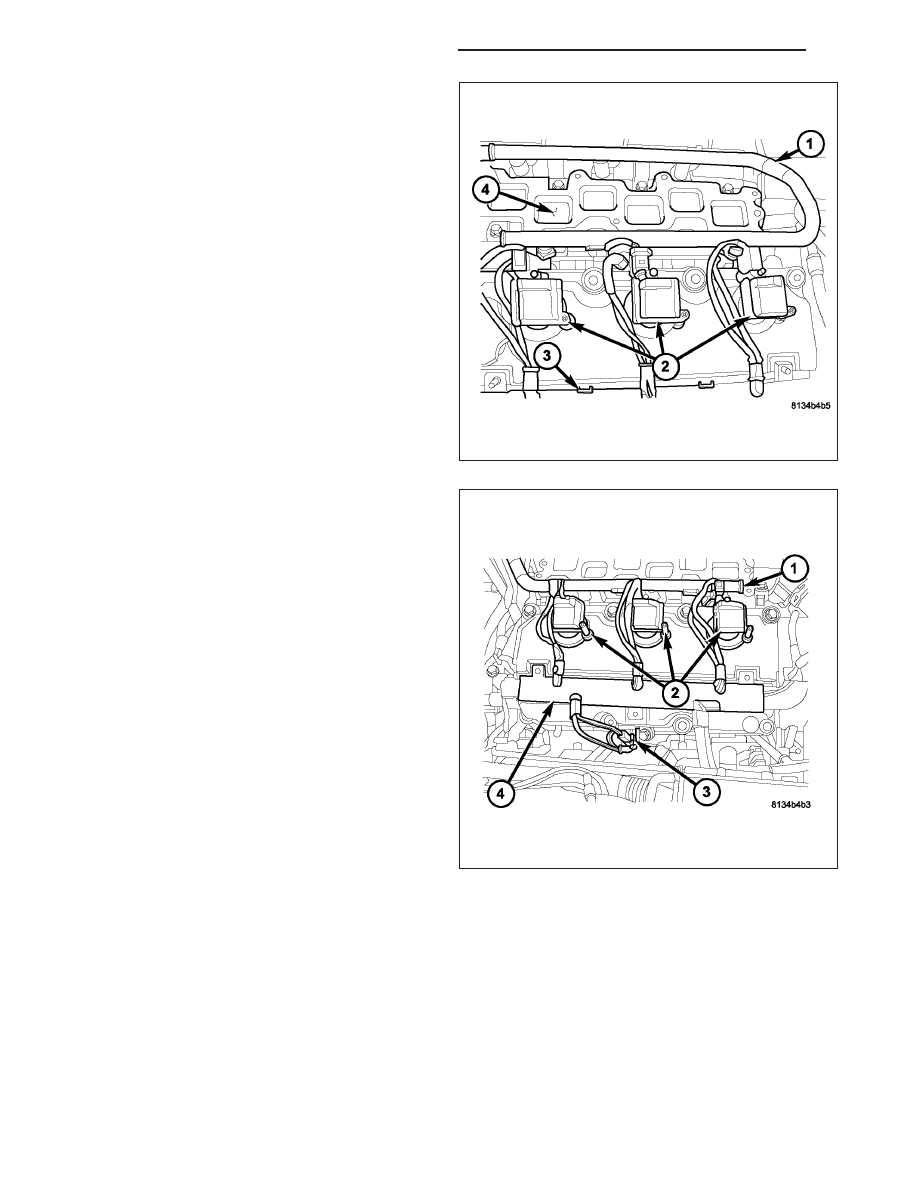

30. Disconnect the left ignition coil (2) and fuel injec-

tor harness connectors and position the wiring
harness (3) aside

.

31. Remove the right intake manifold support braces.

32. Disconnect the capacitor and ground strap from

the right cylinder head cover.

33. Disconnect the oxygen sensor, knock, EGR, injec-

tor and ignition coil harness connectors and posi-
tion the wiring harness aside.

34. Disconnect the engine wiring harness from the

transmission housing and remove the remaining
transmission housing bolts.

9 - 2114

ENGINE - 3.5L - SERVICE INFORMATION

LX

35. Connect the engine lifting bracket (2) from special

tool kit 8534B to the right rear of the cylinder
head outer most bolt access hole (5).

36. Install a bolt into the inner most bolt access hole

(5) next to the engine lift bracket to assure lifting
bracket positioning.

37. Connect a engine hoisting chain (1) to the left tim-

ing chain cover (2) engine lifting point and engine
lift bracket.

CAUTION: While slowly separating the engine
from the vehicle, constant checks must be made
to assure proper positioning and that no damage
to other components or wiring harnesses occur
during separation.

NOTE: As the engine is hoisted from the engine
bay area, remove the loosened A/C compressor
bolt retaining the transmission cooler lines and
direct the lines aside.

38. Carefully remove the engine from the engine bay

area.

INSTALLATION

CAUTION: Care must be taken when installing the engine to prevent pinching the power steering rack sen-
sor with the left engine mount.

LX

ENGINE - 3.5L - SERVICE INFORMATION

9 - 2115
