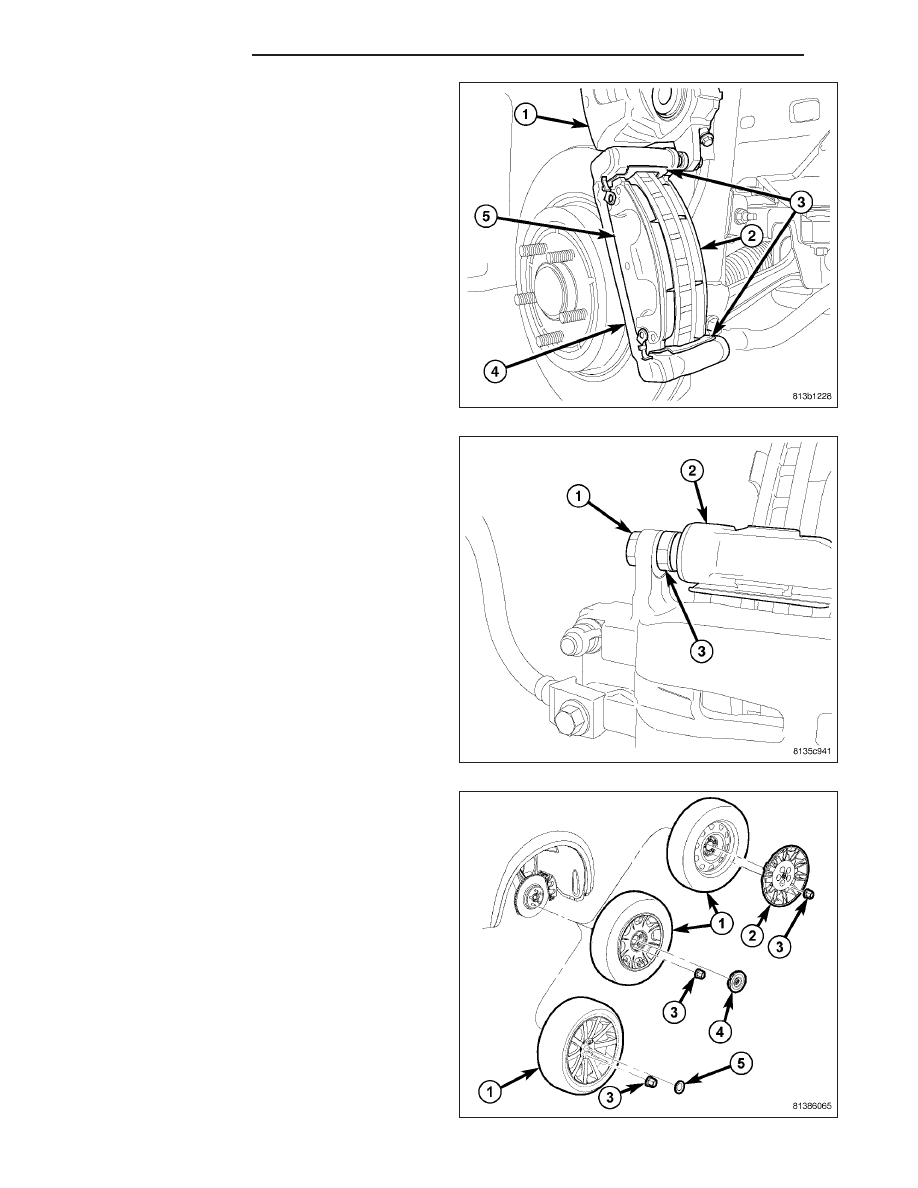

2. If removed, attach anti-rattle clips (3) to upper and lower abutments of adapter (4). 3. Install NEW inboard (2) and outboard (5) brake pads on caliper adapter (4). NEW Inboard and out- 4. Push caliper guide pins into caliper adapter to clear caliper mounting bosses when installing. 5. Rotate caliper downward, aligning upper mounting boss with lower guide pin. 6. Install Upper caliper guide pin bolt (1). While hold- ing guide pin (3) stationary tighten bolt to 60 N·m 7. Install tire and wheel assembly (1). Tighten wheel mounting nuts (3) to 150 N·m (110 ft. lbs.) torque. 8. Lower vehicle. 9. Pump brake pedal several times to set pads to cal- iper and brake rotor. 5 - 22 BRAKES - BASE LX |
