Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1377





When Monitored:
With the ignition on and the Starter Relay command on.

Set Condition:
The ECM detects a short circuit on the (T752) Engine Starter Motor Relay Control circuit for at 1.0 second.

Possible Causes

INTERMITTENT DTC

(T752) ENGINE STARTER MOTOR RELAY CONTROL CIRCUIT SHORTED TO VOLTAGE

(T752) ENGINE STARTER MOTOR RELAY CONTROL CIRCUIT SHORTED TO THE (T751) FUSED IGNITION
SWITCH OUTPUT (START) CIRCUIT

(T752) ENGINE STARTER MOTOR RELAY CONTROL CIRCUIT OPEN OR HIGH RESISTANCE

STARTER RELAY

ENGINE CONTROL MODULE (ECM)

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Diagnostic Test

1.

DTC IS ACTIVE

Ignition on, engine not running.

With the scan tool, Clear DTCs in the Engine Control Module (ECM).

Crank the engine for five seconds.

With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

(T752) ENGINE STARTER MOTOR RELAY CONTROL CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Remove the Starter Relay.

Disconnect the Engine Control Module connector.

Remove the ASD Relay from the IPM.

Connect a jumper wire between cavity 30 and cavity 87 of the ASD
Relay Connector.

Turn the ignition on.

Measure the voltage of the (T752) Engine Starter Motor Relay Control
circuit in the Starter Relay connector.

Is there any voltage present?

Yes

>> Repair the (T752) Engine Starter Motor Relay Control circuit

for a short to voltage.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Go to 3

9 - 1532

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

LX

3.

(T752) ENGINE STARTER MOTOR RELAY CONTROL CIRCUIT SHORTED TO THE (T751) FUSED
IGNITION SWITCH OUTPUT (START) CIRCUIT

Turn the ignition off.

Measure the resistance between the (T752) Engine Starter Motor Relay
Control circuit and the (T751) Fused Ignition Switch Output (START) cir-
cuit in the Starter Relay connector.

Is the resistance above 10.0 ohms?

Yes

>> Go to 4

No

>> Repair the (T752) Engine Starter Motor Relay Control circuit

for a short to the (T751) Fused Ignition Switch Output
(START) circuit.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

4.

(T752) ENGINE STARTER MOTOR RELAY CONTROL CIRCUIT OPEN OR HIGH RESISTANCE

Measure the resistance of the (T752) Engine Starter Motor Relay Con-
trol circuit between the Starter Relay connector and the Engine Control
Module (ECM) connector.

Is the resistance below 10.0 ohms?

Yes

>> Go to 5

No

>> Repair the (T752) Engine Starter Motor Relay Control circuit

for an open circuit or high resistance.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

5.

STARTER RELAY

Connect the Engine Control Module (ECM) connector.

Install a known good relay in place of the vehicle’s Starter Relay.

Turn the ignition on.

With the scan tool, Clear DTCs.

Crank the engine for five seconds.

With the scan tool, select View DTCs.

Is the status active for this DTC?

Yes

>> Go to 6

No

>> Replace the Starter Relay in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

LX

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1533

6.

ENGINE CONTROL MODULE (ECM)

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Starter Relay and
the Engine Control Module (ECM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes

>> Repair as necessary.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Replace the Engine Control Module (ECM) in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

9 - 1534

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

LX

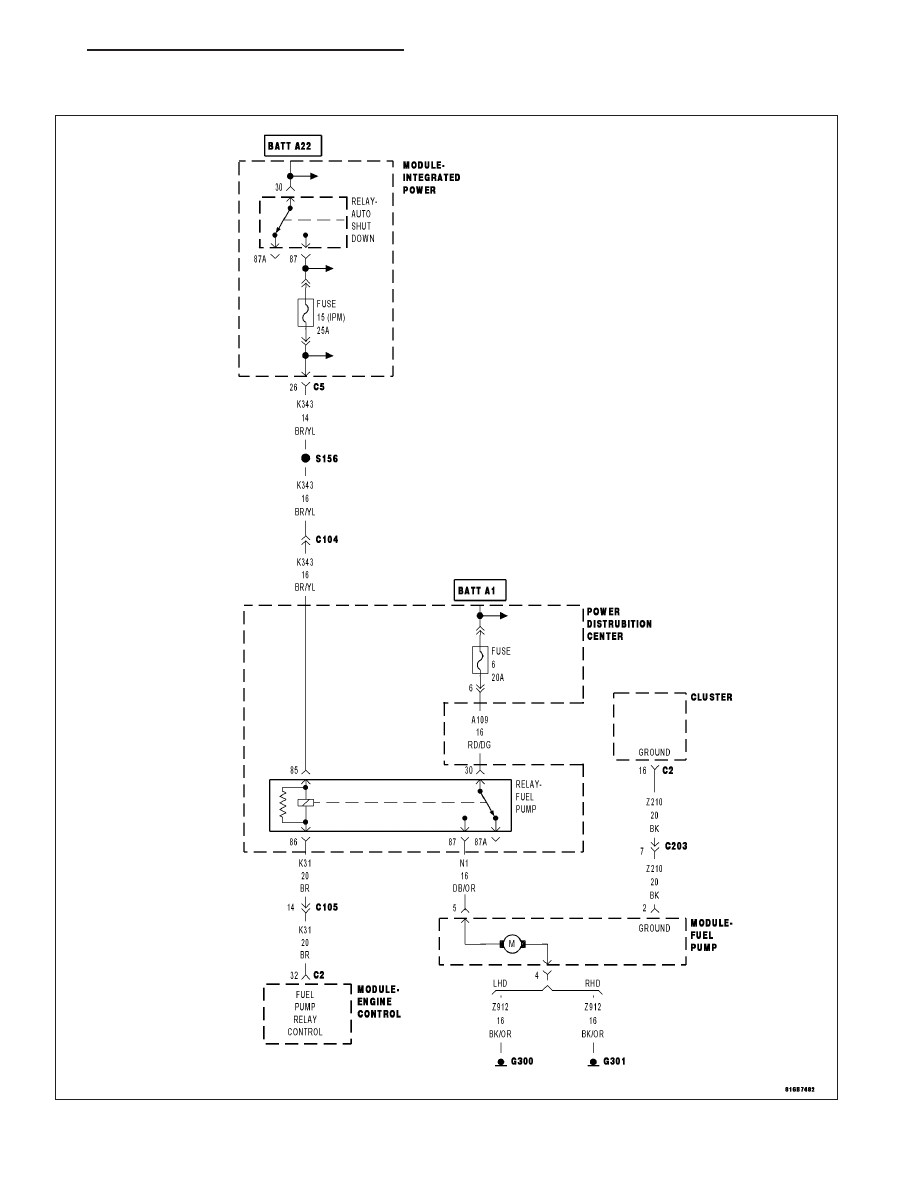

P0627-FUEL PUMP CONTROL CIRCUIT OPEN

For a complete wiring diagram Refer to Section 8W

LX

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL
