Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1183





P2111-ELECTRONIC THROTTLE CONTROL - UNABLE TO CLOSE

For a complete wiring diagram Refer to Section 8W.

9 - 756

ENGINE ELECTRICAL DIAGNOSTICS

LX

When Monitored:
Ignition on and battery voltage greater than 10 volts.

Set Condition:
Just after key on, the throttle is opened and closed to test the system. If the TP Sensor does not return to
Limp Home Position at the end of this test, this DTC will set. One trip fault and the code will set within 5
seconds. ETC light is flashing.

Possible Causes

THROTTLE PLATE STUCK ABOVE LIMP HOME POSITION

TP SENSOR NO.1 AND TP SENSOR NO.2 BOTH READ 2.5 VOLTS

(K124) ETC POSITIVE CIRCUIT SHORTED TO BATTERY VOLTAGE

(K124) ETC POSITIVE CIRCUIT OPEN

(K126) ETC NEGATIVE CIRCUIT OPEN

(K124) ETC POSITIVE CIRCUIT SHORTED TO GROUND

(K126) ETC NEGATIVE CIRCUIT SHORTED TO GROUND

PCM

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

ACTIVE DTC

NOTE: Maximum engine speed could be reduced while this fault is active, it just depends where the throttle
gets stuck.
Ignition on, engine not running.

NOTE: The PCM tests the ETC Motor by opening and closing the Throttle Plate before starting the engine.
If during this test the Throttle plate does not return to the closed position this DTC sets.
With a scan tool read DTCs.

NOTE: Diagnose any TP Sensor or 5-Volt Supply DTCs before continuing.

Is the DTC active at this time?

Yes

>> Go To 2

No

>> Refer to the INTERMITTENT CONDITION Diagnostic Procedure.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

2.

THROTTLE PLATE STUCK OPEN

Turn the ignition off.

NOTE: The PCM tests the ETC Motor by opening and closing the Throttle Plate before starting the engine.
If during this test the Throttle plate does not return to the closed position this DTC sets.
Remove the Air Cleaner Assembly from the Throttle Body.

Check for any signs of a foreign material causing the Throttle to remain open.

Using a scan tool actuate the ETC Motor.

Does the Throttle Plate move?

Yes

>> Go To 3

No

>> Remove the debris if possible or replace the Throttle Body Assembly if signs of physical damage are

present. Disconnect the Battery when replacing the Throttle Body Assembly. After installation is com-
plete, use a scan tool and perform the ETC RELEARN function.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

LX

ENGINE ELECTRICAL DIAGNOSTICS

9 - 757

3.

TP SENSOR NO.1 AND TP SENSOR NO.2 BOTH EQUAL 2.5 VOLTS

With a scan tool, perform the Throttle Follower test while reading both TP Sensor voltage readings.

Are both TP Sensor readings stuck at 2.5 volts?

Yes

>> Check the TP Sensor Signal circuits for excessive resistance, being shorted to each other, or shorted to

the Sensor Return circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 4

4.

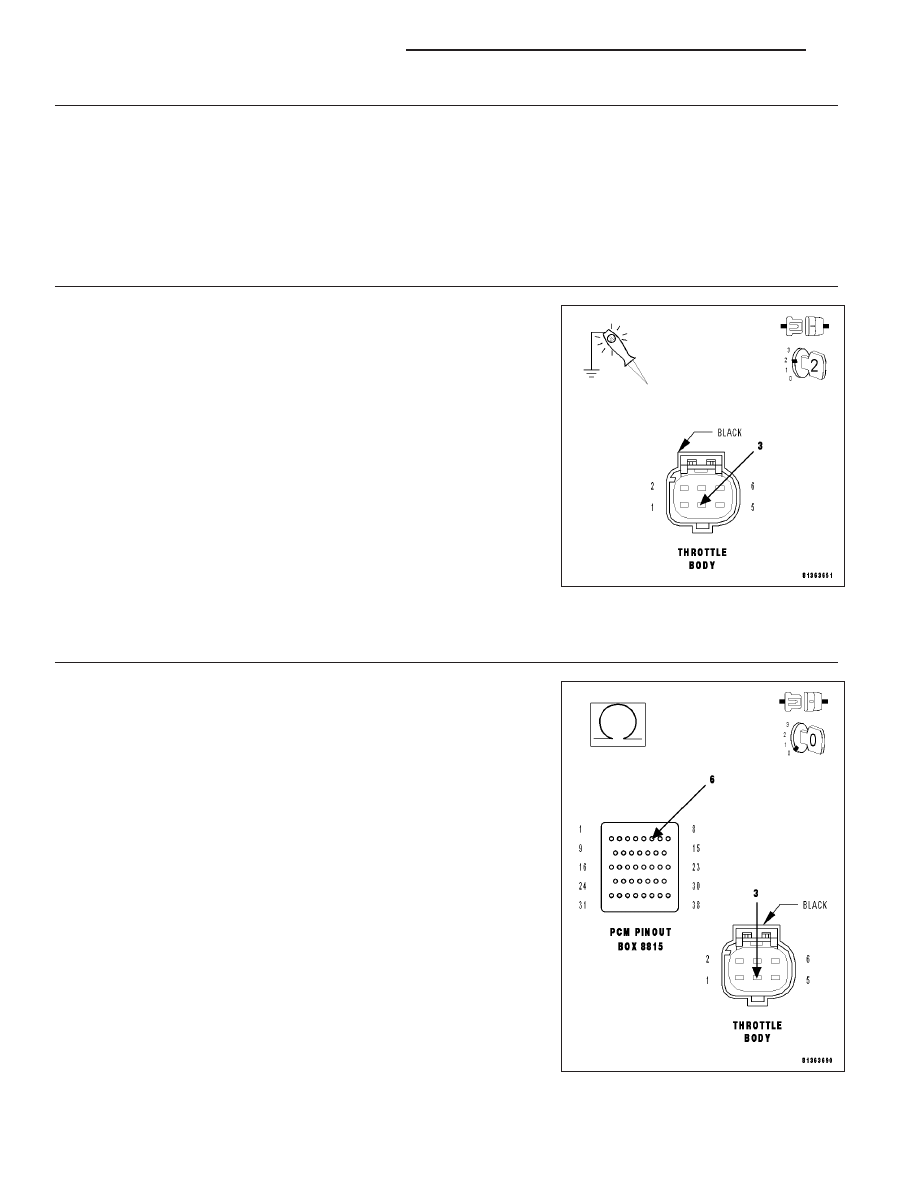

(K124) ETC POSITIVE CIRCUIT SHORTED TO BATTERY VOLTAGE

Turn the ignition off.

Disconnect the Throttle Body harness connector.

Disconnect the C3/C PCM harness connector.

CAUTION: Do not probe the PCM harness connectors. Probing the
PCM harness connectors will damage the PCM terminals resulting
in poor terminal to pin connection. Install Miller Special Tool #8815
to perform the diagnostics.
Ignition on, engine not running.

With a 12-volt test light connected to ground, probe the (K124) ETC
Positive circuit at the appropriate terminal of the special tool #8815..

Does the test light illuminate brightly?

Yes

>> Repair the short to battery voltage on the (K124) ETC Pos-

itive circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 5

5.

(K124) ETC POSITIVE CIRCUIT OPEN

Turn the ignition off.

Measure the resistance of the (K124) ETC Positive circuit from the
Throttle Body harness connector to the appropriate terminal of special
tool #8815.

Is the resistance below 5.0 ohms?

Yes

>> Go To 6

No

>> Repair the open in the (K124) ETC Positive circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

9 - 758

ENGINE ELECTRICAL DIAGNOSTICS

LX

6.

(K126) ETC NEGATIVE CIRCUIT OPEN

Measure the resistance of the (K126) ETC Negative circuit between the
Throttle Body harness connector and the appropriate terminal of special
tool #8815.

Is the resistance below 5.0 ohms?

Yes

>> Go To 7

No

>> Repair the open in the (K126) ETC Negative circuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

7.

(K124) ETC POSITIVE CIRCUIT SHORTED TO GROUND

Measure the resistance between a known good ground and the (K124)
ETC Positive circuit at the appropriate terminal of special tool #8815.

Is the resistance below 100 ohms?

Yes

>> Repair the short to ground in the (K124) ETC Positive cir-

cuit.

Perform the POWERTRAIN VERIFICATION TEST. (Refer
to 9 - ENGINE - STANDARD PROCEDURE)

No

>> Go To 8

LX

ENGINE ELECTRICAL DIAGNOSTICS

9 - 759
