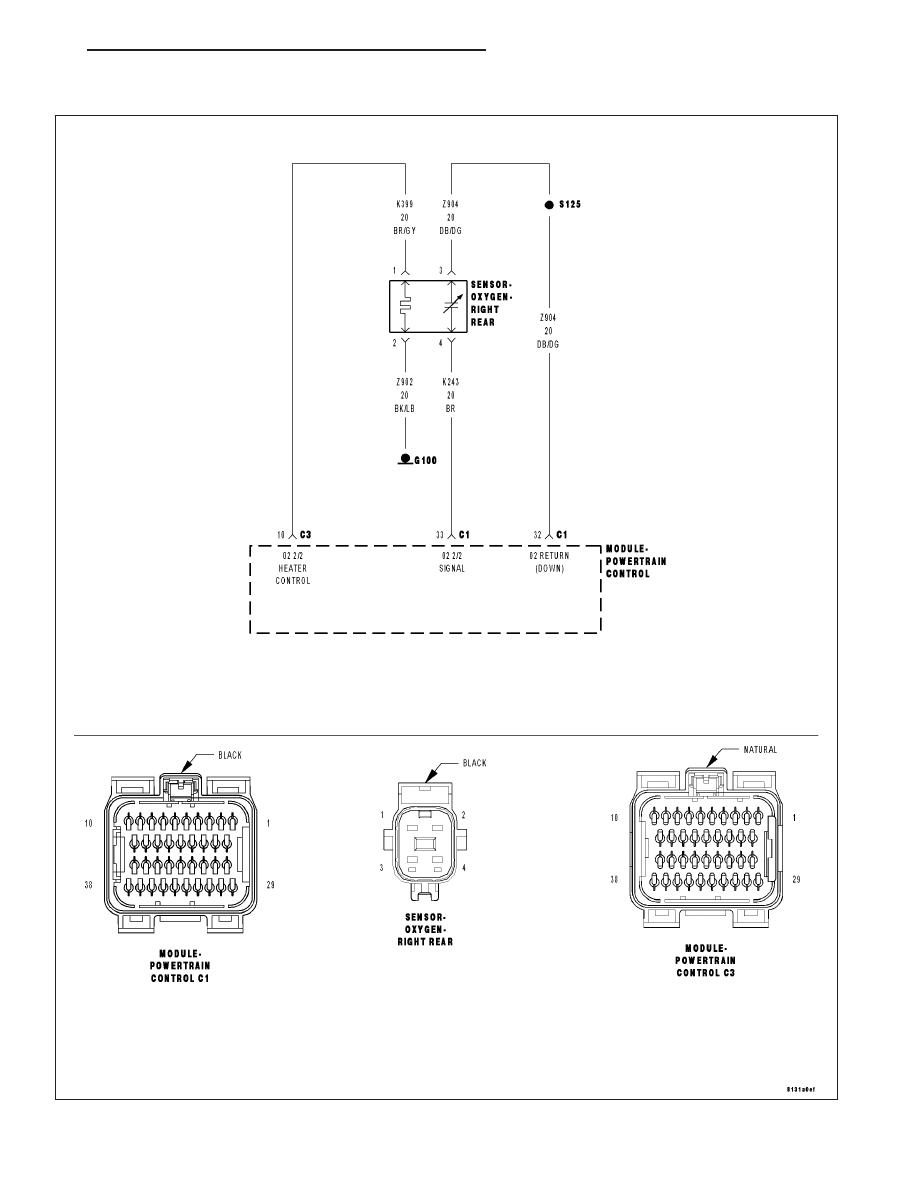

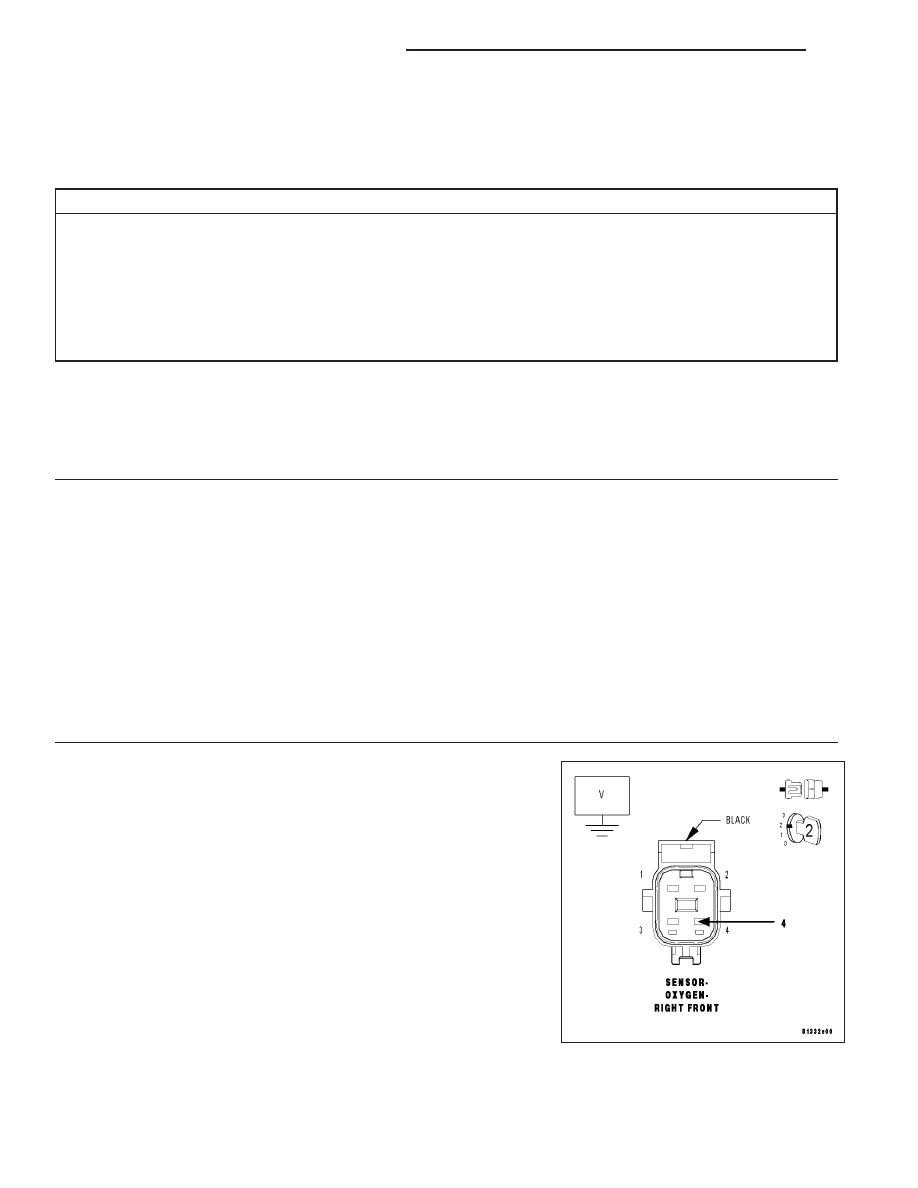

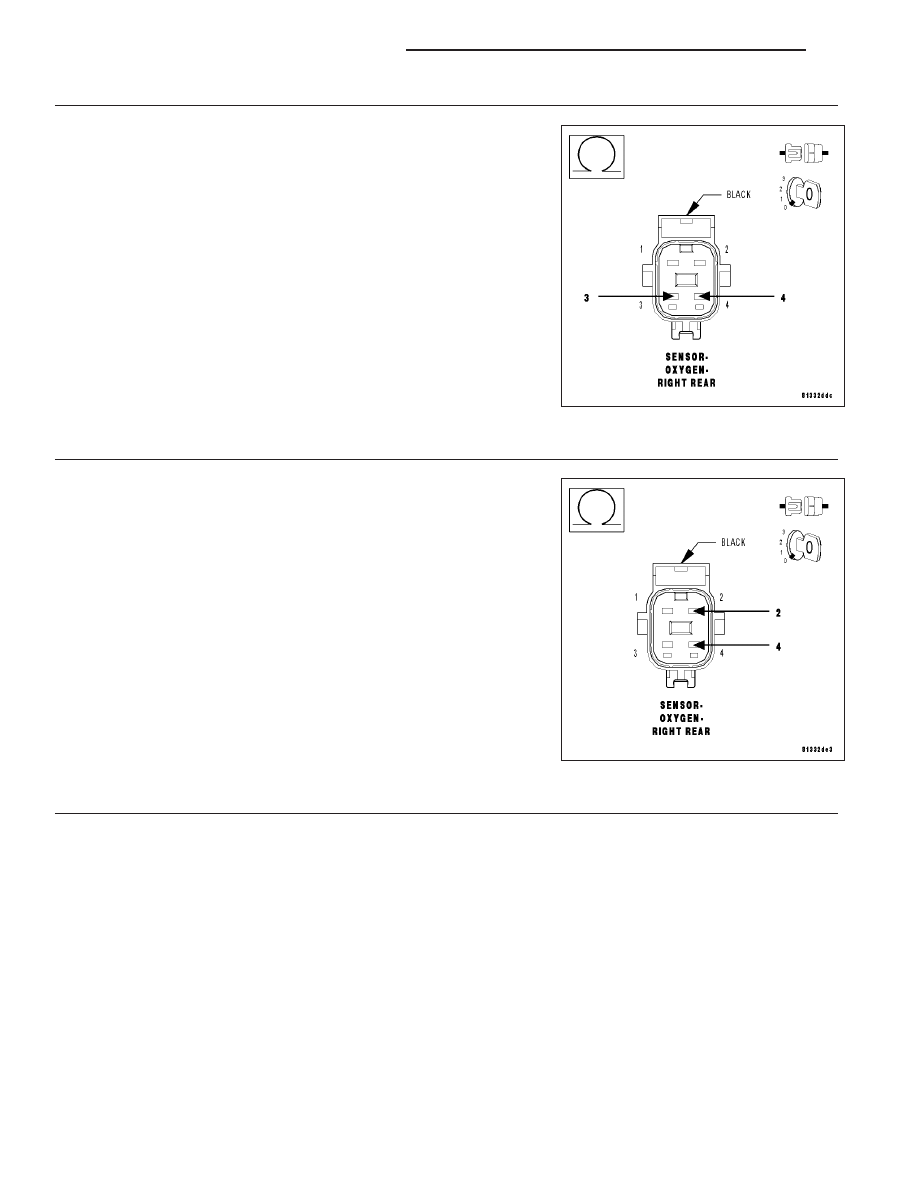

6. (K243) O2 2/2 SIGNAL CIRCUIT SHORTED TO THE (K904) O2 DOWNSTREAM RETURN CIRCUIT Measure the resistance between the (K243) O2 2/2 Signal circuit and Is the resistance below 100 ohms? Yes >> Repair the short between the (K904) O2 Downstream Return circuit and the (K243) O2 2/2 Signal circuit. Perform the POWERTRAIN VERIFICATION TEST. (Refer No >> Go To 7 7. (K243) O2 2/2 SIGNAL CIRCUIT SHORTED TO (Z902) O2 2/2 HEATER GROUND CIRCUIT Measure the resistance between the (K243) O2 2/2 Signal circuit and Is the resistance below 100 ohms? Yes >> Repair the short between the (Z902) O2 2/2 Heater ground circuit and the (K243) O2 2/2 Signal circuit. Perform the POWERTRAIN VERIFICATION TEST. (Refer No >> Go To 8 8. PCM NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal Were there any problems found? Yes >> Repair as necessary. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) No >> Replace and program the Powertrain Control Module per Service Information. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) 9 - 172 ENGINE ELECTRICAL DIAGNOSTICS LX |
