15. If equipped with SRT8 disc brakes, on each rear

disc brake, remove the lower and upper caliper
mounting bolts (1).

16. If equipped with SRT8 disc brakes, on each rear

disc brake, remove brake caliper (2) with pads
from knuckle and brake rotor. Hang assembly out
of way using wire or a bungee cord. Use care not
to overextend brake hose when doing this.

17. If equipped with SRT8 disc brakes, remove jack

from under spring link.

NOTE: To remove wheel speed sensor connector
from body wiring harness connector, move retain-
ing clip (2) and pull sensor connector outward.

18. Remove wheel speed sensor connectors (3 and

4) from body wiring harness connector (1) located
in luggage compartment floor pan (2).

2 - 186

REAR

LX

19. Unclip left wheel speed sensor cable (3) from

routing clip (1) near body connector.

20. On each side of vehicle, remove shock absorber

(1) lower mounting bolt (2) and nut (4).

21. Carefully mark location of rear crossmember on

body at all four mount (bushing) locations using a
marker or crayon. Do not use a scratch awl to
mark location.

LX

REAR

2 - 187

22. Position an extra pair of jack stands under and support forward end of engine cradle to help stabilize vehicle

during rear suspension removal/installation.

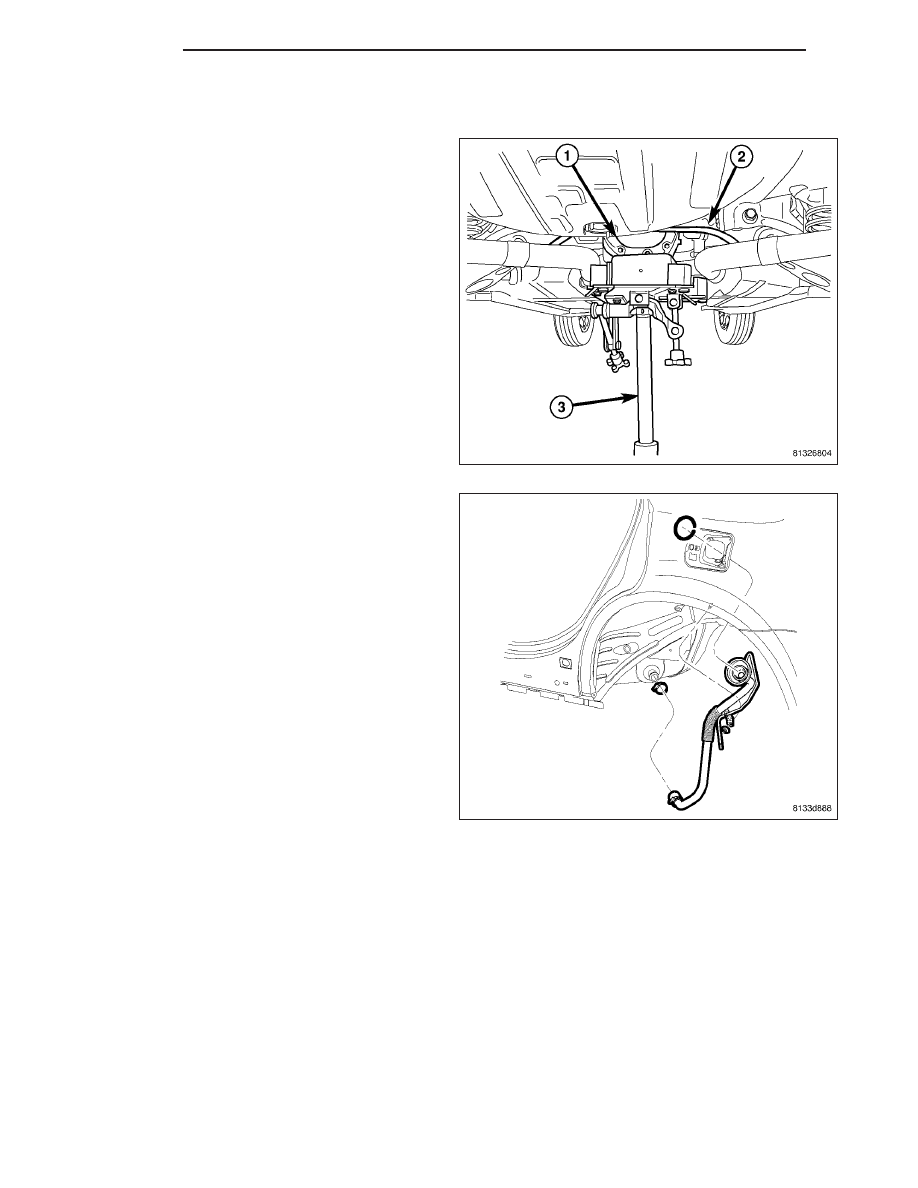

23. Position under-hoist utility jack or transmission

jack (3) under center of rear axle differential (1).
Raise jack head to contact differential and secure
in place. When securing crossmember to jack,
be sure not to secure stabilizer bar.

WARNING: Before opening fuel system, review all
Warnings and Cautions.

24. Remove fuel filler tube. (Refer to 14 - FUEL SYS-

TEM/FUEL DELIVERY/FUEL TANK FILLER TUBE
- REMOVAL)

2 - 188

REAR

LX

NOTE: If equipped with AWD, when removing
crossmember mounting bolts in following step, be
sure to not to misplace spacers (1) between cross-
member mounts (2) and body.

25. Remove both front (3) and both rear (2) mounting

bolts fastening crossmember (1) in place.

26. Slowly lower crossmember using jack. Do not lower jack at a fast rate. Lower just enough to allow propeller

shaft removal from rear axle differential. Do not lower jack any further than necessary. Slide propeller shaft
out of rear axle differential and allow bungee cord previously installed to support.

27. Continue to lower jack until crossmember is at a comfortable working level to access stabilizer bar fasteners.

LX

REAR

2 - 189
