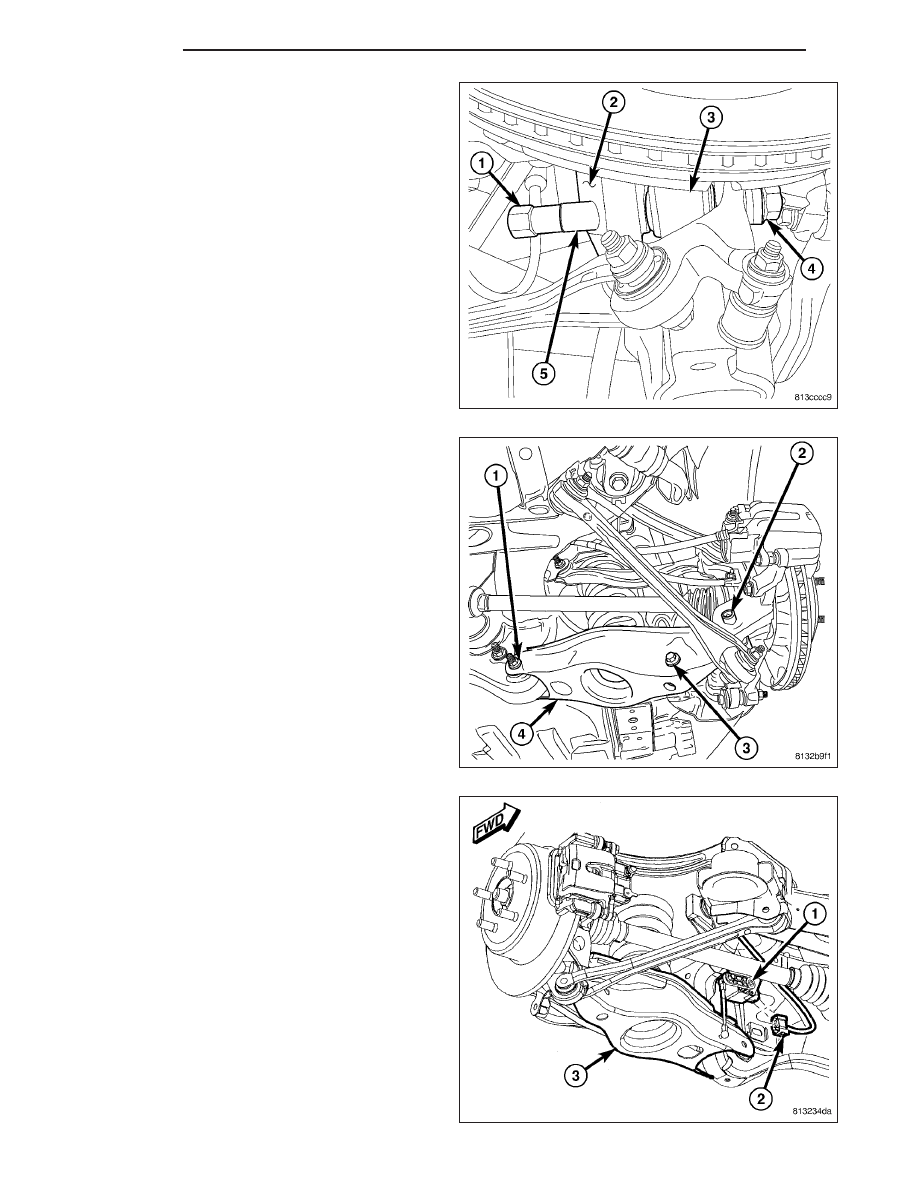

3. Starting from knuckle forward end, slide Bolt

9361-7 (1) with sleeve (5) through knuckle (2) and
spring link ball joint (3).

4. Install thrust bearing and nut (4) on end of Bolt.

When installing thrust bearing on Installer, be
sure to place hardened side against nut. Place
bearing outer cage against stationary compo-
nent.

5. While holding Bolt head (1) stationary, rotate Nut

(4) (using hand tools) installing sleeve in knuckle.
Install sleeve until Nut stops turning. Do not over-
tighten Nut.

6. Remove special tool.

7. Install spring link-to-knuckle bolt (2) front-to-rear

through knuckle and link, then install nut. While
holding bolt head stationary, tighten nut to 138 N·m
(102 ft. lbs.) torque.

8. Export Only – If servicing right spring link, connect

headlamp leveling sensor (1) link at spring link (3).

9. Install rear spring as well as all components neces-

sary to access it. (Refer to 2 - SUSPENSION/
REAR/SPRING - INSTALLATION)

10. Lower vehicle.

11. Position vehicle on alignment rack/drive-on lift.

Raise vehicle as necessary to access mounting
bolt.

12. Tighten spring link bolt at crossmember to 108

N·m (80 ft. lbs.) torque.

13. Perform wheel alignment. (Refer to 2 - SUSPEN-

SION/WHEEL

ALIGNMENT

-

STANDARD

PROCEDURE)

2 - 138

REAR

LX

SPRING LINK - SRT8

1. Guide ball joint end of spring link (4) into mounting

pocket of knuckle, then swing opposite end up to
bushing in crossmember and install bolt and nut (1)
fastening spring link (4) to crossmember. Do not
tighten bolt at this time.

NOTE: Prior to using Special Tool 9361, lubricate
bolt (1) threads to provide ease of use and pro-
mote tool longevity.

2. Place NEW knuckle sleeve (2) onto Installer Bolt

9361-12 (1), and slide it up to Bolt’s head.

LX

REAR

2 - 139

3. Starting from knuckle forward end, slide Bolt

9361-12 (1) with sleeve (5) through knuckle (2) and
spring link ball joint (3).

4. Install Installation Thrust Bearing (around 3/8 inch

thick) and special flange nut (4) on end of Bolt.
When installing thrust bearing on Installer, be
sure to place hardened side against nut. Place
bearing outer cage against stationary compo-
nent.

5. While holding Bolt head (1) stationary, rotate Nut

(4) (using hand tools) installing sleeve in knuckle.
Install sleeve until Nut stops turning. Do not over-
tighten Nut.

6. Remove special tool.

7. Install spring link-to-knuckle bolt (2) front-to-rear

through knuckle and link, then install nut. While
holding bolt head stationary, tighten nut to 138 N·m
(102 ft. lbs.) torque.

8. Install rear spring and all components necessary to

access it, except rear tire and wheel assembly on
side of repair. (Refer to 2 - SUSPENSION/REAR/
SPRING - INSTALLATION)

9. Install rear brake rotor and components necessary

to access it. (Refer to 5 - BRAKES/HYDRAULIC/
MECHANICAL/ROTOR - INSTALLATION)

10. Lower vehicle.

11. Pump brake pedal several times to ensure vehicle

has a firm brake pedal before moving vehicle.

12. Position vehicle on alignment rack/drive-on lift. Raise vehicle as necessary to access mounting bolt.

13. Tighten spring link bolt at crossmember to 108 N·m (80 ft. lbs.) torque.

14. Tighten shock absorber lower mounting bolt nut to 72 N·m (53 ft. lbs.) torque.

15. Perform wheel alignment. (Refer to 2 - SUSPENSION/WHEEL ALIGNMENT - STANDARD PROCEDURE)

2 - 140

REAR

LX

TENSION LINK

REMOVAL

1. Raise and support vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)

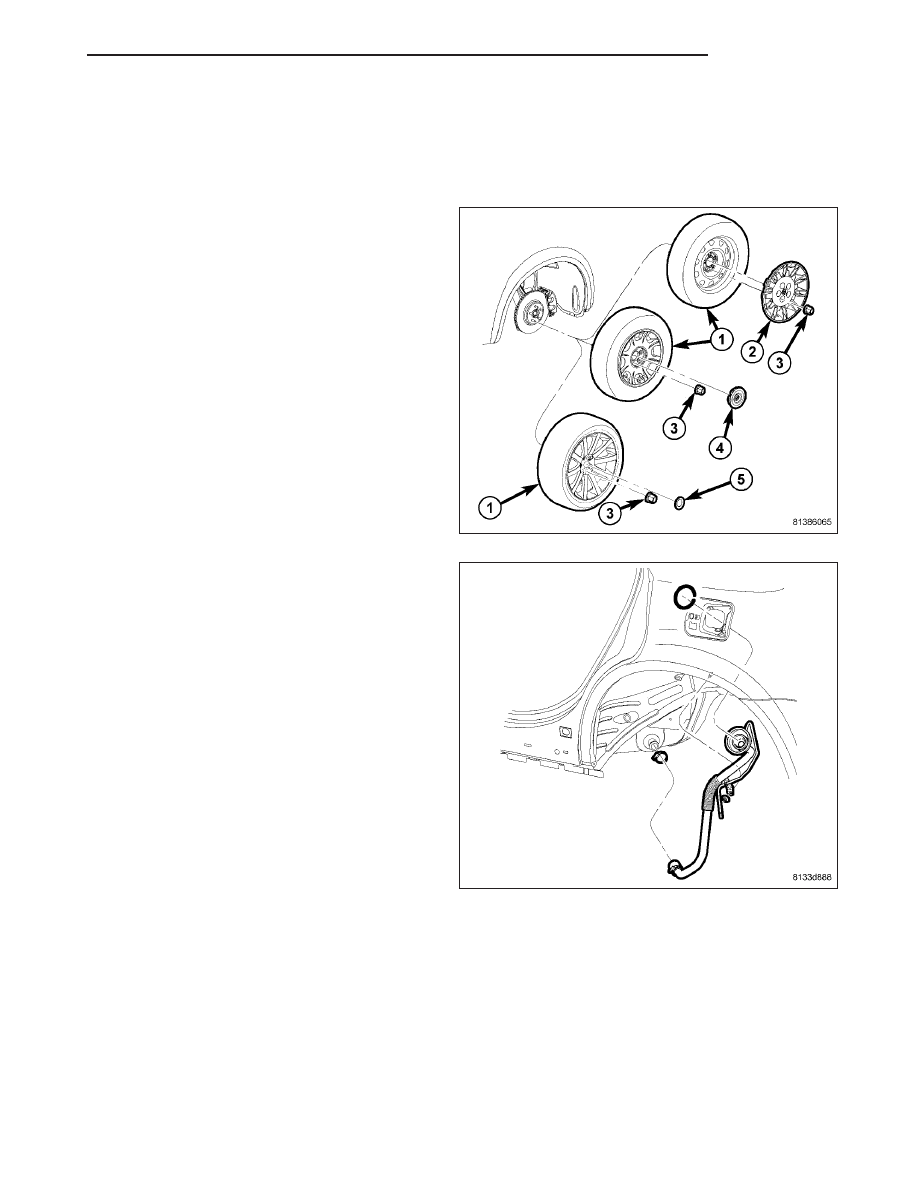

2. On both sides of vehicle, remove wheel mounting

nuts (3), then rear tire and wheel assembly (1).

WARNING: Before opening fuel system, review all
Warnings and Cautions.

3. If servicing left side, remove fuel filler tube. (Refer

to 14 - FUEL SYSTEM/FUEL DELIVERY/FUEL
TANK FILLER TUBE - REMOVAL)

4. Position an extra pair of jack stands under and

support forward end of engine cradle to help stabi-
lize vehicle during rear suspension removal/installa-
tion.

5. Perform following if vehicle is equipped with dual-

exhaust or are servicing right side on vehicle with
single exhaust.

a. Position under-hoist utility jack or stand several

inches below exhaust at muffler.

b. Disconnect exhaust isolators at muffler and

resonators hangers.

c. Lower exhaust down to rest upon top of jack or

stand placed below muffler.

LX

REAR

2 - 141
