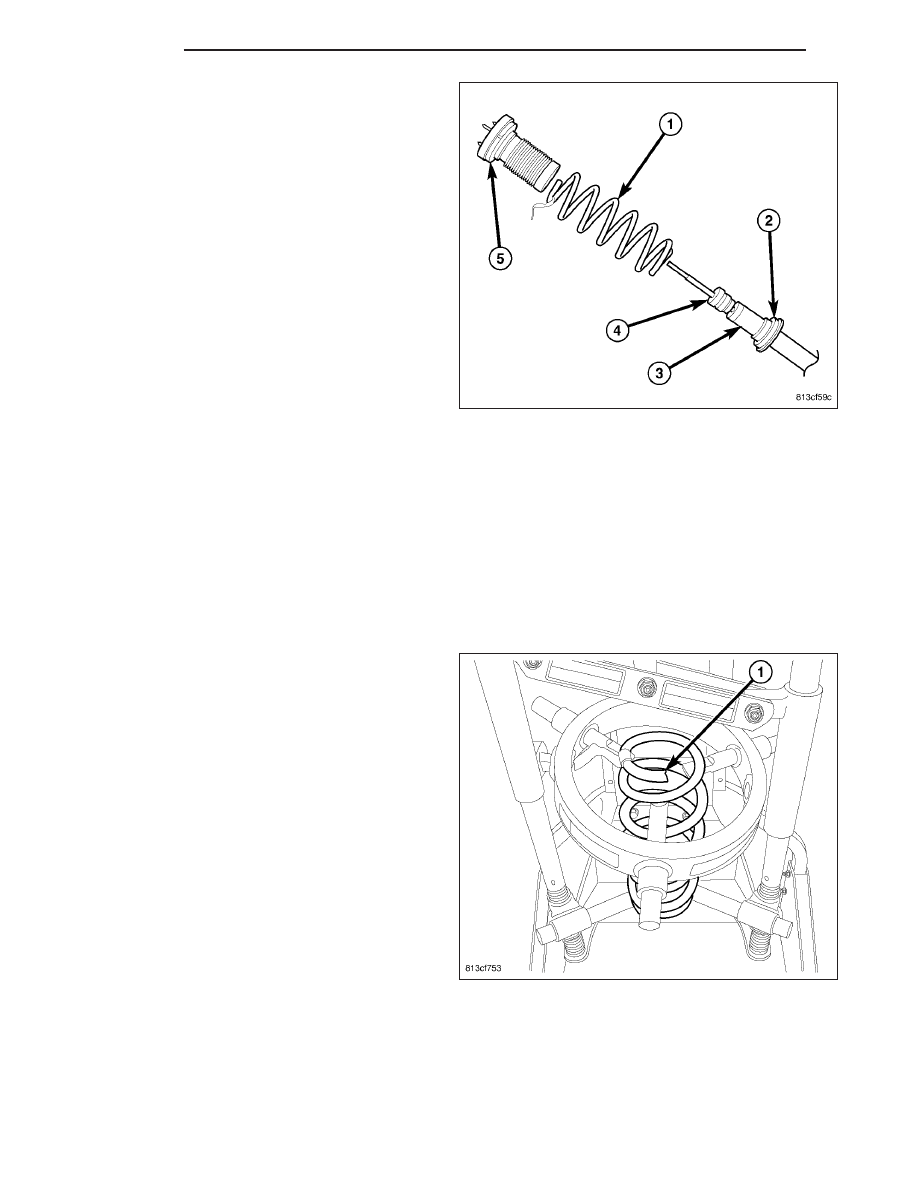

8. Remove jounce bumper (4) from shock shaft by

pulling straight up and off.

9. Remove lower isolator (2) from shock body by pull-

ing straight up and off shock shaft.

10. Inspect shock assembly components for following

and replace as necessary:

Inspect shock (3) for any condition of shaft bind-
ing over full stroke of shaft.

Inspect upper mount (5) for cracks and distortion
and its retaining studs for any sign of damage.

Inspect upper spring isolator (5) for severe dete-
rioration.

Inspect lower spring isolator (2) for severe dete-
rioration.

Inspect dust shield for tears and deterioration.

Inspect coil spring (1) for cracks in the coating
and corrosion.

Inspect jounce bumper (4) for cracks and signs of deterioration.

ASSEMBLY

CAUTION: Use care not to damage coil spring coating during spring assembly. Damage to coating will jeop-
ardize its corrosion protection.

NOTE: Left and right springs must not be interchanged.

NOTE: If coil spring has been removed from spring compressor, proceed with next step, otherwise, proceed
with step 4.

1. Place coil spring (part number tag end upward)

in compressor lower hooks following manufacturers
instructions. To ease shock reassembly, rotate coil
spring around until upper coil (1) ends at straight
outward position from Compressor. Proper orienta-
tion of spring to upper mount (once installed) is
necessary.

2. Position compressor upper hooks over coil spring

following manufacturers instructions.

3. Compress coil spring far enough to allow shock

installation.

2 - 62

FRONT

LX

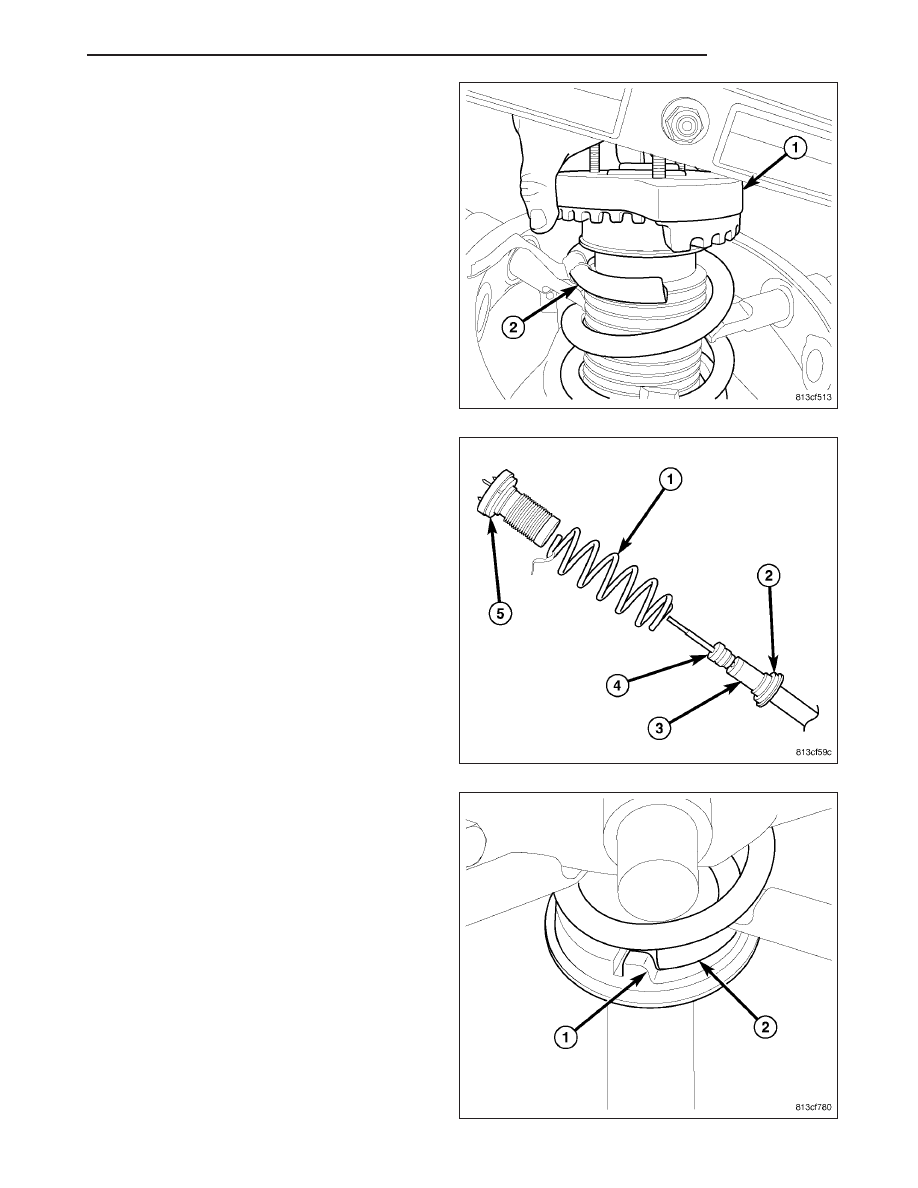

4. If separated, install upper mount (1) onto coil

spring (2). Match step in upper isolator to end of
spring coil.

5. Install lower spring isolator (2) on shock body (3).

6. Install jounce bumper (4) on shock shaft, small end

first.

7. Install shock through bottom of coil spring until

lower spring isolator (on shock) contacts lower end
of coil spring. Match step built into isolator (1) to
lower coil end (2). Once in this position, stabilizer
bar bracket, or clevis key on AWD models, should
point straight inward toward Compressor body. If
not, rotate isolator on shock body until alignment is
achieved when isolator is correctly positioned with
lower spring coil.

8. Install clamp to hold shock and coil spring together.

LX

FRONT

2 - 63

9. Install retaining nut (1) on shock shaft (2) as far as

possible by hand. Make sure nut is installed far
enough for 8 mm socket to grasp hex (2) on end of
shaft for tightening.

10. Install Wrench (on end of a torque wrench), Spe-

cial Tool 9362, on shock shaft retaining nut. Next,
insert 8 mm socket though Wrench onto hex
located on end of shock shaft. While holding
shock shaft from turning, tighten nut using Wrench
to 90 N·m (66 ft. lbs.) torque.

11. Slowly release tension from coil spring by backing

off Compressor drive fully. As tension is relieved,
make sure shock components are properly in
place.

12. Remove clamp from lower end of coil spring and

shock. Push back spring compressor upper and
lower hooks, then remove shock assembly from
spring compressor.

13. Install shock assembly on vehicle. (Refer to 2 -

SUSPENSION/FRONT/SHOCK - INSTALLATION)

2 - 64

FRONT

LX

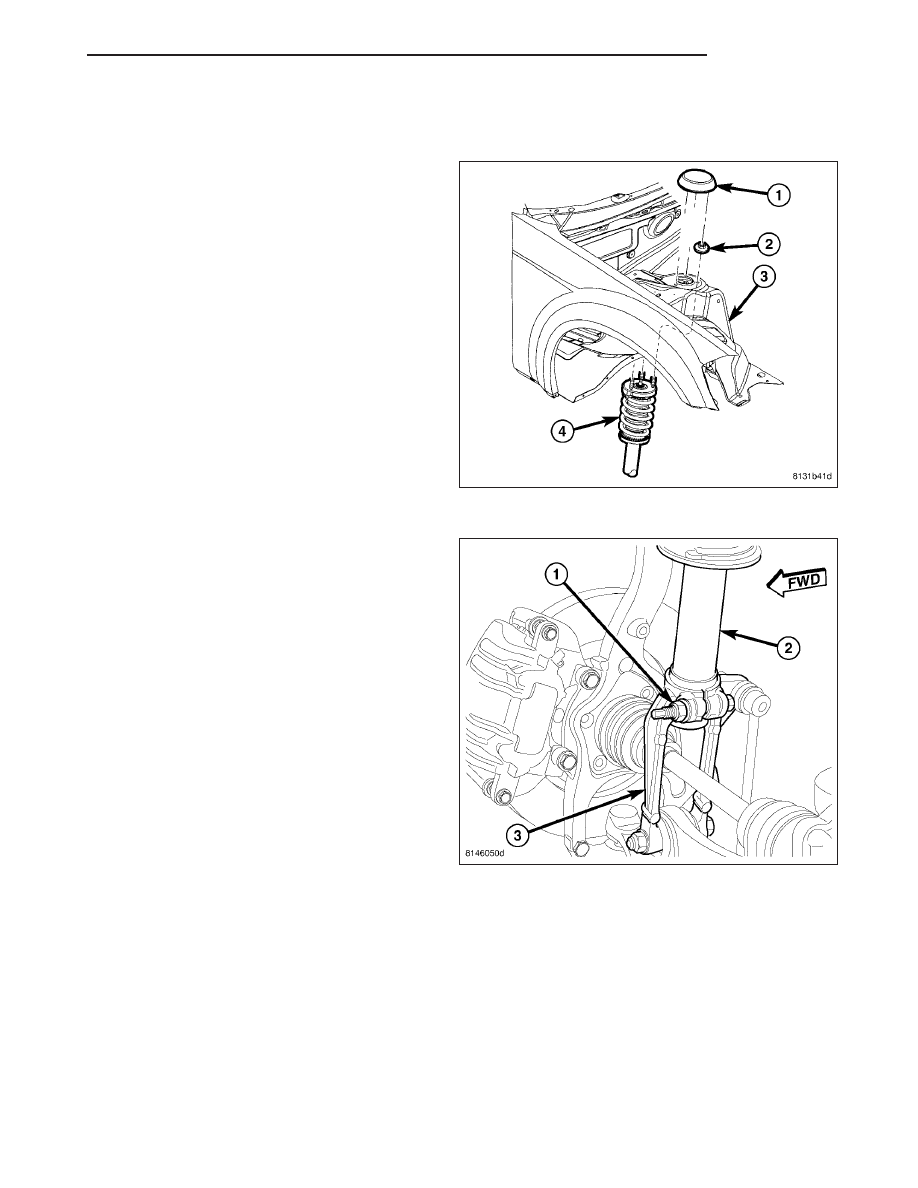

INSTALLATION

AWD

1. Guide shock assembly up into shock tower (3) and

into mounting holes.

2. Install three nuts (2) fastening shock assembly (4)

to shock tower (3). Tighten nuts to 27 N·m (20 ft.
lbs.) torque.

3. If equipped, align shock tower cap (1) with shock

mounting nuts (2) and snap into place.

4. Raise and support vehicle.

5. Pull lower end of shock assembly outward, then

slide clevis bracket (3) onto lower end. Slide clevis
bracket onto shock assembly until bracket contacts
collar on shock housing (2).

6. Install pinch bolt and nut (1) fastening clevis

bracket (3) to bottom of shock assembly (2). Install
pinch bolt from rear. Do not tighten at this time.

LX

FRONT

2 - 65
