TOWING

STANDARD PROCEDURE - TOWING

WARNINGS AND CAUTIONS

WARNING: Do not allow towing attachment devices to contact the fuel tank or lines, fuel leak can result.
Do not lift or tow vehicle by front or rear bumper.
Do not go under a lifted vehicle if not supported properly on safety stands.
Do not allow passengers to ride in a towed vehicle.
Use a safety chain that is independent from the towing attachment device.

CAUTION: Do not damage brake lines, exhaust system, shock absorbers, sway bars, or any other under
vehicle components when attaching towing device to vehicle.
Do not secure vehicle to towing device by the use of front or rear suspension or steering components.
Remove or secure loose or protruding objects from a damaged vehicle before towing.
Refer to state and local rules and regulations before towing a vehicle.
Do not allow weight of towed vehicle to bear on lower fascia, air dams, or spoilers.

RECOMMENDED TOWING EQUIPMENT

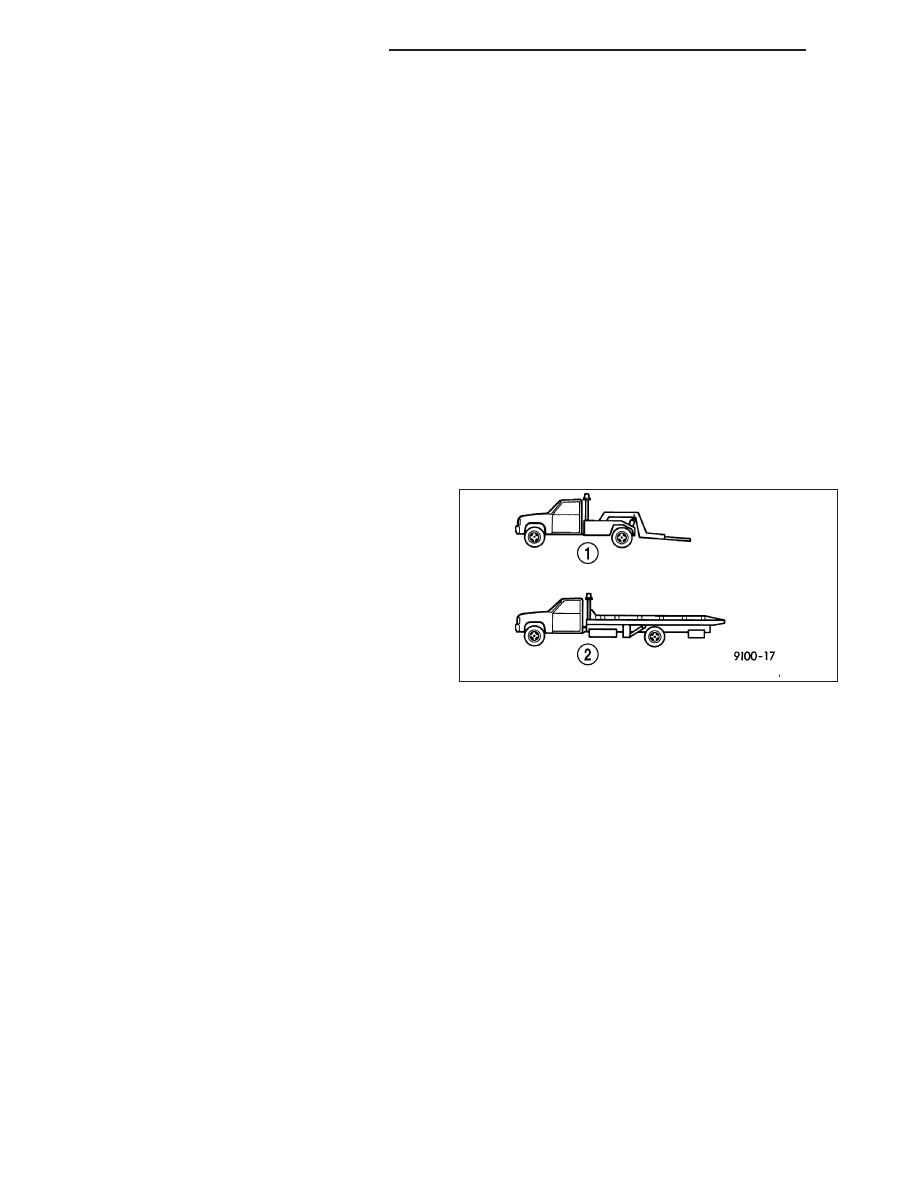

RWD vehicles, a flat bed towing device is recom-
mended.

AWD vehicles, a flat bed towing device is recom-
mended.

CAUTION:

Do not attempt to tow this vehicle from the front
with sling type towing equipment. Damage to
the front fascia and air dams will result.

The only approved method of towing is with a
flat bed truck.

Do not tow the vehicle from the rear. Damage to
the rear sheet metal, liftgate and fascia will
occur.

Do not push or tow this vehicle with another vehicle as damage to the bumper fascia and transmission
may result.

GROUND CLEARANCE

CAUTION: If vehicle is towed with wheels removed, install lug nuts to retain brake drums or rotors.

be sure the has at least 100 mm (4 in.) ground clearance. If minimum ground clearance cannot be reached, use a
towing dolly. If a flat bed device is used, the approach angle should not exceed 15 degrees.

If using a wheel lift towing device, the disabled vehicle should be raised until the lifted wheels are a minimum 100
mm (4 in.) from the ground. Be sure there is at least 100 mm (4 in.) clearance between the tail pipe and the ground.
If necessary, remove the wheels from the front end of the vehicle and lower the front end closer to the ground, to
increase the ground clearance at the rear of the vehicle. Install lug nuts on wheel attaching studs to retain brake
rotors.

LOCKED VEHICLE TOWING

When a locked vehicle must be towed with the front wheels on the ground, use a towing dolly or flat bed hauler.

0 - 24

LUBRICATION AND MAINTENANCE

LX

FLAT BED TOWING TIE DOWNS

CAUTION: Do not tie vehicle down by attaching chains or cables to suspension components or engine
mounts, damage to vehicle can result.

The vehicle can be tied to a flat bed device using the pair of front transportation slots on the bottom surface of the
rails, behind the front wheels. The rear transportation slots are on the bottom of the left bumper extension and in the
bracket extending inboard of the right bumper extension.

WITHOUT THE IGNITION KEY

Special care must be taken when the vehicle is towed with the ignition in the LOCK position. The only approved
method of towing with out the ignition key is with a flat bed truck. Proper towing equipment is necessary to prevent
damage to the vehicle.

TOWING THIS VEHICLE BEHIND ANOTHER VEHICLE (Flat towing with all four wheels on
the ground)

Your vehicle may be towed under the following conditions: The gear selector must be in NEUTRAL, the distance to
be traveled must not exceed 48 km (30) miles, and the towing speed must not exceed 48 km/h (30 mph). Exceed-
ing these towing limits may cause a transmission geartrain failure. If the transmission is not operative, or if the
vehicle is to be towed more than 48 km (30) miles, the vehicle must be transported using a flat bed or the drive
shaft disconnected at the rear axle drive flange.

TOWING THIS VEHICLE BEHIND ANOTHER VEHICLE WITH A TOW DOLLEY

The manufacture does not recommend that you tow this vehicle on a tow dolley. Vehicle damage may occur.

LX

LUBRICATION AND MAINTENANCE

0 - 25
