Chrysler Town & Country/Voyager, Dodge Caravan, Plymouth Voyager. Manual - part 150





REAR BEARING

REMOVAL AND INSTALLATION

The rear drive line module assembly must be re-

moved to service this bearing.

(1) Remove rear drive line module assembly from

vehicle.

(2) Remove viscous coupling unit.
(3) Remove overrunning clutch cover assembly.
(4) Drain fluid from overrunning clutch case.
(5) Remove overrunning clutch case to differential

carrier bolts.

(6) Separate overrunning clutch case from differen-

tial carrier case.

(7) Remove overrunning clutch inner race snap ring.
(8) Slide overrunning clutch inner race off of shaft.

(9) Remove shaft snap ring and slide dog clutch off of

the shaft.

(10) Remove torque shaft rear bearing inner snap

ring.

(11) Remove torque tube retaining bolts.
(12) Separate overrunning clutch case from torque

tube.

(13) Remove rear bearing retaining snap ring in

overrunning clutch case (Fig. 9).

(14) Remove rear torque shaft bearing.
(15) To Install, Reverse Removal Procedure.

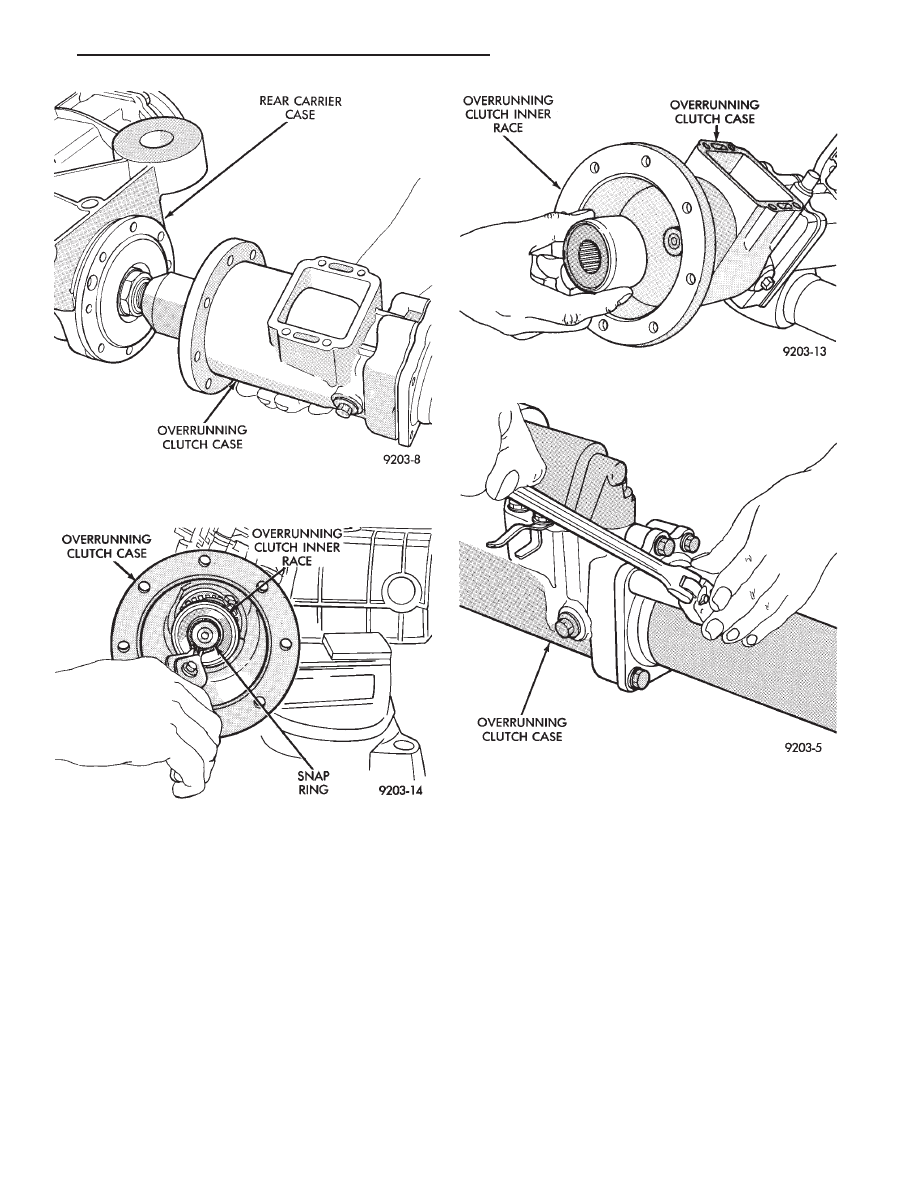

Fig. 4 Separate Rear Carrier case from overrunning

clutch case

Fig. 5 Inner Race Snap Ring Removal

Fig. 6 Remove Overrunning Clutch Race

Fig. 7 Torque Tube Bolts

.

REAR SUSPENSION AND DRIVELINE

3 - 27

OVERRUNNING CLUTCH

VACUUM MOTOR

REMOVAL

(1) Remove rear drive line module assembly from

vehicle.

(2) Cut clamps and disconnect vacuum hose to

vacuum motor.

(3) Remove overrunning clutch cover assembly

mounting bolts (Fig. 1).

(4) Lift overrunning clutch cover assembly off of

overrunning clutch case.

(5) Clamp assembly in soft jawed vise (Fig. 2).
(6) Remove two E-clips from vacuum motor shaft

(Fig. 3).

(7) Holding the overrunning clutch shift fork, slide

shift motor out of housing (Fig. 4).

CAUTION: Shift fork can be installed backwards. Note
its position before removing.

(8) Clean and inspect all parts and sealing surfaces.

Replace worn or damaged parts.

INSTALLATION

(1) Slide vacuum shift motor into housing and

through shift fork. Shift fork off set must be angle away
from vacuum motor (Fig. 5).

(2) Install two E-clips. One onto vacuum shift motor

shaft and one on the vacuum motor bushing.

(3) Apply Mopar

t Gasket Maker, Loctite Gasket

Eliminator or equivalent and reinstall cover. When

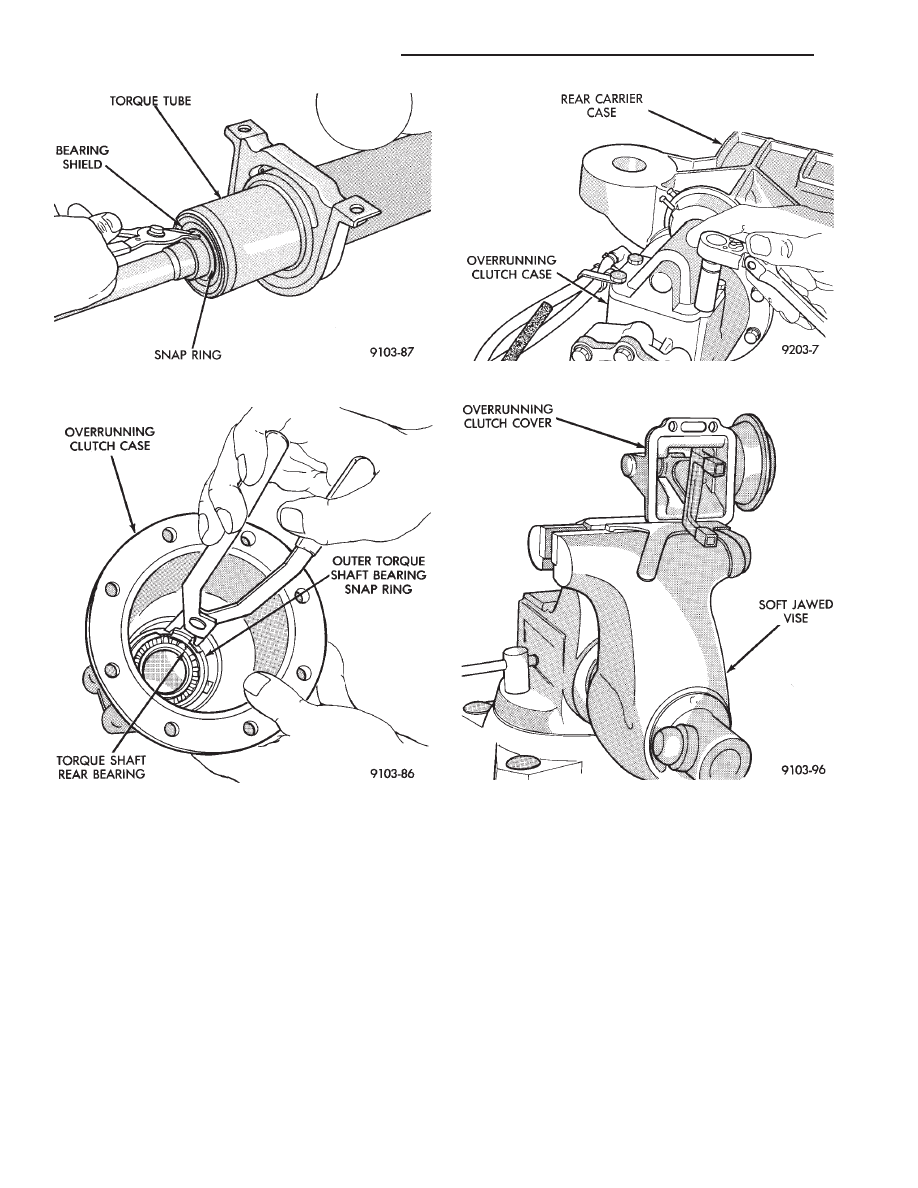

Fig. 8 Remove Torque Shaft Snap Ring and Shield

Fig. 9 Torque Shaft Rear Bearing Snap Ring

Fig. 1 Mounting Bolts

Fig. 2 Clamp Housing in Vise

3 - 28

REAR SUSPENSION AND DRIVELINE

.

installing cover be sure that the overrunning clutch
fork engages into the overrunning clutch dog.

(4) Install

overrunning

clutch

cover

assembly

mounting bolts and tighten bolts to 28 N

Im (250 in.

lbs.).

(5) Reinstall rear drive line assembly into vehicle.
(6) Check and fill fluid levels as required.

REMOVAL

(1) Remove rear drive line module assembly.
(2) Remove overrunning clutch cover assembly.

(3) Drain fluid from overrunning clutch case.
(4) Remove overrunning clutch case to rear carrier

case bolts (Fig 6).

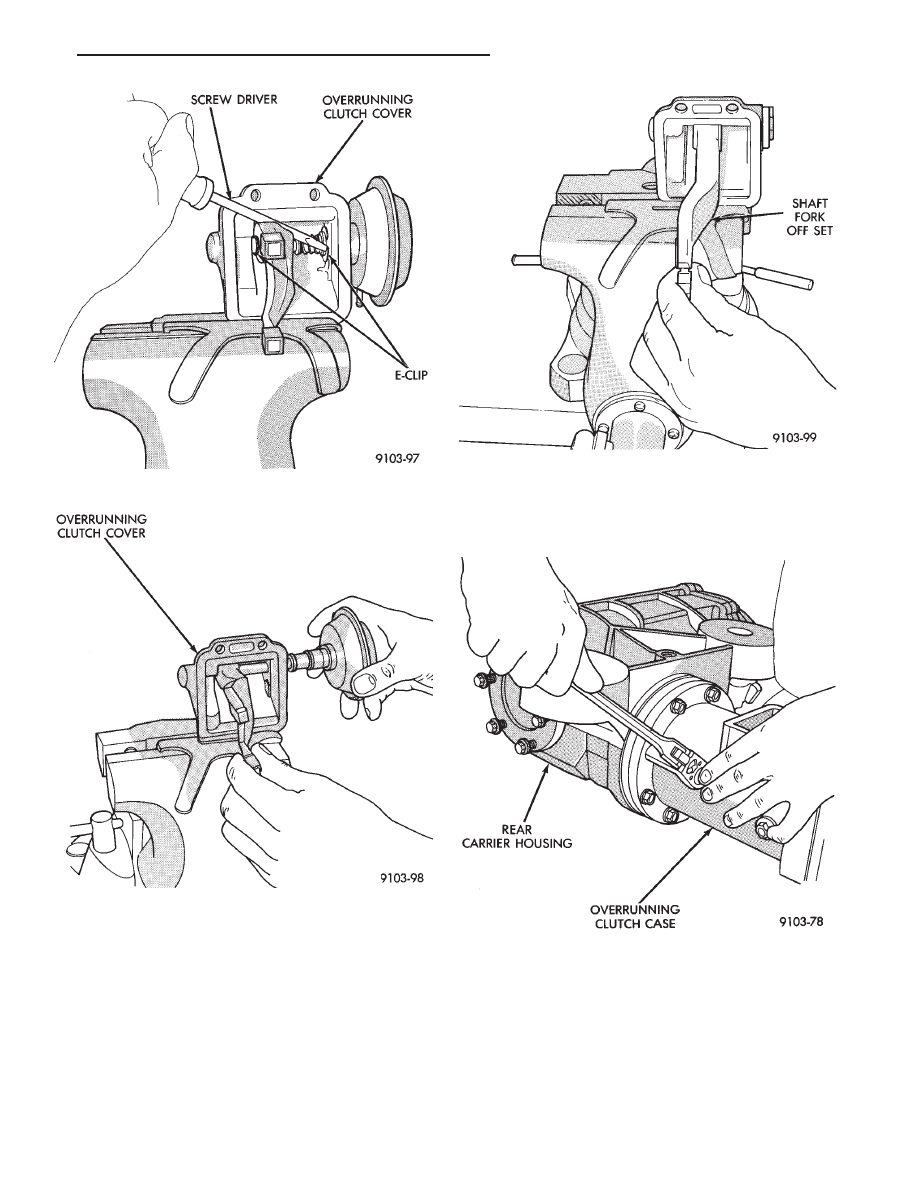

Fig. 3 Remove Two E-Clips

Fig. 4 Shift Fork Removal

Fig. 5 Shift Fork Position

Fig. 6 Overrunning Clutch Case to Rear Carrier

Bolts

.

REAR SUSPENSION AND DRIVELINE

3 - 29

(5) Separate the overrunning clutch case from the

rear carrier case (Fig. 7).

(6) Remove overrunning clutch snap ring (Fig. 8).

(7) Remove spacers and overrunning clutch. Over-

running clutch can be installed backwards. Keep the
spacers and overrunning clutch in order when taking
the unit apart (Fig. 9).

(8) Remove overrunning clutch outer race snap ring

(Fig. 10).

(9) Slide overrunning clutch outer race off of shaft

(Fig. 11).

(10) Remove overrunning clutch inner race snap

ring (Fig. 12).

(11) Slide overrunning clutch inner race off of the

shaft (Fig. 13).

(12) Remove dog-clutch snap ring (Fig. 14).
(13) Slide dog-clutch off of the shaft (Fig. 15).
(14) Clean and inspect all parts. Replace worn or

damaged parts.

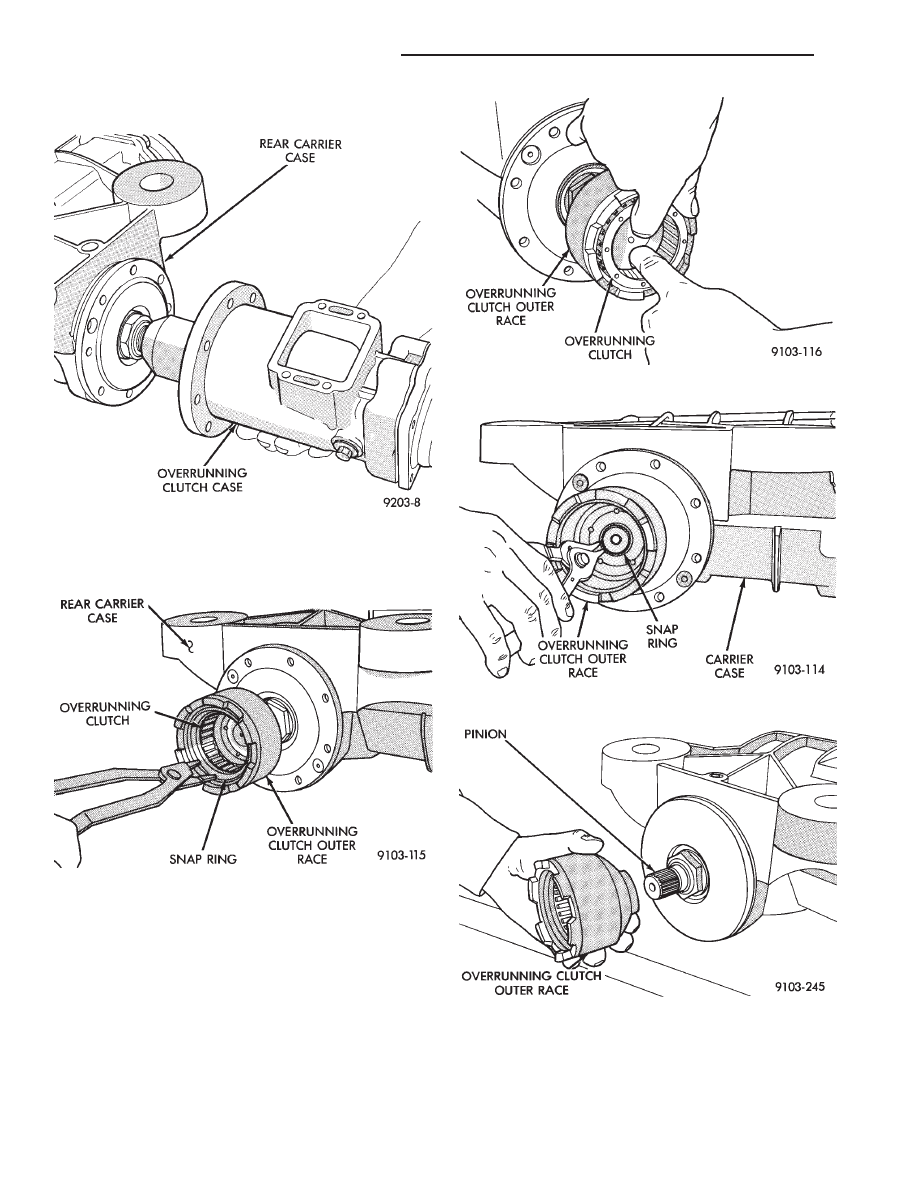

Fig. 7 Separate Rear Carrier Case from Overrunning

Clutch Case

Fig. 8 Overrunning Clutch Snap Ring

Fig. 9 Overrunning Clutch Removal

Fig. 10 Overrunning Clutch Snap Ring Removal

Fig. 11 Overrunning Clutch Outer Race Removal

3 - 30

REAR SUSPENSION AND DRIVELINE

.
