SEAT COMPONENT SERVICE

INDEX

page

page

Armrest

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Bucket Seat Back

. . . . . . . . . . . . . . . . . . . . . . . . . 8

Bucket Seat Cushion Frame

. . . . . . . . . . . . . . . . . 11

Bucket Seat Cushion Pad

. . . . . . . . . . . . . . . . . . . 11

Bucket Seat Cushion Side Cover

. . . . . . . . . . . . . 11

Bucket Seat Riser

. . . . . . . . . . . . . . . . . . . . . . . . 11

Bucket Seat Riser Trim Cover

. . . . . . . . . . . . . . . . 11

Child Restraint Seat

. . . . . . . . . . . . . . . . . . . . . . . 14

Child Seat Back Cover and Pads

. . . . . . . . . . . . . 16

Child Seat Cushion Cover and Pad

. . . . . . . . . . . 16

Child Seat Module

. . . . . . . . . . . . . . . . . . . . . . . . 14

Child Seat Module Cushion Cover and Pad

. . . . . 15

Child Seat Module Head Restraint

. . . . . . . . . . . . 15

Child Seat Module Head Restraint Cover and

Pad

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Converta-Bed Forward Rail and Pivot

. . . . . . . . . . 17

Converta-Bed Latch Handle and Link Bar

. . . . . . . 18

Converta-Bed Seat Back Frame

. . . . . . . . . . . . . . 18

Converta-Bed Seat Back Hinge

. . . . . . . . . . . . . . 18

Converta-Bed Seat Cushion Frame

. . . . . . . . . . . 19

Converta-Bed Seat Hinge Covers.

. . . . . . . . . . . . 17

Converta-Bed Seat Riser

. . . . . . . . . . . . . . . . . . . 17

Converta-Bed Seats

. . . . . . . . . . . . . . . . . . . . . . . 17

General Information

. . . . . . . . . . . . . . . . . . . . . . . . 7

Head Restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Lumbar Support Handle

. . . . . . . . . . . . . . . . . . . . . 9

Recliner Handle

. . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Seat Back Assist Strap

. . . . . . . . . . . . . . . . . . . . . . 9

Seat Back Frame

. . . . . . . . . . . . . . . . . . . . . . . . . . 9

Seat Back Recliner

. . . . . . . . . . . . . . . . . . . . . . . . 9

Second Rear Seat Back

. . . . . . . . . . . . . . . . . . . . 12

Second Rear Seat Back Hinge

. . . . . . . . . . . . . . . 13

Second Rear Seat Back Hinge Cover

. . . . . . . . . . 12

Second Rear Seat Back Pad

. . . . . . . . . . . . . . . . 14

Second Rear Seat Back Panel

. . . . . . . . . . . . . . . 12

Second Rear Seat Cushion Pad

. . . . . . . . . . . . . . 14

Second Rear Seat Riser . . . . . . . . . . . . . . . . . . . . 13
Second Rear Seat Track

. . . . . . . . . . . . . . . . . . . 13

GENERAL INFORMATION

On some trim styles, the cushion and back pads are

molded into the covers. Molded in place trim covers are
not serviced separately from the base pad. Molded in
place trim cover and pad can be identified by the lack
of sewing stitches in areas the appear to be sewn
together.

HEAD RESTRAINT

REMOVAL (FIG. 1)

The head restraint is retained with a leaf spring clip

at the bottom of the sleeve attached to the seat back
frame.

(1) Fabricate a tool from 25 mm (1 in.) steel shipping

band stock 6 cm (24 in.) long.

(2) Lift head restraint to the highest position.
(3) Insert end of tool between the bar and sleeve at

the front of the head restraint. Push tool in until it
comes to a solid stop.

(4) Push downward on head restraint allowing the

tool to travel with the bar.

(5) Hold tool downward and pull upward on head

restraint. If head restraint stops, the tool was not
inserted far enough.

(6) Separate head restraint from seat back.
(7) Pull sleeve from seat back.

INSTALLATION (FIG. 2)

(1) Install sleeve through hole in trim cover at top of

seat back, open side forward.

(2) Insert bar into sleeve and push head restraint

downward.

ARMREST

REMOVAL (FIG. 3)

(1) Remove trim plug covering screw on side of

armrest.

(2) Remove screw holding armrest to mounting.
(3) Rotate armrest upward to align armrest stop to

gate in mount.

(4) Pull outward to separate armrest from mount.
(5) Remove screws holding mount to seat back.

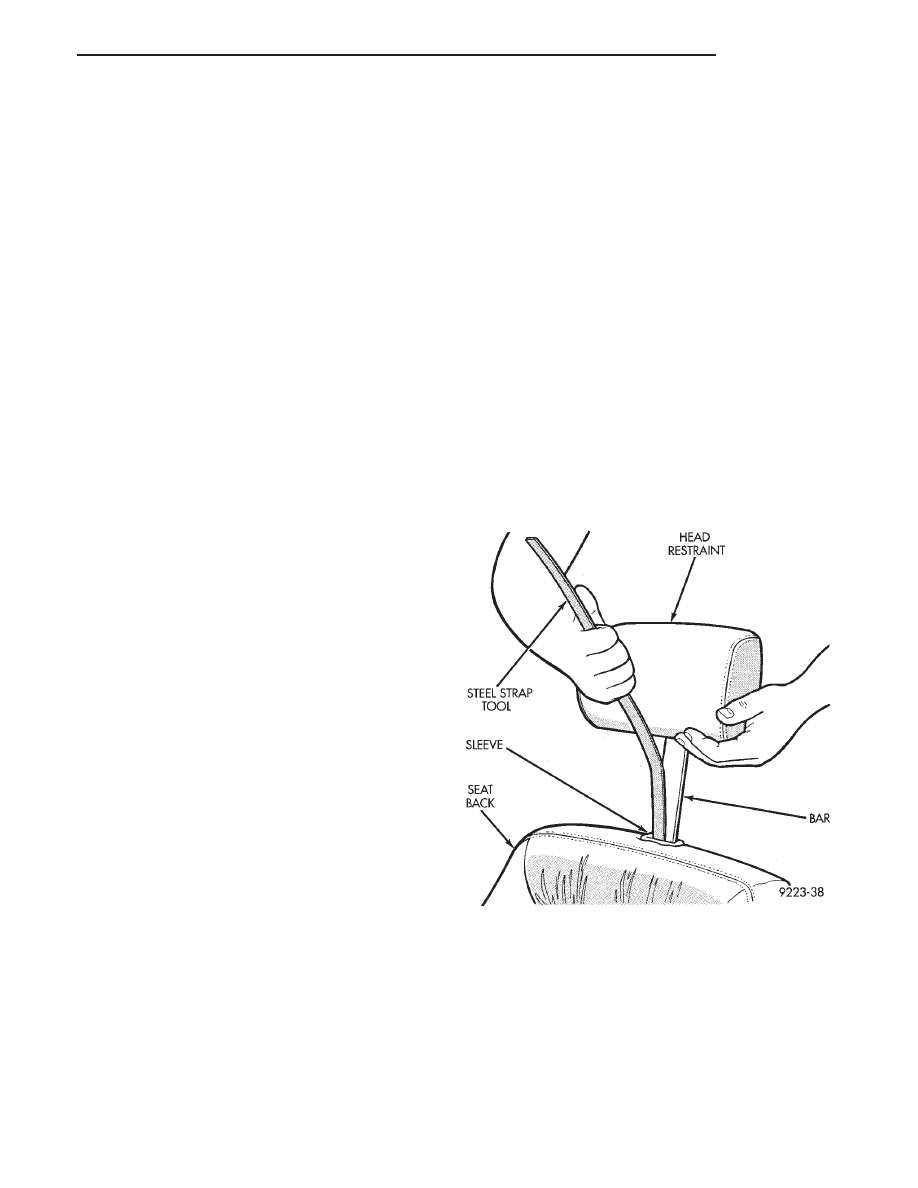

Fig. 1 Remove Head Restraint

.

BODY

23 - 7

(6) Separate mount from seat back.

INSTALLATION

Reverse the preceding operation.

BUCKET SEAT BACK

REMOVAL (FIG. 4 AND 5)

(1) Position seat back recliner in the full upright

position.

(2) Remove seat and position seat on a clean soft

work surface. Refer to Body Component Service section
of this group. For first rear seat, refer to Owner’s
Manual for instructions.

(3) Remove seat base riser.
(4) Disengage clip holding inboard seat belt buckle

tether to side cover.

(5) Remove recliner handle.
(6) Remove side covers.
(7) Disengage J-strip retainer holding seat cushion

cover to rear frame rail.

(8) Remove nut and wave washer holding seat back

frame to recliner shaft.

(9) Separate recliner shaft from stud on seat back.
(10) Remove shoulder bolts holding cushion frame to

seat back frame.

(11) Separate seat back from cushion.

INSTALLATION

Reverse the preceding operation.

RECLINER HANDLE

REMOVAL (FIG. 6)

(1) Remove screw holding handle to recliner spline

shaft.

(2) Pull outward and separate handle from seat.

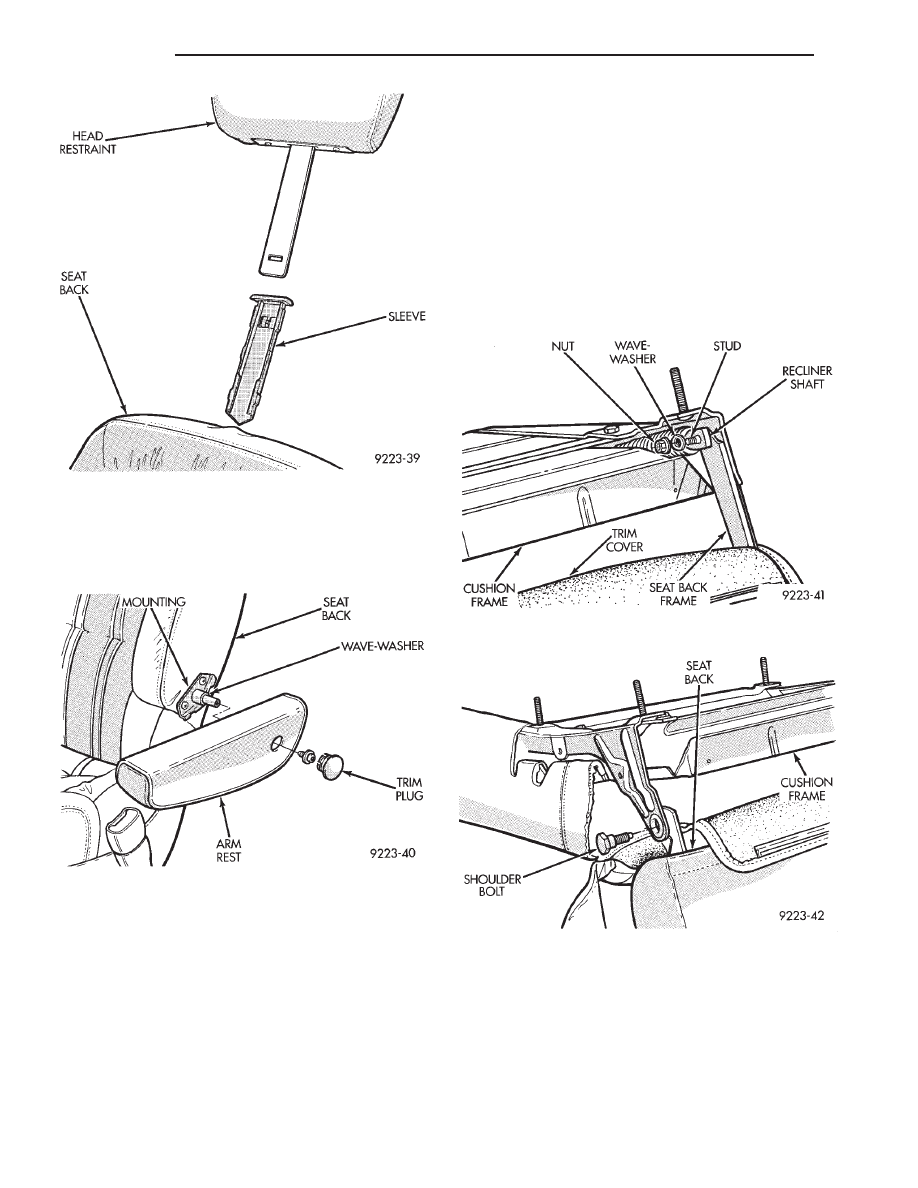

Fig. 2 Install Head Restraint

Fig. 3 Arm Rest

Fig. 4 Recliner Shaft Nut and Wave Washer

Fig. 5 Seat Back Pivot Bolts

23 - 8

BODY

.

RECLINER HANDLE INSTALLATION

Reverse the preceding operation

SEAT BACK RECLINER

REMOVAL (FIG. 7)

(1) Remove Seat From vehicle.
(2) Remove seat cushion side cover.
(3) Separate seat back from cushion.
(4) Remove bolts holding recliner to cushion frame.
(5) Separate recliner from cushion.

INSTALLATION

Reverse the preceding operation.

LUMBAR SUPPORT HANDLE

REMOVAL (FIG. 8)

(1) Remove screw holding lumbar support handle to

spline shaft on seat back.

(2) Pull and separate handle from seat.

LUMBAR SUPPORT HANDLE INSTALLATION

Reverse the preceding operation.

SEAT BACK ASSIST STRAP

REMOVAL (FIG. 9)

(1) Remove screws holding assist strap to seat back.
(2) Separate assist strap from seat back.

INSTALLATION

Reverse the preceding operation.

SEAT BACK FRAME

REMOVAL (FIG. 10 AND 11)

(1) Remove seat from vehicle.
(2) Remove head restraint.
(3) Remove arm rest and mount.
(4) Remove assist strap.
(5) Remove lumbar adjuster handle.
(6) Separate seat back from cushion.

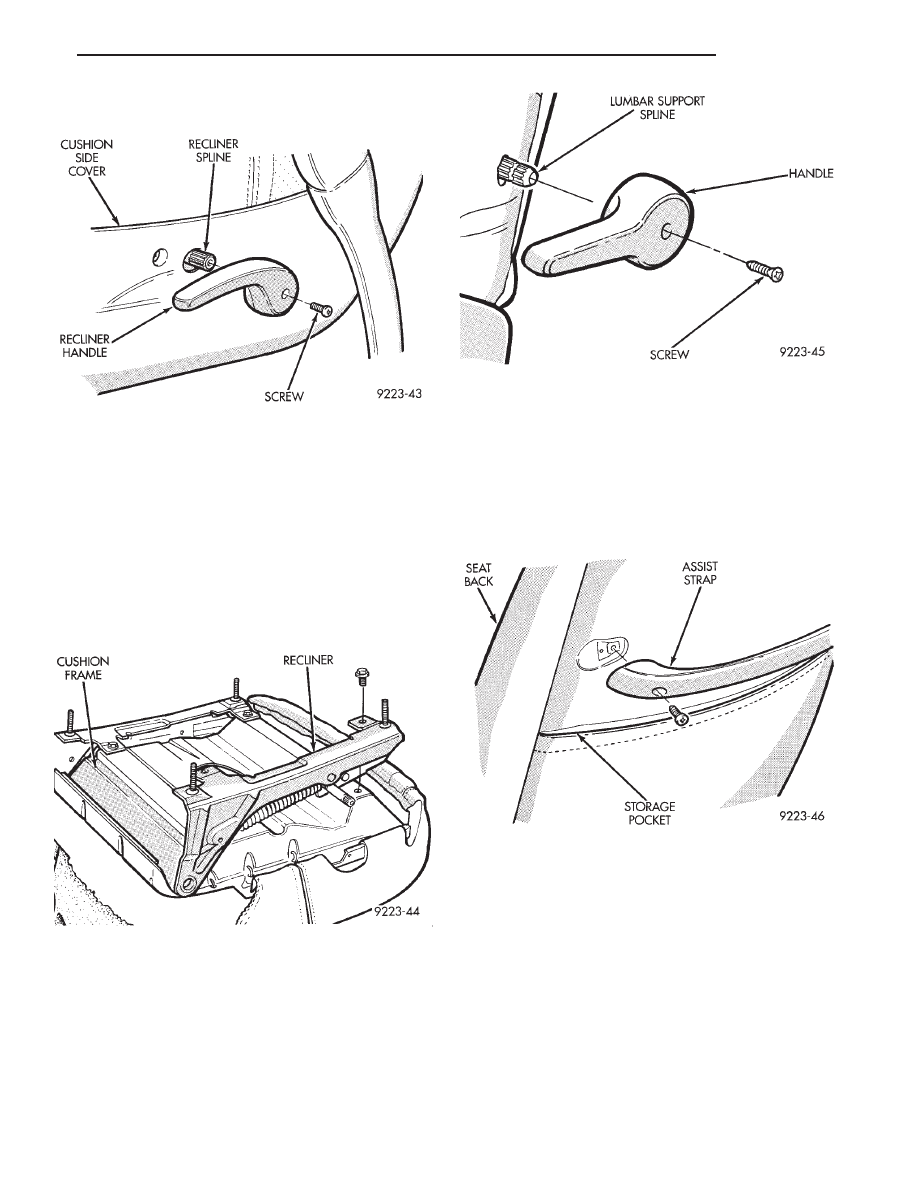

Fig. 6 Recliner Handle

Fig. 7 Seat Back Recliner

Fig. 8 Lumbar Support Handle

Fig. 9 Seat Back Assist Strap

.

BODY

23 - 9

(7) Remove hog-rings closing trim cover at bottom of

seat back.

(8) Pull cover inside out and upward to the first pull

down listing.

(9) Separate hook/loop fastener strips holding cover

to pad.

(10) Remove hog-rings holding listing wires to pull

down wires molded into pad.

(11) Pull cover from top of pad.
(12) Remove hog-rings holding pad apron to back of

frame.

(13) Separate seat back frame from pad.

SEAT BACK FRAME INSTALLATION (FIG. 12,
13 AND 14)

(1) Insert frame into pad.
(2) Hog-ring pad apron to rear of seat back.
(3) Slip trim cover over top of seat to the pull down

wire groove in the pad.

(4) With listing centered in the pull down groove,

hog-ring listing wire to pull down wire molded into pad.

(5) Roll trim cover down to bottom of seat back.

(6) Engage hook/lop fasteners to hold cover to pad.
(7) Hog-ring bottom closure wires together.
(8) Reverse steps 6 through 1 of the removal opera-

tion.

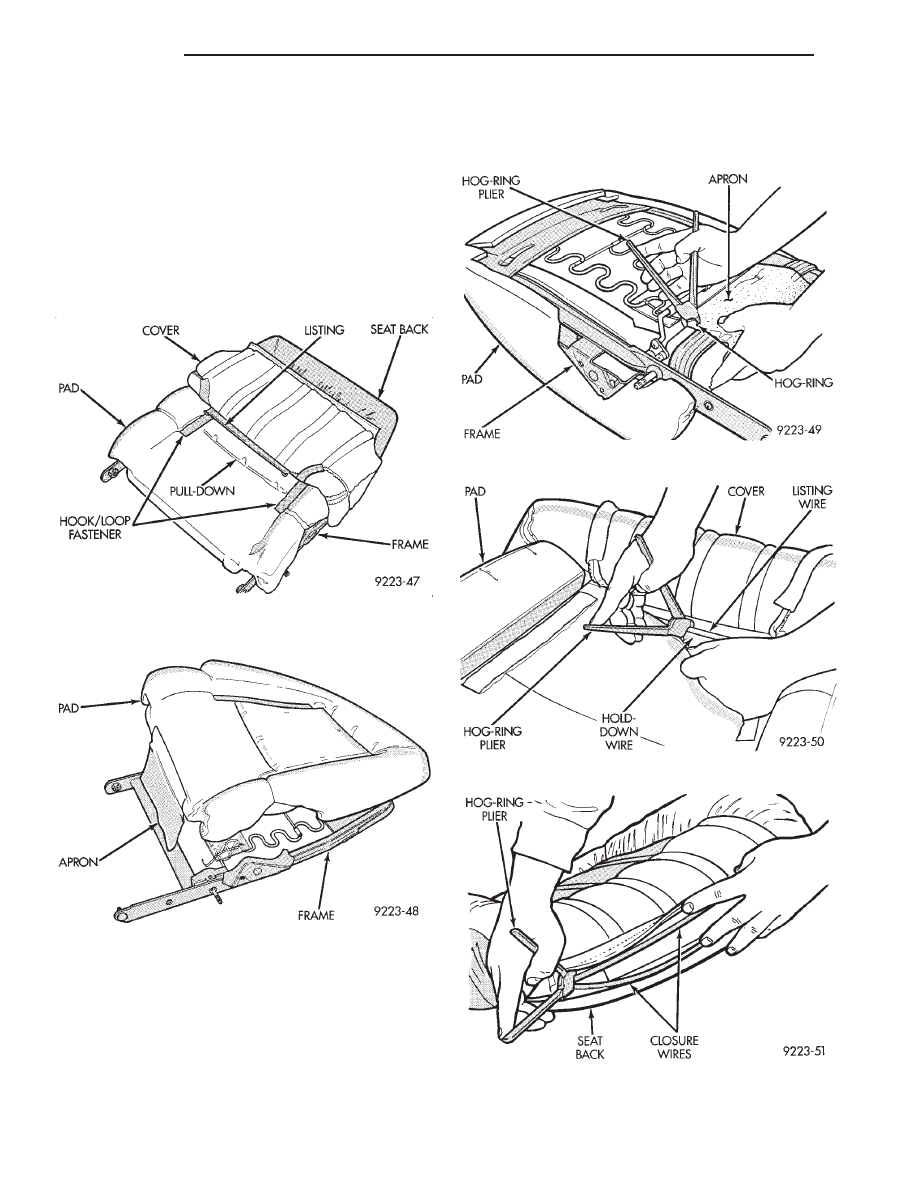

Fig. 10 Seat Back Cover Listing and Hook/Loop

Fasteners

Fig. 11 Seat Back Frame and Pad

Fig. 12 Hog-ring Apron to Seat Back

Fig. 13 Hog-ring Listing to Pull Down—Typical

Fig. 14 Hog-ring Cover Closure Together—Typical

23 - 10

BODY

.
