Chevrolet Silverado / GMC Sierra. Manual - part 970

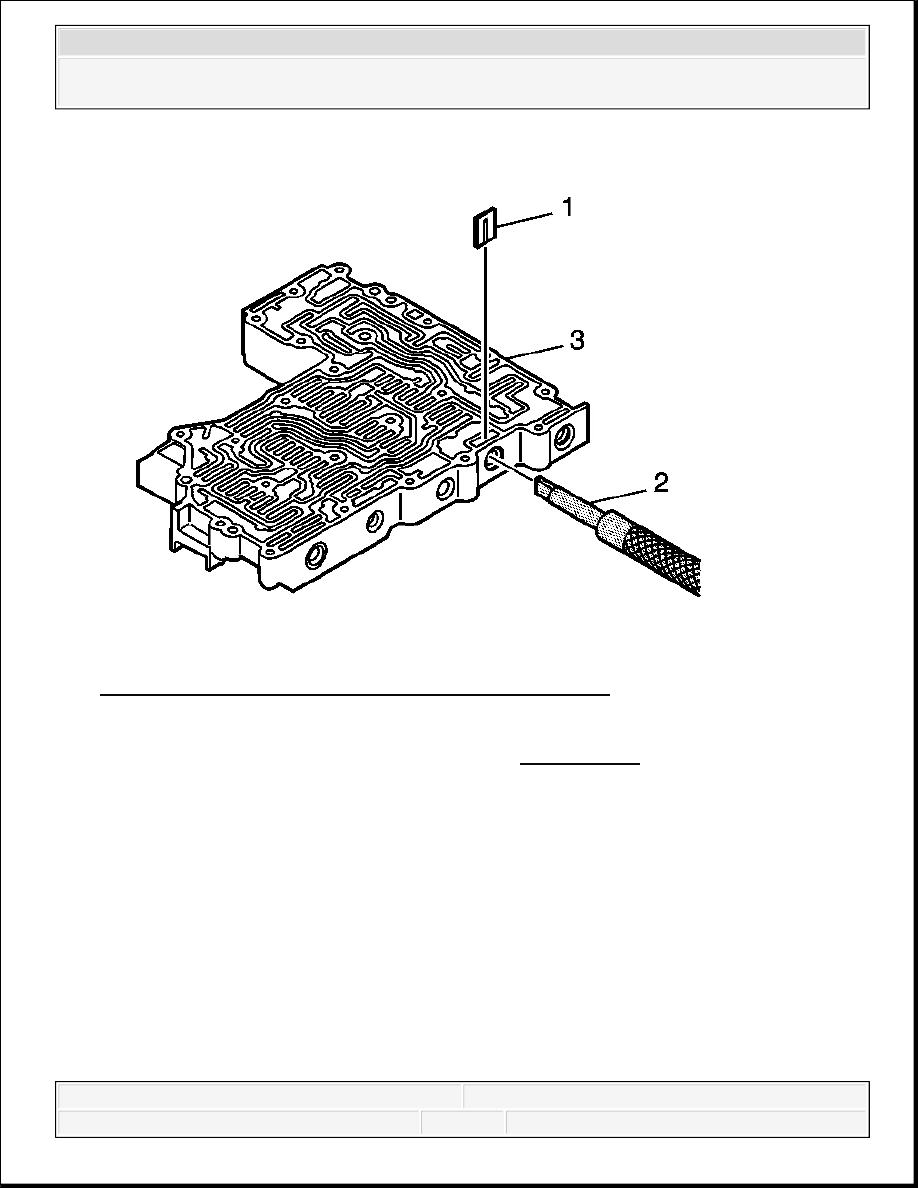

Fig. 440: Compressing Shift Valve Spring
Courtesy of GENERAL MOTORS CORP.
9. Using J 43773 (2), compress the valve spring. See Special Tools.
10. Install retaining clip (1). Make sure the retaining clip is below the valve body surface.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

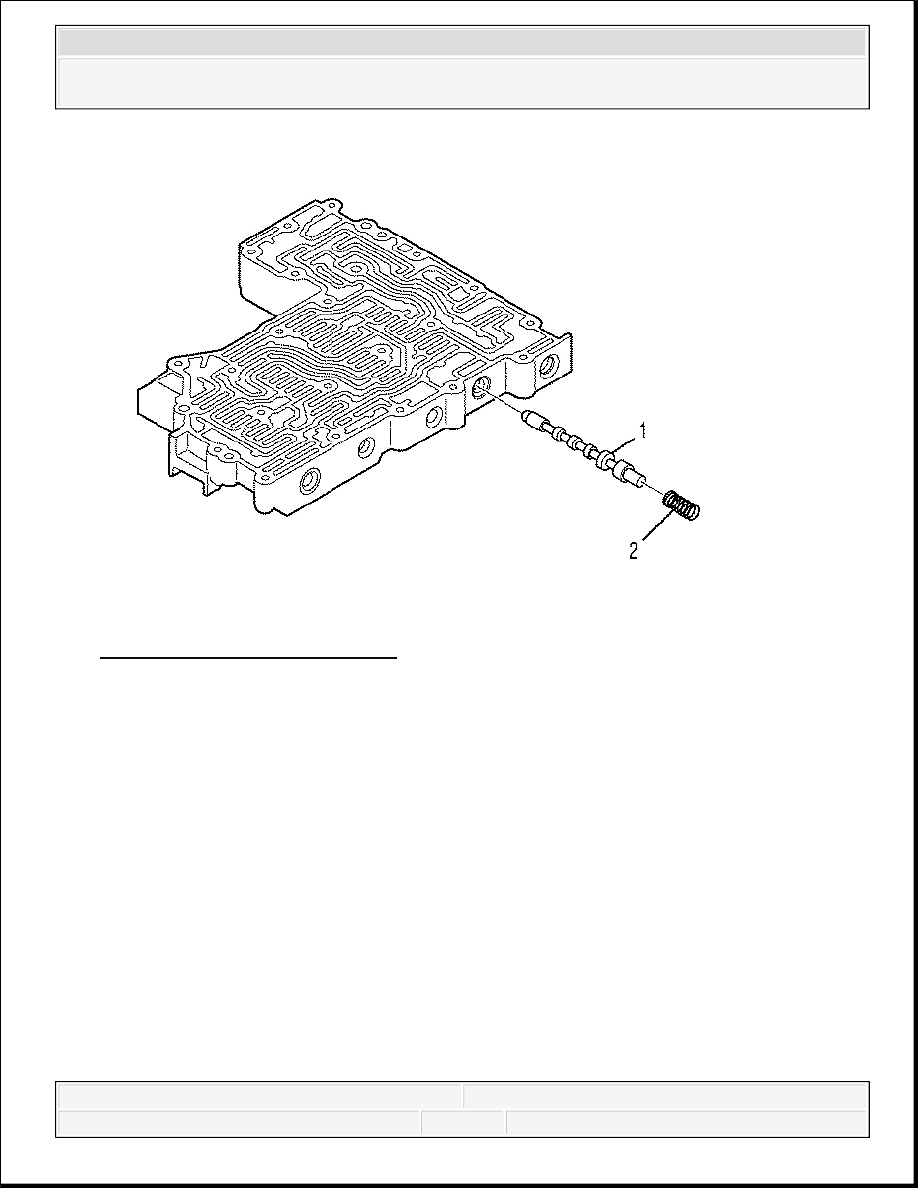

Fig. 441: Spring And Shift Valve
Courtesy of GENERAL MOTORS CORP.
11. Install shift valve 1 (1), spring (2), and plug.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

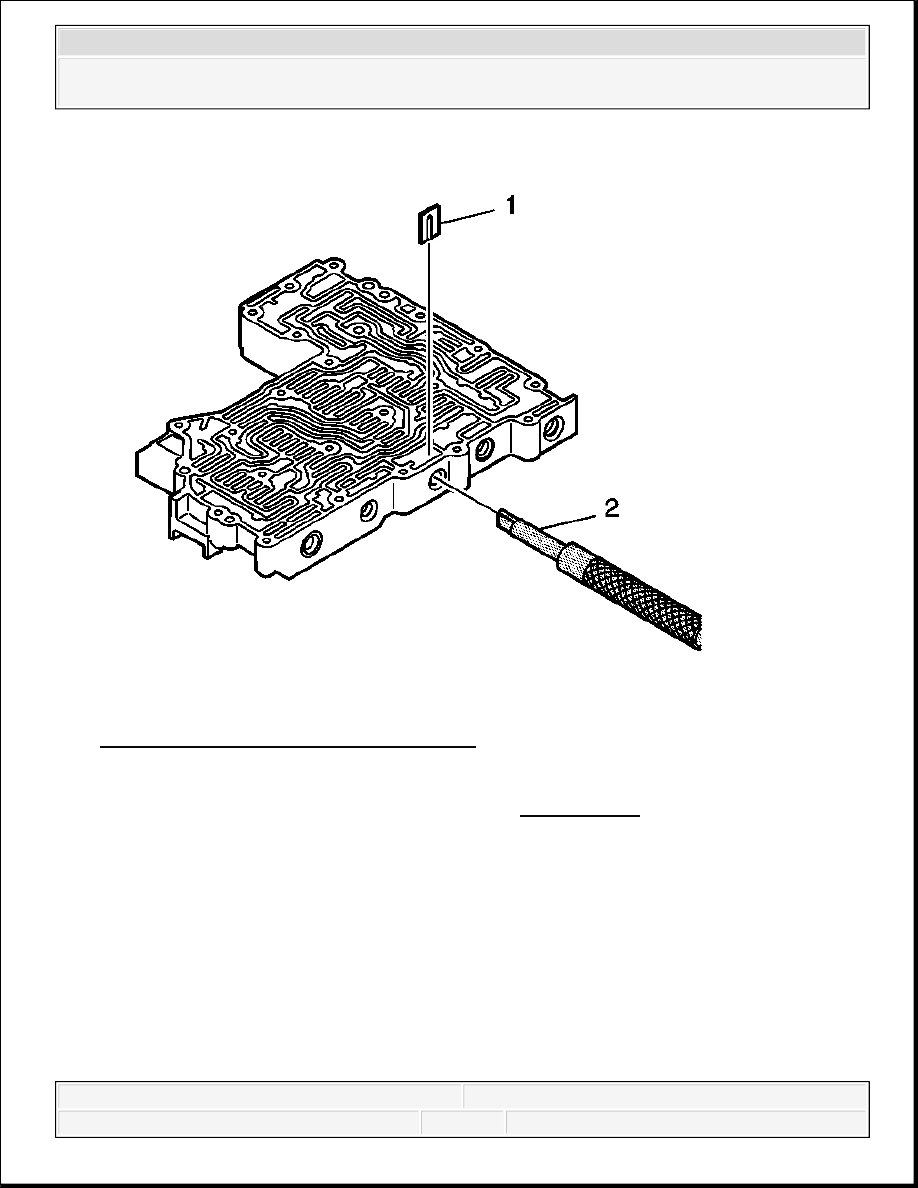

Fig. 442: Compressing Shift Solenoid Shift Valve Spring
Courtesy of GENERAL MOTORS CORP.
12. Using J 43773 (2), compress the valve spring. See Special Tools.
13. Install retaining clip (1). Ensure the retaining clip is below the valve body surface.
Control Valve Body Assembly
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

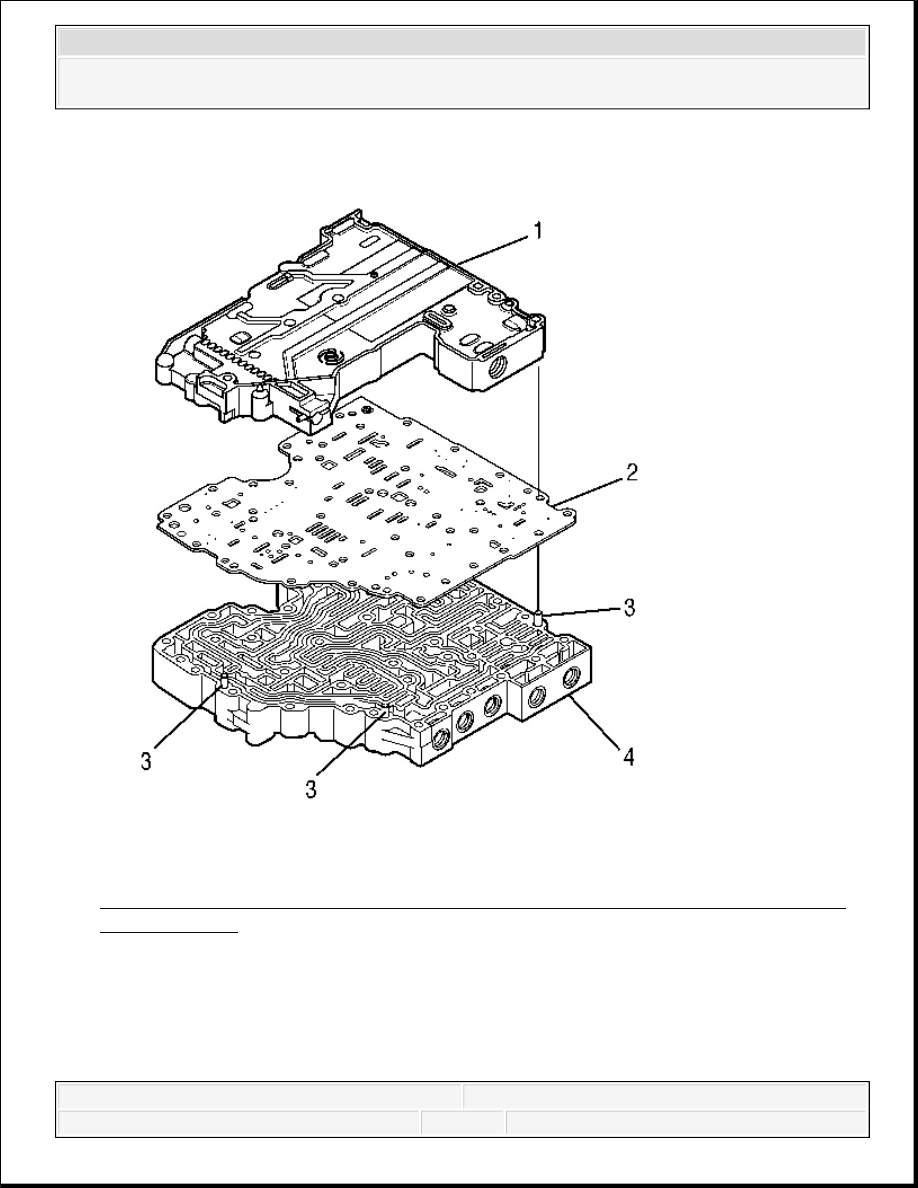

Fig. 443: Separating Shift Valve Body Assembly, Separator Plate, And Main Valve
Body Assembly
Courtesy of GENERAL MOTORS CORP.
1. Position main valve body assembly (4) on the work table so that the worm-track side is up.
2. Align separator plate (2) with main valve body locating pins (3).
3. Install separator plate (2).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
