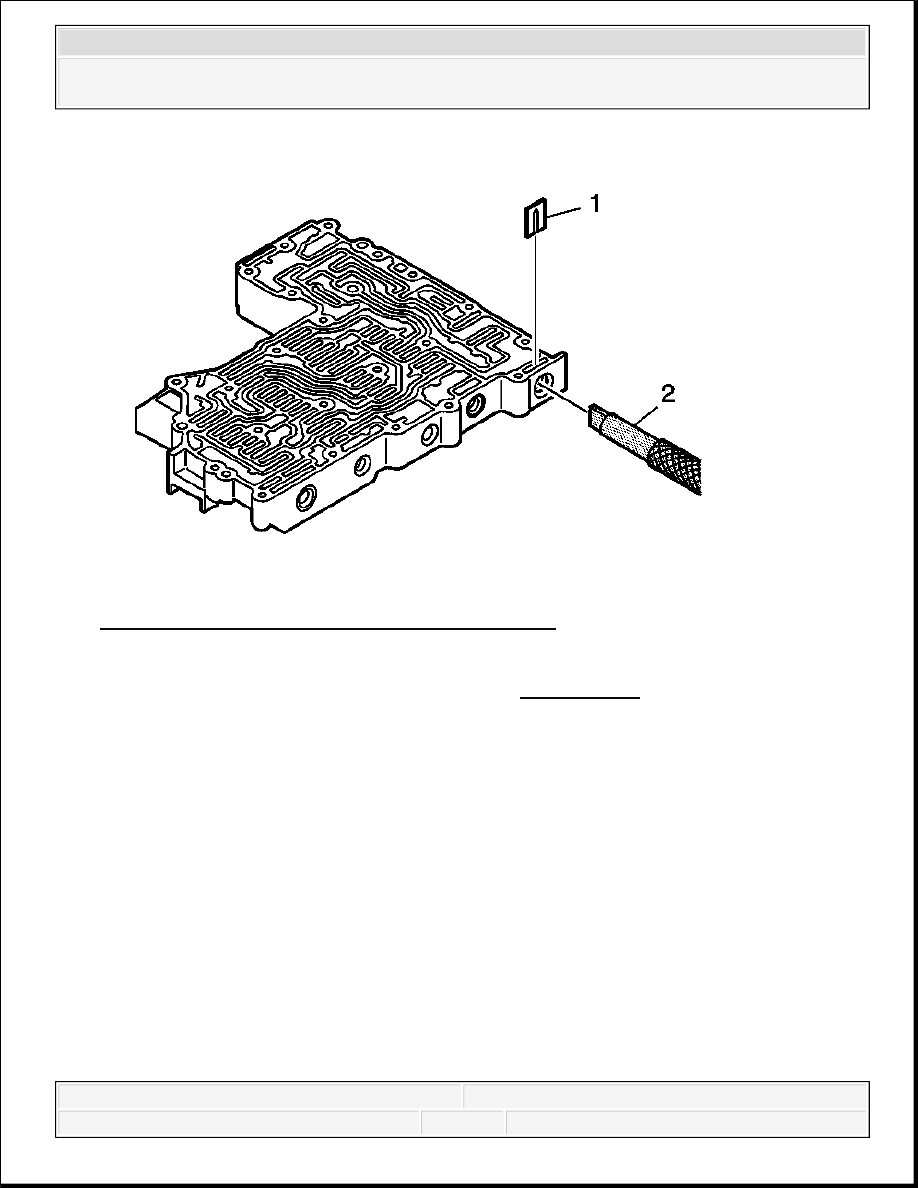

Fig. 436: Compressing Control Main Valve Spring
Courtesy of GENERAL MOTORS CORP.
3. Using J 43773 (2), compress the valve spring. See Special Tools.
4. Install retaining clip (1). Ensure the retaining clip (1) is below the valve body surface.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

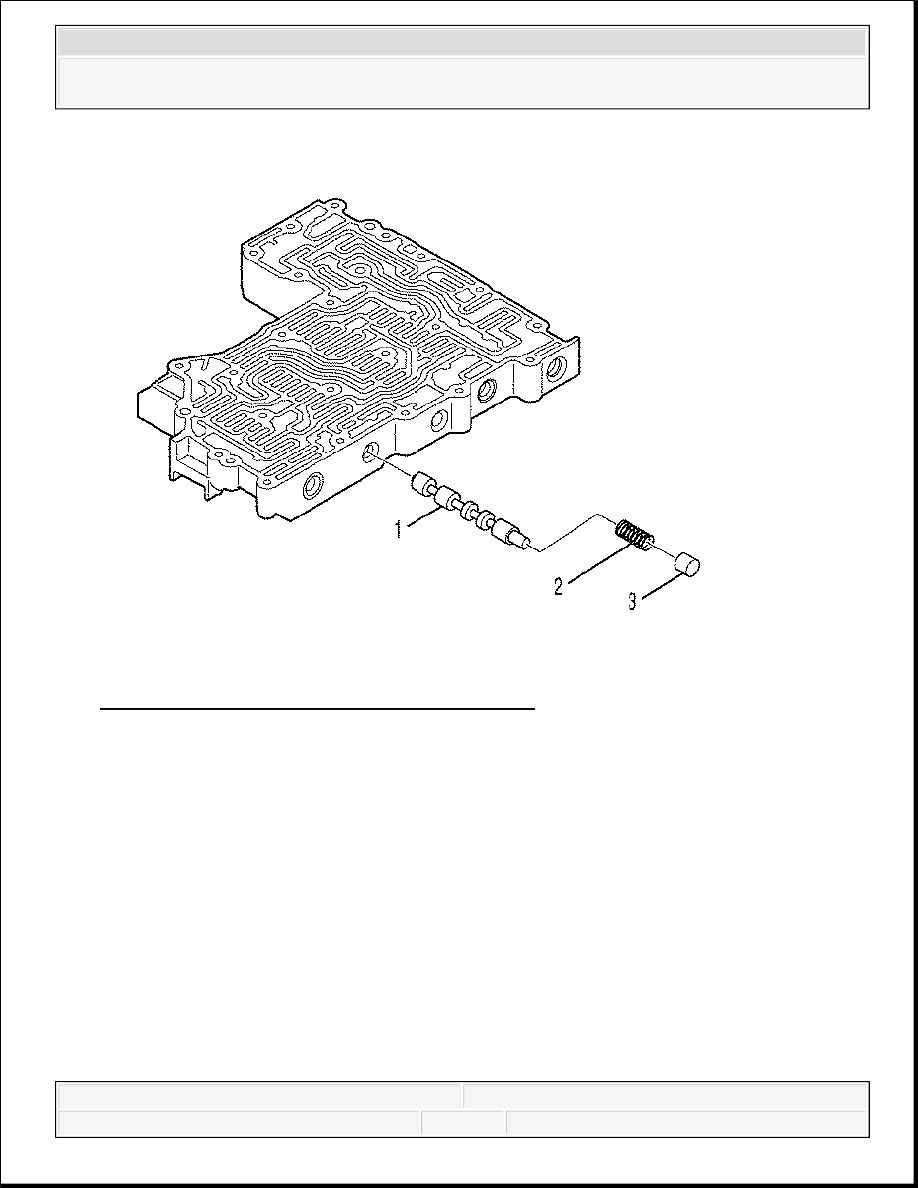

Fig. 437: View Of Plug, Spring, And Shift Valve
Courtesy of GENERAL MOTORS CORP.
5. Install shift valve 2 (1), spring (2), and plug (3).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

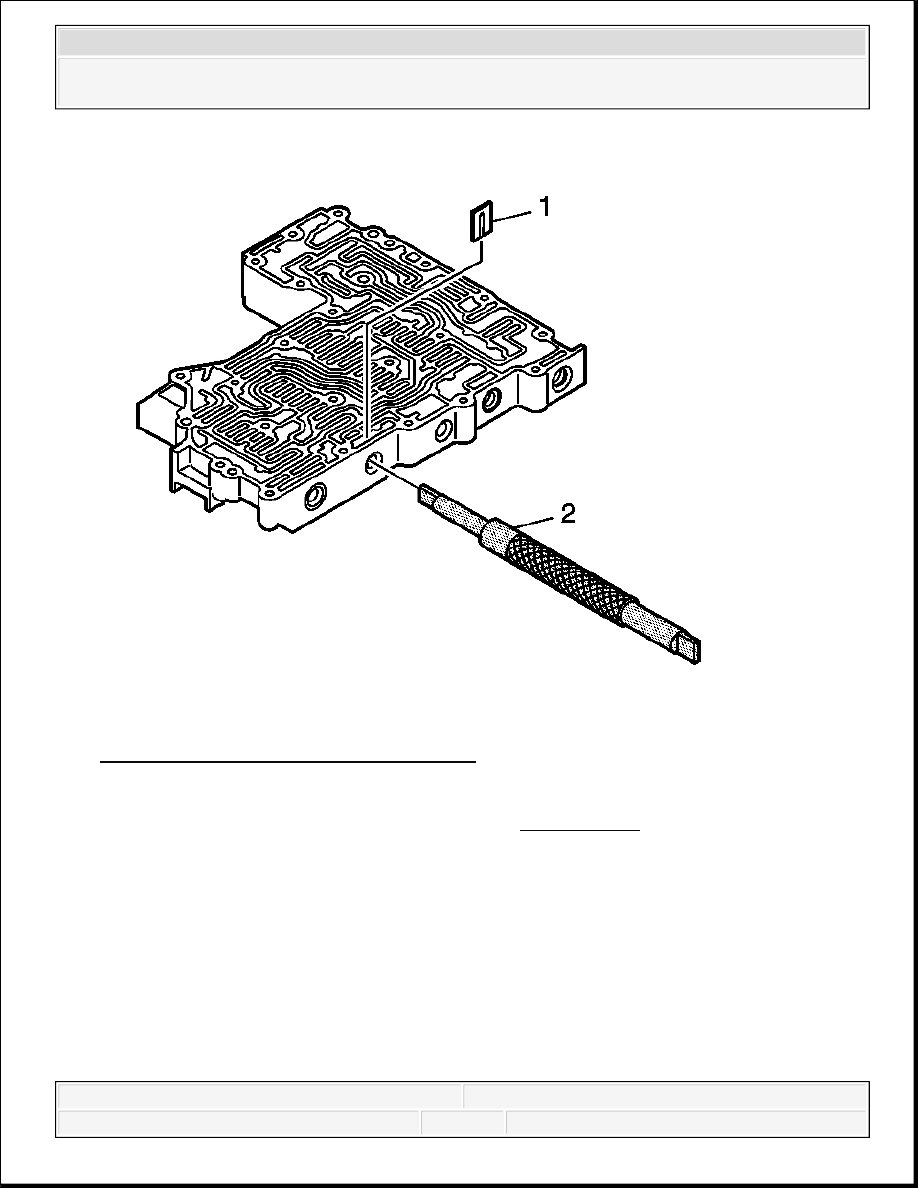

Fig. 438: Compressing Shift Valve Spring
Courtesy of GENERAL MOTORS CORP.
6. Using J 43773 (2), compress the valve spring. See Special Tools.
7. Install retaining clip (1). Ensure the retaining clip is below the valve body surface.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

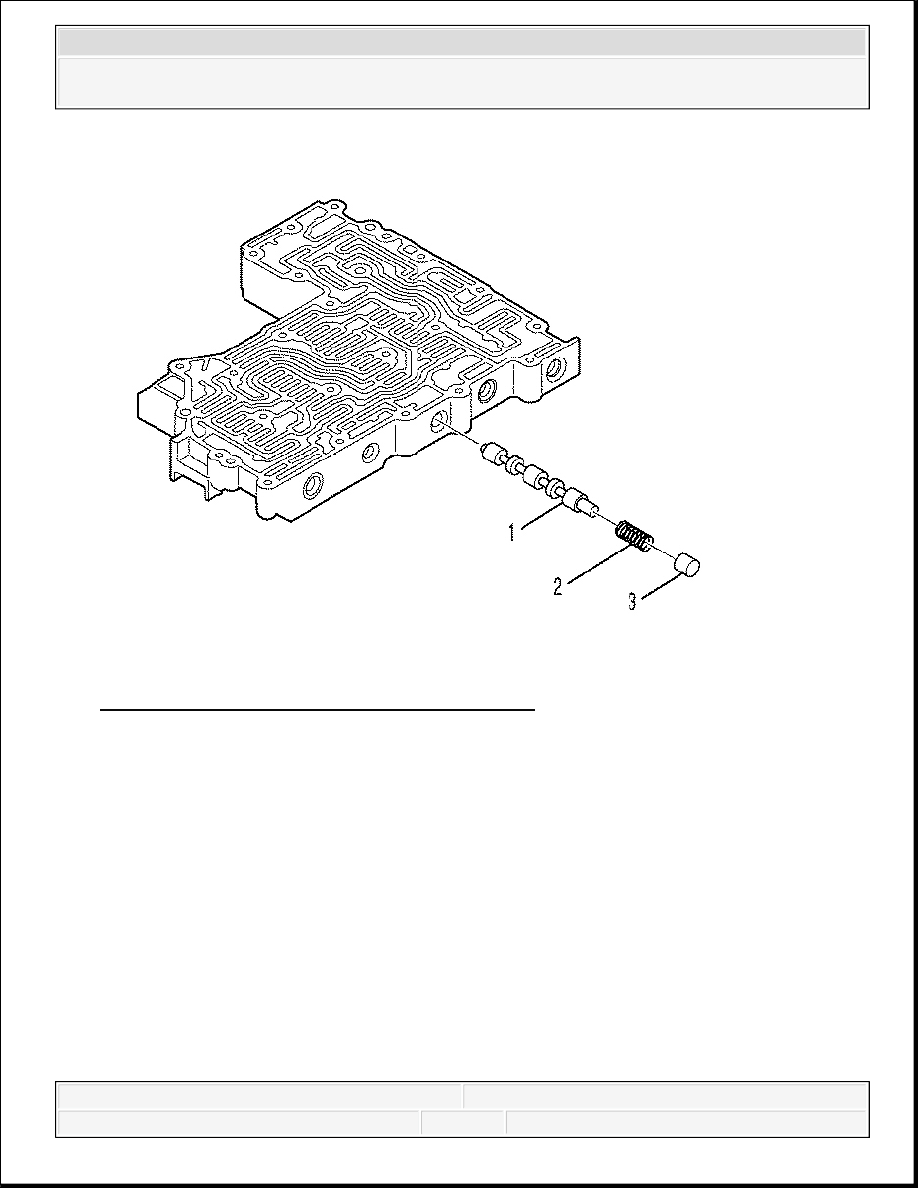

Fig. 439: View Of Plug, Spring, And Shift Valve
Courtesy of GENERAL MOTORS CORP.
8. Install shift valve 3 (1), spring (2), and plug (3).
