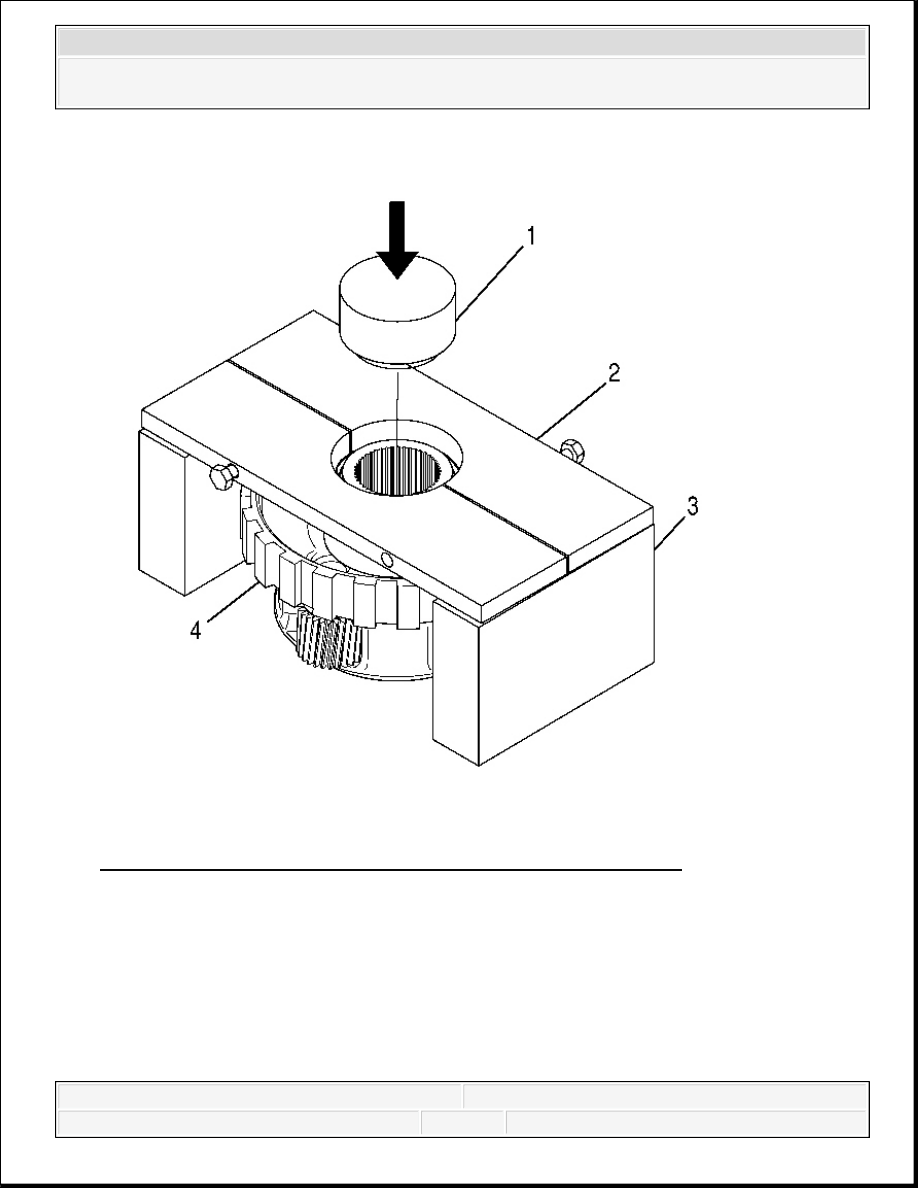

Fig. 374: Supporting Output Carrier Assembly On Wood Blocks 4. Place 2 wooden blocks (3) on the press. Install J 44528-2 remover/installer (1) into the output carrier assembly. 5. Position the output carrier assembly (4) so that J 44528-1 remover (2) spans the wooden blocks and the front of the carrier is facing down. CAUTION: Pressing the output planetary carrier from the bearing
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
6. Using J 44528-2 remover/installer (1), press the output carrier assembly (4) from J 44528-1 remover (2). 7. Remove the bearing race from J 44528-1 remover. 8. Remove J 44528-2 remover/installer (1) from the output carrier assembly. Installation Procedure race causes the output carrier to fall from the bearing
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

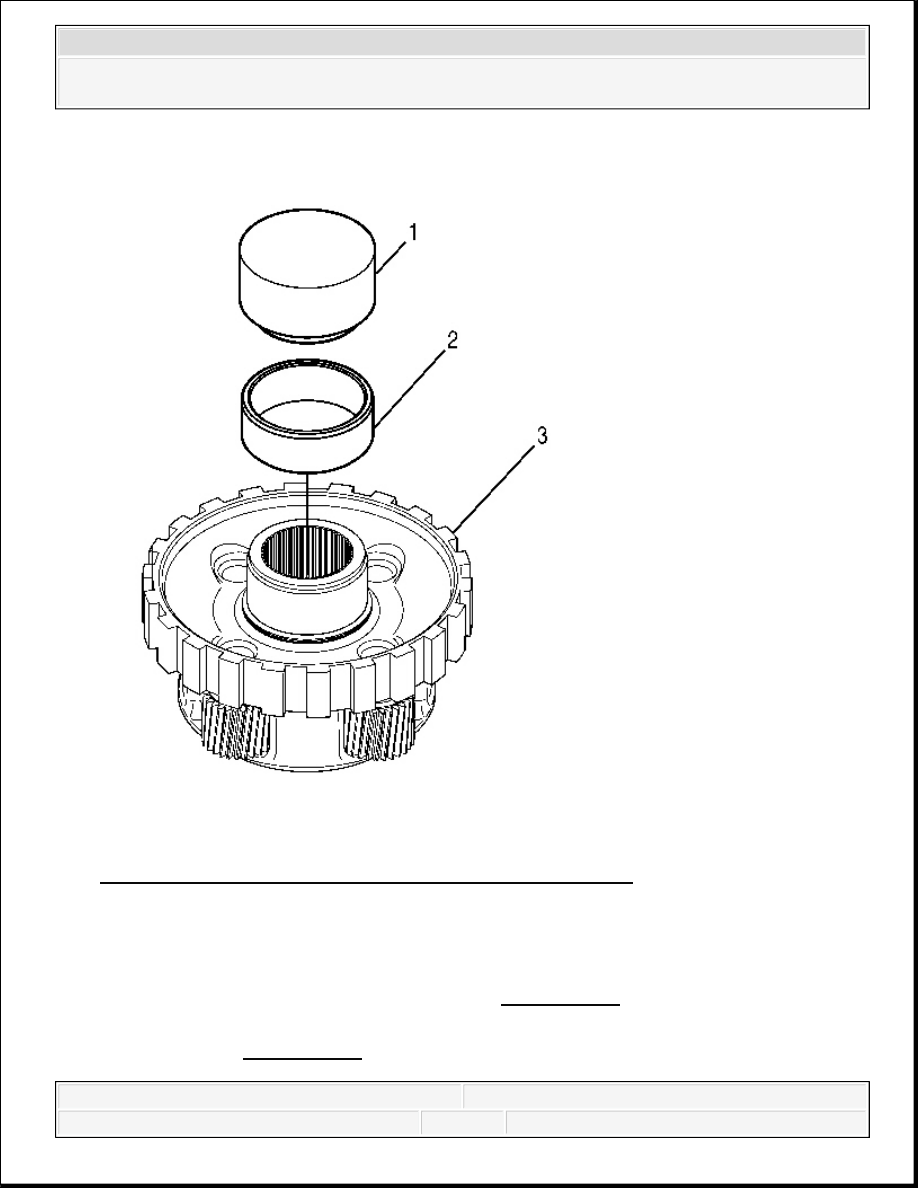

Fig. 375: Installing Output Carrier Assembly Bearing Race 1. Position the output carrier assembly (3) on the press so that the rear of the carrier is facing up. 2. Install a new bearing race into J 43797 (1). See Special Tools. 3. Using J 43797 (1), press the bearing race (2) onto the output carrier assembly (3) until J 43797 seats. See Special Tools.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

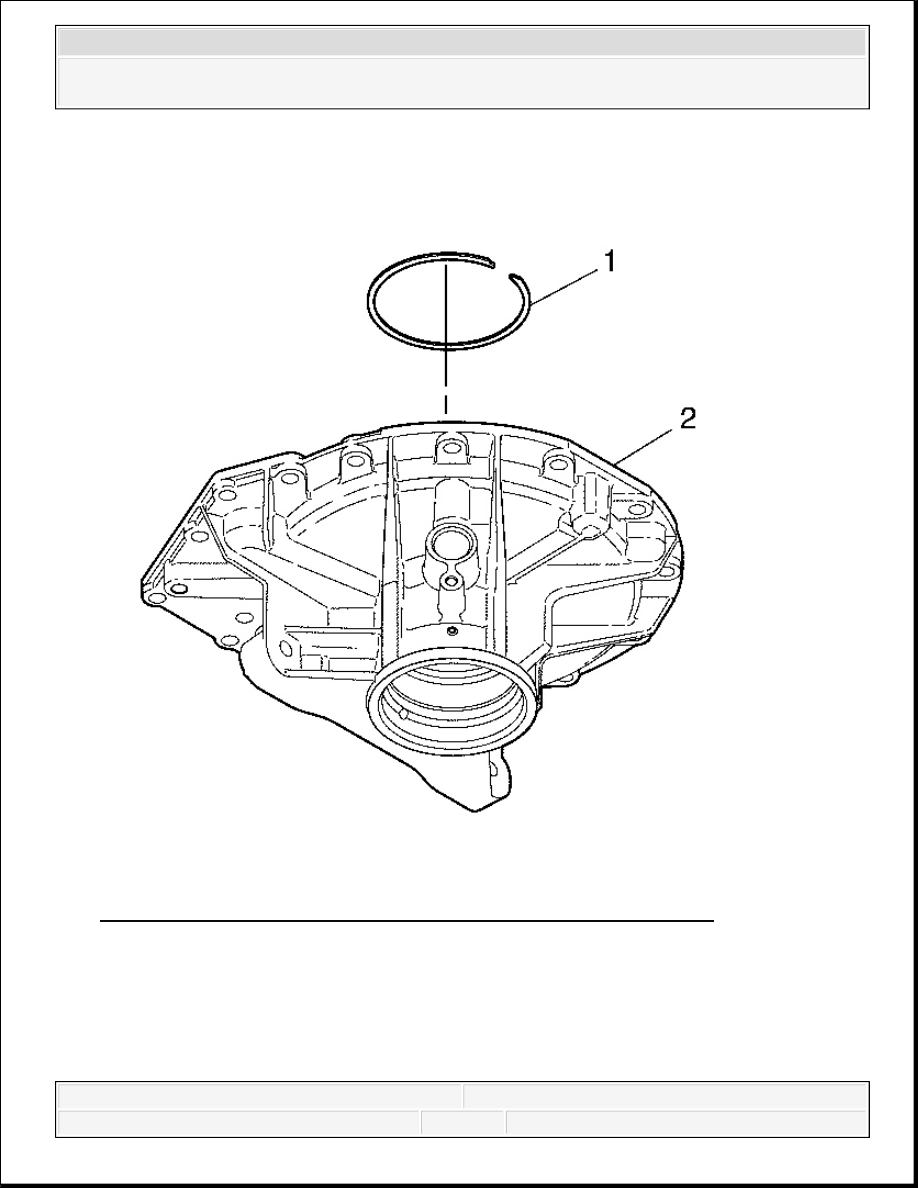

LOW AND REVERSE CLUTCH HOUSING ASSEMBLY DISASSEMBLE Fig. 376: Locating Low and Reverse Clutch Housing Retaining Ring IMPORTANT: The low and reverse clutch housing, 2WD and the low and reverse clutch housing, 4WD are disassembled using the
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
|
|
|
