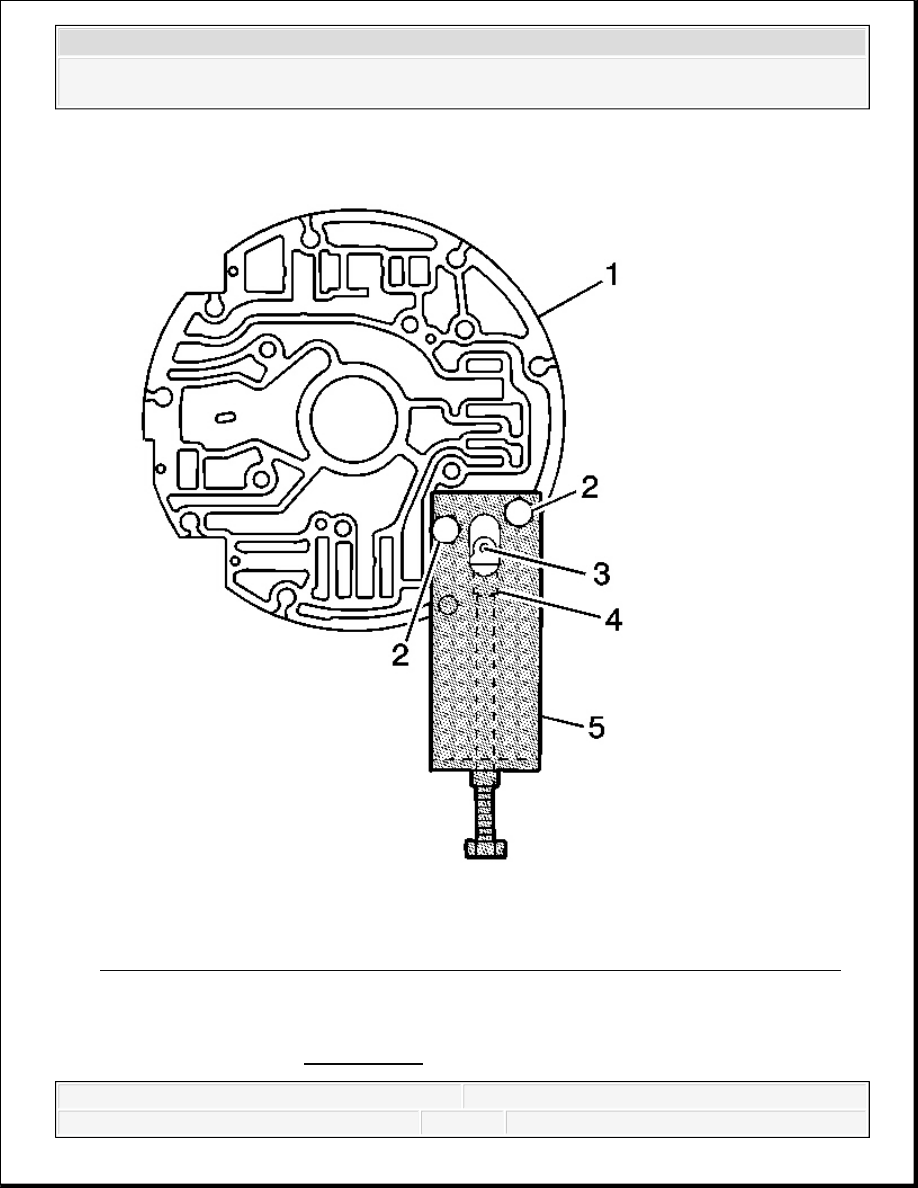

Fig. 247: Using J 24459-5 And J 43770 To Compress Converter Flow Valve Spring 5. Align J 43770 (5) and J 24459-5 (4) with the oil pump cover so that the following conditions are met:. See Special Tools.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
The threaded rod is facing down. Two bolt holes align with 2 bolt holes in the oil pump cover. 6. Install J 43770 (5) onto the oil pump cover assembly (1). See Special Tools. 7. Install 2 oil pump cover retaining bolts (2). 8. Align the slot in J 24459-5 (4) to allow installing the retainer pin (3). See Special Tools. 9. Using J 24459-5 (4) and J 43770 (5), compress the TCC valve spring until the retainer pin (3) can be installed. See Special Tools. 10. Install the pin through oil pump cover (1). Make sure the pin is below the oil pump cover surface. 11. Relieve the TCC valve spring tension. 12. Remove J 24459-5 (4) and J 43770 (5). See Special Tools.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

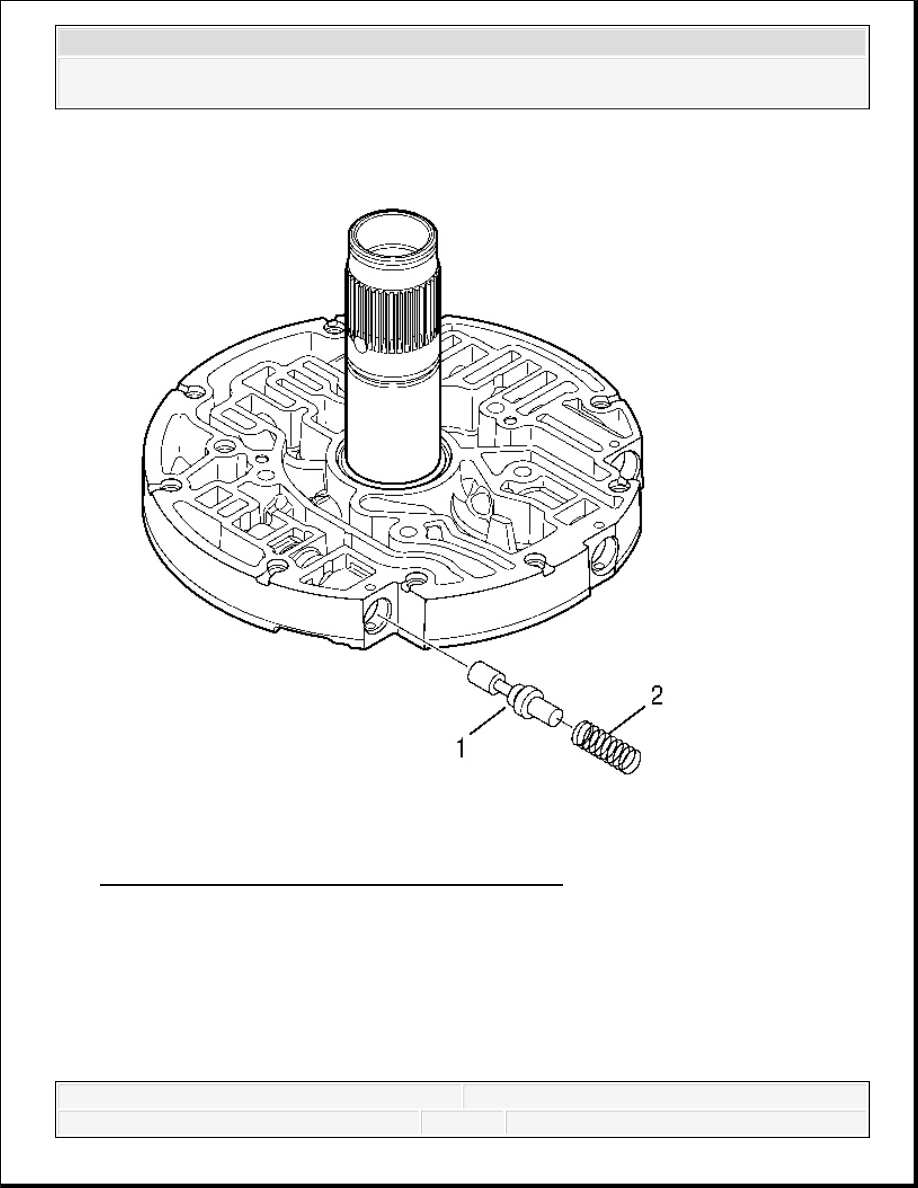

Fig. 248: View Of Converter Relief Valve & Spring 13. Install the TCC relief valve (1) and spring (2).
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 249: Converter Relief Valve Spring Retaining Clip & J 43773 14. Using J 43773 (2), compress the TCC relief valve spring until the retaining clip (1) can be installed. See Special Tools. 15. Install the clip. Make sure the retaining clip is below the surface of the oil pump cover.
