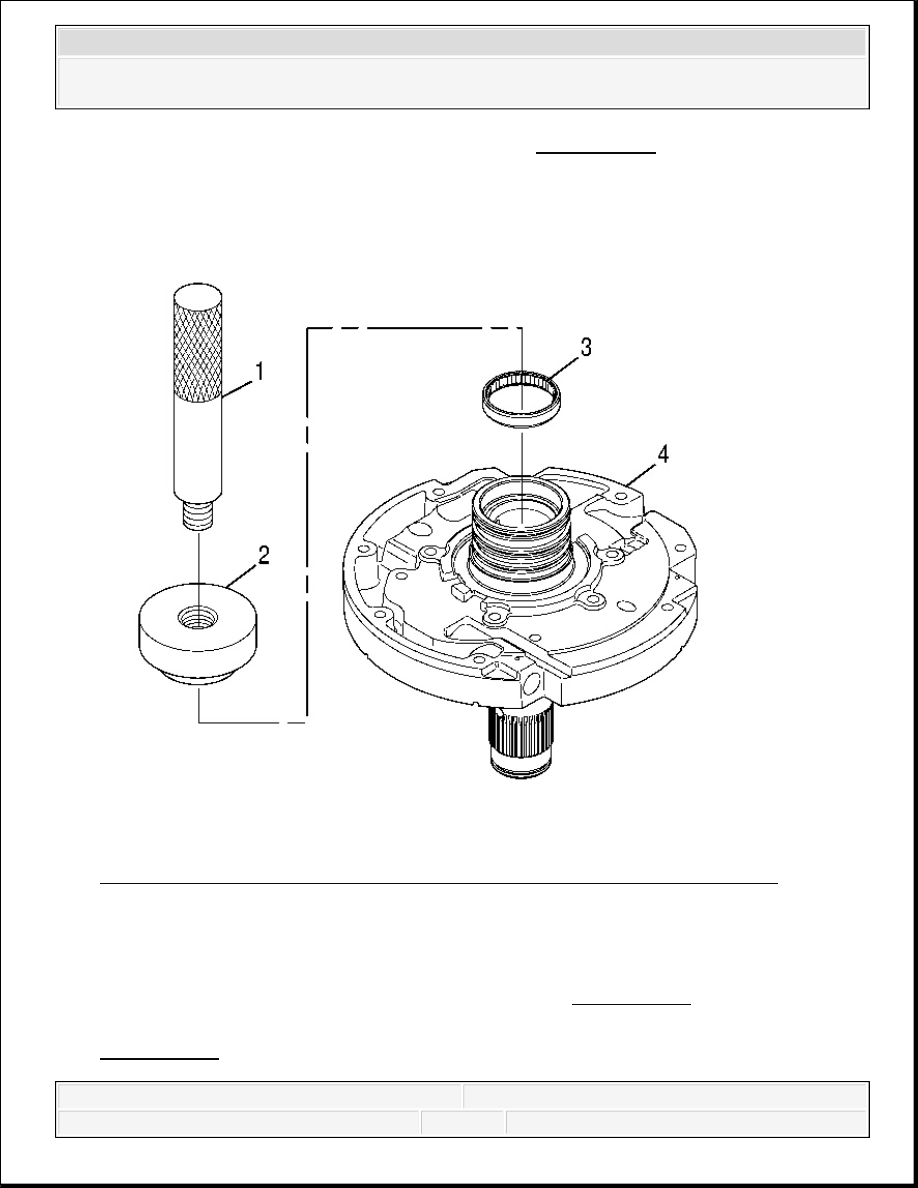

3. Install a slide hammer onto the end of J 26941 . See Special Tools. 4. Remove the needle bearing (2). Fig. 241: Installing Oil Pump Cover Assembly Needle Bearing Using J 8092 5. Install the large end of J 43775 (2) onto J 8092 (1). See Special Tools. 6. Drive the needle bearing (3) into the oil pump cover assembly (4) until J 43775 sets. See Special Tools. IMPORTANT: The needle bearing may be installed with either end up.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

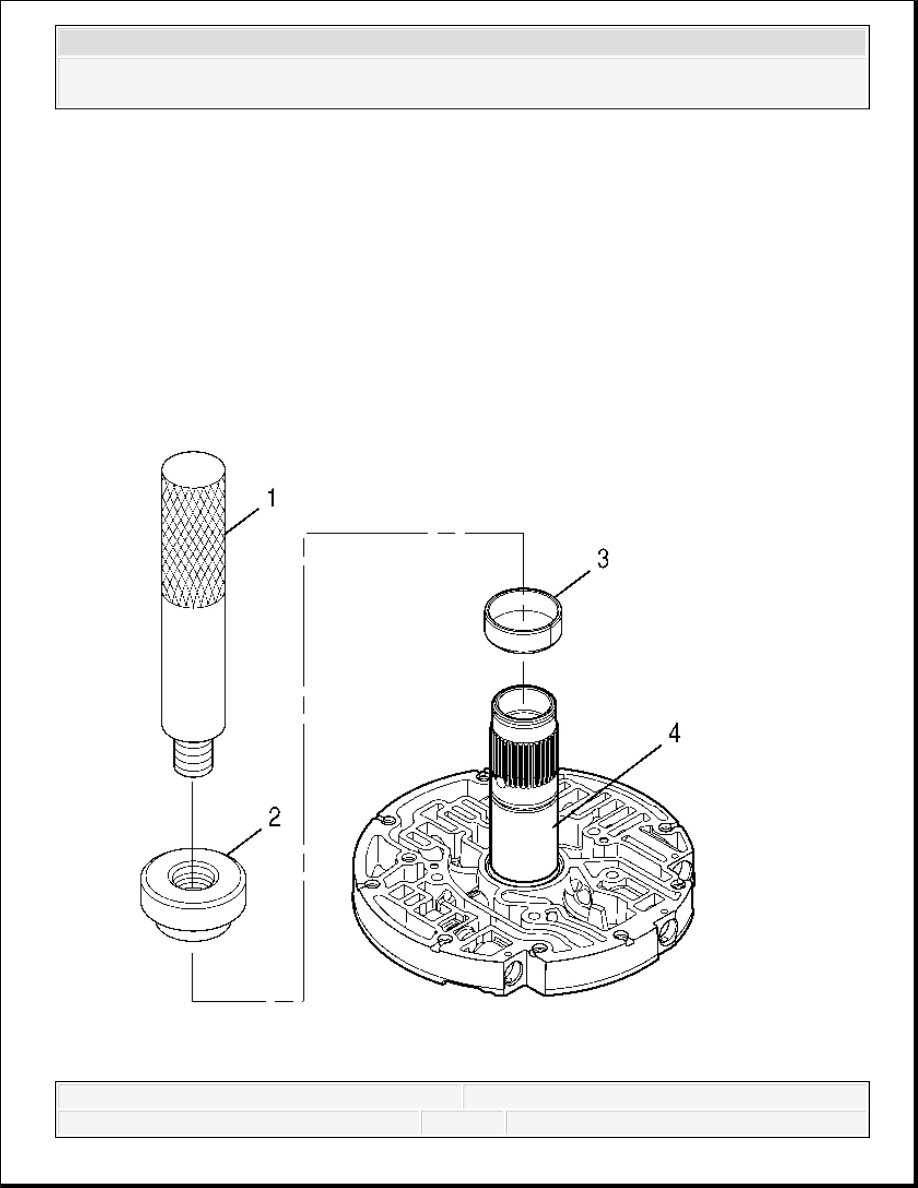

7. Ensure the bearing is installed below the stator shaft surface. Specification: The needle bearing installed depth measurement is flush to 0.25 mm (0.010 STATOR SHAFT BUSHING REPLACEMENT Tools Required J 44529 Stator Shaft Bushing Remover. See Special Tools. J 8092 Universal Driver J 43774 Stator Shaft Bushing Installer. See Special Tools. Replacement
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

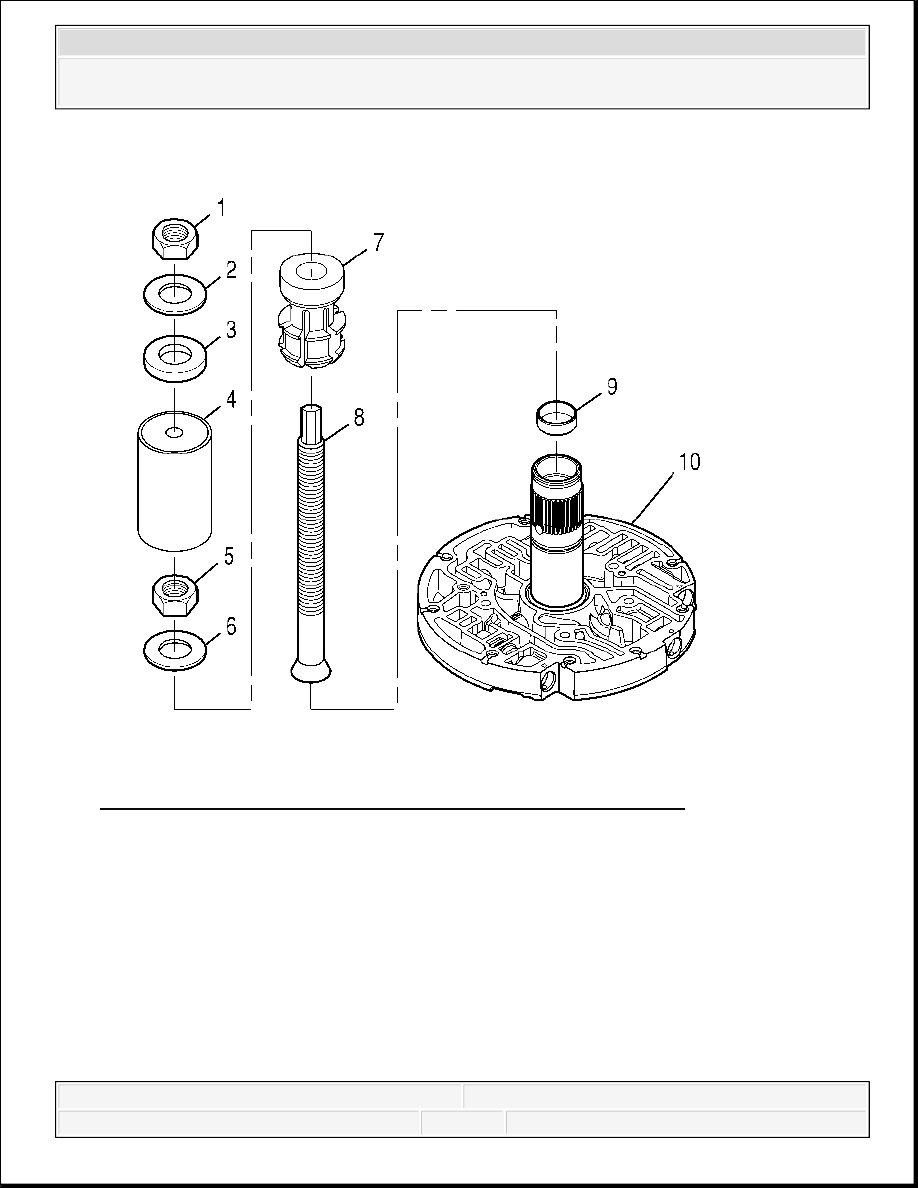

Fig. 242: Removing/Installing Stator Shaft Bushing With J Tools 1. Position the oil pump cover assembly (10) supported by wooden blocks with the stator shaft facing up. 2. Install J 44529 -2 bolt (8) into J 44529 -1 extractor (7). 3. Install J 44529 -2 bolt (8) and J 44529 -1 extractor (7) into the bushing (9). 4. Install washer (6) and nut (5) onto J 44529 -2 bolt (8). NOTE: Always use J 44529 when removing the stator shaft bushing to
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - Allison - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
5. Hold the top of J 44529 -2 bolt (8) with a wrench and tighten nut (5) until J 44529 -1 extractor (7) engages the bushing (9). 6. Install J 44529 -3 protector (4) onto J 44529 -2 bolt (8). 7. Install bearing (3), washer (2), and nut (1) onto J 44529-2 bolt (8). 8. Hold the top of J 44529 -2 bolt (8) with a wrench and tighten nut (1) until the bushing is dislodged. 9. Remove the J tools from the stator shaft. 10. Remove the bushing from the J tools.
