Chevrolet Silverado / GMC Sierra. Manual - part 822
25
1-2-3-4 Clutch Feed
26
1-2-3-4 Clutch
27
1-2-3-4 Clutch Feedback
28
CBR1/CBR Feed
29
CBR1
30
CBR
31
CBR1/4-5-6 Clutch Feed
32
CBR1 Feedback
33
4-5-6 Clutch Feed
34
4-5-6 Clutch
35
CSV2 Latch
36
Drive Brake
37
3-5 Reverse Feed
38
PCS TCC
39
PCS 1-2-3-4 Clutch
40
PS4
41
PS1
42
PS3
43
PS5
44
2-6 Clutch/1-2-3-4 CL Feed
45
PCS 3-5 Rev Clutch
46
2-6 Clutch
47
PCS 2-6 Clutch
48
PCS CBR1/4-5-6 Clutch
49
PSC Line
50
Exhaust BF
51
Exhaust
52
Empty
54
3-5 Clutch Reverse Feed
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

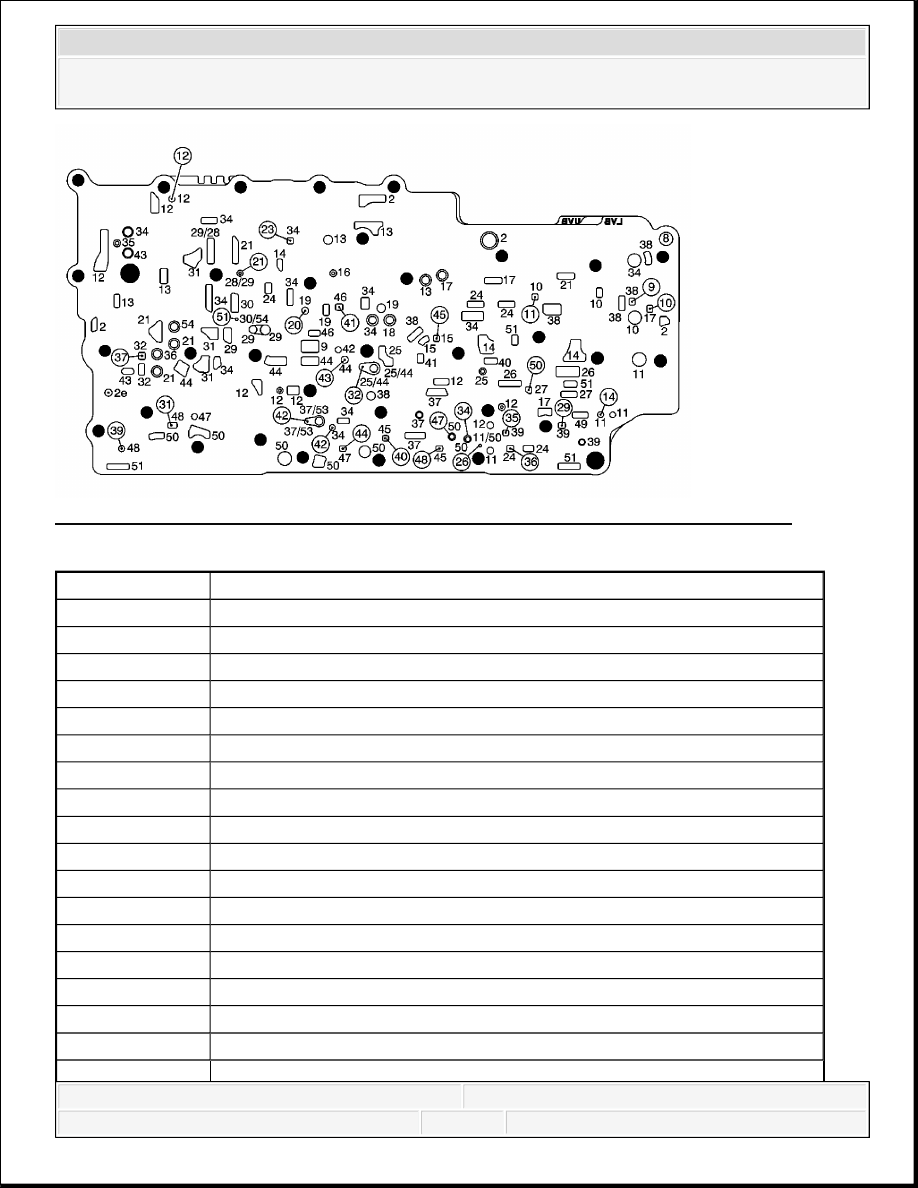

Fig. 225: Control Valve Body Spacer Plate Assembly - Bottom Channel Plate Side
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
2
Line
8
Cooler Feed
9
Center Lube
10
Regulator Apply
11
Compensator Feed
12
Actuator Feed Limit
13
Reverse
14
3-5 Reverse Clutch
15
3-5 Reverse Clutch Feedback
16
CSV2 Enable
17
Solenoid 1
18
Solenoid 2
19
CSV3 Enable
21
Drive 1-6
24
1-2-3-4 Clutch DFLT
25
1-2-3-4 Clutch Feed
26
1-2-3-4 Clutch
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
SPECIAL TOOLS
Special Tools
27
1-2-3-4 Clutch Feedback
28
CBR1/CBR Feed
29
CBR1
30
CBR
31
CBR1/4-5-6 Clutch Feed
32
CBR1 Feedback
34
4-5-6 Clutch
35
CSV2 Latch
36
Drive Brake
37
3-5 Reverse Feed
38
PCS TCC
39
PCS 1-2-3-4 Clutch
40
PS4
41
PS1
42
PS3
43
PS5
44
2-6 Clutch/1-2-3-4 CL Feed
45
PCS 3-5 Rev Clutch
46
2-6 Clutch
47
PCS 2-6 Clutch
48
PCS CBR1/4-5-6 Clutch
49
PCS Line
50
Exhaust BF
51
Exhaust
53
3-5 Rear Feed
54
3-5 Clutch Reverse Feed

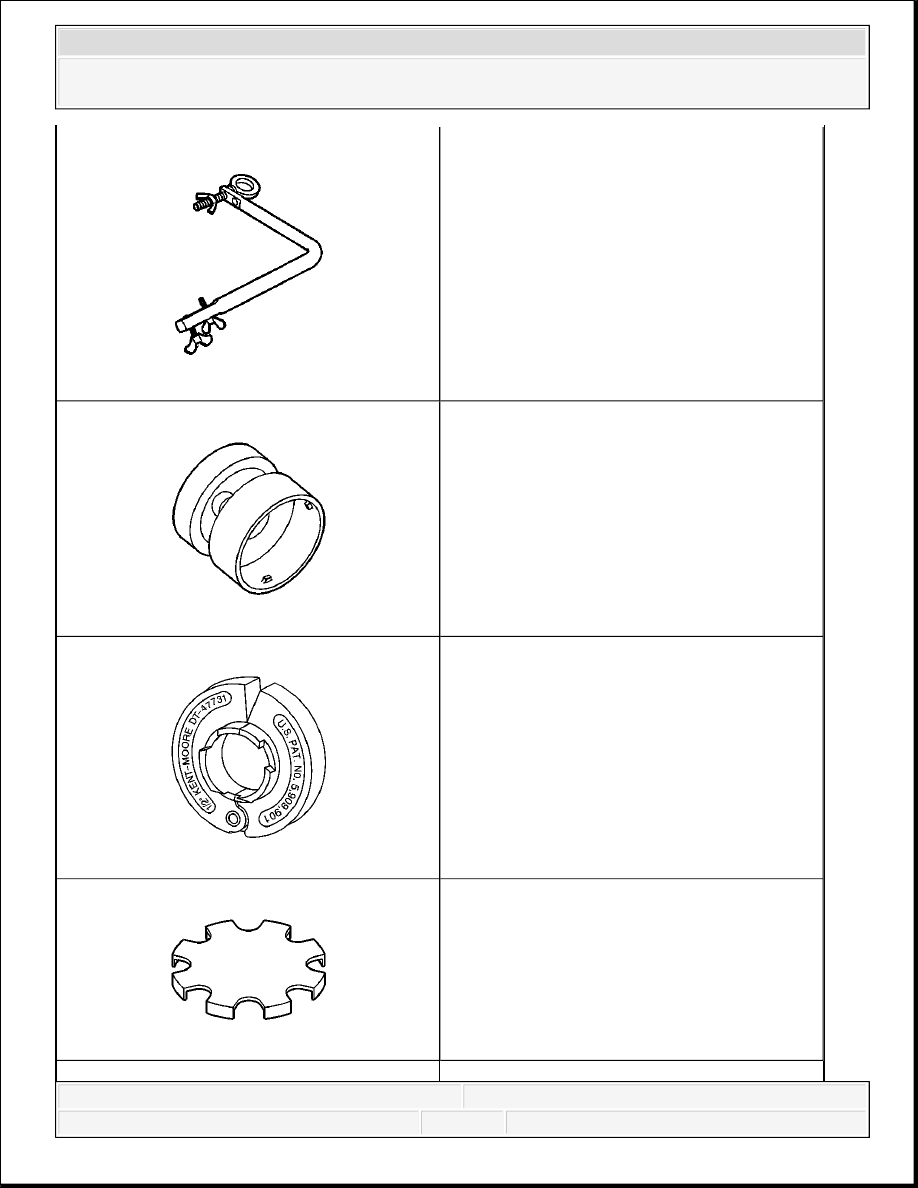

Illustration
Tool Number/Description
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
DT 47605
Holding Fixture Adapter
DT 47715
Electrical Connector Passage Sleeve
Remover/Installer
DT 47731
1/2 Inch Quick Connect Release Tool
DT 47761
Clutch Spring Compressor
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
