Chevrolet Silverado / GMC Sierra. Manual - part 820
2
Line
4
Converter Feed
5
Converter Feed Limit
6
TCC Release
7
TCC Apply
8
Cooler Feed
9
Center Lube
10
Regulator Apply
38
PCS TCC
49
PCS Line
51
Exhaust
52
Void
55
Vent
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
Fig. 219: Fluid Pump Cover - Case Side
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Suction
2
Line
9
Center Lube
10
Regulator Apply
11
Compensator Feed
14
3-5 Reverse Clutch
26
1-2-3-4 Clutch
34
4-5-6 Clutch
38
PCS TCC
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

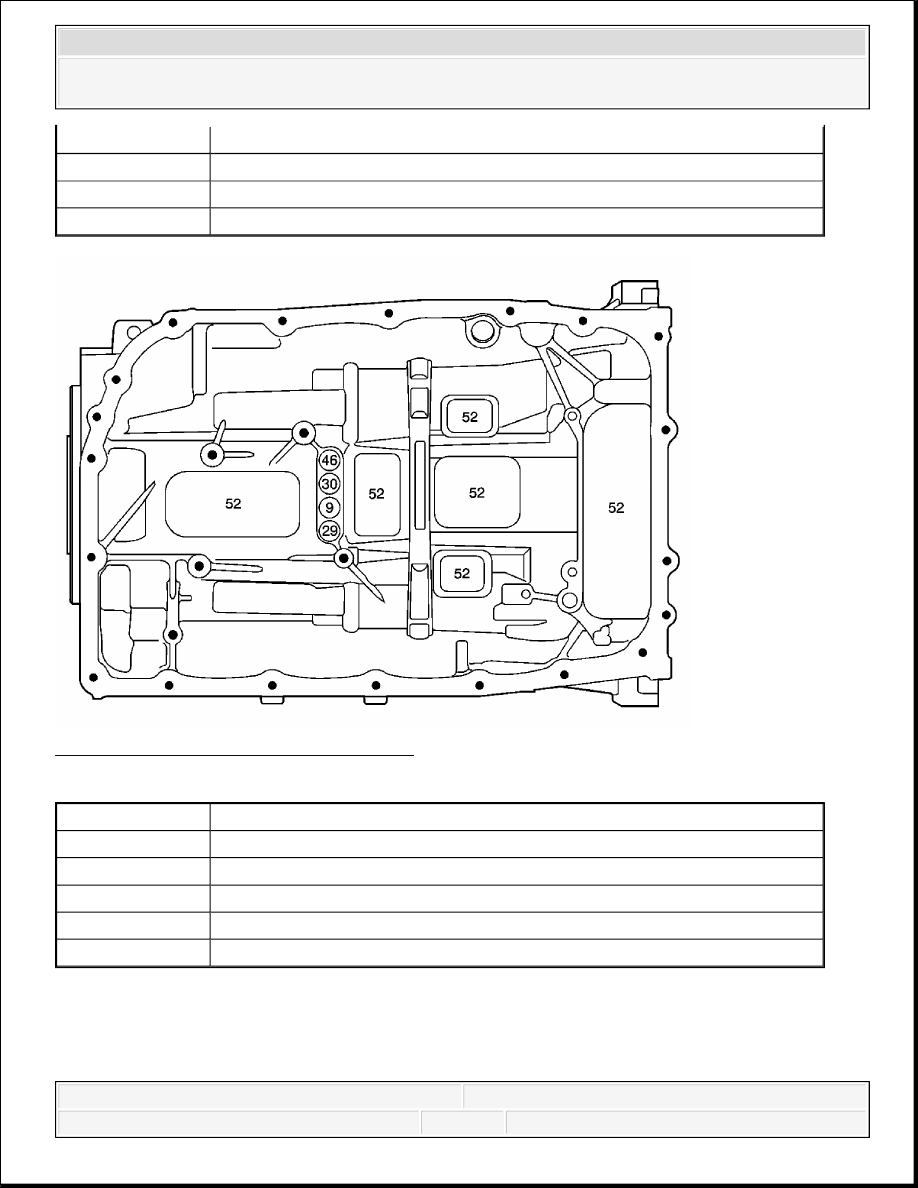

Fig. 220: Case - Top Channel Plate Side
Courtesy of GENERAL MOTORS CORP.
49
PSC Line
51
Exhaust
52
empty
55
Ventilate
Callout
Component Name
9
Center Lube
29
CBR1
30
CBR
46
26 Clutch
52
Void
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

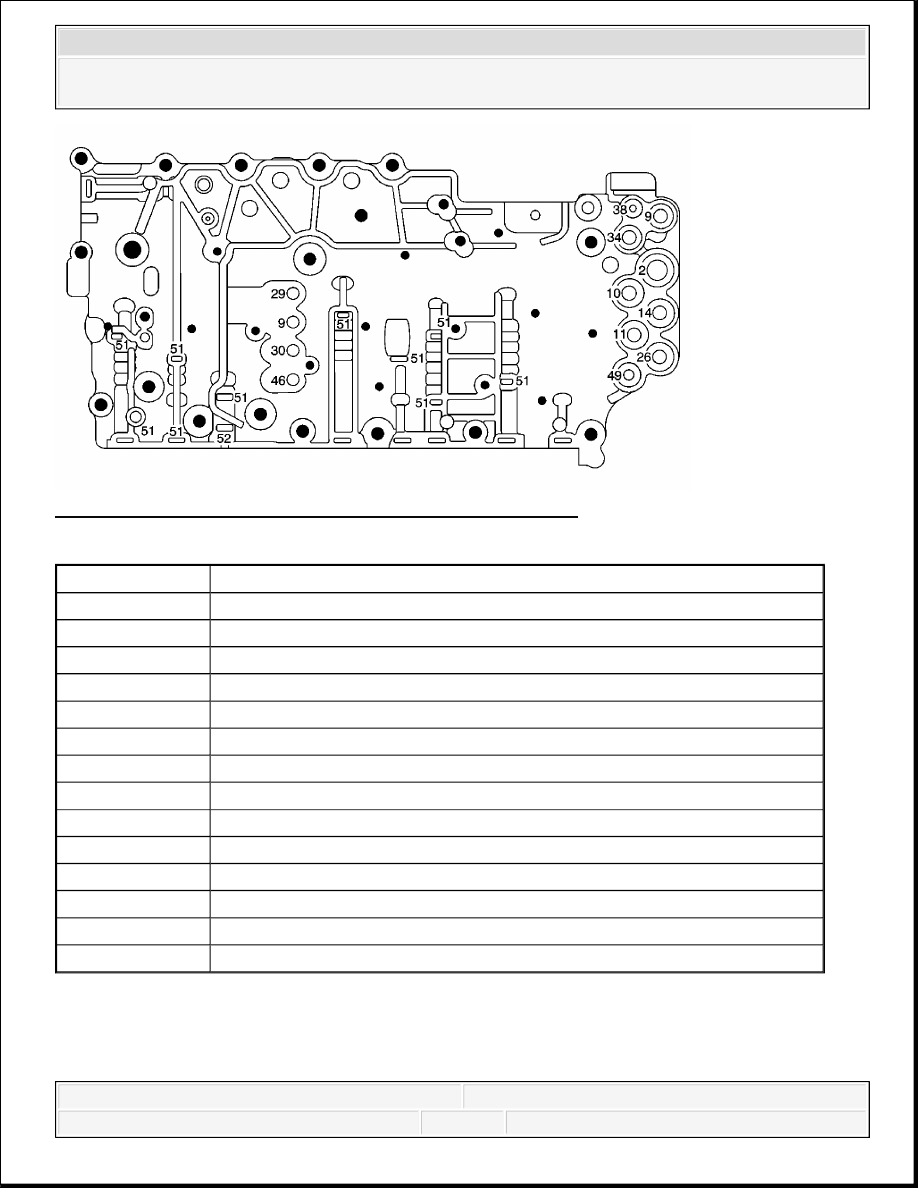

Fig. 221: Control Valve Upper Body Assembly - Case Side
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
2
Line
9
Center Lube
10
Regulator Apply
11
Compensator Feed
14
3-5 Reverse Clutch
26
1-2-3-4 Clutch
29
CBR1
30
CBR
34
4-5-6 Clutch
38
PCS TCC
46
2-6 Clutch
49
PCS Line
51
Exhaust
52
empty
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
