2-6 CLUTCH APPLIES
CB26 Pressure Control Solenoid 4
The CB26 pressure control solenoid 4 is commanded ON, allowing actuator feed fluid to enter
the PCS 26 clutch fluid circuit. PCS 26 fluid is routed through orifice #44 and then to the 2-6
clutch regulator gain valve.
2-6 Clutch Regulator Gain Valve
The 2-6 clutch regulator gain valve allows the gain (valve input to output pressure magnification
factor) of the 2-6 clutch regulator valve to be different for a 1-2 shift verses a 5-6 shift. For a 5-6
shift PCS 26 clutch fluid pressure passes through the hollow valve and only acts on the 26
regulator valve area, resulting in the "low gain" pressure output.
2-6 Clutch Regulator Valve
PCS 26 clutch fluid moves the 2-6 clutch regulator/gain valve assembly against the 2-6 clutch
regulator valve spring force to allow 26 clutch/1234 clutch feed fluid to pass through the valve.
The 26 clutch/1234 clutch feed fluid is routed into the 26 clutch fluid circuit where it passes
through orifice #41 and then to the spring end of the 2-6 clutch regulator valve, and to the 2-6
clutch within the center support.
2-6 Clutch
The 26 clutch fluid from the 2-6 clutch regulator valve is routed through the center support and to
the 2-6 clutch piston assembly. The 26 clutch fluid pressure moves the piston against 2-6 clutch
spring force to apply the 2-6 clutch plates.
3-5 CLUTCH RELEASES
C35R Pressure Control Solenoid 2
The C35R pressure control solenoid 2 is commanded OFF, allowing PCS 35 reverse clutch fluid
from the 3-5 reverse clutch boost valve and the 3-5 reverse clutch regulator valve to exhaust
through the solenoid.
3-5 Reverse Clutch Boost Valve
The 3-5 reverse boost valve spring force moves the valve to allow 35 reverse clutch feedback
fluid from the 3-5 reverse clutch regulator valve to enter the 35 reverse clutch circuit and exhaust.
3-5 Reverse Clutch Regulator Valve
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
The 3-5 reverse clutch regulator valve spring force moves the valve to allow 35 reverse clutch
fluid from the 3-5 reverse clutch to pass through the valve and enter the exhaust backfill fluid
circuit. The 35 reverse clutch fluid then enters the exhaust backfill fluid circuit and is routed
through orifice #30 to the exhaust backfill pressure relief valve where excess pressure is
exhausted.
3-5 Reverse Clutch
The 3-5 reverse clutch spring force combined with force from the compensator move the 3-5
reverse clutch piston to release the 3-5 clutch plates and forces 35 reverse clutch fluid to exhaust
from 1-2-3-4 and 3-5 reverse clutch housing. The 35 reverse clutch fluid is then routed to the 3-5
reverse clutch regulator valve where it enters the exhaust backfill circuit.

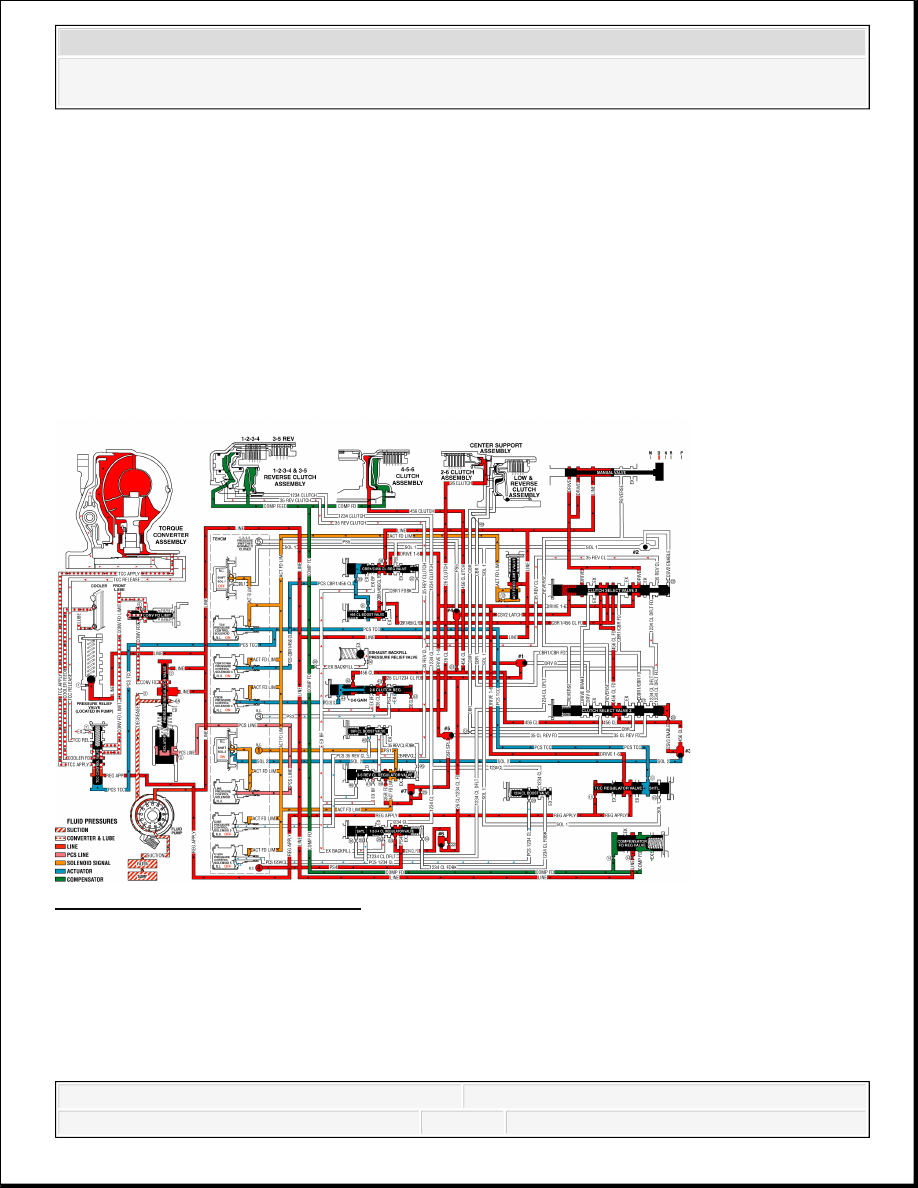

Fig. 216: Drive Range, Sixth Gear
Courtesy of GENERAL MOTORS CORP.
FLUID PASSAGES
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

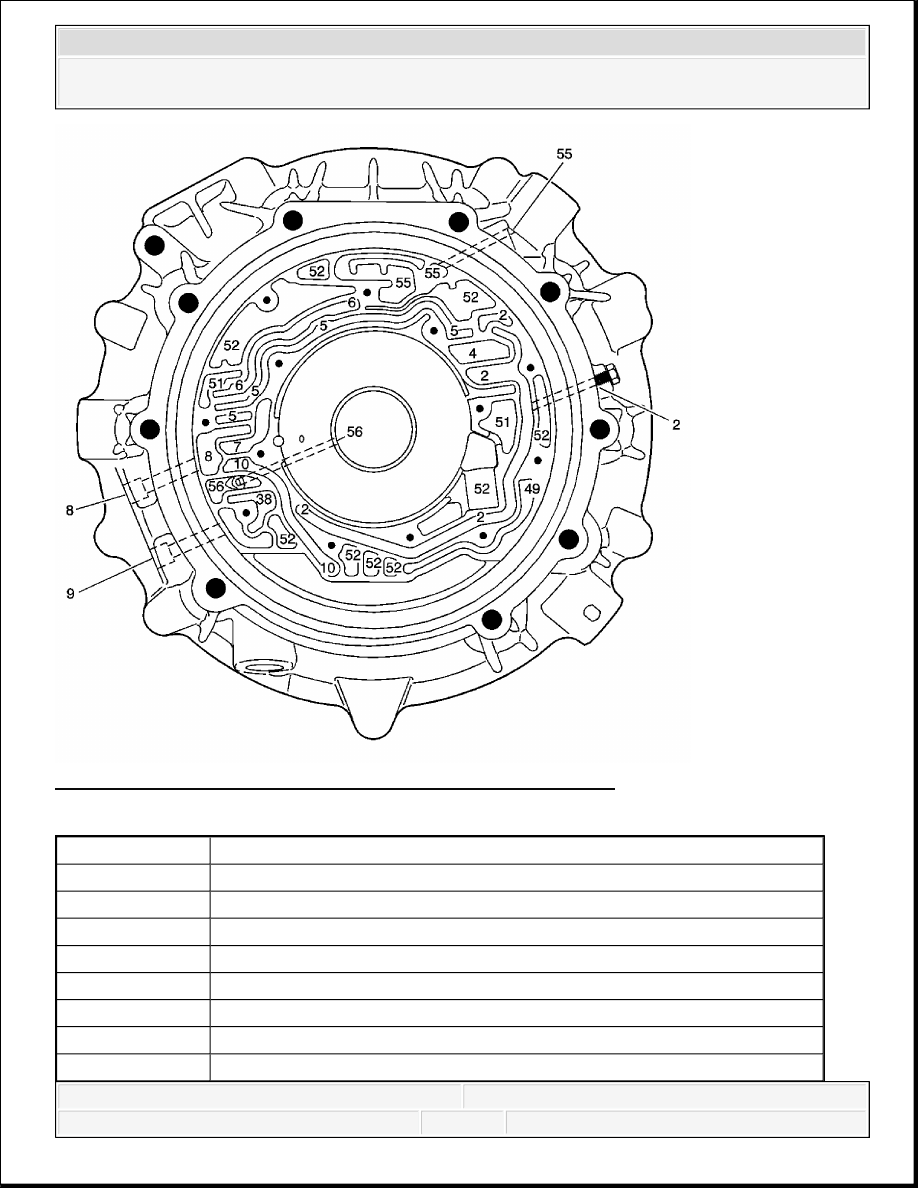

Fig. 217: Torque Converter Housing - Fluid Pump Cover Side
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
2
Line
4
Converter Feed
5
Converter Feed Limit
6
TCC Release
7
TCC Apply
8
Cooler Feed
9
Center Lube
10
Regulator Apply
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

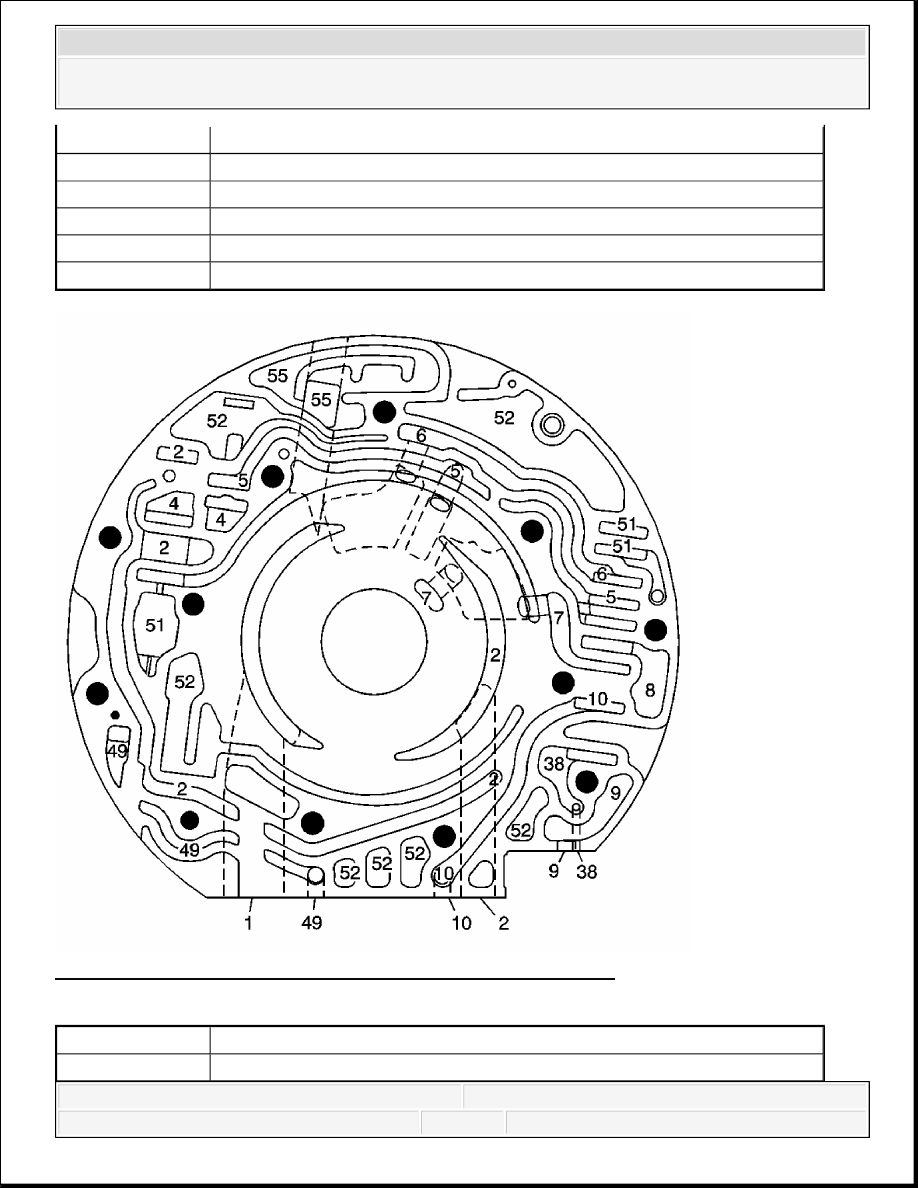

Fig. 218: Fluid Pump Cover - Torque Converter Housing Side
Courtesy of GENERAL MOTORS CORP.
38
PCS TCC
49
PCS Line
51
Exhaust
52
Void
55
Vent
56
Torque Converter Seal Drainback
Callout
Component Name
1
Suction
