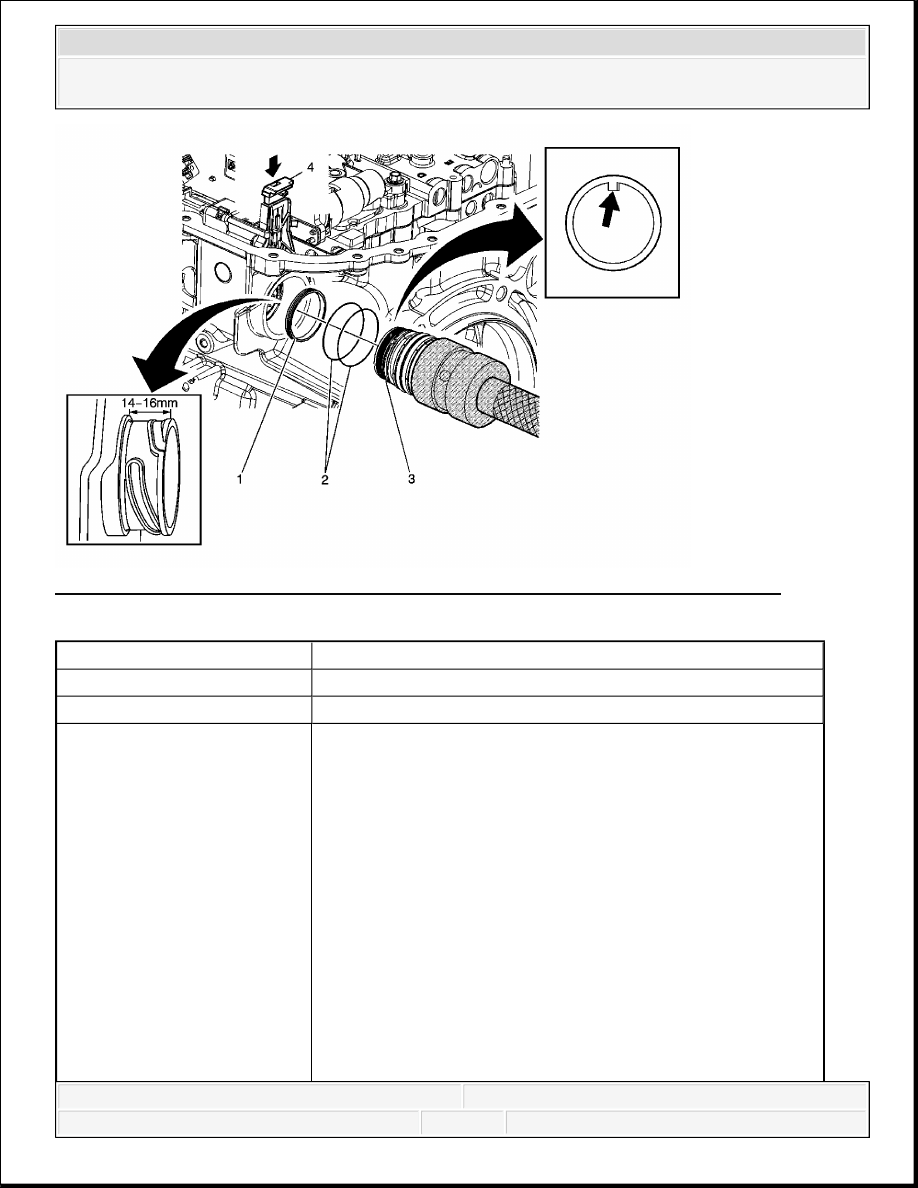

Fig. 194: Installing Automatic Transmission Electrical Connector Passage Sleeve
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
NEW Lip Seal
2
NEW O-Ring Seals (Qty: 2)
3
Electrical Connector Passage Sleeve
Specification: 14-16 mm
Special Tools
NOTE:
Orientate the alignment tab inside the passage sleeve with the
slot in the electrical connector of the control solenoid valve
assembly. Push the sleeve straight into the case bore and
connector. Do NOT rotate the sleeve at any time. Ensure the
sleeve is fully seated into the case. When the sleeve is properly
installed, the distance from the case surface to the end of the
sleeve should be 14-16 mm. Even though the correct electrical
connections may still be maintained, failure to ensure proper
installation of the sleeve may result in a fluid leak around the
sleeve lip seal and into the sleeve cavity.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
FLUID FILTER AND MANUAL SHIFT DETENT ASSEMBLY INSTALLATION

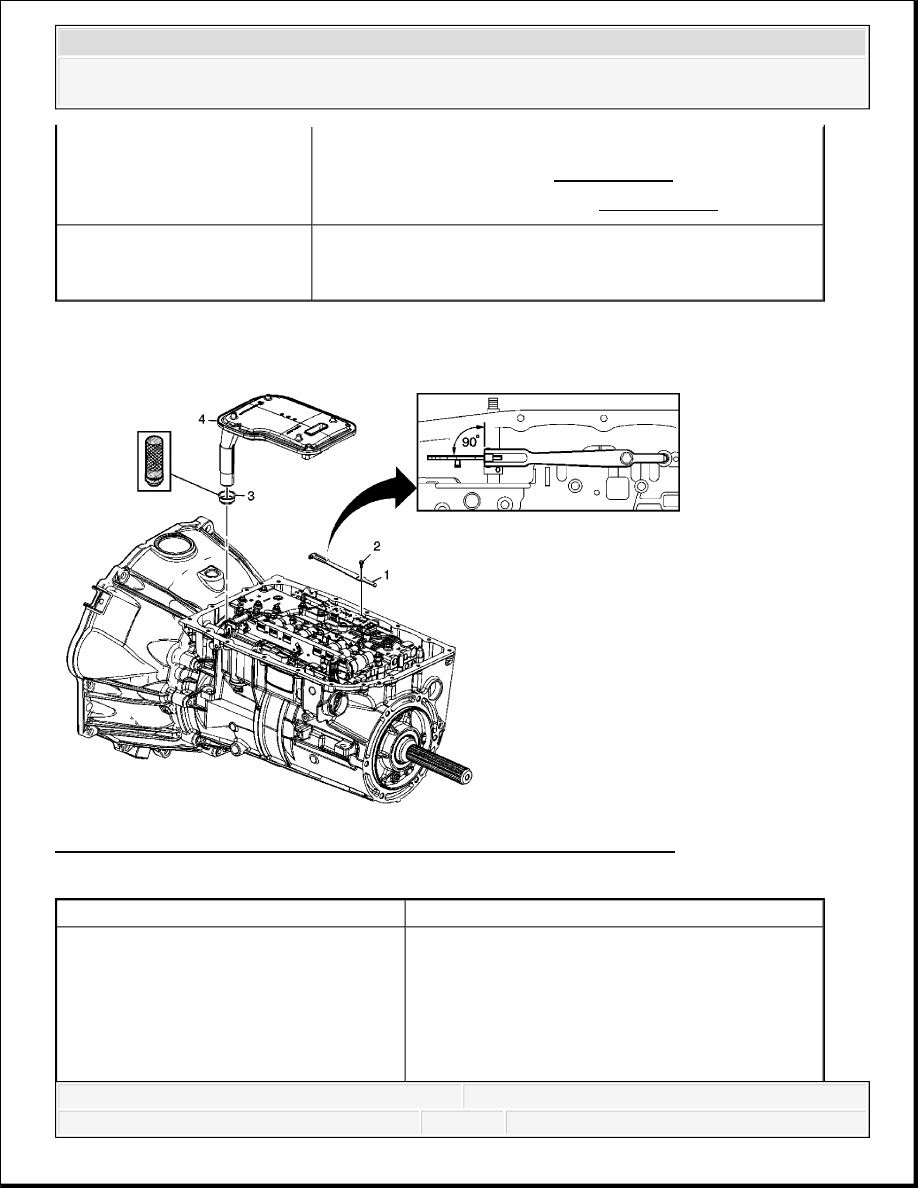

Fig. 195: Fluid Filter and Manual Shift Detent Assembly Installation
Courtesy of GENERAL MOTORS CORP.
DT 47715 Electrical Connector Passage Sleeve
Remover/Installer. See Special Tools.
J 42183 Driver Handle. See Special Tools.
4
Electrical Connector Slide Lock
Tip: Push down on the electrical connector slide lock to
ensure proper installation.
Callout
Component Name
1
Manual Shaft Detent Assembly
NOTE:
Ensure the manual shaft detent assembly roller is
centered over the manual shaft detent lever assembly.
Failure to center the roller may cause hard or no shift
lever operation.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
TRANSMISSION FLUID PAN INSTALLATION (6L80)

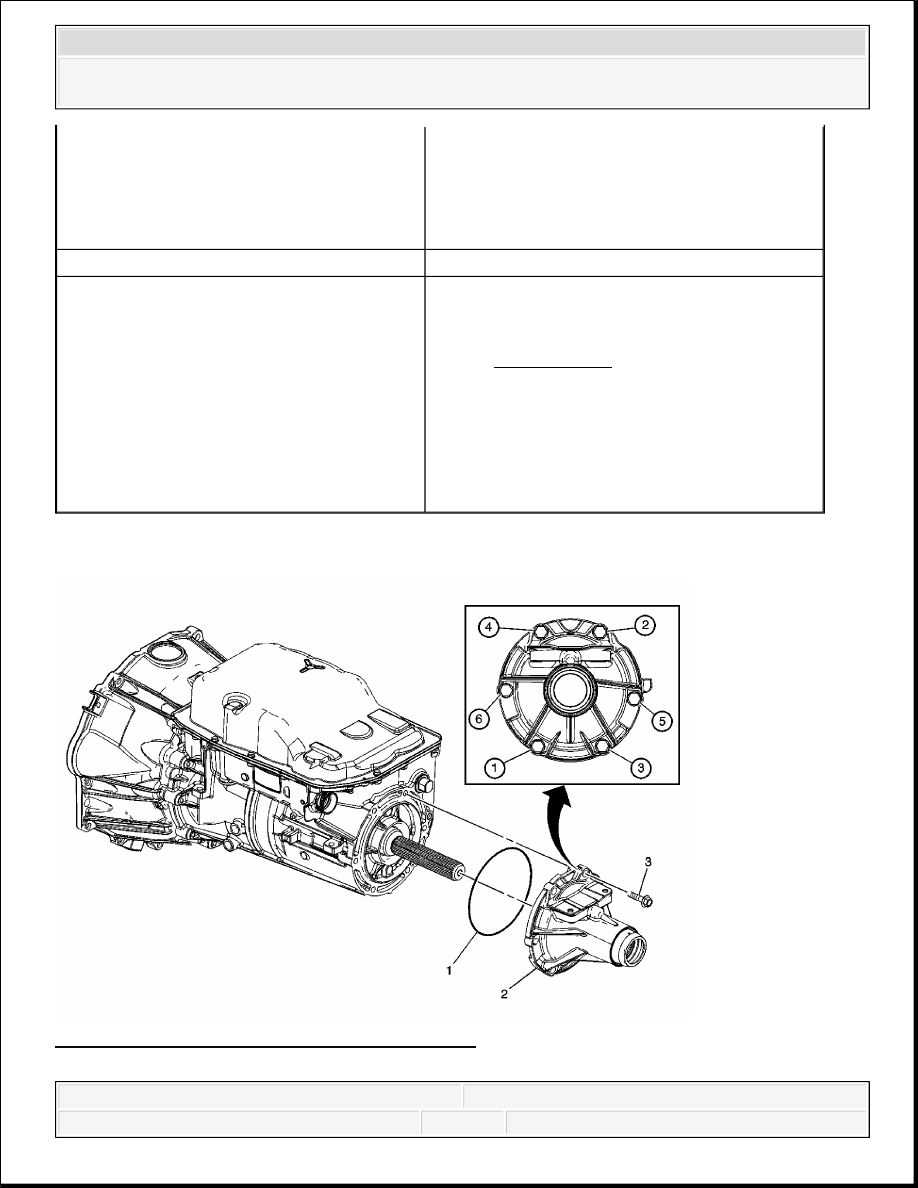

Fig. 196: Transmission Fluid Pan Installation (6L80)
Courtesy of GENERAL MOTORS CORP.
2
Bolt M6 x 14.5
Tighten: 12 N.m (106 lb in).
NOTE:
Refer to Fastener Notice .
3
NEW Fluid Filter Seal Assembly
Special Tools
DT 47848 Seal Installer. See Special
Tools.
J 42183 Driver Handle. See Special Tools.
4
NEW Fluid Filter Assembly
Callout
Component Name
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
CASE EXTENSION ASSEMBLY INSTALLATION

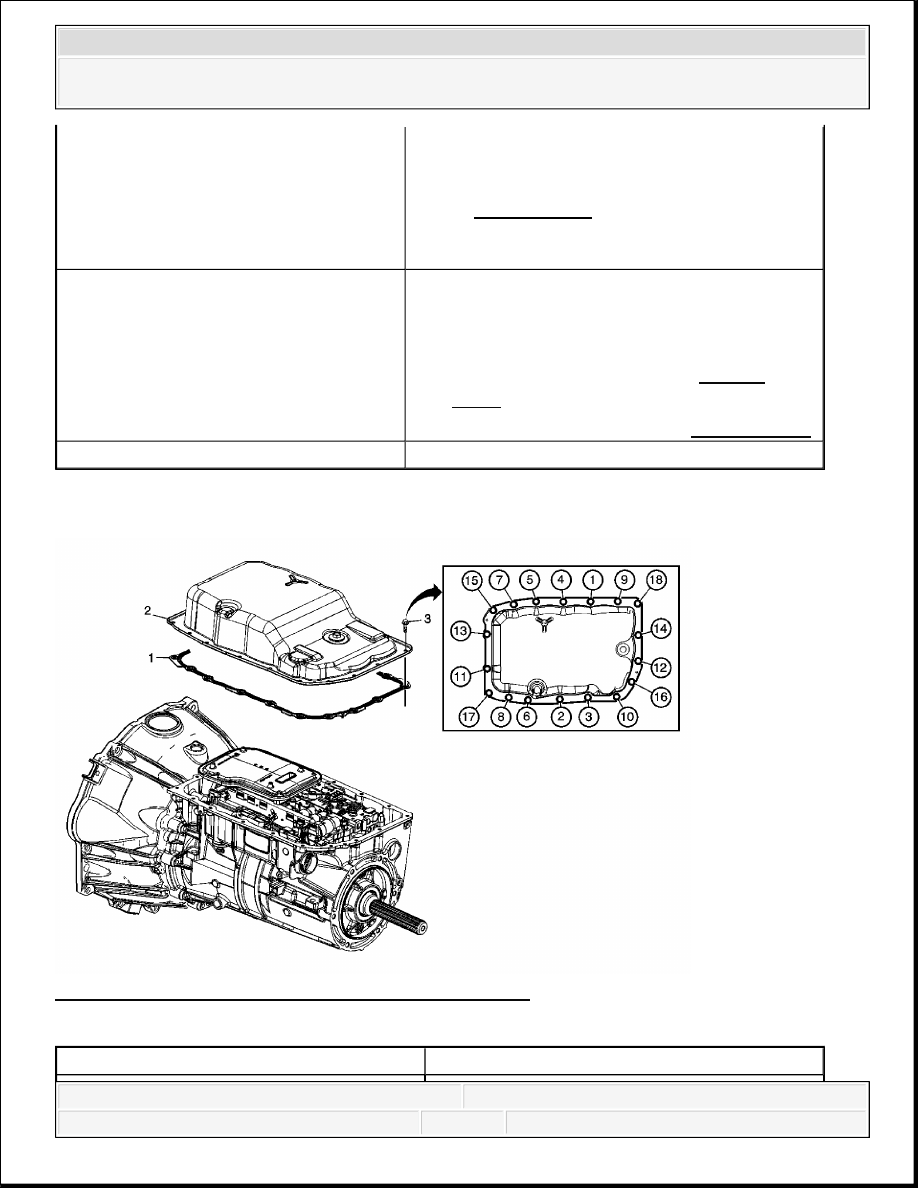

Fig. 197: Case Extension Assembly Installation
Courtesy of GENERAL MOTORS CORP.
1
Fluid Pan Gasket
Tip: The fluid pan gasket is reusable. Inspect
the gasket to determine if it may be reused. If
the gasket is stuck to the case or pan, it should
be replaced.
2
Fluid Pan Assembly
3
Fluid Pan Bolts M6 x 20 (Qty: 18)
Procedure:
Tighten in sequence shown.
Tighten: 9 N.m (80 lb in)
NOTE:
Refer to Fastener Notice .
