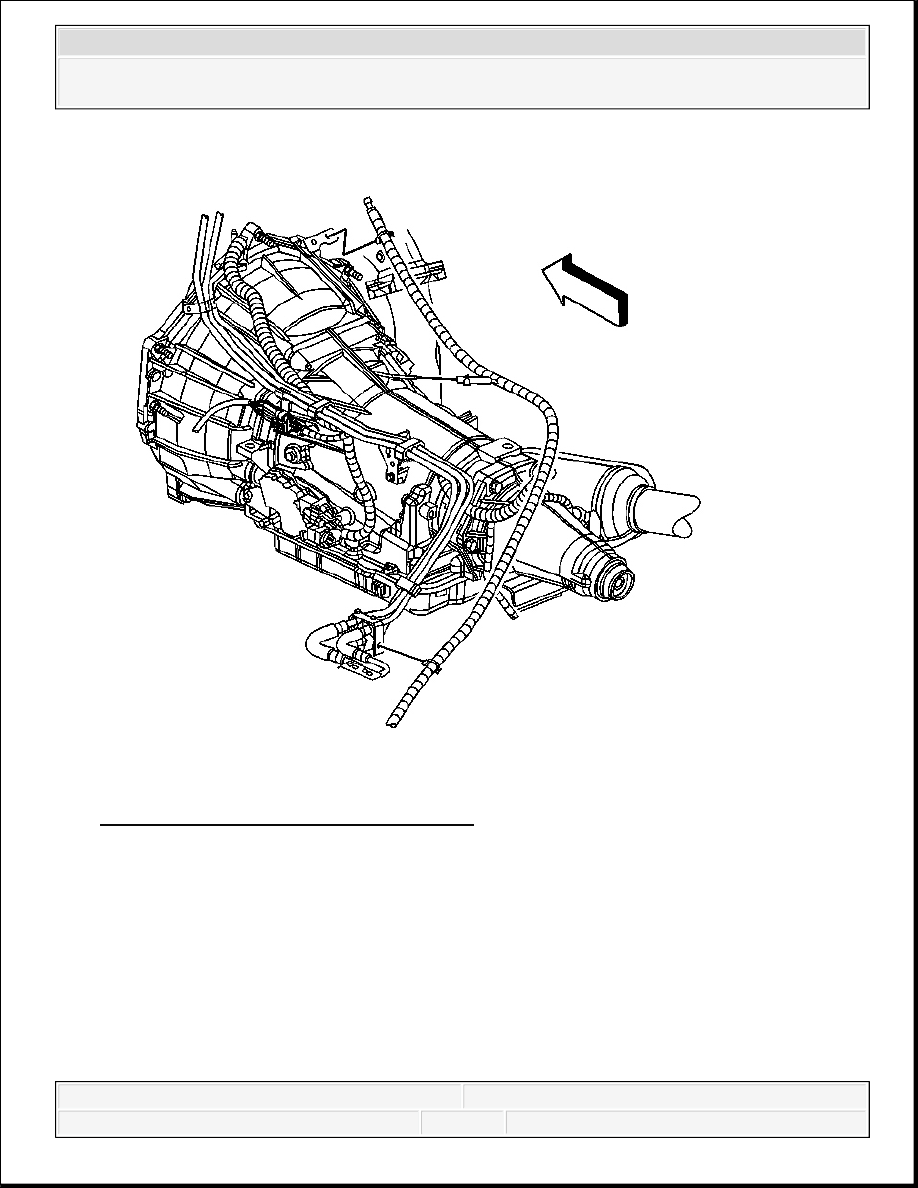

Fig. 97: View Of Transmission Vent Hose
Courtesy of GENERAL MOTORS CORP.
7. Connect the transmission vent hose.
8. Install the wire harness to the transmission.
9. Connect the transmission electrical connector to the transmission.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

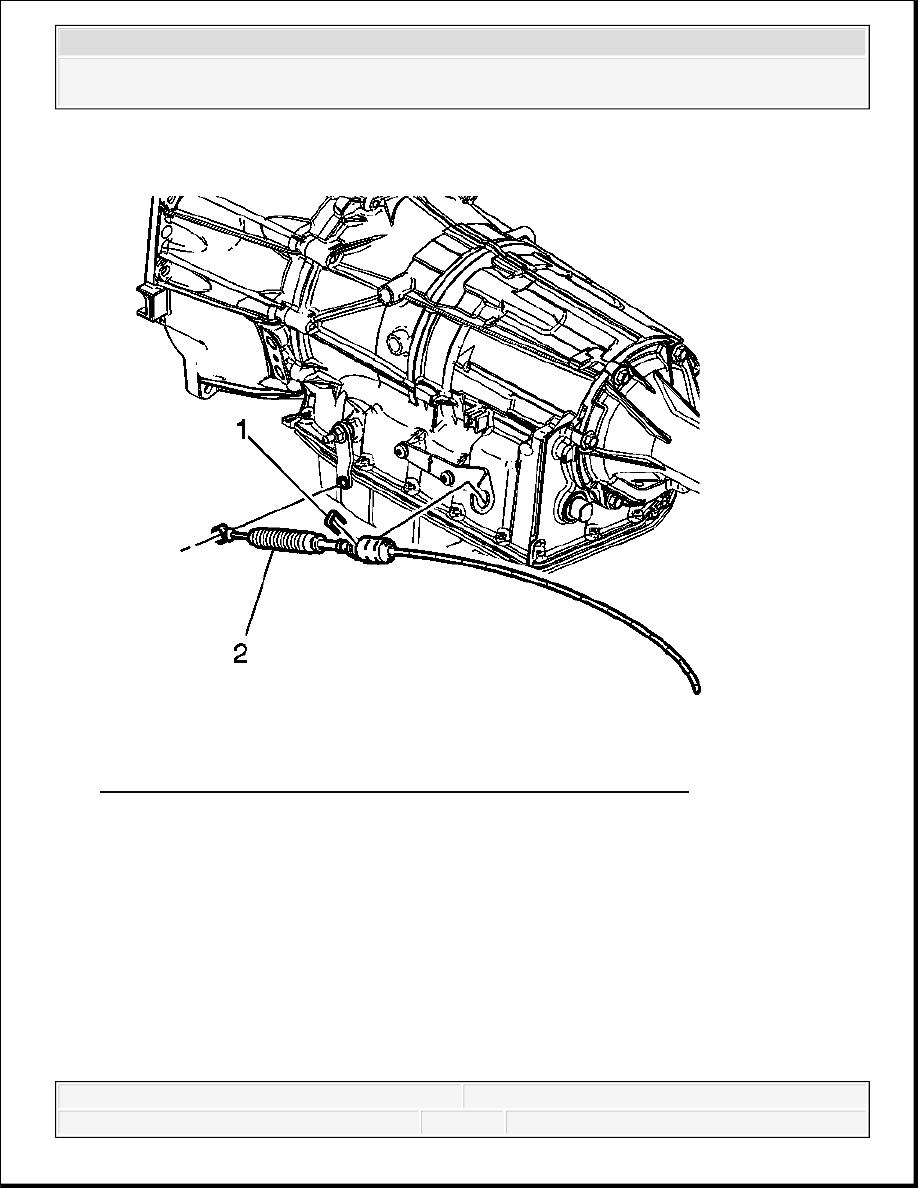

Fig. 98: View Of Range Selector Cable & Cable Bracket Retainer
Courtesy of GENERAL MOTORS CORP.
10. Install the range selector cable (2) to the range selector cable bracket and the range selector
lever ball stud.
11. Install the range selector cable retaining clip (1) to the transmission range selector cable.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

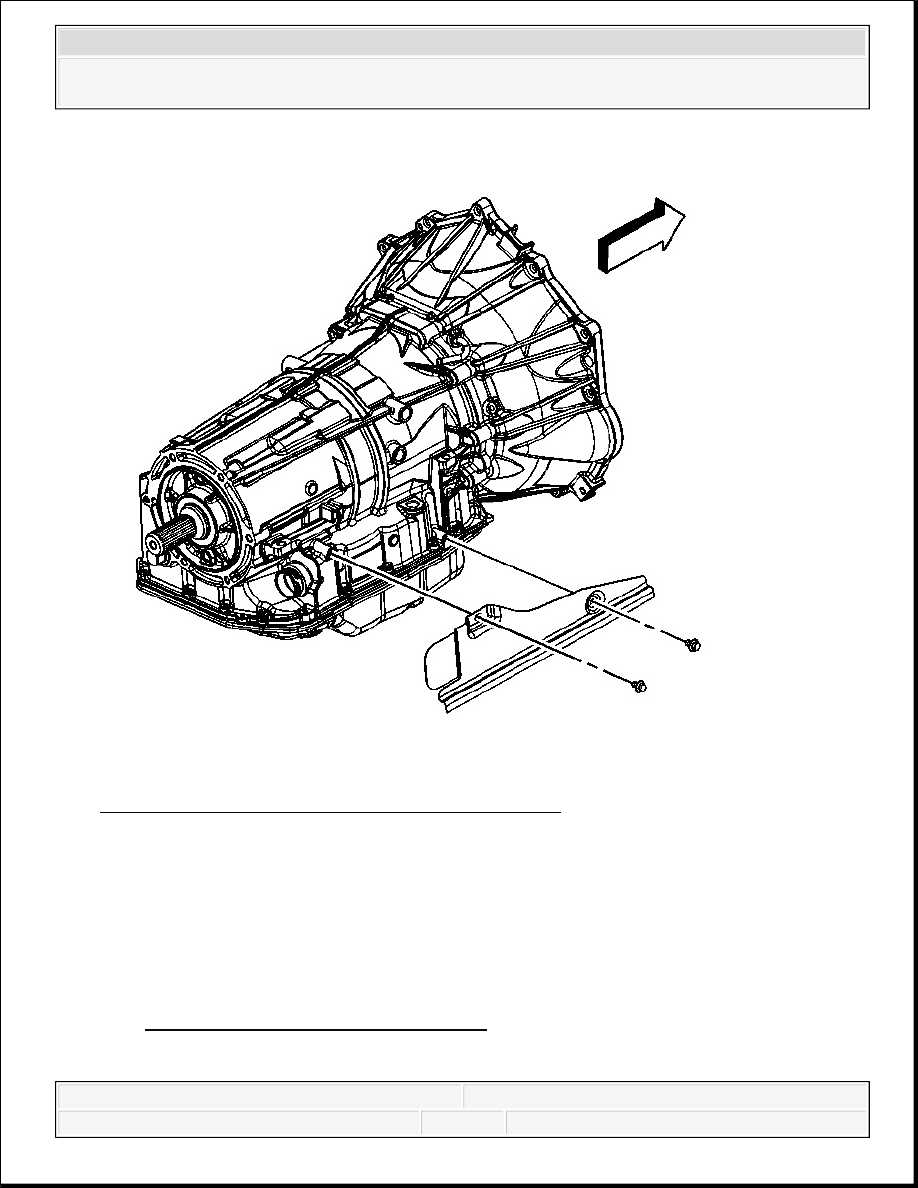

Fig. 99: View Of Transmission Heat Shield & Bolts
Courtesy of GENERAL MOTORS CORP.
12. Install the transmission heat shield.
13. Install the 2 bolts securing the heat shield to the transmission.
Tighten: Tighten the bolts to 17 N.m (13 lb ft).
14. Install the transfer case, if equipped. Refer to the appropriate procedure:
Transfer Case Assembly Replacement for the MP 1222/1225/1226-NQG transfer
case.
Transfer Case Assembly Replacement for the MP 1625/1626-NQF transfer case.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
Transfer Case Assembly Replacement for the MP 3023/3024-NQH transfer case.

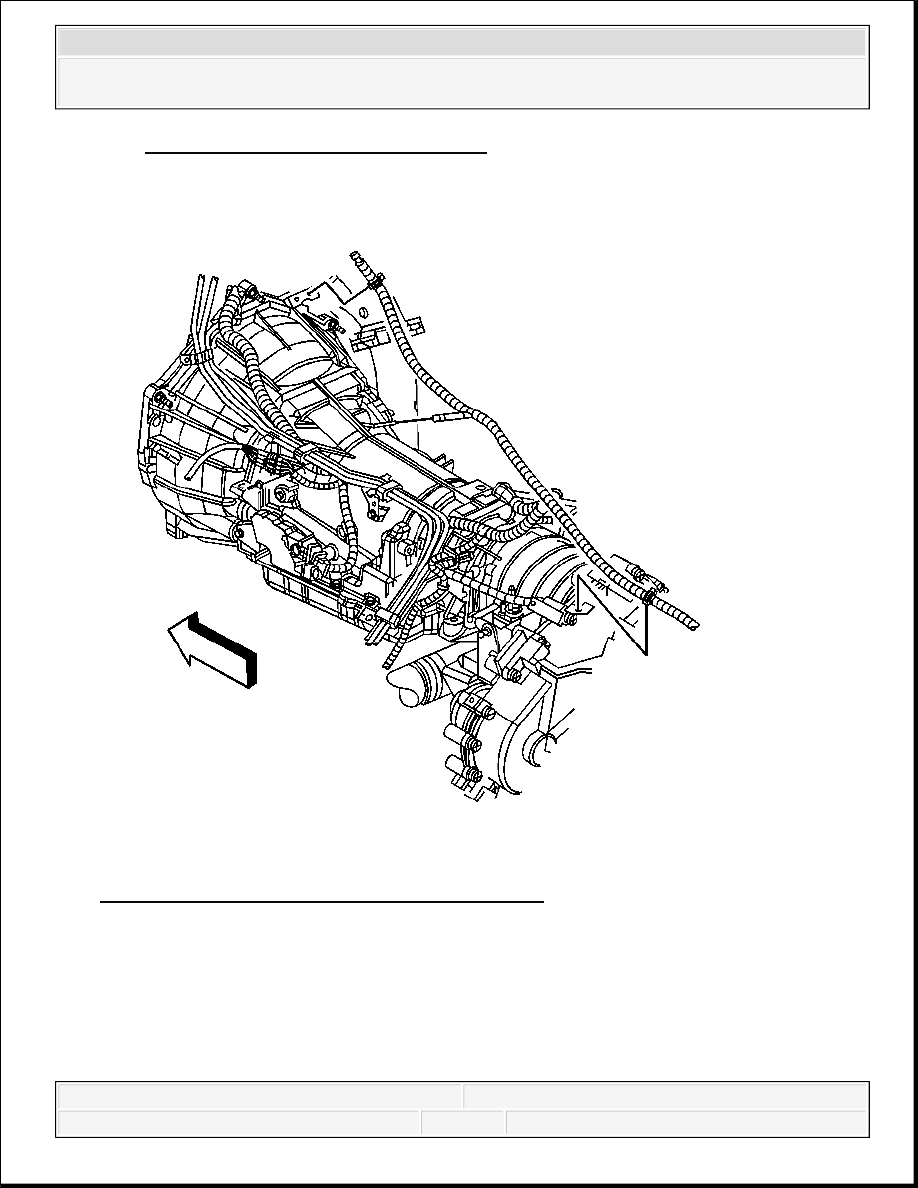

Fig. 100: View Of Transfer Case Vent Tube Hose
Courtesy of GENERAL MOTORS CORP.
15. Connect the vent hose and electrical connectors to the transfer case, if equipped.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
