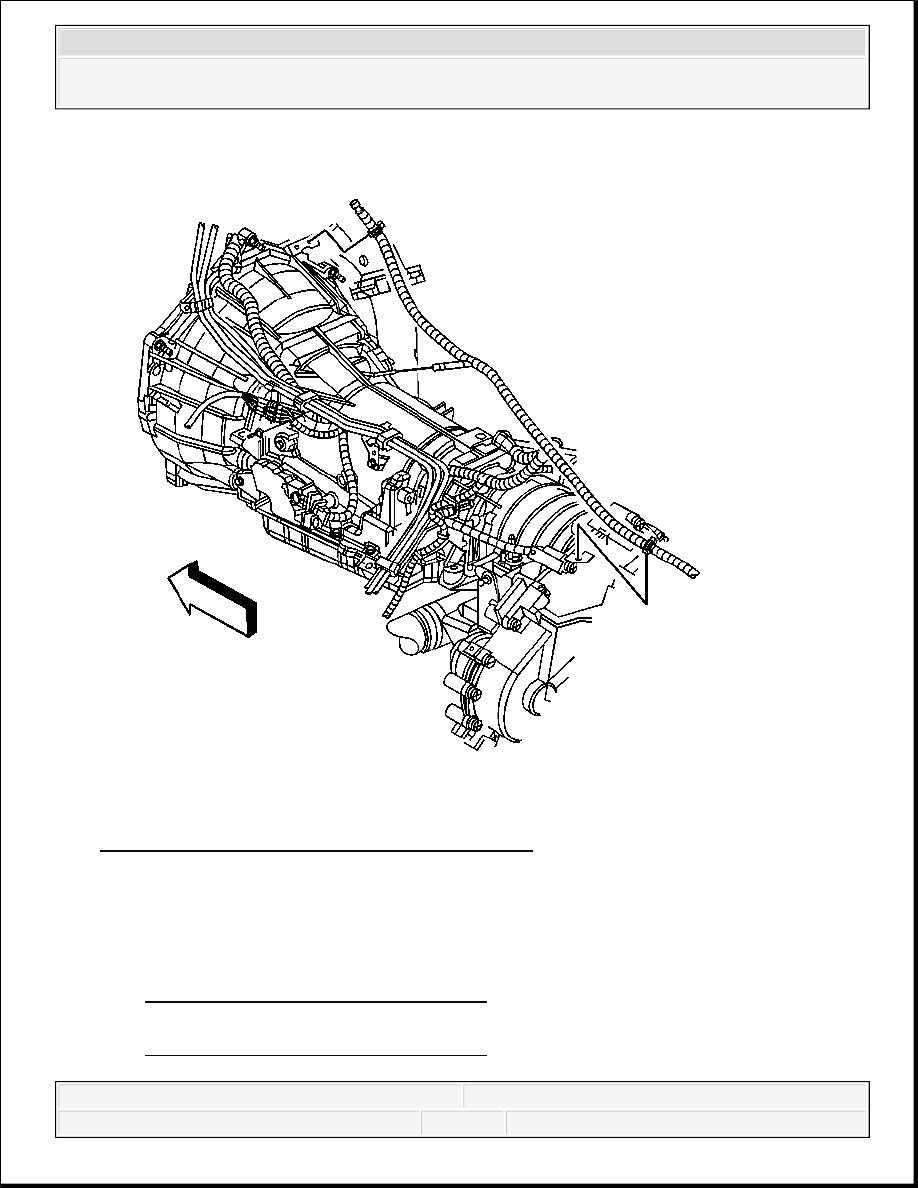

Fig. 89: View Of Transfer Case Vent Tube Hose
Courtesy of GENERAL MOTORS CORP.
15. Disconnect the vent tube hose and the electrical connections from the transfer case, if
equipped.
16. Remove the transfer case, if equipped. Refer to the appropriate procedure:
Transfer Case Assembly Replacement for the MP 1222/1225/1226-NQG transfer
case.
Transfer Case Assembly Replacement for the MP 1625/1626-NQF transfer case.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
Transfer Case Assembly Replacement for the MP 3023/3024-NQH transfer case.

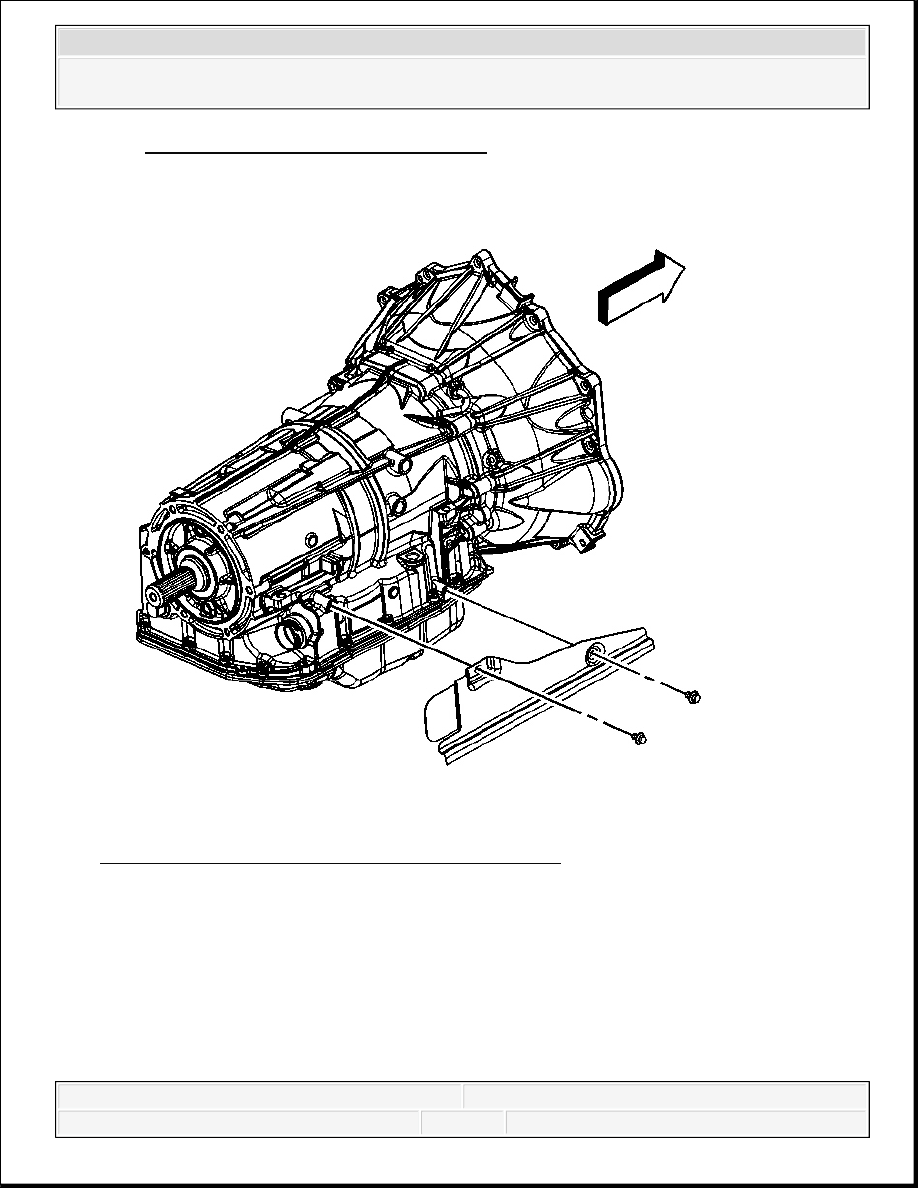

Fig. 90: View Of Transmission Heat Shield & Bolts
Courtesy of GENERAL MOTORS CORP.
17. Remove the 2 bolts securing the heat shield to the transmission.
18. Remove the transmission heat shield.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

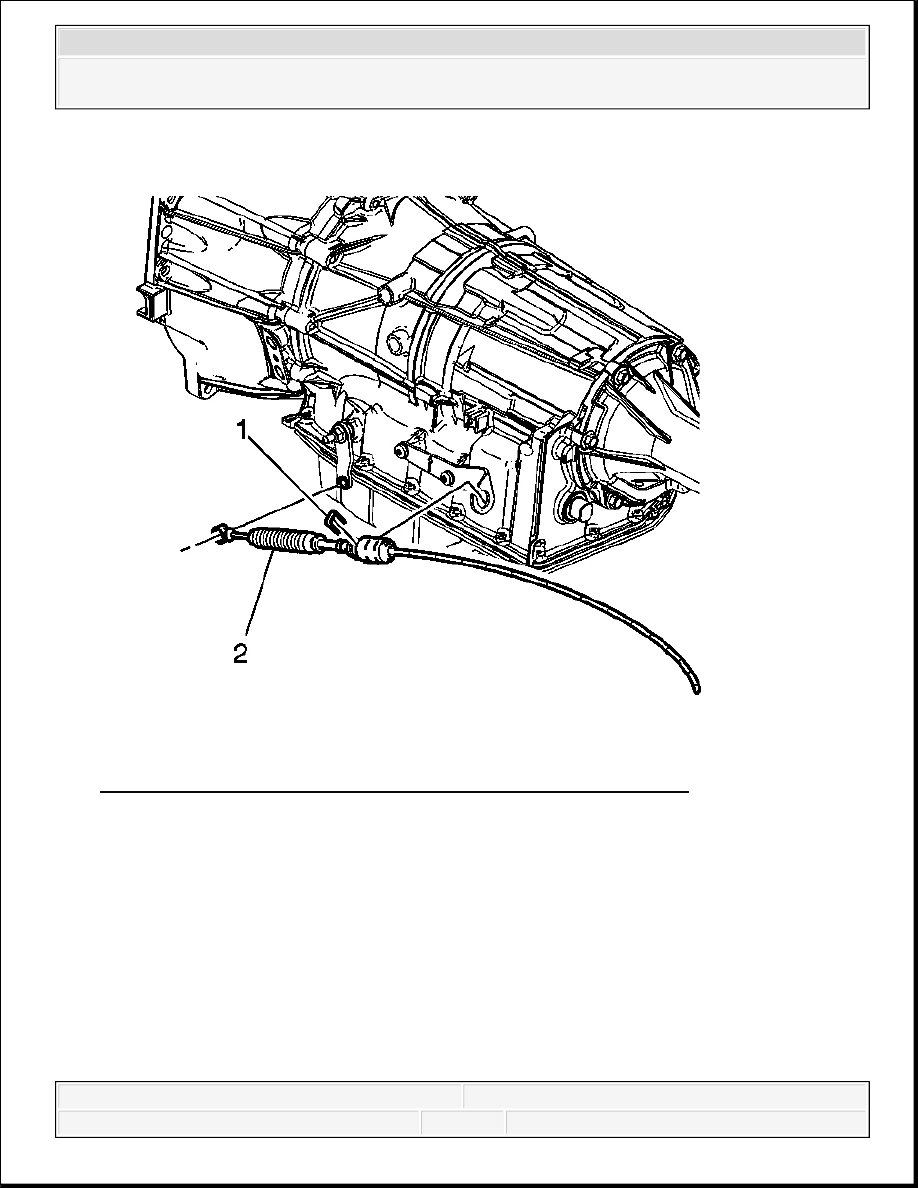

Fig. 91: View Of Range Selector Cable & Cable Bracket Retainer
Courtesy of GENERAL MOTORS CORP.
19. Remove the range selector cable retaining clip (1) from the transmission range selector
cable.
20. Remove the range selector cable (2) from the range selector lever ball stud and the range
selector cable bracket.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

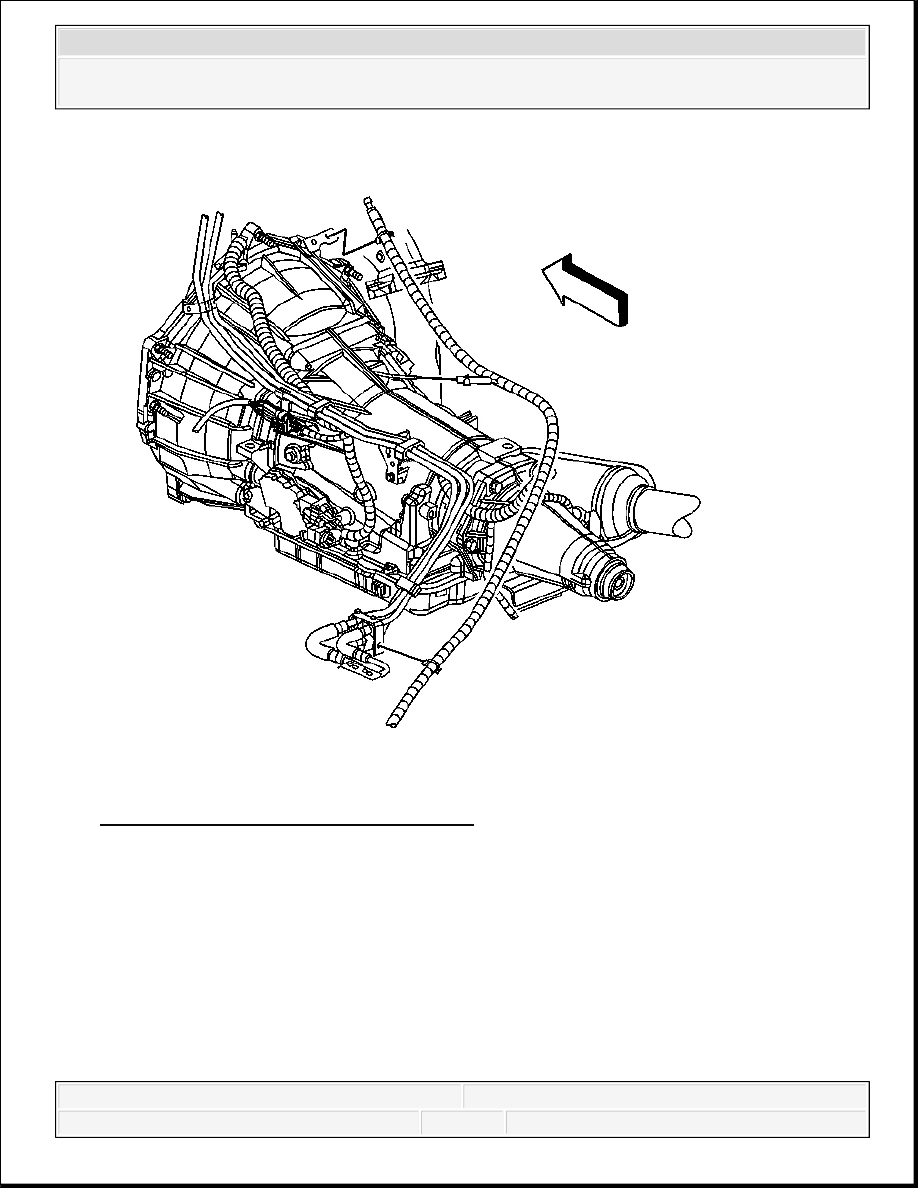

Fig. 92: View Of Transmission Vent Hose
Courtesy of GENERAL MOTORS CORP.
21. Disconnect the transmission vent hose.
22. Disconnect the transmission electrical connector from the transmission.
23. Remove the wire harness from the transmission.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 6L50/6L80/6L90 - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
