Fig. 68: View Of Water Pump Inlet Pipe
Courtesy of GENERAL MOTORS CORP.
4. Install the water pump inlet pipe.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 69: View Of Turbocharger Coolant Outlet Hose & Clamps
Courtesy of GENERAL MOTORS CORP.
5. Install the turbocharger coolant outlet hose and clamps.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 70: View Of Water Pump Inlet Pipe Bolts
Courtesy of GENERAL MOTORS CORP.
6. Install the water pump inlet pipe bolts.
Tighten: Tighten the water pump inlet pipe bolts to 25 N.m (18 lb ft).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

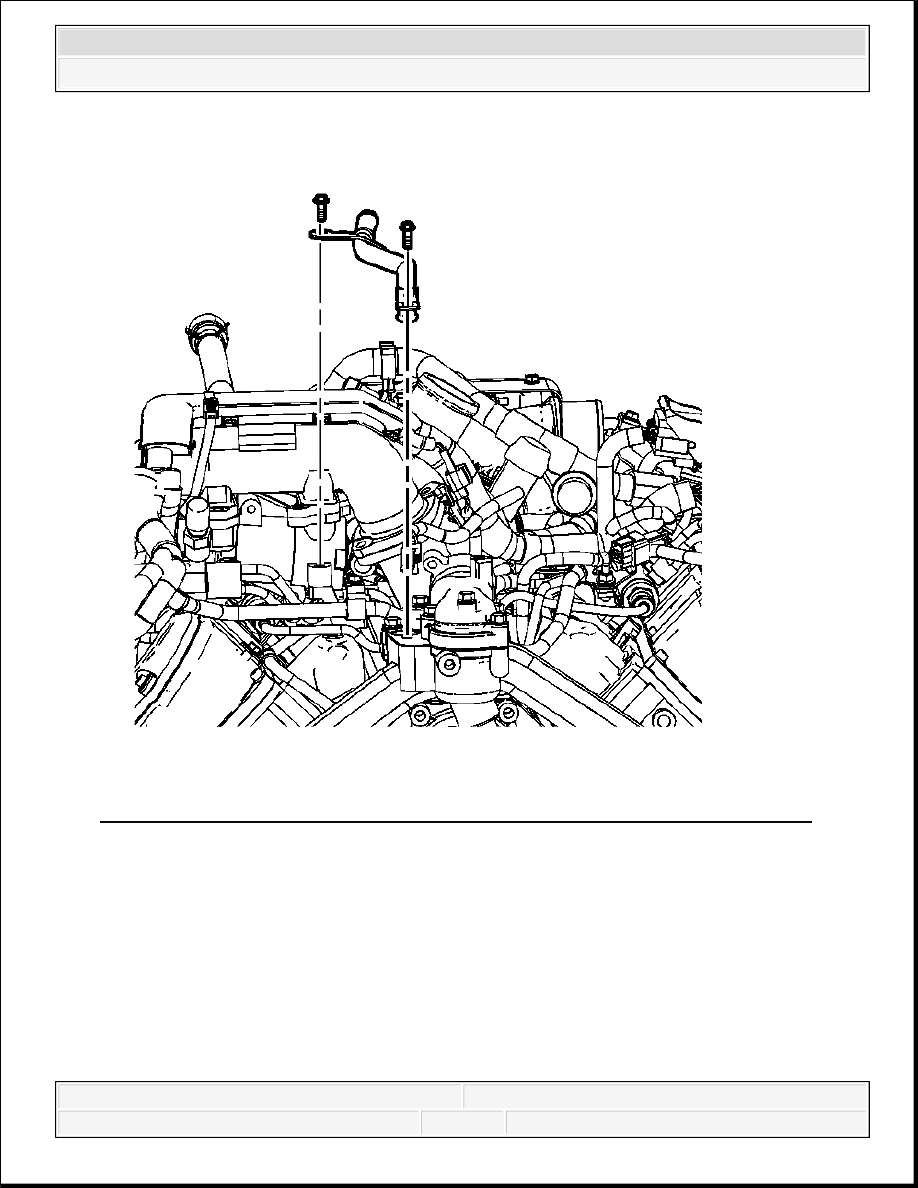

Fig. 71: View Of Exhaust Gas Recirculation (EGR) Coolant Pipe, Hose & Bolts
Courtesy of GENERAL MOTORS CORP.
7. Install the EGR coolant pipe.
8. Install the EGR coolant pipe bolts.
Tighten: Tighten the EGR coolant pipe bolts to 25 N.m (18 lb ft).
