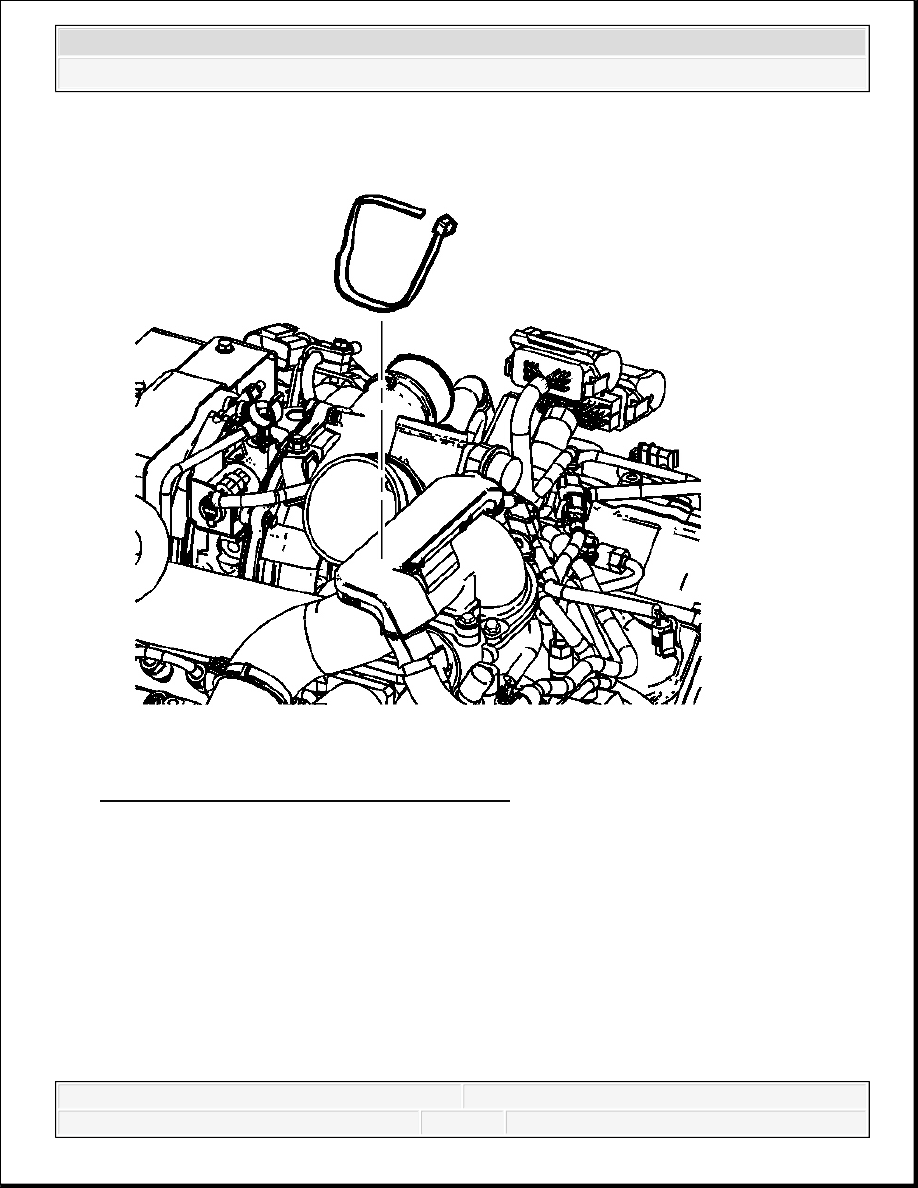

Fig. 56: View Of Electrical Harness Tie Strap
Courtesy of GENERAL MOTORS CORP.
17. Install the tie strap to the electrical harness.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

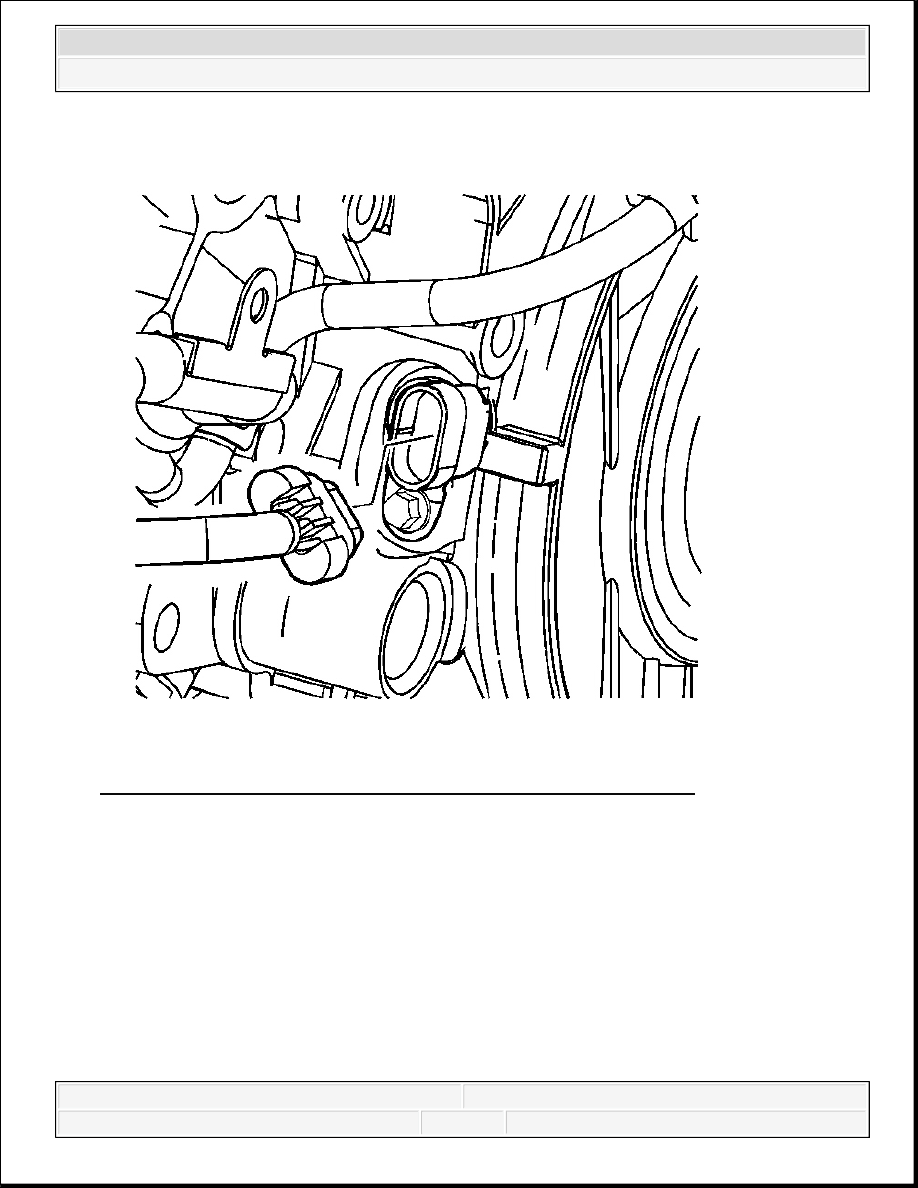

Fig. 57: View Of Crankshaft Position Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
18. Connect the crankshaft position sensor electrical connector.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

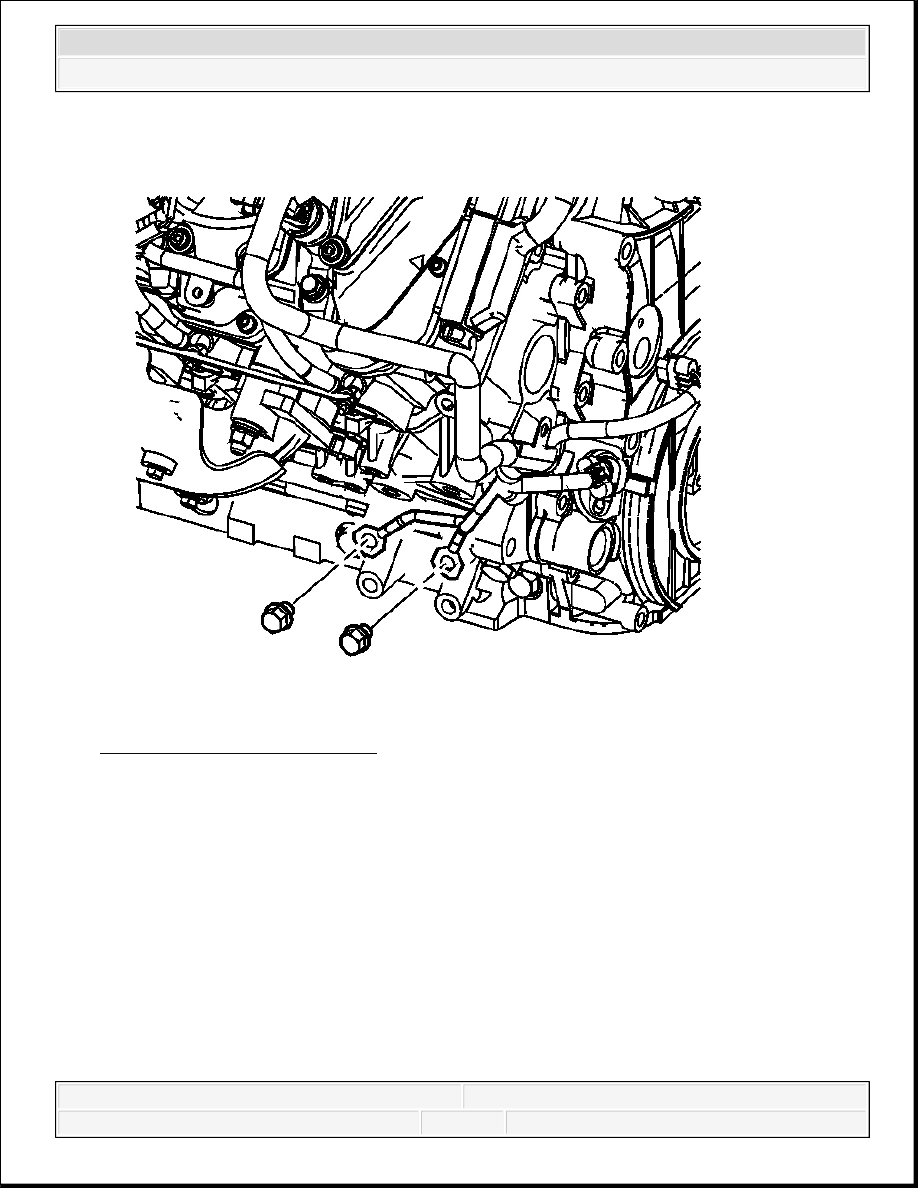

Fig. 58: View Of Ground Bolts
Courtesy of GENERAL MOTORS CORP.
19. Install the two ground bolts.
Tighten: Tighten the ground bolts to 41 N.m (30 lb ft).
