Chevrolet Silverado / GMC Sierra. Manual - part 631
Fig. 52: View Of Glow Plug Controller Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
13. Connect the glow plug controller electrical connector.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

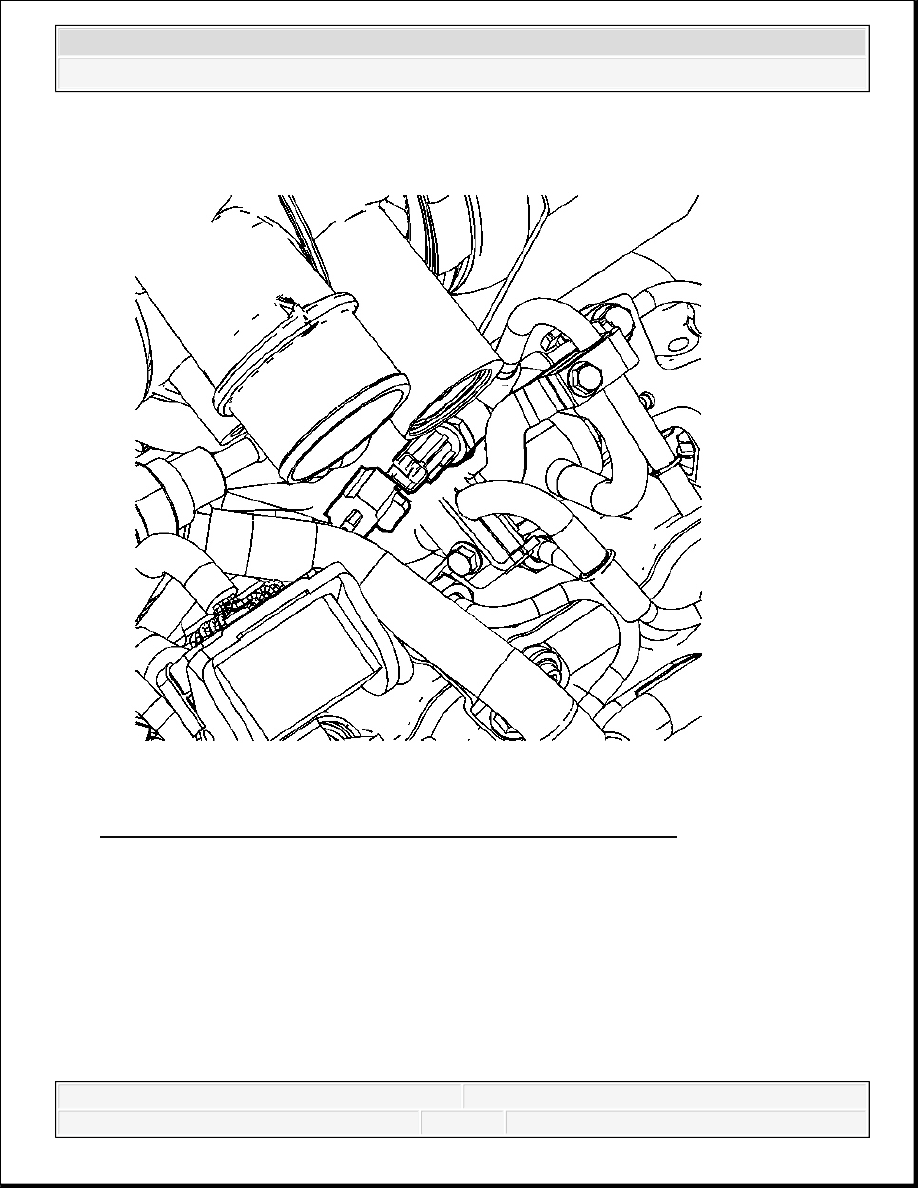

Fig. 53: View Of Fuel Temperature Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
14. Connect the fuel temperature sensor connector.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

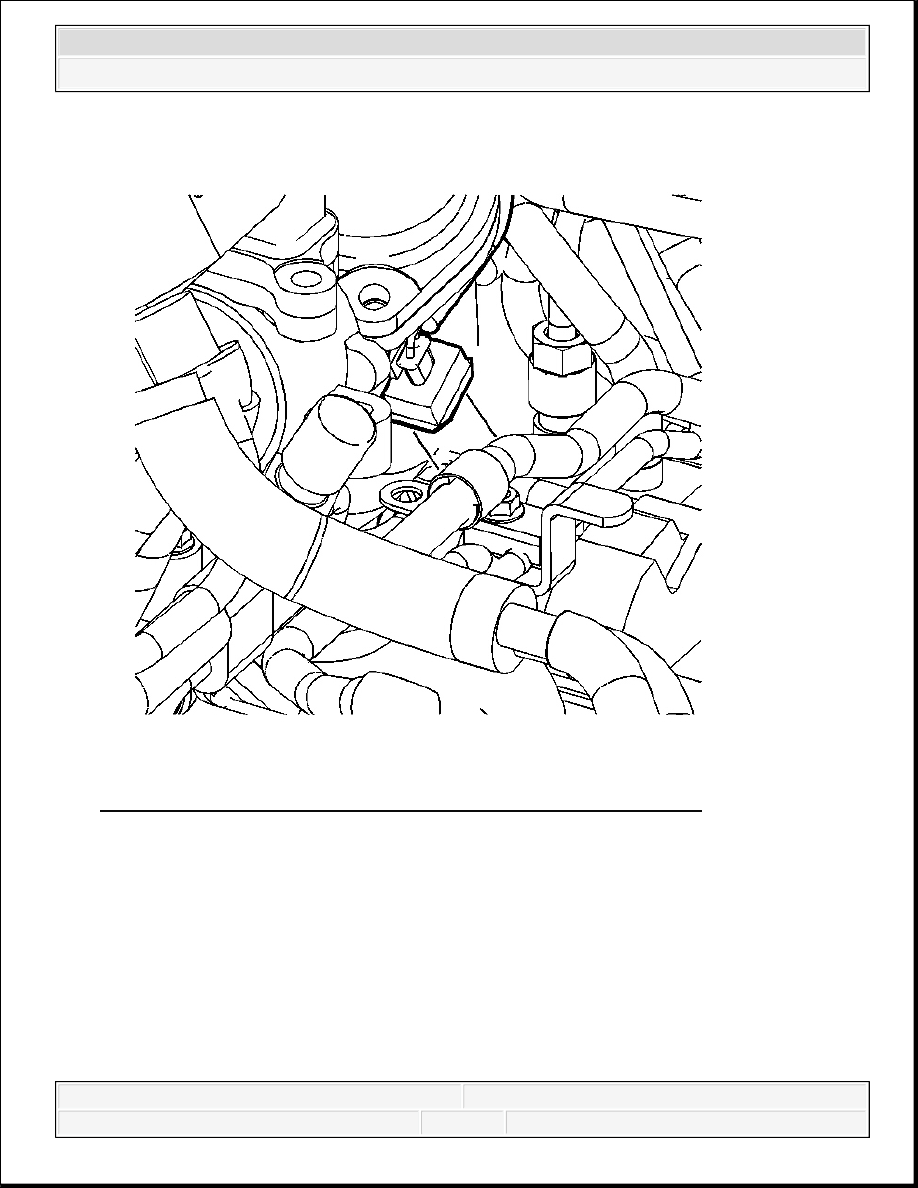

Fig. 54: View Of Oil Level Sensor Electrical Harness Connector
Courtesy of GENERAL MOTORS CORP.
15. Connect the oil level sensor electrical harness connector.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

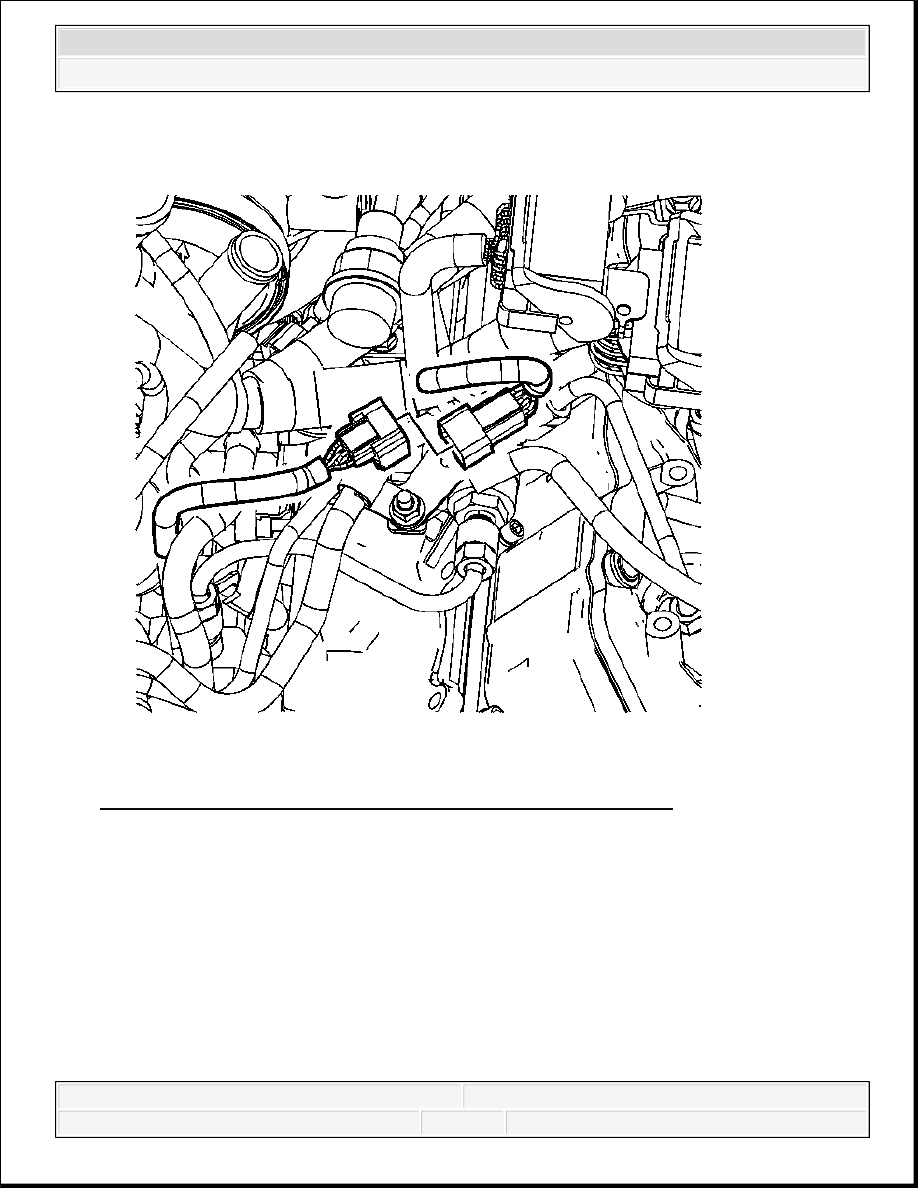

Fig. 55: View Of Fuel Pressure Control Valve Electrical Connector
Courtesy of GENERAL MOTORS CORP.
16. Connect the fuel pressure control valve electrical connector.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
